Woodford Parts Listing
for freezeless faucets


PlumbingSupply.com® offers an extensive selection of replacement and repair parts for Woodford yard, wall, utility and sanitary yard hydrants, as well as freezeless lawn and garden faucets. Woodford also offers close coupled wall faucets for warm areas not prone to freezing.

Woodford Parts: 10,000 Series

plunger 1010510105

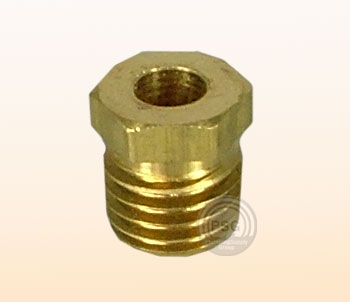

packing nut10100
valve body 1001810018

Part # Description Used With Model # Price & Quantity
10004 Hose Nozzle, 3/4" Y34, Y1, W34, X34 $13.73 Enter a quantity and
10007 Hose Nozzle, 1" Y34, Y1, W34, X34 $35.17 Enter a quantity and
10008 Lever Y34, Y1 $42.51 Enter a quantity and
10009 Link, Upper Y34, Y1 $11.38 Enter a quantity and
10011 Coupling Y34, Y1, Y2, W34 $9.52 Enter a quantity and
10015 Pin Y34, Y1, Y2 $2.69 Enter a quantity and
10016 Washer Y34, Y1, Y2 $3.00 Enter a quantity and
10018 Valve Body W34, X34, Y30, Y34, Y70, Y95 $44.47 Enter a quantity and
10020 Bolt Y34, Y1, Y2 $3.60 Enter a quantity and
10021 Bolt Y34, Y1, Y2 $4.31 Enter a quantity and
10100 Packing Nut Y34, Y1, Y2, W34 $8.00 Enter a quantity and
10101 Packing Y34, Y1, Y2, W34 $3.03 Enter a quantity and
10102 Washer Y34, Y1, Y2, W34 $4.19 Enter a quantity and
10103 Rod Stem 6" (old style) Y34, Y1 $5.63 Enter a quantity and
10104 Rod Stem 3 5/8" (new style) Y34, Y1, Y2, W34 $3.45 Enter a quantity and

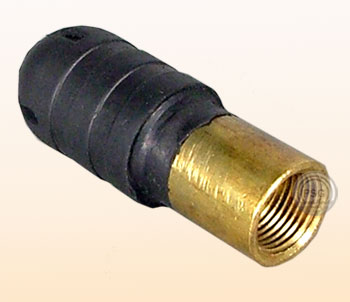

10105 Plunger Y30, Y34, Y70, Y95, W34 $15.08 Enter a quantity and
10106 Plunger Y1, Y2 $18.90 Enter a quantity and

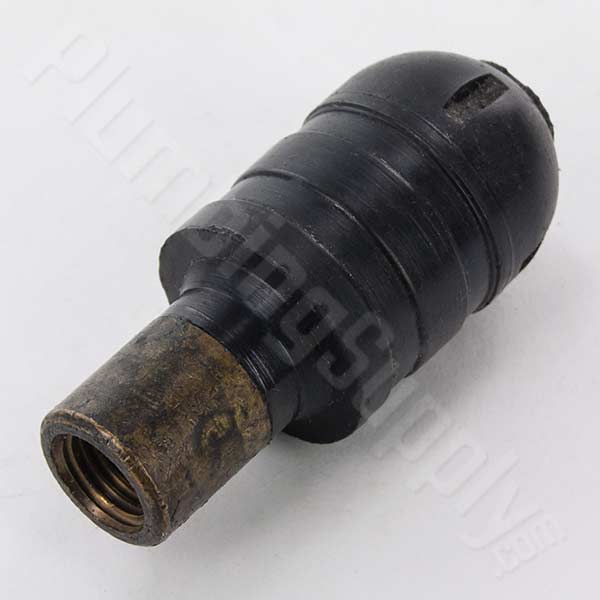

10107 Plunger, 7/16-20 Thread X34 $4.23 Enter a quantity and

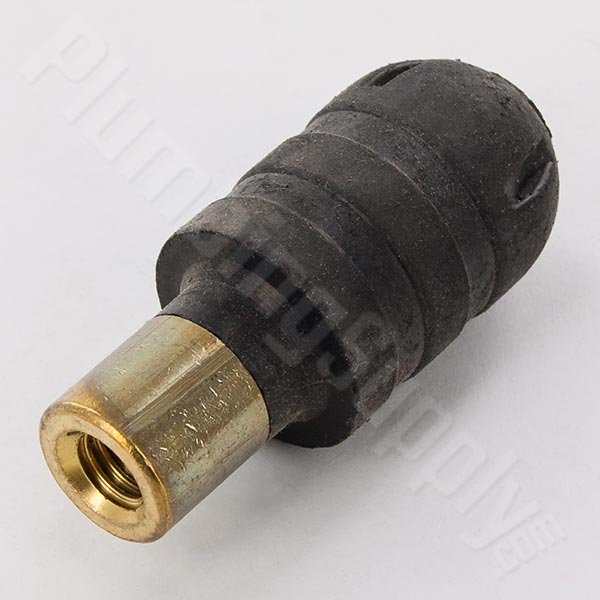

10108 Plunger, 3/8-16 Thread X34 - Blue Head $13.43 Enter a quantity and
10109 Yoke Nut Y30, Y70, Y95 $28.02 Enter a quantity and
10144 Link (one only) W34, X34 $13.04 Enter a quantity and
10146 Link Spacer W34, X34 $4.33 Enter a quantity and
10206 Hex Nut Y34, Y1, W34, X34 $3.35 Enter a quantity and
10630 Oval Handle - brown, aluminum Y30, RHMC $16.04 Enter a quantity and

Woodford Parts: 15,000, 30,000 & 30,100 Series

wheel handle30233

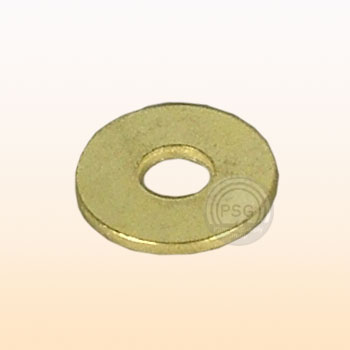

packing support washer30006
handle 3009630096

Part # Description Used With Model # Price & Quantity
15001 Head Assembly Y1 $157.31 Enter a quantity and
15002 Head & Nozzle Y1 $103.70 Enter a quantity and
15003 Head Assembly Y34 $144.80 Enter a quantity and
15004 Head & Nozzle Y34 $88.05 Enter a quantity and
15007 Link, Lower Y34, Y1 $9.63 Enter a quantity and

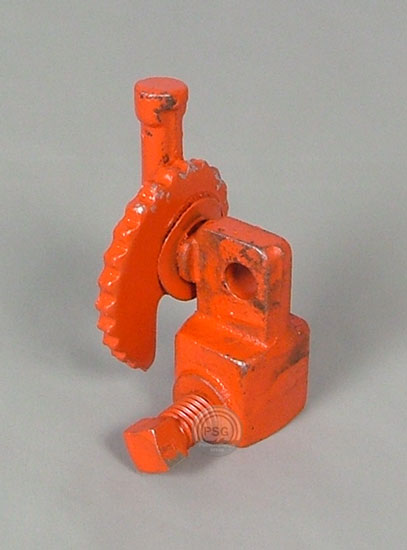

15008 Cam and Clevis Assembly Y34, Y1 $29.51 Enter a quantity and

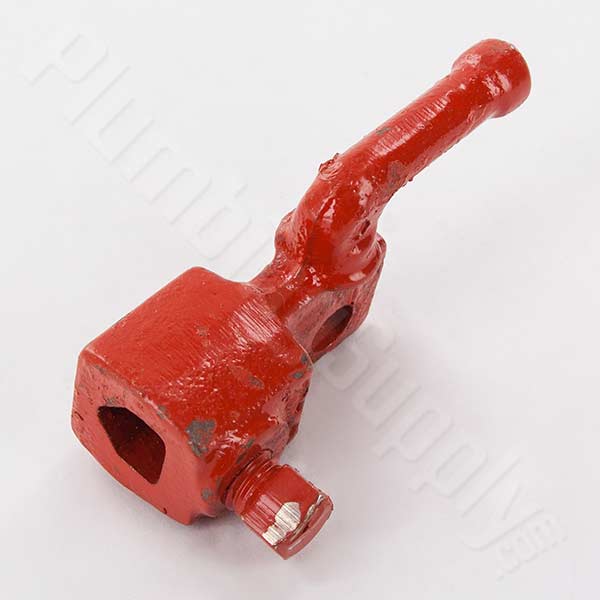

15009 Clevis Y34, Y1 $13.42 Enter a quantity and
15039 Head Assembly, Complete W34 $104.81 Enter a quantity and

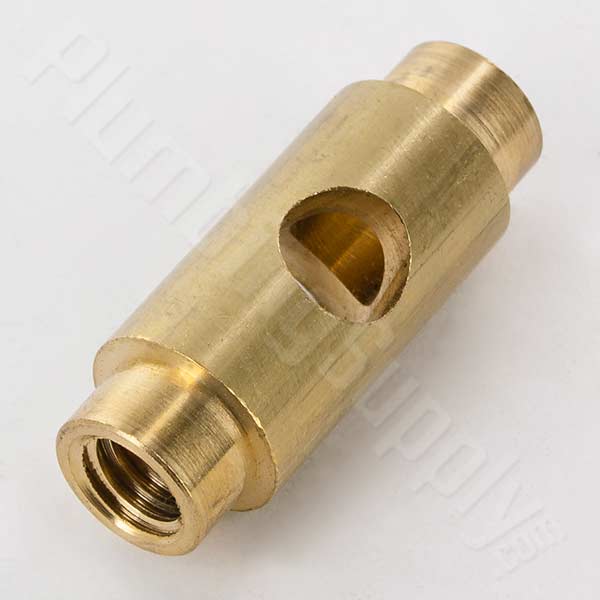

15050 Pivot Assembly W34, X34 $20.17 Enter a quantity and
30002 Handle Screw, Brass 14, 17, 24/26 Series, Y30, RHMC $2.75 Enter a quantity and
30006 Washer 14 $3.65 Enter a quantity and
30008 Rubber Valve Seat 14, 24/26 Series, RHMC $3.41 Enter a quantity and
30009 Screw 14, 24/26 Series $1.64 Enter a quantity and
30059 Brass Packing Nut 14, 17 $7.49 Enter a quantity and

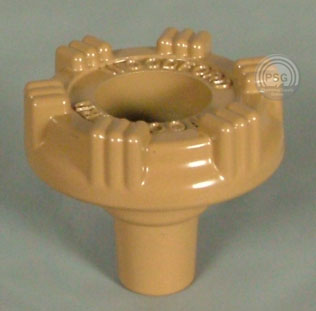

30096 Metal Wheel Handle 14, 17 $3.92 Enter a quantity and
30098 Adjustable Flange 14, 16, 17, 19 $2.97 Enter a quantity and
30104 Stem 24/26 Series, RHMC $16.32 Enter a quantity and
30105 Packing Washer 24/26 Series, RHMC $3.12 Enter a quantity and

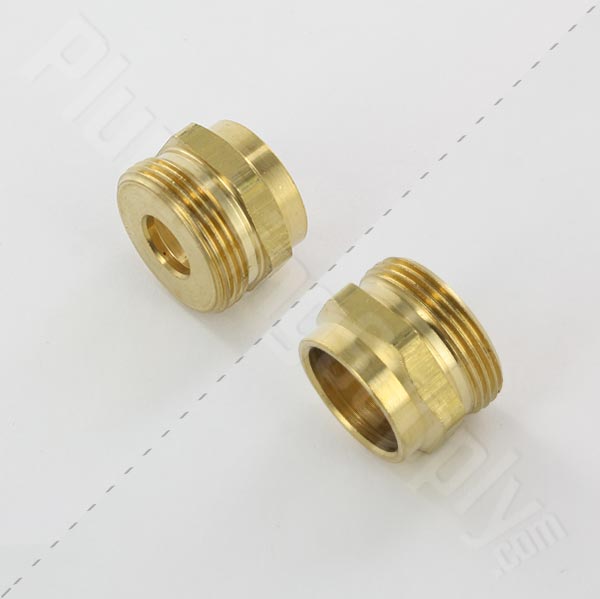

30107 Packing Nut, Brass 24/26 Series, 32/72, 70, RHMC $11.90 Enter a quantity and
30109 Packing Nut, Chrome 24/26 Series, 70 $10.71 Enter a quantity and
30120 Wheel Handle, Clear 24/26 Series $3.43 Enter a quantity and
30121 Screw, Nickel 24/26 Series, HC67, Y30 $2.81 Enter a quantity and

Woodford Parts: 30,200, 30,400 & 30,500 Series

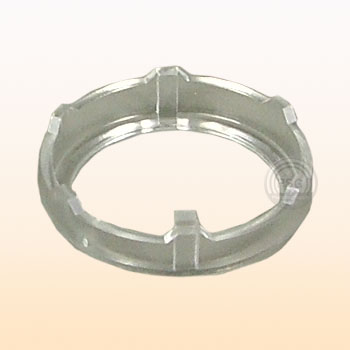

drain guard30236

Part # Description Used With Model # Price & Quantity
30230 Plunger Assembly 20, 25, 27 $7.77 Enter a quantity and

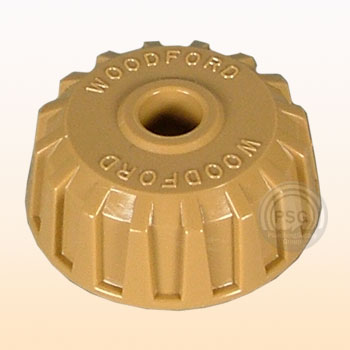

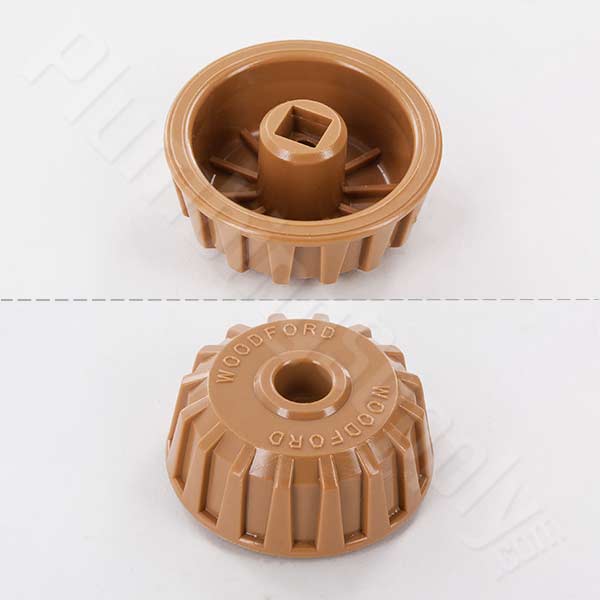

30233 Wheel Handle, Tan 24/26 Series $2.89 Enter a quantity and
30234 Handle Screw 20, 25, 27 $2.05 Enter a quantity and
30236 Drain Guard 20, 25, 27 $1.42 Enter a quantity and
30238 Stem Screw 20, 25, 27 $5.22 Enter a quantity and
30239 Wheel Handle, Metal 20, 25, 27, RHMC $6.63 Enter a quantity and
30241 Head Nut, Brass 20, 25, 27 $18.88 Enter a quantity and
30247 Packing 24/26 Series, B24, 32/72, 70, RHMC $5.36 Enter a quantity and

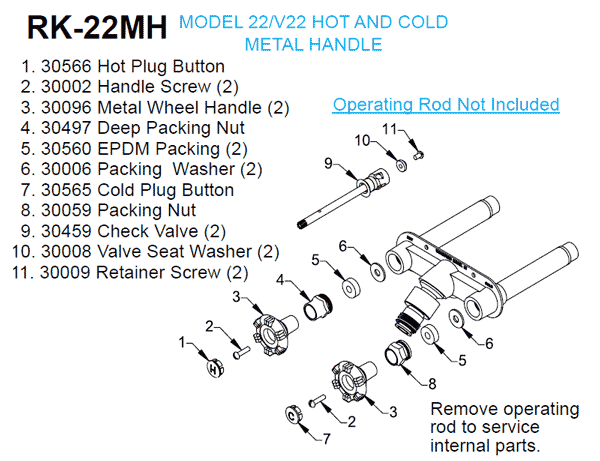

30462 C - Plug Button-Small 22, V22 $1.94 Enter a quantity and
30463 H - Plug Button-Small 22, V22 $1.94 Enter a quantity and

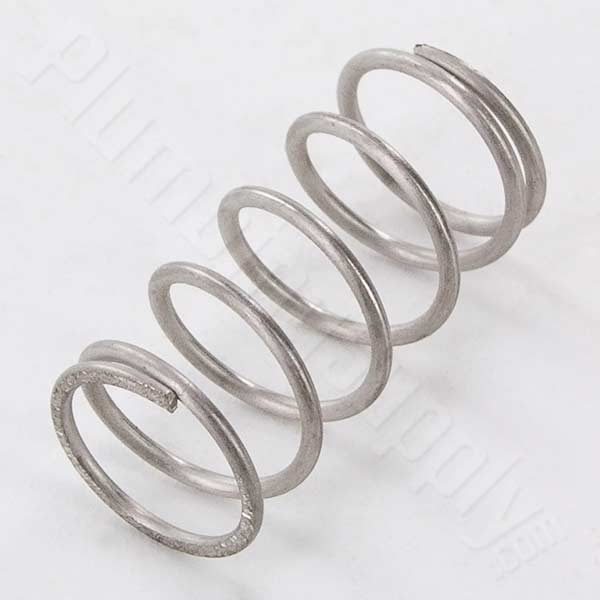

30498 Spring 22 (before 2011)
Super Sale 		$0.30
While Supplies Last		 Enter a quantity and
30560 EPDM Packing 14, 17, 19, 22, V22 $6.69 Enter a quantity and
30565 C - Plug Button-Large 29 $2.97 Enter a quantity and
30566 H - Plug Button-Large 29 $2.97 Enter a quantity and

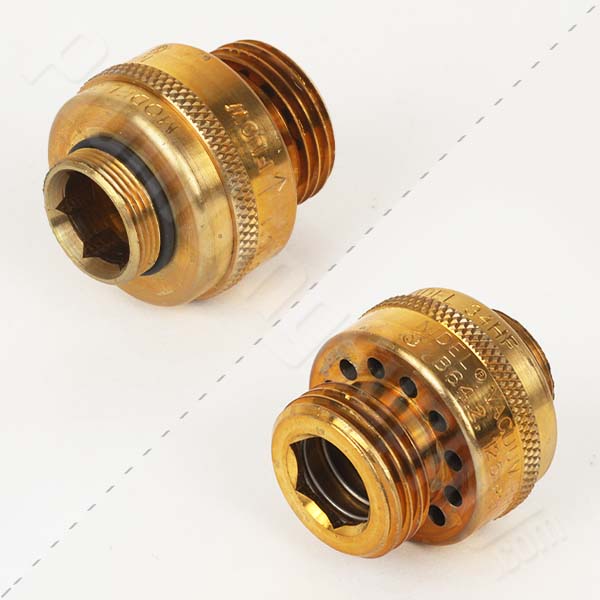

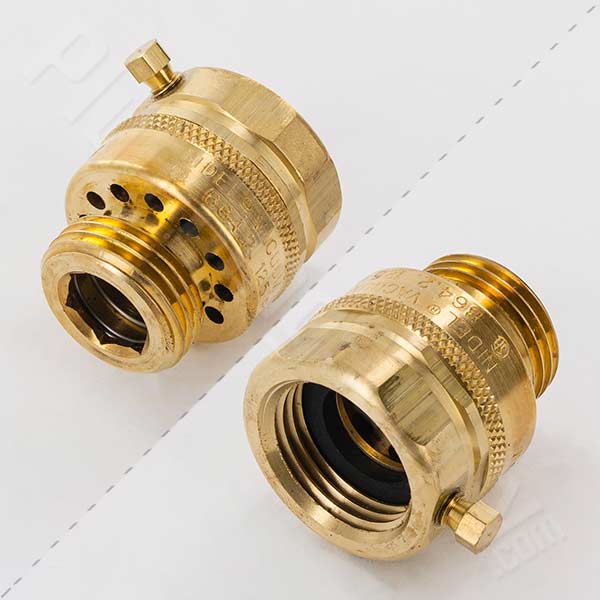

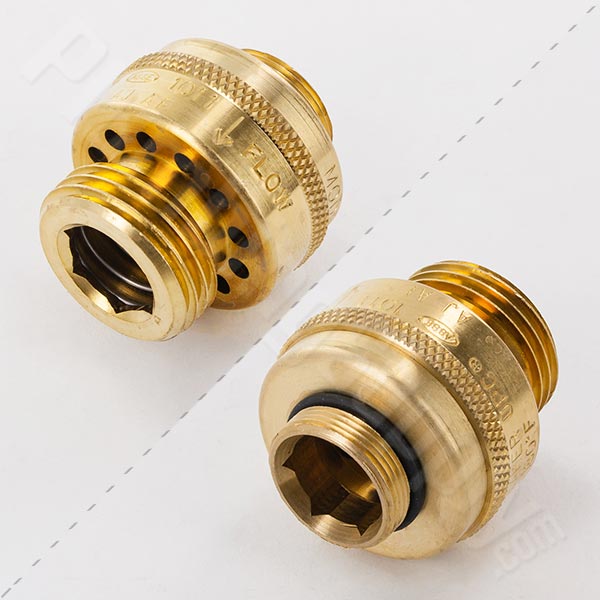

50H-BR Vacuum Breaker Assembly Brass $37.64 Enter a quantity and

Operating Rods

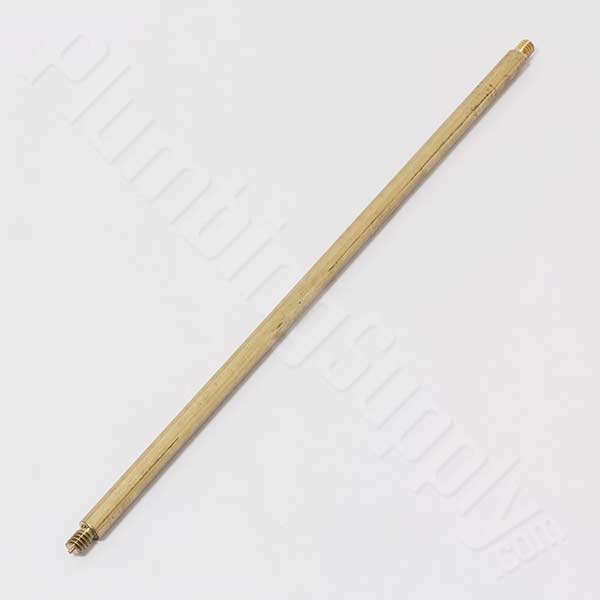

Woodford operating rod30304

Part # Wall Thickness Actual Rod Length Used With Model # Price & Quantity
30304 4" 4-7/16" 20, 25, 27 $2.59

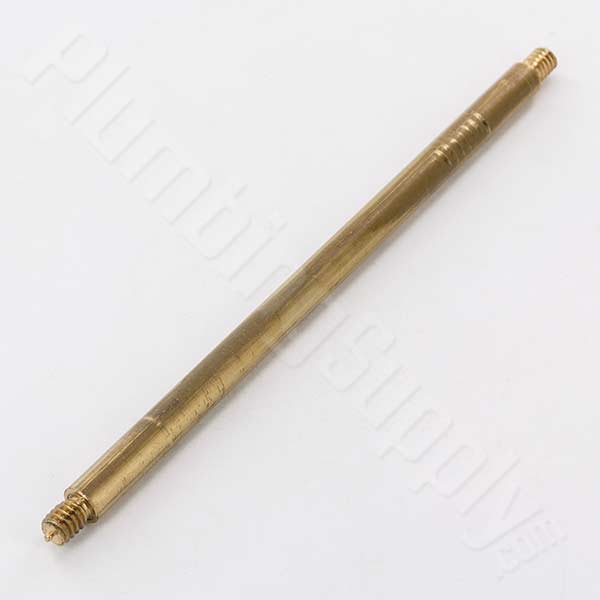

30306 6" 6-7/16" 20, 25, 27 $2.31

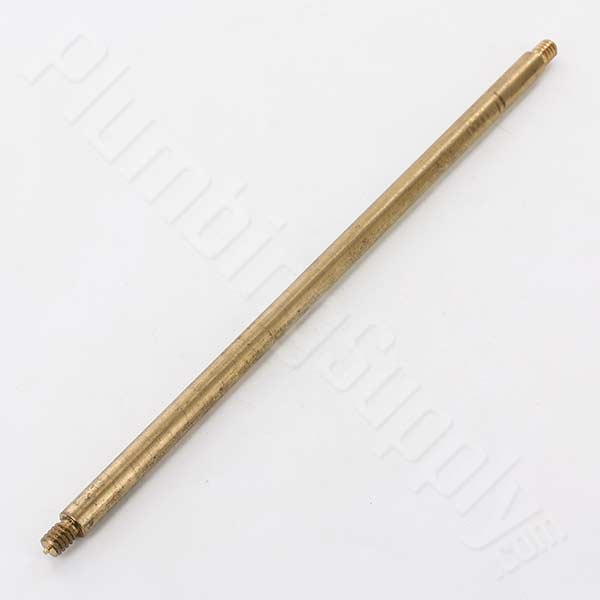

30308 8" 8-7/16" 20, 25, 26 $2.95
30310 10" 10-7/16" 20, 25, 26 $5.29

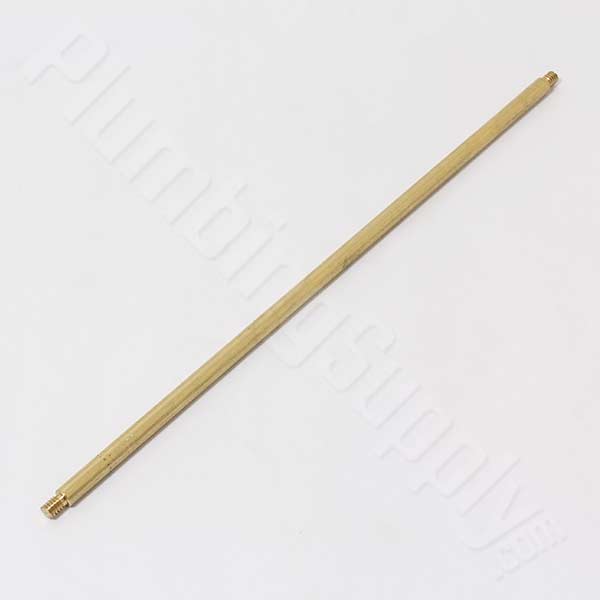

30312 12" 12-7/16" 20, 25, 26 $4.29

- OR - View Cart

Woodford Parts: 35,200 & 35,500 Series

drain valve assembly35280
vacuum breaker35301 now RK-17VB

Part # Description Used With Model # Price & Quantity

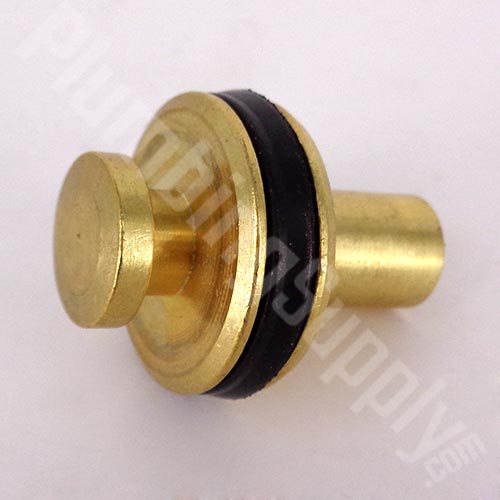

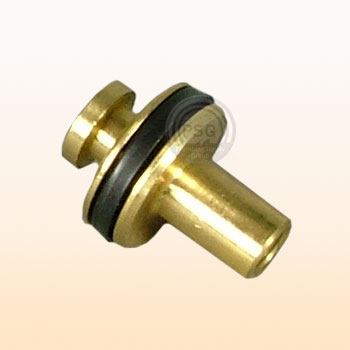

35280 Drain Valve Assembly 20, 25, 27 $9.99 Enter a quantity and

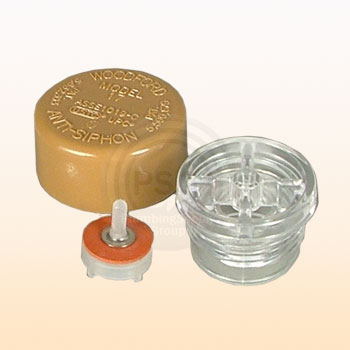

RK-17VB
replaces 35301		 Vacuum Breaker Float Kit 17 $5.63 Enter a quantity and
RK19VB
replaces 35401		 Vacuum Breaker Float Kit 19 $5.28 Enter a quantity and
35504 Replacement Assembly 4" Wall 20, 25, 27 $47.03 Enter a quantity and
35506 Replacement Assembly 6" Wall 20, 25, 27 $47.57 Enter a quantity and
35508 Replacement Assembly 8" Wall 20, 25, 27 $48.76 Enter a quantity and
35510 Replacement Assembly 10" Wall 20, 25, 27 $49.60 Enter a quantity and
35512 Replacement Assembly 12" Wall 20, 25, 27 $50.44 Enter a quantity and

Woodford Valve Stem Assembly

image of woodford valve stem assembly #35720
Part # "B"
Wall Thickness		 "A"
Overall Length		 Price & Quantity
35720 4" 5-7/8" $12.58 Enter a quantity and
35721 6" 7-7/8" $13.54 Enter a quantity and
35722 8" 9-7/8" $14.53 Enter a quantity and
35723 10" 11-7/8" $15.50 Enter a quantity and
35724 12" 13-7/8" $16.31 Enter a quantity and
35725 14" 15-7/8" $17.39 Enter a quantity and
35736 16" 17-7/8" $23.34 Enter a quantity and
35726 18" 19-7/8" $19.33 Enter a quantity and
35737 20" 21-7/8" $20.20 Enter a quantity and
35738 22" 23-7/8" $13.83 Enter a quantity and
35727 24" 25-7/8" $22.19 Enter a quantity and

Woodford Parts: 50,000 Series

Part # Description Used With Model # Price & Quantity
50009 Short Tee Key (replaces RK-STK)
1-3/4" length with 5/16" Square Stem		 32/72, 65 series, 67 series, 70 $4.19 Enter a quantity and
50010 Long Tee Key
3-1/4" length - 5/16" Square Stem		 32/72, 65 series, 67 series $6.88 Enter a quantity and
50012 Long Tee Key
3-1/4" length - 8 Pt. Spline		 17 $11.90 Enter a quantity and
50023 Wheel Handle Y30 $4.64 Enter a quantity and
50024 Packing All WH, Y70, Y95, Y30 $7.11 Enter a quantity and
50027 Washer All WH $5.98 Enter a quantity and
50028 Nut 32/72, 70 $1.95 Enter a quantity and
50035 Pipe Plug - 1/4" 32/72 $10.26 Enter a quantity and
50040 Hinge Pin All Box Hydrants $2.47 Enter a quantity and
50042 Cotter Pin All Box Hydrants $2.49 Enter a quantity and
50250 Plunger All Auto Drain Hydrants $15.28 Enter a quantity and
50251 "C" Washer All Auto Drain Hydrants $4.62 Enter a quantity and
50252 Stem Washer All Auto Drain Hydrants $2.59 Enter a quantity and
50260 Gasket HC Series $3.97 Enter a quantity and
50264 Head Nut, Chrome All Auto Drain Hydrants $19.95 Enter a quantity and
50265 Head Nut, Brass HC Series $16.05 Enter a quantity and
50500 Mixer Body HC Series $57.90 Enter a quantity and
50502 Gasket (2 required) HC Series $6.38 Enter a quantity and

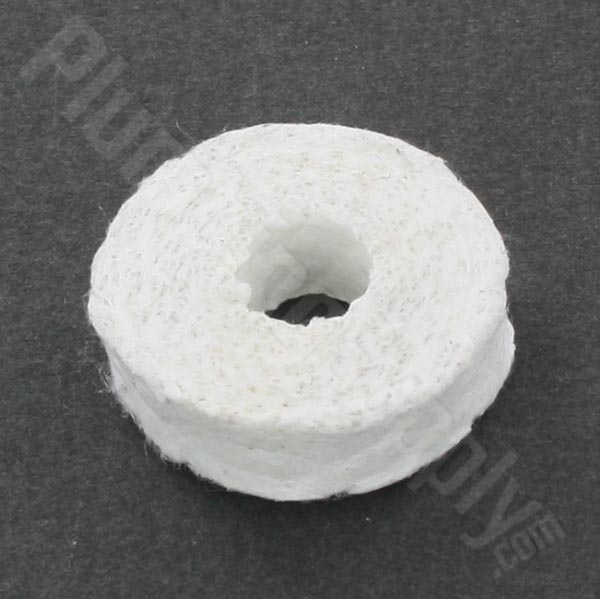

50517 Packing Ring HC Series $6.23 Enter a quantity and
50529 Packing Support Washer HC Series $6.44 Enter a quantity and
50545 Brass Locking Nut HC67, HCB67 $16.58 Enter a quantity and
50547 Hot & Cold Handle - Brass HC67, HCB67 $39.30 Enter a quantity and
50548 Hot & Cold Handle - Chrome HC67, HCB67 $48.75 Enter a quantity and
50559 Hot & Cold Handle Screw HC67, HCB67 $3.32 Enter a quantity and
50583 I.D. Ring 65, B65, HC67, HCB67 $2.50 Enter a quantity and
50584 I.D. Ring 67, B67 $4.05 Enter a quantity and
50595 Union Nut 32/72 $42.30 Enter a quantity and
50596 3/4" NPT Outlet 32/72 $42.47 Enter a quantity and
50597 1" NPT Outlet 32/72 $46.83 Enter a quantity and

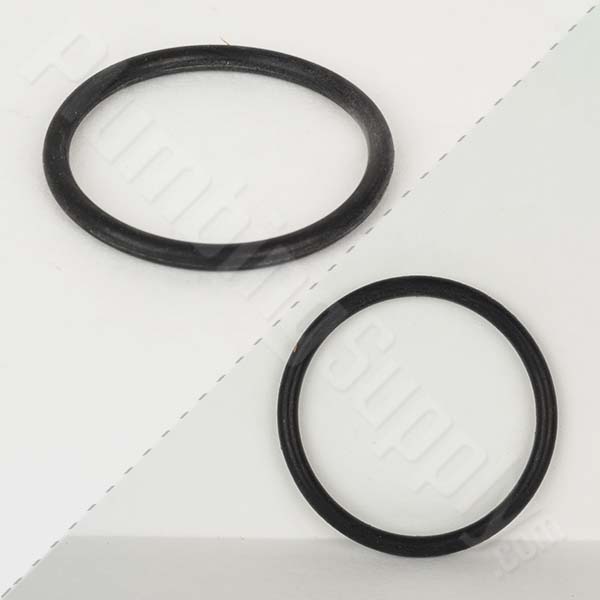

50611 O-Ring 32/72 $1.94 Enter a quantity and
51013 Valve Rubber 70, 32/72 $6.29 Enter a quantity and
51014 Yoke Nut All Freezeless WH $13.79 Enter a quantity and
51029 Head Nut Cover, Brass Y70, Y95, Y30 $5.93 Enter a quantity and
51030 Head Nut Cover, Chrome 70, 71, 75, 81, B71, B74, 84, B75 $8.96 Enter a quantity and
51050 Tamper Proof Screw - 1/2" HC67, HCB67 $3.32 Enter a quantity and
51056 Valve Body 70, Thermaline $39.90 Enter a quantity and
51092 O-Ring HC67, HCB67 $5.12 Enter a quantity and
51093 O-Ring HC67, HCB67 $7.26 Enter a quantity and
55059 Head Nut Assembly
Replaced by 55178		 Y30 use 55178
55062 Stem Screw All Auto Drain Hydrants $24.60 Enter a quantity and
55063 Wall Clamp Assembly 65, B65, 67, B67, HC67, HCB67 $13.48 Enter a quantity and
55079 Shuttle Housing Assembly HC65, HCB65, HC67, HCB67 $50.55 Enter a quantity and

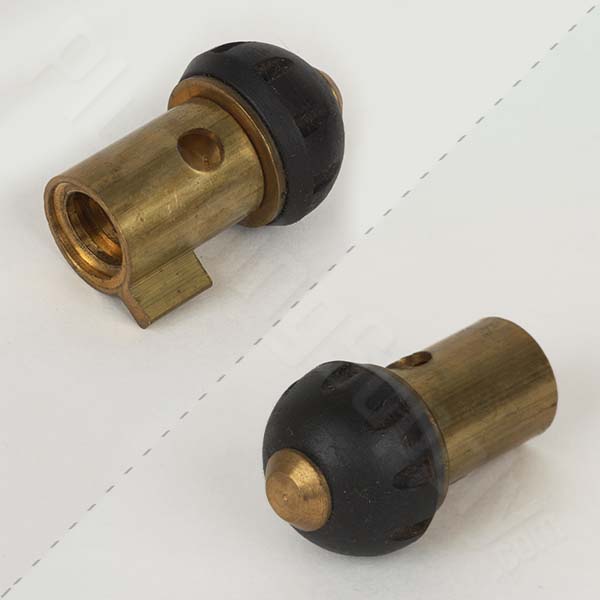

55105 Yoke Nut Assembly All Non-Freeze Area WH $17.25 Enter a quantity and
55107 Head Nut Assembly, Brass
Replaced by 55182		 75, B75, 79, B79 use 55182
55110 Head Nut Assembly, Brass All WH, Y70, Y95 $44.03 Enter a quantity and

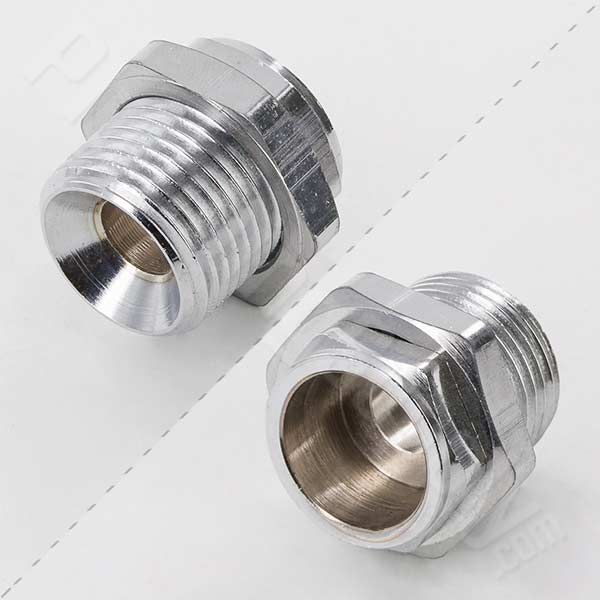

55111 Packing Nut Assembly, Chrome All WH $9.41 Enter a quantity and
55112 Packing Nut Assembly, Brass Y70, Y95 $13.43 Enter a quantity and
55176 Head Nut Assembly, Brass 32/72, 70, Y95 $27.07 Enter a quantity and
55177 Head Nut Assembly, Chrome
same as 55176 but chrome		 32/72, 70, Y95 $36.09 Enter a quantity and
55178 Head Nut Assembly, Brass Y30 $16.09 Enter a quantity and
55182 Head Nut Assembly, Brass 75, B75, 79, B79 $38.70 Enter a quantity and
55304 Operating Rod Assembly 32/72, 70 (6 5/16" OAL) $32.55 Enter a quantity and

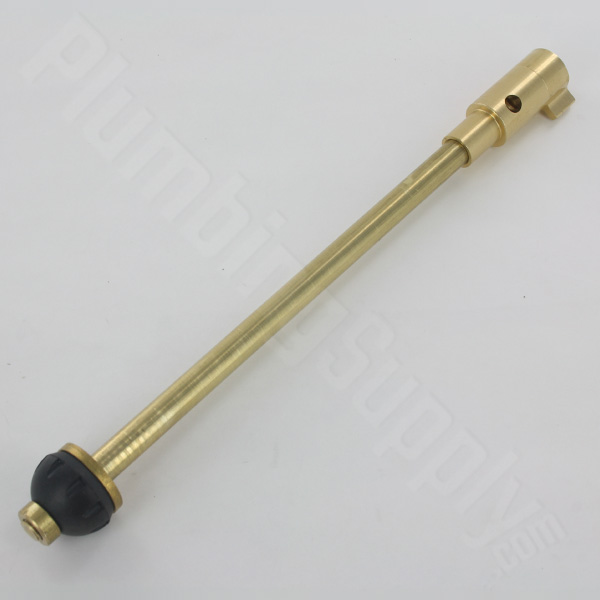

55306 Operating Rod Assembly 32/72, 70 (8 5/16" OAL) $33.75 Enter a quantity and
55308 Operating Rod Assembly 32/72, 70 (10 5/16" OAL) $35.17 Enter a quantity and
55310 Operating Rod Assembly 32/72, 70 (12 5/16" OAL) $36.08 Enter a quantity and
55312 Operating Rod Assembly 32/72, 70 (14 5/16" OAL) $37.88 Enter a quantity and
55402 Operating Rod Assembly Automatic Drain (4 1/2" OAL) $27.11 Enter a quantity and
55404 Operating Rod Assembly Automatic Drain (6 5/16" OAL) $43.13 Enter a quantity and
55406 Operating Rod Assembly Automatic Drain (8 5/16" OAL) $28.63 Enter a quantity and
55408 Operating Rod Assembly Automatic Drain (10 5/16" OAL) $53.67 Enter a quantity and
55410 Operating Rod Assembly Automatic Drain (12 5/16" OAL) $46.43 Enter a quantity and
55412 Operating Rod Assembly Automatic Drain (14 5/16" OAL) $47.63 Enter a quantity and

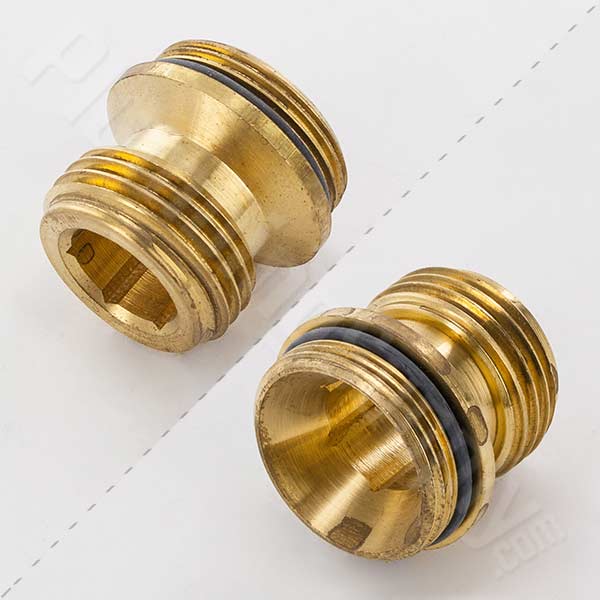

55434 Nozzle Assembly 20, 22, V22, 60 $10.32 Enter a quantity and
55435 Nozzle w/ O-Ring, Brass 70, Y70, 20 $11.43 Enter a quantity and

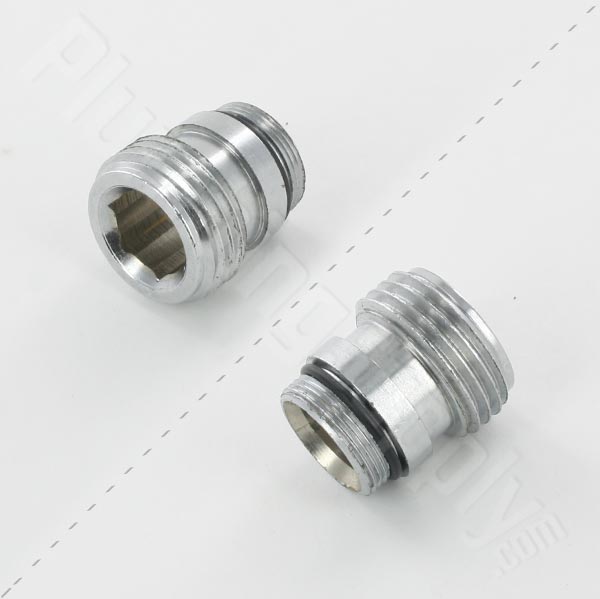

55437 Nozzle w/ O-Ring, Chrome 70, 71, B71, 81 $8.97 Enter a quantity and

Woodford Parts: 80,000 Series

Part # Description Used With Model # Price & Quantity

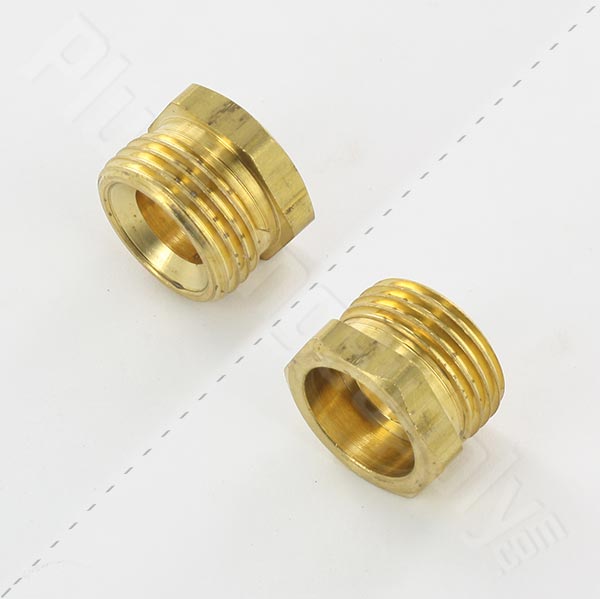

80005 Packing Nut Thermaline $6.41 Enter a quantity and
80008 Packing Stick Thermaline $4.21 Enter a quantity and
80013 Handle, Brass Thermaline $18.52 Enter a quantity and
80057 Head Base Thermaline $16.89 Enter a quantity and
80061 Heater Cover Thermaline $3.32 Enter a quantity and
80062 Heater Well Thumb Nut Thermaline $4.02 Enter a quantity and
80063 Heater Well Washer Thermaline $2.35 Enter a quantity and
80074 Seal Disc Thermaline $1.88 Enter a quantity and
80083 Operating Pipe - 35-1/8" length Thermaline $27.21 Enter a quantity and
85001 Heater Well Assembly, 1' Thermaline $15.59 Enter a quantity and
85002 Heater Well Assembly, 2' Thermaline $16.88 Enter a quantity and
85015 Valve Assembly Thermaline $11.43 Enter a quantity and
85061 Heater, 1' Thermaline $67.08 Enter a quantity and
85062 Heater, 2' Thermaline $67.08 Enter a quantity and
85063 Head Nut Assembly Thermaline Discontinued
Replaced by 85064
see table below

IF replacing 85063 with 85064 then all of the following parts are required

Part # Description Used With Model # Price & Quantity
85064 Head Nut Assembly Thermaline $56.39 Enter a quantity and
30247 Packing Thermaline $5.36 Enter a quantity and
80014 Handle - Brass Thermaline $24.57 Enter a quantity and
80017 Packing Nut Thermaline $6.59 Enter a quantity and
80062 Heater Well Thumb Nut Thermaline $4.02 Enter a quantity and
80063 Heater Well Washer Thermaline $2.35 Enter a quantity and

Woodford Repair Kits

Part # Description Used with Models # Price & Quantity
RK-14MH Repair Kit with Metal Handle 14, 18 $23.58 Enter a quantity and
RK-17MH Repair Kit with Metal Handle 17 $32.85 Enter a quantity and
RK-22MH Repair Kit with Round Metal Handles 22, V22 $46.65 Enter a quantity and
RK-22PRV Repair Kit w/ Oval Handles and Vacuum Breaker 22, V22 $48.42 Enter a quantity and
RK-22VB Vacuum Breaker Float Repair Kit 22 $2.31 Enter a quantity and
RK-25 Repair Kit 20, 25, 27 $54.22 Enter a quantity and
RK-30 Repair Kit 30 $37.14 Enter a quantity and
RK-W34 Repair Kit W34 $40.88 Enter a quantity and
RK-YHL Repair Kit Y1, Y2, Y34 $34.92 Enter a quantity and
RK-Y1 Repair Kit Y1 $32.47 Enter a quantity and
RK-Y30 Repair Kit Y30 $101.91 Enter a quantity and
RK-Y34 Repair Kit Y34 $29.31 Enter a quantity and
RK-Y95 Repair Kit Y70, Y95 $101.46 Enter a quantity and

Woodford Brass Vacuum Breakers

Woodford vacuum breaker #34HA-BR34HA-BR
Woodford vacuum breaker #37HA-BR37HA-BR
Woodford vacuum breaker #34HF-BR34HF-BR

These quality vacuum breakers feature:
  • Constructed from brass and stainless steel
  • All items are IAPMO listed
  • #34H, #34HA, #34HD, and #34HF are ASSE 1011 approved
  • #37HA, #37HF, #37HD1, and #37HD2 are ASSE 1052 approved
  • #34H is not recommended for freezing areas
Part # Description Price & Quantity
34H-BR Single check vacuum breaker $27.15
34HD-BR Single check vacuum breaker $39.83
37HD1-BR Double check vacuum breaker $109.29
37HD2-BR Double check vacuum breaker $147.75
34HA-BR Single check vacuum breaker $36.22
34HF-BR Single check vacuum breaker $24.43
37HA-BR Double check vacuum breaker $54.45
37HF-BR Double check vacuum breaker $97.01

- OR - View Cart

Chrome Plated Vacuum Breakers

Woodford vacuum breaker #34H-CH34H-CH
Woodford vacuum breaker #38DF-CH38DF-CH
Woodford vacuum breaker #37HD2-CH37HD2-CH

These quality vacuum breakers feature:
  • Constructed from brass and stainless steel then chrome plated
  • All items are IAPMO listed
  • #34H-CH, #34HA-CH, #34HD-CH, and #34HF-CH are ASSE 1011 approved
  • #37HA-CH, #37HF-CH, #37HD1-CH, and #37HD2-CH are ASSE 1052 approved
  • #38DF-CH is ASSE 1035 approved
  • #34H-CH is not recommended for freezing areas
Part # Description Price & Quantity
34H-CH Single check vacuum breaker $35.70
34HD-CH Single check vacuum breaker $48.68
37HD1-CH Double check vacuum breaker $124.67
37HD2-CH Double check vacuum breaker $163.13
34HA-CH Single check vacuum breaker $44.78
34HF-CH Single check vacuum breaker $46.13
37HA-CH Double check vacuum breaker $70.34
37HF-CH Double check vacuum breaker $117.05
38DF-CH Laboratory vacuum breaker $62.63

- OR - View Cart

Double Check Back-Flow Preventers for Hose Bibbs

Backflow Preventer
These back flow Preventers Feature:
  • Prevents back flow contamination and freezing
  • 120°F maximum temperature rating
  • Maximum pressure 125 psi
  • 3/4" female hose inlet connection
  • 3/4" male hose outlet connection
  • Fits hose bibbs with standard 3/4" hose threaded outlets
  • Available in brass (shown) and chrome finishes
  • Model #50 shown

Description Chrome Finish Brass Finish
# 50H
  • 3/4" female hose inlet connection
  • 3/4" male hose outlet connection
  • Fits hose bibbs with standard 3/4" hose threaded outlets
 $38.73 $37.64
# 50HA
  • 1-1/8" special thread inlet connection
  • 3/4" male hose outlet connection
  • Fits Woodford faucet: 27
 $39.65 $33.52

- OR - View Cart

Woodford Model WF-MS Mounting Sleeve

mounting sleeve
The Woodford wall faucet mounting sleeve takes the guesswork out of how far to stub-out your wall faucet. It also provides a secure anchor for the faucet. The mounting sleeve allows the plumber to determine a stub-in location and set an adjustable finish depth required by the brick or stone mason. A numbered scale is built into the top of the mounting sleeve. View me for our helpful mounting sleeve installation guide.
- For Woodford models 14, 16, 17, & 19 only
- installed example
- included parts

WF-MS Mounting Sleeve = $9.50

- OR - View Cart

Order 10 or more mounting sleeves for additional savings!
Pricing discounts will show up in your shopping cart.

Related Items & Accessories

Yard hydrant repair part
Parts for Woodford Yard Hydrants Close coupled wall faucets
Woodford Close Coupled Wall Faucets Freezeless wall hydrant
Prier Freezeless Wall Hydrants Hose bibb
Standard Brass Hose Bibbs magnetic hose bibb lock on hose bibb
Hose Bibb Locks Brass garden hose adapter
Hose Adapters Bathroom faucet repair parts
Indoor Faucet Repair Parts


Frequently Asked Questions

Q. "The Y34 and Y1 yard hydrant models look the same! How do I know which one I have?"
A. When you look at the head of the hydrant, around the base of the head you'll see either 105B or 106D molded into the metal. If your hydrant says 105B, you have the Y1 model, and if your hydrant says 106D, you have the Y34 model.

return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
