Freezeless Yard Hydrants

by Woodford


A freezeless yard hydrant is a great solution to your larger water supply needs. Designed to be used to provide water to various farm- and agricultural-type applications year-round, yard hydrants are perfect for smaller scale orchards and various zones for an array of small crops. Woodford offers some of the finest, most value-priced freezeless yard, utility and sanitary yard hydrants as well as freezeless wall hydrants and lawn & garden faucets available today. We offer a great selection of these high quality faucets and hydrants, so you're sure to find the right outdoor faucet for your needs.

Freezeless Yard Hydrants

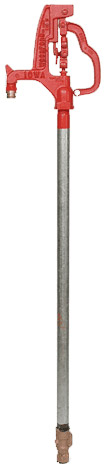

Y34 yard hydrant
Features:
  • Adjustable link provides easy and positive adjustment of the lever lock tension
  • Rod guide eliminates side pull on rod, reduces wear on packing, packing nut & stem
  • Tapped 1/8" NPT drain hole
  • 3/8" galvanized steel pipe operating rod
  • 3/4" brass male hose removable nozzle
  • Maximum working pressure: 125 PSI
  • Maximum temperature: 120°F

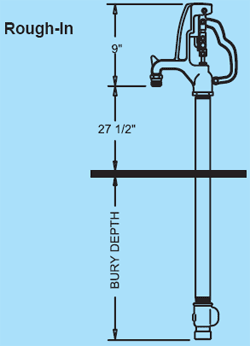

  • View dimensions
Model Description Bury Depth
(Feet)
Price & Quantity
Y34 Freezeless yard hydrant
3/4" NPT female inlet, 1" galvanized steel pipe casing
1 $165.59
2 $165.72
3 $175.34
4 $184.95
5 $194.57
Y1 Freezeless yard hydrant
1" NPT female inlet, 1-1/4" galvanized steel pipe casing
1 $223.97
2 $234.49
3 $233.19
4 $227.85
5 $237.19

- OR - View Cart



Back Flow Protected Freezeless Yard Hydrants

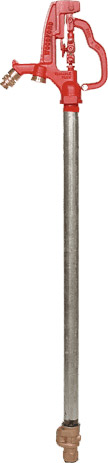

Y2 yard hydrant
Features:
  • Automatic draining - hydrant drains when shut off, even with hose attached
  • Hose connected back flow preventer
  • Adjustable link provides easy and positive adjustment of the lever lock tension
  • Rod guide eliminates side pull on rod, reduces wear on packing, packing nut & stem
  • Tapped 1/8" NPT drain hole
  • 3/8" galvanized steel pipe operating rod
  • 1" NPT female inlet
  • 1-1/4" galvanized steel pipe casing
  • Maximum working pressure: 125 PSI
  • Maximum temperature: 120°F

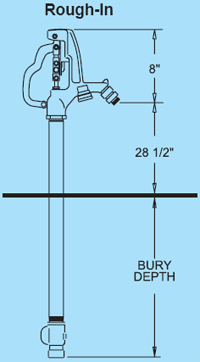

  • View dimensions
Model Description Bury Depth
(Feet)
Price & Quantity
Y2 Automatic draining yard hydrant
With hose connection back flow preventer
1 $268.65
2 $282.17
3 $295.67
4 $309.20
5 $322.72

- OR - View Cart

to Woodford outdoor faucets - to Woodford utility hydrants - to Woodford wall hydrants



Tamper Resistant Freezeless Yard Hydrants

W34 yard hydrant
Features:
  • Tamper resistant lock can be locked in closed position by inserting padlock or bolt through hole in link
  • Tapped 1/8" NPT drain hole
  • 3/8" galvanized steel pipe operating rod
  • 3/4" NPT female inlet
  • 1" galvanized steel pipe casing
  • 3/4" brass male hose removable nozzle
  • Maximum working pressure: 125 PSI
  • Maximum temperature: 120°F

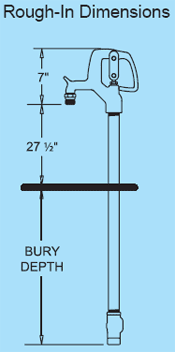

  • View dimensions
Model Description Bury Depth
(Feet)
Price & Quantity
W34 Tamper resistant freezeless yard hydrant 1 $130.41
2 $147.89
3 $149.18
4 $158.56
5 $167.94

- OR - View Cart



Freezeless Post Yard Hydrants

Y30 yard hydrant
Features:
  • Brass head casting finish
  • 1/8" NPT drain hole
  • 3/8" galvanized steel pipe operating rod
  • 3/4" NPT female inlet
  • 1" galvanized steel pipe casing
  • 3/4" brass male hose nozzle
  • Maximum working pressure: 125 PSI
  • Maximum temperature: 120°F
  • Note: this unit does not offer anti-siphon or back flow protection

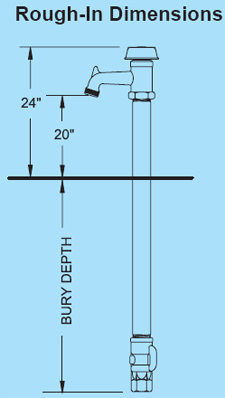

  • View dimensions
Model Description Bury Depth
(Feet)
Price & Quantity
Y30 Post freezeless yard hydrants 1 $237.29
2 $247.11
3 $256.96
4 $266.80
5 $276.64

- OR - View Cart



Anti-Siphon Freezeless Yard Hydrants

Y95 yard hydrant
Features:
  • Tamper proof hinged cover locks uses same tee key that operates hydrant - prevents unauthorized use
  • Anti-siphon vacuum breaker (double check backflow preventer) with 3/4" male hose thread - prevents backflow contamination and freezing by automatically draining when hose is removed
  • Brass box, door & head casting
  • 1/8" NPT drain hole
  • 3/8" galvanized steel pipe operating rod
  • 3/4" NPT female inlet
  • 1" galvanized steel pipe casing
  • Maximum working pressure: 125 PSI
  • Maximum temperature: 120°F

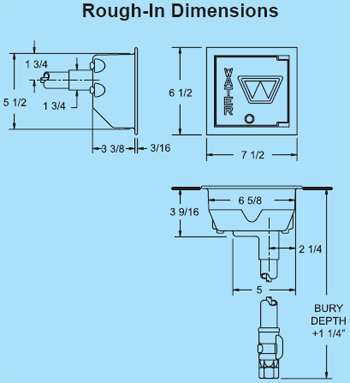

  • View dimensions
Model Description Bury Depth
(Feet)
Price & Quantity
Y95 Anti-siphon freezeless yard hydrants 1 $601.90
2 $612.10
3 $622.31
4 $632.52
5 $642.72

- OR - View Cart



Double Check back flow Preventers for Hose Bibbs

Backflow Preventer
These back flow Preventers Feature:
  • Prevents back flow contamination and freezing
  • 120°F maximum temperature rating
  • Maximum pressure 125 psi
  • 3/4" female hose inlet connection
  • 3/4" male hose outlet connection
  • Fits hose bibbs with standard 3/4" hose threaded outlets
  • Available in brass (shown) and chrome finishes
  • Model #50 shown
Description Chrome Finish Brass Finish
# 50H
  • 3/4" female hose inlet connection
  • 3/4" male hose outlet connection
  • Fits hose bibbs with standard 3/4" hose threaded outlets
$38.73 $37.64
# 50HA
  • 1-1/8" special thread inlet connection
  • 3/4" male hose outlet connection
  • Fits Woodford faucet: 27
$39.65 $33.52

- OR - View Cart

Related Items & Accessories


Looking for parts for these yard hydrants? We've got them!



Frequently Asked Questions

Q. "If I install one of these hydrants can I still get water from the faucet (hydrant) when it is freezing outside?"
A.The way these hydrants work is that once you turn off the water to these the water in the standpipe drains out leaving the upper pipe empty. In an extremely hard freeze (with a near 32 degree water source as well) the standpipe might be very cold and you won't be able to get any water. It also might then damage the standpipe. In most conditions this won't be a problem, but we do want to warn you as we cannot predict or guarantee that in all cases that these hydrants will function as they are designed to do in extreme conditions. Some freezing conditions are so harsh that burials as deep as 8' are needed. Due to shipping costs, we only sell up to 5' foot burial depths.

Q. "You list the burial depths for the yard hydrants; what does this mean? How much of the unit is exposed above ground?"
A. The listed burial depths show how much of the stand-pipe should be buried beneath ground level. The rest of the unit then stands an additional 3 feet above ground. (For instance, a unit with a 3-foot burial depth is actually approximately 6 feet long; 3 feet of it would be underground and 3 feet aboveground.)

Q. "The Y34 and Y1 yard hydrant models look the same! How do I know which one I have?"
A. When you look at the head of the hydrant, around the base of the head you'll see either 105B or 106D molded into the metal. If your hydrant says 105B, you have the Y1 model, and if your hydrant says 106D, you have the Y34 model.
