Model 22 Freezeless Outdoor Hot & Cold Wall Faucets
by Woodford

Protect yourself from water damage caused by a burst pipe with a hot and cold outdoor freezeless wall faucet from Woodford. Perfect for residential use, these faucets come standard with safety features that prevent damage due to freezing water, and are offered in two configurations - vertical or horizontal. The built-in vacuum breaker and internal pressure relief valves ensure that, when installed per manufacturer's instructions, these faucets will remain operational year after year. The Model 22 is a great way to protect your home from undetected water damage in climates where freezing conditions occur.

Model 22 & V22 Freezeless Wall Faucets For Hot & Cold

Woodford freezeless wall faucet model 22Model 22
Woodford freezeless wall faucet model V22Model V22
Features:
  • Hot and cold faucet lets you have warm water in an outdoor faucet
  • Separate hot and cold inlet tubes and operating handles allow for manual operated water temperature to flow through the central outlet
  • Internal, resetting pressure relief valves prevent each casing tube from bursting in freezing conditions
  • Built-in vent float style vacuum breaker
  • EPDM packing - helps prevent leaking
  • 3/4" male hose thread
  • Max pressure: 125psi
  • Max temperature: 120°F
  • Available in standard horizontal mounting style or vertical mounting style
  • Choose the correct faucet determined by wall thickness
Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.

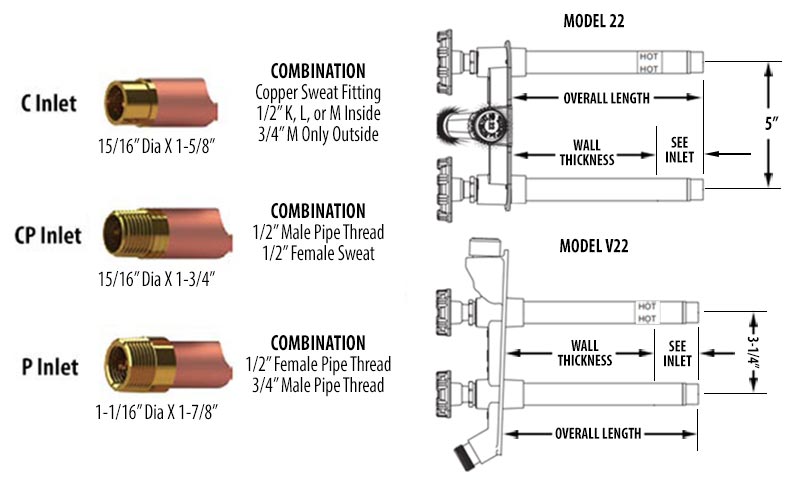

Models 22 & V22 Inlets

Woodford Wall Faucet Inlet Specs

Model 22 Freezeless Wall Faucets For Hot & Cold

Model # Description Standard Handle Tee Key Handle
22C (1/2" female sweat - 3/4" type 'M' male sweat) Enter a quantity and
22CP (1/2" male pipe thread - 1/2" female sweat) Enter a quantity and
22P (1/2" female pipe thread - 3/4" male pipe) Enter a quantity and

Vertical Model V22 Freezeless Wall Faucets For Hot & Cold

Model # Description Standard Handle Tee Key Handle
V22C (1/2" female sweat - 3/4" type 'M' male sweat) Enter a quantity and
V22CP (1/2" male pipe thread - 1/2" female sweat) Enter a quantity and
V22P (1/2" female pipe thread - 3/4" male pipe) Enter a quantity and

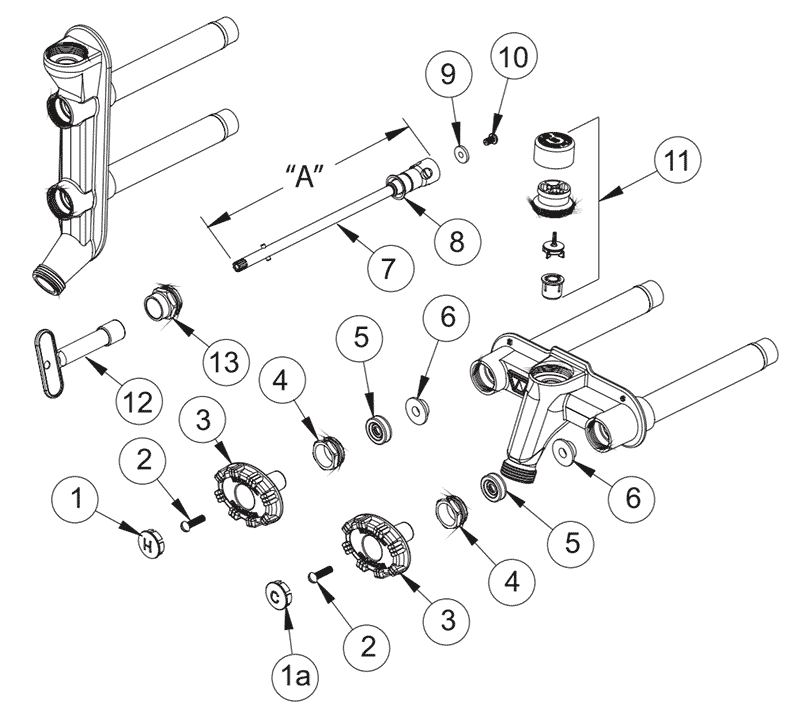

Replacement Parts for Model 22 & V22

Wordford outdoor faucet parts model 22 and V22
Item # Image Part # Description Price & Quantity

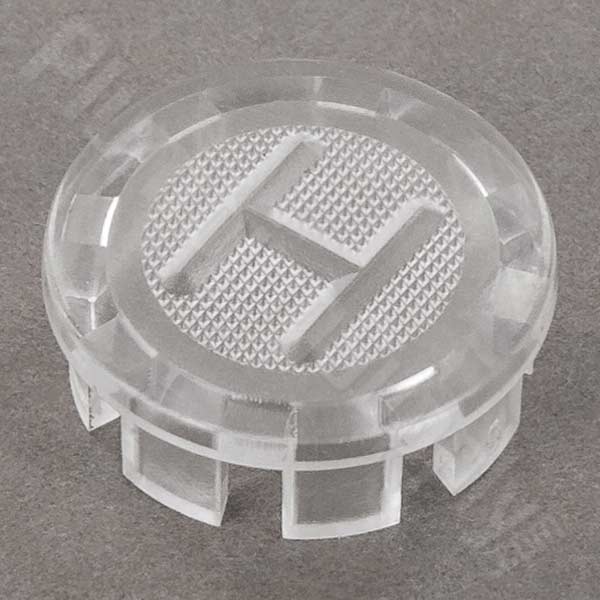

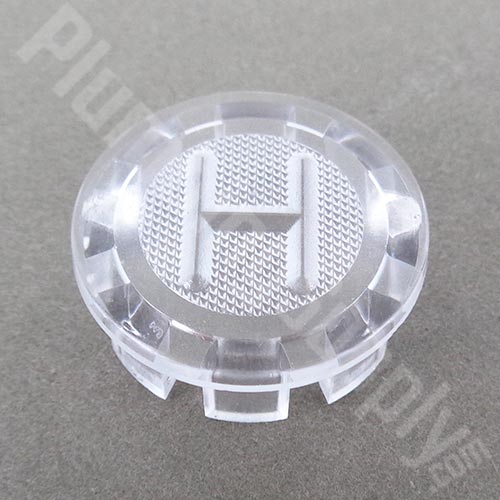

1 Woodford clear hot button 30463 Clear Hot Plug Button
for #30099 plastic handle & #30133 metal handle		 $1.94 Enter a quantity and

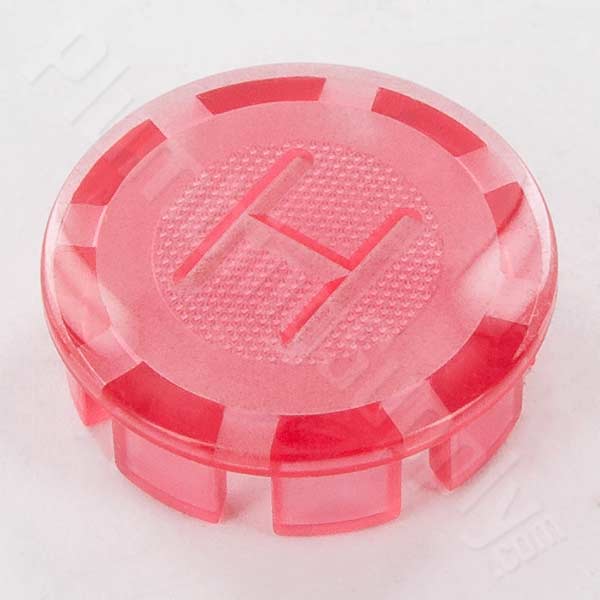

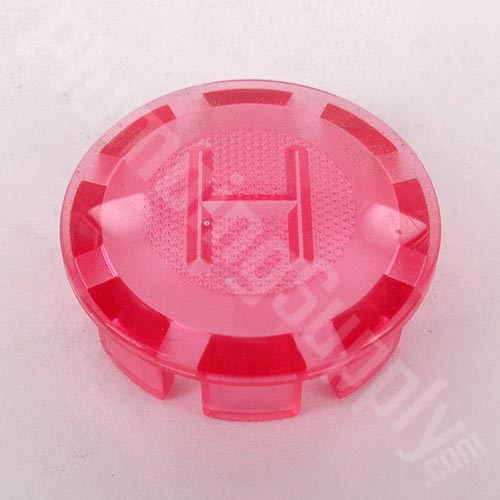

Woodford red hot button 30566 Red Hot Plug Button
for #30096 metal handle		 $2.97 Enter a quantity and

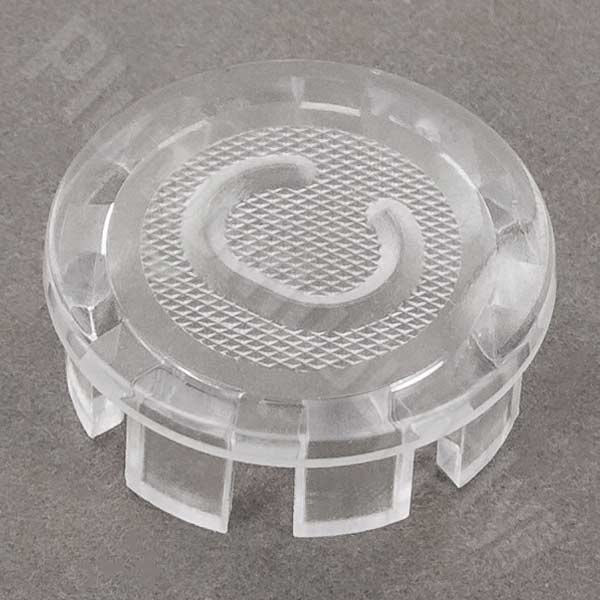

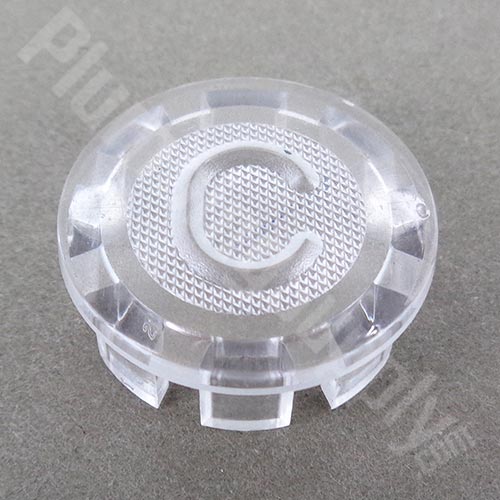

1a Woodford clear cold button 30462 Clear Cold Plug Button
for #30099 plastic handle & #30133 metal handle		 $1.94 Enter a quantity and

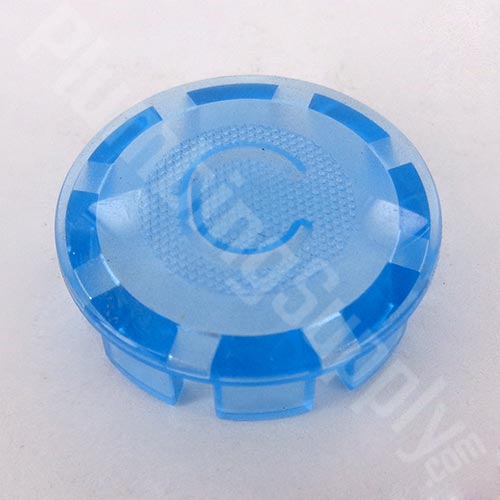

Woodford blue cold button 30565 Blue Cold plug button
for #30096 metal handle		 $2.97 Enter a quantity and

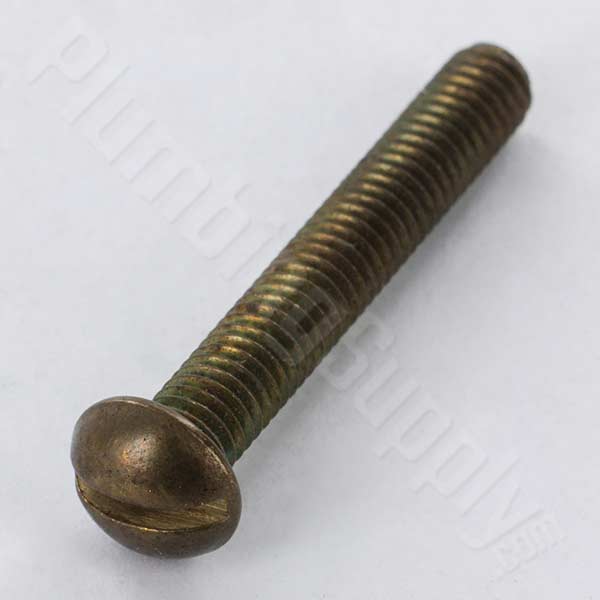

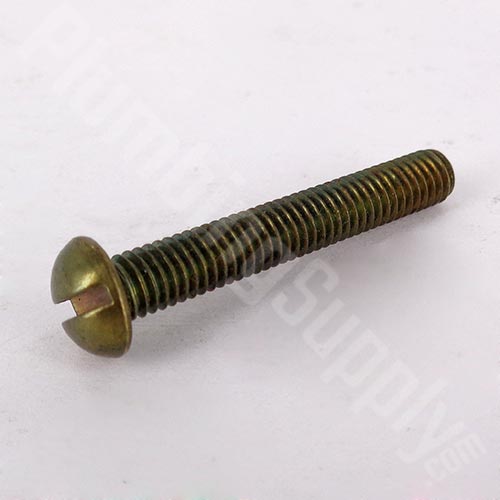

2 Woodford handle screw 30499 Handle screw $2.97 Enter a quantity and

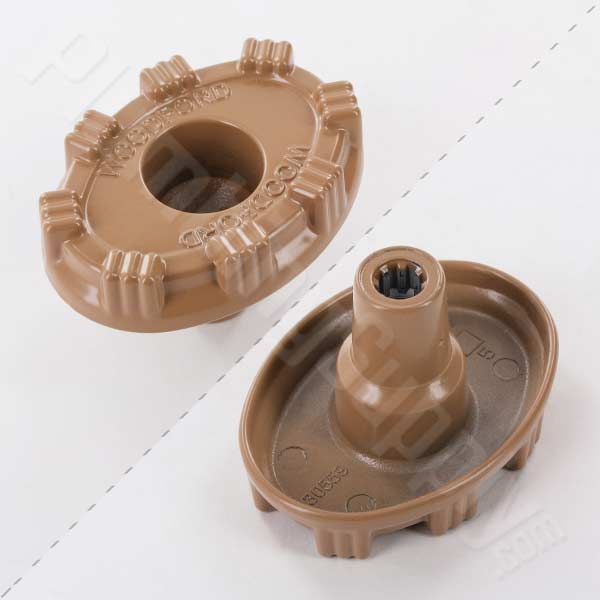

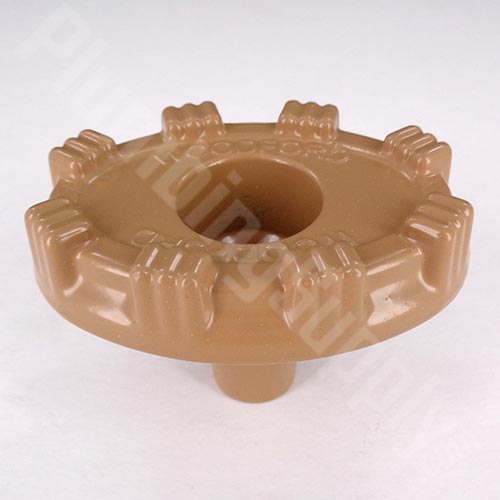

3 Woodford oval metal handle 30559 Metal Wheel Handle - Oval
Original Replacement		 $8.10 Enter a quantity and

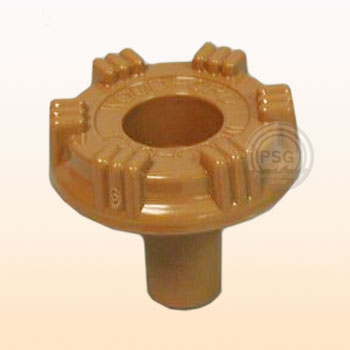

Woodford round plastic handle 30099 Plastic Wheel Handle - Round
Replaced by #30096 metal handle (See Below)		 Discontinued

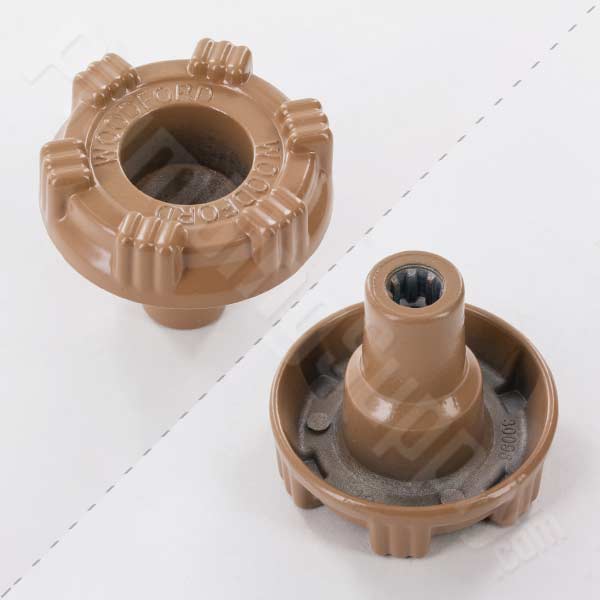

Woodford round metal handle 30096 Metal Wheel Handle - Round $3.92 Enter a quantity and

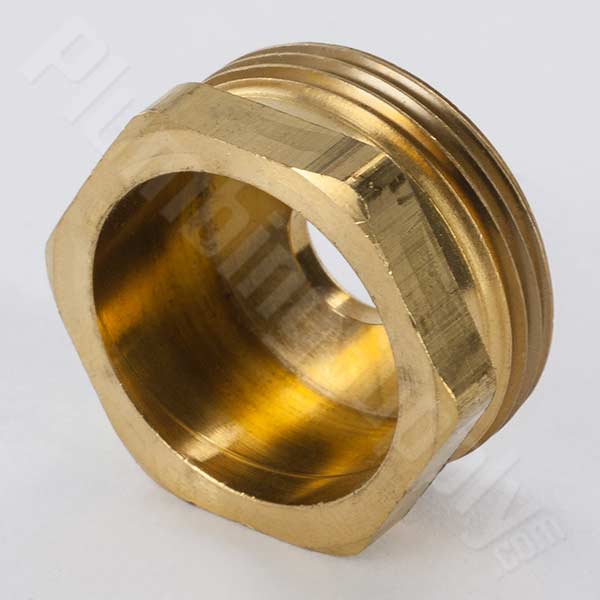

4 Woodford packing nut 30059 Packing nut $7.49

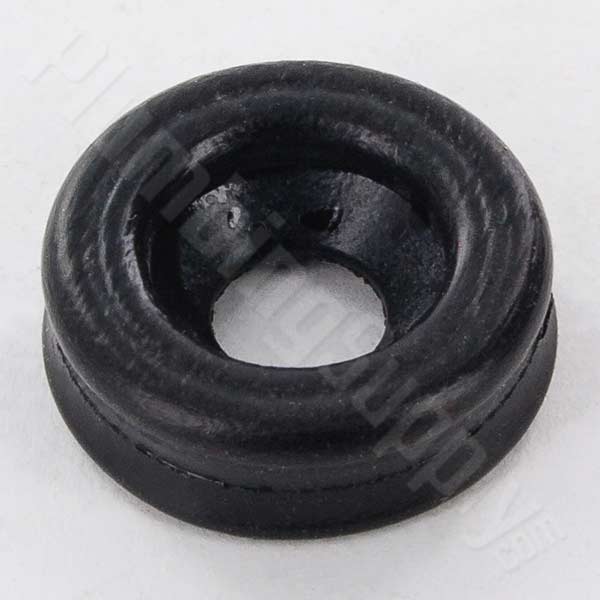

5 Woodford packing 30560 EPDM Packing $6.69 Enter a quantity and

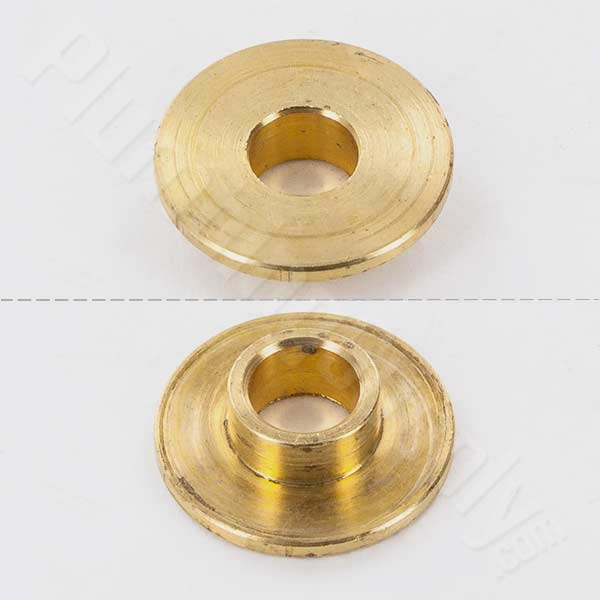

6 Woodford packing support washer 30421 Packing Support Washer $4.97 Enter a quantity and
7 357XX Valve Stem Assembly
Included items 7,8,9 (see table A below)
NOTE: order 2 each if replacing both hot & cold stems		 See Table A
RK-PRV Pressure Relief Valve Stem Assembly
Includes items 1, 2(Round), 3, 4, and valve stem
NOTE: order 2 each if replacing both hot & cold stems
RK-ADJ-PRV Adjustable Pressure Relief Valve Stem Assembly
(Includes items 2, 3, 4, 7, 8, 9)
NOTE: order 2 each if replacing both hot & cold stems		 See Adjustable
PRV Stem		 Enter a quantity and

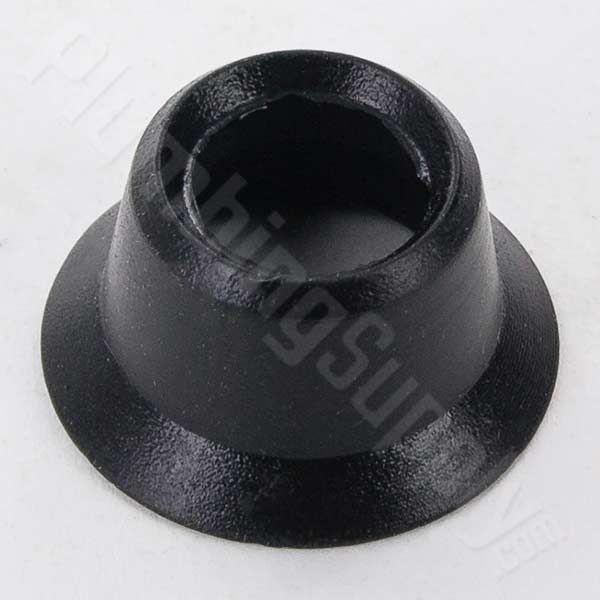

8 Woodford check valve 30459 Check Valve $5.70 Enter a quantity and

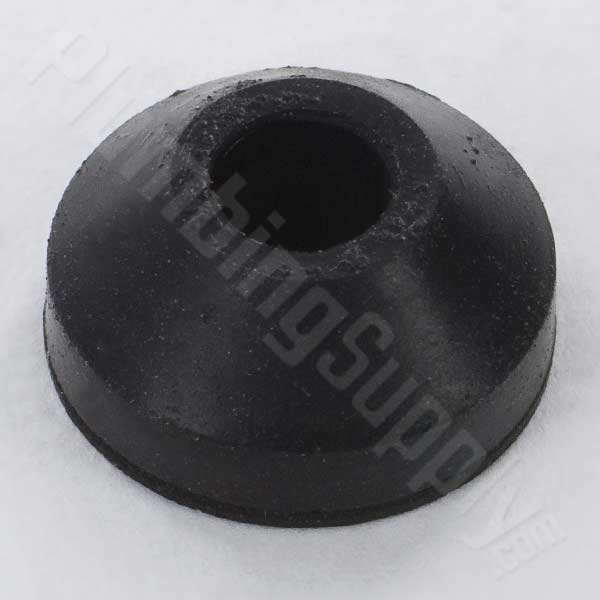

9 Woodford valve seat rubber 30008 Valve Seat Rubber $3.41 Enter a quantity and

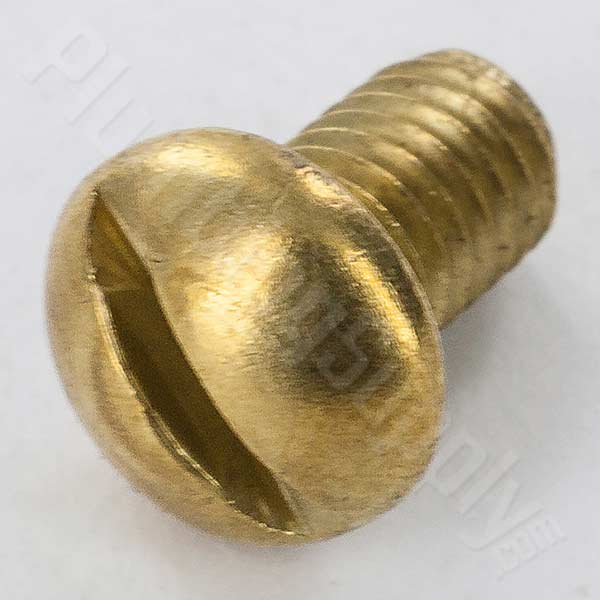

10 Woodford retainer screw 30009 Retainer Screw $1.64 Enter a quantity and

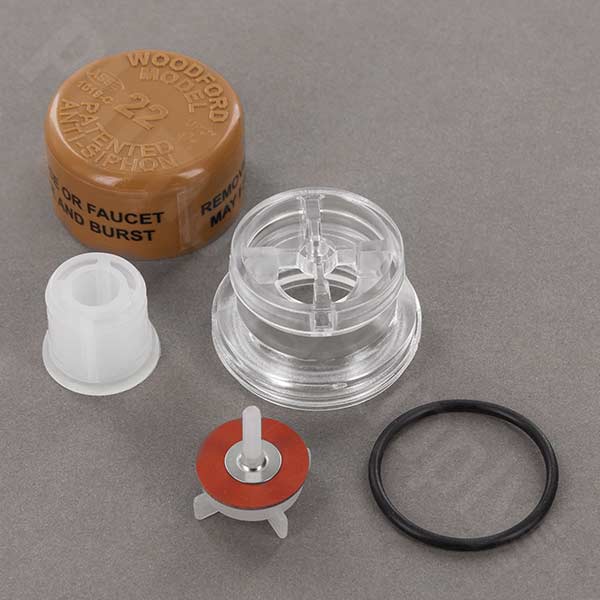

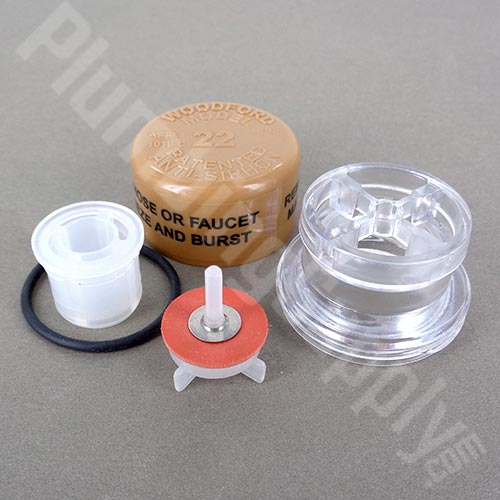

11 Woodford vacuum breaker float kit RK-22VB Vacuum breaker float kit $2.31 Enter a quantity and
12 Woodford long tee key 50012 Tee Key (optional) $11.90 Enter a quantity and
13 Woodford deep packing nut 30497 Deep packing nut (optional) - Super Sale!
Use of the deep packing nut, and removing the handles, can help secure faucet from unwanted water use		 $4.84
While Supplies Last		 Enter a quantity and

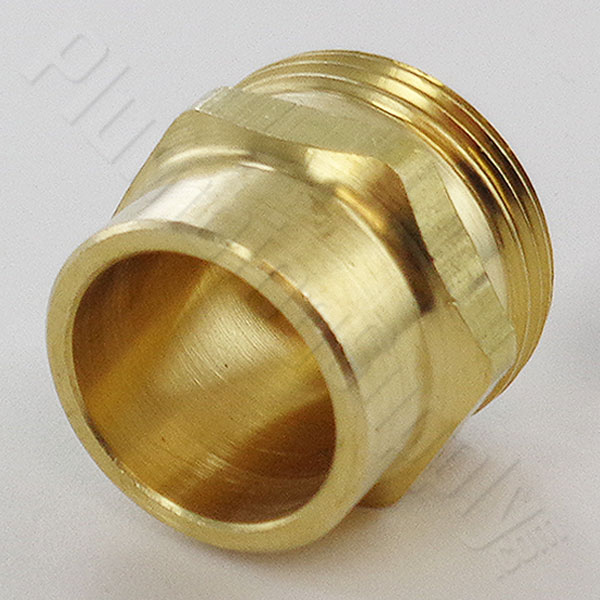

Woodford deep packing nut 30512 Packing Nut w/ deep stem nut guard (optional)
- (replaces discontinued 30497)		 $4.10 Enter a quantity and

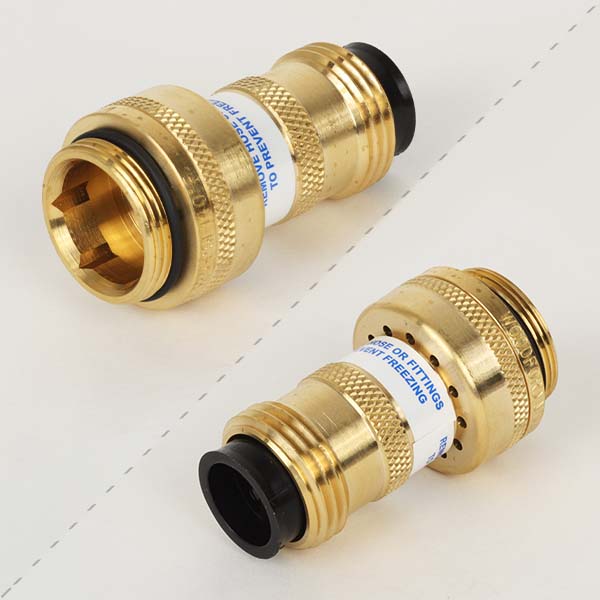

Woodford brass vacuum breaker 50HA Brass Vacuum breaker $33.52 Enter a quantity and

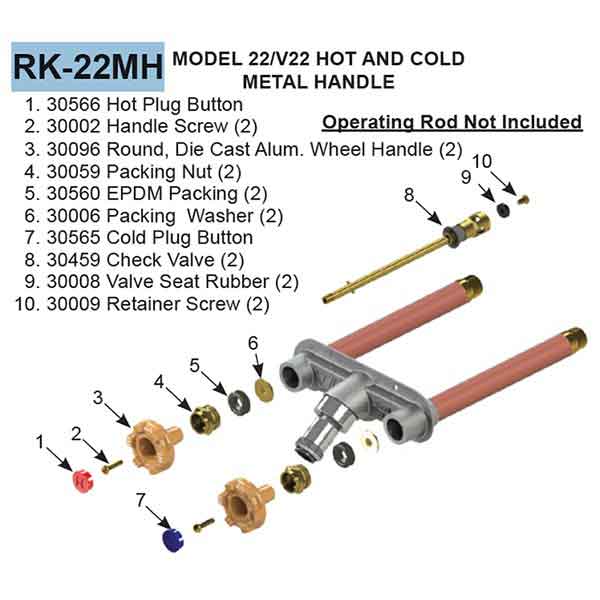

Woodford repair kit RK-22MH RK-22MH Repair Kit
Includes ROUND Metal Handles		 $46.65 Enter a quantity and

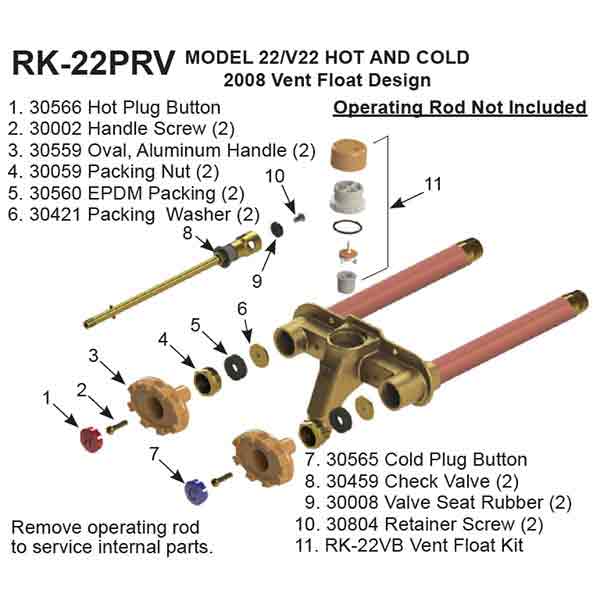

Woodford repair kit RK-22PRV RK-22PRV Pressure Relief Repair Kit
Includes Vacuum Breaker and OVAL Wheel Handles		 $48.42 Enter a quantity and

(Table A) Valve Stem Assembly

Replacement stem valve assembly

Part # "B"
Wall Thickness		 "A"
Overall Length		 Price & Quantity
35720 4" 5-7/8" $12.58 Enter a quantity and
35721 6" 7-7/8" $13.54 Enter a quantity and
35722 8" 9-7/8" $14.53 Enter a quantity and
35723 10" 11-7/8" $15.50 Enter a quantity and
35724 12" 13-7/8" $16.31 Enter a quantity and
35725 14" 15-7/8" $17.39 Enter a quantity and
Part # "B"
Wall Thickness		 "A"
Overall Length		 Price & Quantity
35736 16" 17-7/8" $23.34 Enter a quantity and
35726 18" 19-7/8" $19.33 Enter a quantity and
35737 20" 21-7/8" $20.20 Enter a quantity and
35738 22" 23-7/8" $13.83 Enter a quantity and
35727 24" 25-7/8" $22.19 Enter a quantity and

Adjustable Operating Rod with Pressure Relief Valve (RK-ADJ-PRV)
Replace your valve stem assembly with an upgraded version

Built-in pressure relief stem helps prevent copper tubing from freeze bursting
(even if the faucet is accidentally left on)

pressure relief operating rod kit
Each kit will adjust to replace operating rods with overall lengths from 5-7/8" to 15-7/8"

Kit includes: 6" pressure relief inlet stem (x1), 3" stem stop (x1), 6 3/4" middle stem (x1), 5 3/16" handle stem (x1), stainless steel clips (x2), EPDM packing (x1), packing nut (x1), round metal wheel handle (x1), and handle screw (x1).

Arrange stem components provided in kit to match the length of your stem.

Adjustable Operating Rod with Pressure Relief = $48.08

- OR - View Cart

Woodford Model DMP Drywall Mounting Plate
For Woodford freezeless models 22 or V22 and mild climate models 122 or V122

woodford drywall mounting plate
Features:
  • Mounting plate is designed as a secure way to anchor the faucet to an interior wall
  • Provides a durable and protective plate to cover the finished drywall
  • The mounting plate installs on a horizontal or vertical 2" x 4" interior stud wall
  • Keeps just the right amount of space between 5/8" drywall and the faucet wall flange
  • Allows the cover plate to hide the faucet installation for a clean, professional look
  • View Installation Instructions
  • View Included Parts

Woodford DMP Drywall Mounting Plate = $24.78

- OR - View Cart

Order 10 or more drywall mounting plates for additional savings!
Pricing discounts will show up in your shopping cart.

Looking for more freezeless wall faucet options?
Click on any image to see that Woodford outdoor faucet series

Woodford Model 14 freezeless wall faucetModel 14
Example of a Woodford Model 16 freezeless wall faucetModel 16
Example of a Woodford Model 17 freezeless wall faucetModel 17
Example of a Woodford Model 19 freezeless wall faucetModel 19

Example of a Woodford Model 25 freezeless wall faucetModel 25
Example of a Woodford Model 27 freezeless wall faucetModel 27
Example of a Woodford Model 30 freezeless wall faucetModel 30

Related Items & Accessories

Flexeel garden hose
Top Quality Garden Hoses Coiled garden hose
Coiled Garden Hoses Garden hose you can drink out of
Drinking Water Safe Hoses Turtle hose bibb
Whimsical Animal Hose Bibbs Brass hose bibb
Hose Bibbs for Potable Water Hose bibb
Standard Brass Hose Bibbs Brass garden hose adapter
Hose Adapters Drip emitter
Drip Irrigation Supplies


Frequently Asked Questions

Q. "Are these outdoor faucets quarter turn?"
A. No, these quality outdoor faucets are compression style faucets, making them easy to repair.

Q. "How do I choose the correct faucet length?"
A. Determine the thickness of your wall. The faucet must pass through the exterior wall all the way through to the interior of the wall to keep the inlet from freezing. This wall thickness measurement must be from the outside exterior wall to the inside interior of the wall. Next, choose the style of inlet you will need to attach to the type of piping you are using. The inlet length will be determined by the inlet type you choose. The inlet length is the length the faucet shaft is exposed on the interior wall to allow your piping to be connected to the faucet. Order the faucet determined by the actual wall thickness of your wall, not the overall length which includes the inlet length.

If your wall thickness is 4" then select the 4" wall thickness. If your wall is 4-1/2" thick then select the next size up to make sure the inlet of the faucet goes through your wall so the inlet is protected from freezing conditions.
