Model 30 Automatic Draining Freezeless Wall Faucet
by Woodford

Having a wall faucet that automatically drains itself upon being shut off - protecting your home (and your wallet) from costly water damage due to burst pipes down the road - provides peace of mind. Never worry again about an unseen leak inside the wall! This dependable series of faucets have built-in check valves and back flow prevention, ensuring that there is no water left in the pipe to freeze and cause later damage, and that there is no contamination being fed back into the water supply.

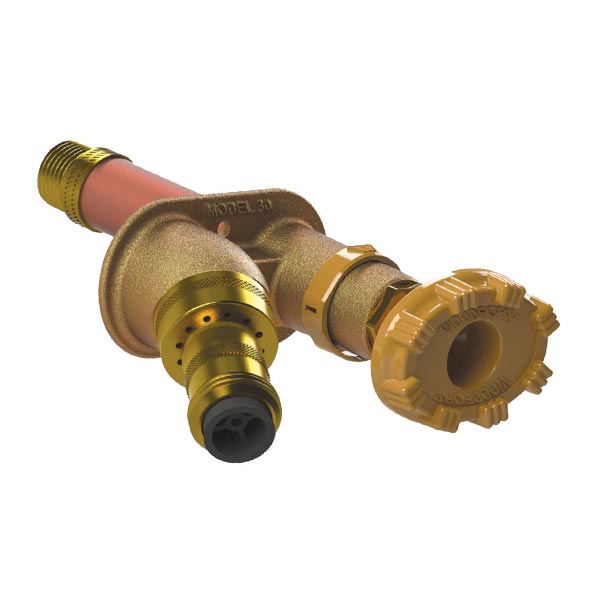

Model 30 Automatic Draining Freezeless Wall Faucet

Woodford freezeless wall faucet model 30
Features:
  • Designed for residential and light commercial applications
  • Faucet drains automatically (with or without a hose attached), making it a worry free fixture for home and business
  • All structural components made of brass
  • Can withstand 125 psi pressure
  • Maximum temperature: 120 degrees
  • Features dual check valves and back flow prevention
  • Available with or without mounting sleeve
  • Choose correct faucet determined by wall thickness
  • Available in potable/drinking water version
Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.

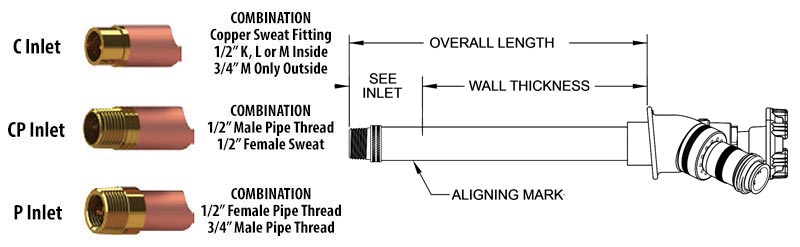

Models 30 Inlet Descriptions

Woodford Wall Faucet model 30 Dimensions

Model 30 Automatic Draining Freezeless Wall Faucets

Model # Description Mounting Sleeve Standard Handle Tee Key Handle
30C (1/2" female sweat - 3/4" type 'M' male sweat) With Enter a quantity and
Without Enter a quantity and
30CP (1/2" male pipe thread - 1/2" female sweat) With Enter a quantity and
Without Enter a quantity and
30P (1/2" female pipe thread - 3/4" male pipe) With Enter a quantity and
Without Enter a quantity and

Model 30 Automatic Draining Freezeless Wall Faucets
2014 Federal Safe Drinking Water Act compliant

Model # Description Standard Handle Tee Key Handle
30CPLL (1/2" male pipe thread - 1/2" female sweat) Enter a quantity and

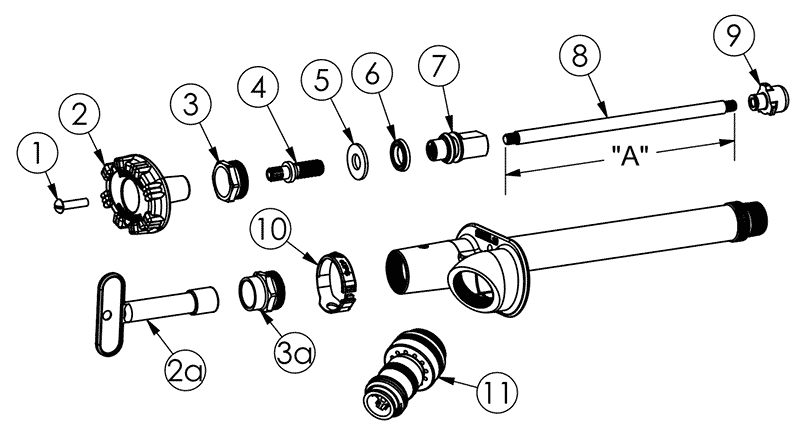

Replacement Parts for Model 30

Wordford outdoor faucet parts model 30
Item # Image Part # Description Price & Quantity
1 Woodford handle screw 30002 Handle Screw $2.75 Enter a quantity and
2 Woodford oval metal handle 30559 Metal Wheel Handle - Oval $8.10 Enter a quantity and
2a Woodford long tee key 50012 Tee Key (optional) $11.90 Enter a quantity and
3 Woodford packing nut 30059 Packing Nut $7.49 Enter a quantity and
3a Woodford deep packing nut 30512 Packing Nut w/ deep stem nut guard (optional) $4.10 Enter a quantity and
4 30264 Stem Screw Only Available in
Kit #RK-30
5 Woodford packing washer 30105 Packing Washer $3.12 Enter a quantity and
6 30263 1/2" Quad Cup Seal Only Available in
Kit #RK-30
7 30262 Drain Valve Body Only Available in
Kit #RK-30
8 Woodford operating rod 30304 Operating Rod Enter a quantity and

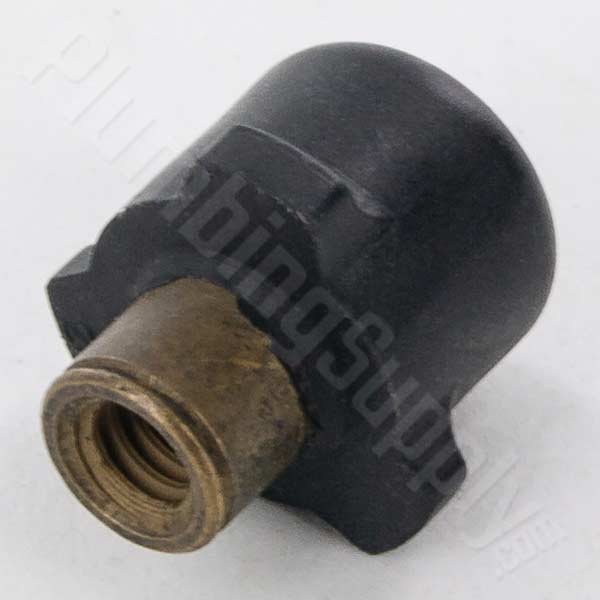

9 Woodford plunger assembly 30260 Plunger Assembly $12.77 Enter a quantity and
10 30261 Vent Cover Ring $2.97 Enter a quantity and
11 Woodford brass vacuum breaker 50HA-BR Brass Backflow Preventer
1-1/8" special thread inlet connection		 $33.52 Enter a quantity and
50HA-CH Chrome Backflow Preventer
1-1/8" special thread inlet connection		 $39.65 Enter a quantity and
RK-30 Repair Kit
Includes items #1-7 & #9		 $37.14 Enter a quantity and

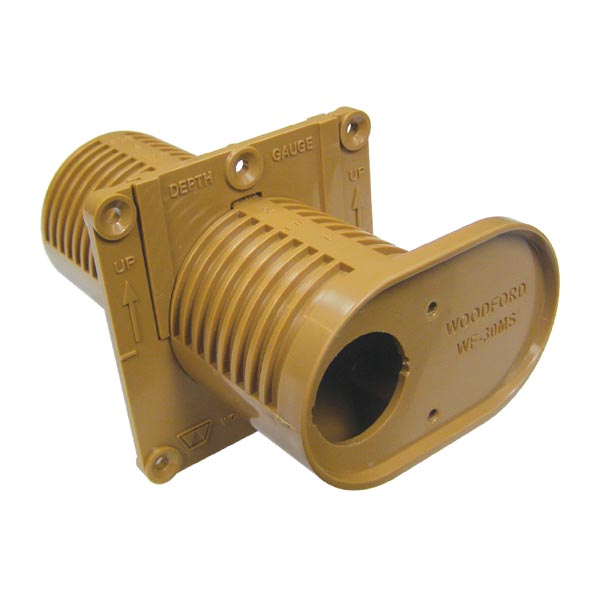

Woodford Model WF-30MS Mounting Sleeve
For Woodford Model 30 Only

Woodford mounting sleeve for model 30
Features:
  • Mounting sleeve takes the guesswork out of installing your Woodford freezeless faucet
  • Adjust how far out the faucet needs to be in order to finish the outside wall with stucco, stone, brick or wood siding
  • A numbered scale built into the top of the mounting sleeve helps you determine the exposure distance needed from the stud wall to the outside finished wall
  • Securely anchors to the sleeve with two furnished flange screws to complete the installation

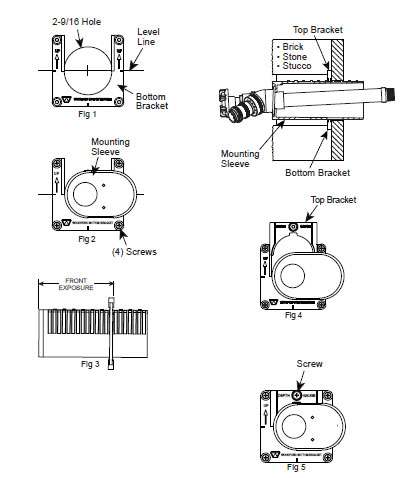

  • installed example

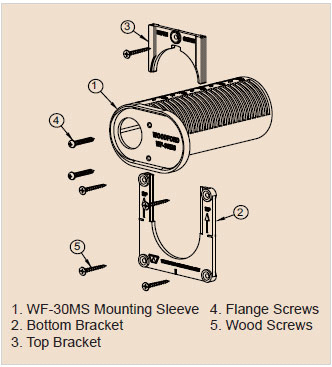

  • included parts

WF-30MS Mounting Sleeve = $14.78

- OR - View Cart

Order 10 or more mounting sleeves for additional savings!
Pricing discounts will show up in your shopping cart.

Looking for more freezeless wall faucet options?
Click on any image to see that Woodford outdoor faucet series

Woodford Model 14 freezeless wall faucetModel 14
Example of a Woodford Model 16 freezeless wall faucetModel 16
Example of a Woodford Model 17 freezeless wall faucetModel 17
Example of a Woodford Model 19 freezeless wall faucetModel 19

Example of a Woodford vertical Model 22 freezeless wall faucetModel 22
Example of a Woodford Model 25 freezeless wall faucetModel 25
Example of a Woodford Model 27 freezeless wall faucetModel 27

Related Items & Accessories

Flexeel garden hose
Top Quality Garden Hoses Coiled garden hose
Coiled Garden Hoses Garden hose you can drink out of
Drinking Water Safe Hoses Turtle hose bibb
Whimsical Animal Hose Bibbs Brass hose bibb
Hose Bibbs for Potable Water Hose bibb
Standard Brass Hose Bibbs Brass garden hose adapter
Hose Adapters Drip emitter
Drip Irrigation Supplies


Frequently Asked Questions

Q. "Are these outdoor faucets quarter turn?"
A. No, these quality outdoor faucets are compression style faucets, making them easy to repair.

Q. "How do I choose the correct faucet length?"
A. Determine the thickness of your wall. The faucet must pass through the exterior wall all the way through to the interior of the wall to keep the inlet from freezing. This wall thickness measurement must be from the outside exterior wall to the inside interior of the wall. Next, choose the style of inlet you will need to attach to the type of piping you are using. The inlet length will be determined by the inlet type you choose. The inlet length is the length the faucet shaft is exposed on the interior wall to allow your piping to be connected to the faucet. Order the faucet determined by the actual wall thickness of your wall, not the overall length which includes the inlet length.

If your wall thickness is 4" then select the 4" wall thickness. If your wall is 4-1/2" thick then select the next size up to make sure the inlet of the faucet goes all the way through your wall so the inlet is protected from freezing conditions.
