ADA-Compliant Handicap Toilets

Proudly made in the USA

These ADA-compliant stainless steel handicap toilets are nearly indestructible. Vandal-resistance is built right in with their tamper-resistant installation nuts, integral toilet seat and fully enclosed trap. PlumbingSupply.com® is your source for Metcraft handicap toilets and many other commercial products.

Sledgehammer smashing toilet

Exclusive New Feature!

Tired of replacing broken porcelain fixtures?
Add "porcelain" white powder coating to your toilet for industrial strength durability without the institutional feel. Looks like the porcelain you want, wears like the stainless steel you need!

All stainless steel toilets on this page can be powder coated. Simply select the powder coat option when ordering a toilet.

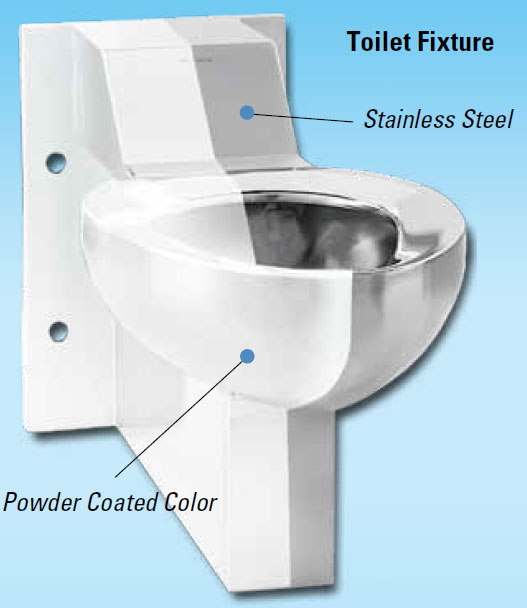

Powder Coat Option - industrial strength without the institutional look

Please note: These toilets are made-to-order and are non-returnable.


ADA-Compliant Stainless Steel Handicap Toilets

Virtually indestructible 14 gauge type 304 stainless steel construction and tamper-resistant installation, these toilets are ideal for prisons and other high risk facilities. The streamlined silhouette also means it's easy to clean with few curves, and virtually no cracks or crevices to hide bacteria or other nasty surprises, so these toilets are also great for schools and hospitals or anywhere else a quick, thorough clean is needed as much as durability. A must for bariatric units and group homes, stainless steel toilets will stand up to being stood upon without chancing the shattering that's such a risk with a porcelain commode. Prefer the look of porcelain? Add a powder coat finish for a porcelain look with the strength of stainless steel and get the best of both worlds.

12" Rough-In Models

image of the Metcraft 4653 stainless steel handicap toilet
Model #4653 pictured
This Stainless Steel Toilet Features:
  • Fully ADA-compliant
  • 18" from floor to top of seat
  • Durable stainless steel construction - great for public restrooms
  • Front mounted, floor outlet waste
  • #4653 model (pictured): 1-1/2" FIP back supply connection - for concealed flushometers
  • #4658 model: 1-1/2" MIP top supply connection - for exposed flushometers
  • Satin finish exposed surfaces except for integral seat area
  • Integral elongated seat polished to bright mirror finish
  • Optional HS drilling to accomodate solid plastic seat available
  • Designed to withstand 5000 lb load weight
  • Self-draining flushing rim
  • Siphon jet type trap
  • Fully enclosed trap
  • 12" rough-in - from finished wall to center of outlet
  • Requires 1" incoming supply line
  • Four 3/8" threaded steel studs and tamper resistant cap nuts
    provided - two for floor, two for back
  • Uses water saving flushometers sold separately below

Compliant with California Energy Commission water efficiency standards

HS-Option: Includes open front solid plastic toilet seat (no cover) with stainless steel hinges and extra heavy post mounts. Not recommended for medium or maximum security correctional facility installations.

Model GPF Description Price & Quantity
HET-4653 1.28 ADA-Compliant Handicap Toilet Fixture - back supply
* printable verification form
$1,905.00 Enter a quantity and
HET-4653-HS 1.28 ADA-Compliant Handicap Toilet Fixture - back supply
- with Hinged solid plastic seat
* printable verification form
$2,017.50 Enter a quantity and
4653 1.6 ADA-Compliant Handicap Toilet Fixture - back supply
* printable verification form
$1,680.00 Enter a quantity and
4653-HS 1.6 ADA-Compliant Handicap Toilet Fixture - back supply
- with Hinged solid plastic seat
* printable verification form
$1,792.50 Enter a quantity and
HET-4658 1.28 ADA-Compliant Handicap Toilet Fixture - top supply
* printable verification form
$1,942.50 Enter a quantity and
HET-4658-HS 1.28 ADA-Compliant Handicap Toilet Fixture - top supply
- with Hinged solid plastic seat
* printable verification form
$2,055.00 Enter a quantity and
4658 1.6 ADA-Compliant Handicap Toilet Fixture - top supply
* printable verification form
$1,717.50 Enter a quantity and
4658-HS 1.6 ADA-Compliant Handicap Toilet Fixture - top supply
- with Hinged solid plastic seat
* printable verification form
$1,830.00 Enter a quantity and

Add Powder Coat Color Option To One Toilet - Porcelain White $300.00

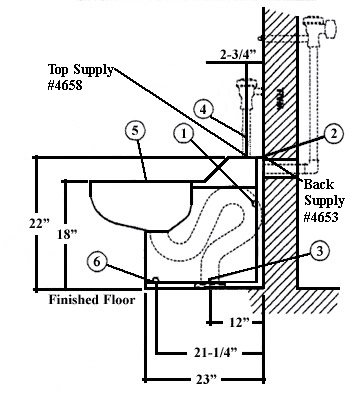

illustration of side view of the Metcraft ADA compliant toilet
More Information:
  • (1) Tamper resistant nuts (four)
  • (2) 3" wall opening for 1-1/2" FIP flush supply inlet (model #4653 only)
  • (3) Floor outlet gasket flange
  • (4) 1-1/2" MIP top flush supply inlet (model #4658 only)
  • (5) Mirror-finish seat
  • (6) Floor anchors (two)

These ADA compliant stainless steel toilets may have a lead-time to ship. If time is of the essence, please contact us prior to ordering.


4-1/4" Rough-In Models

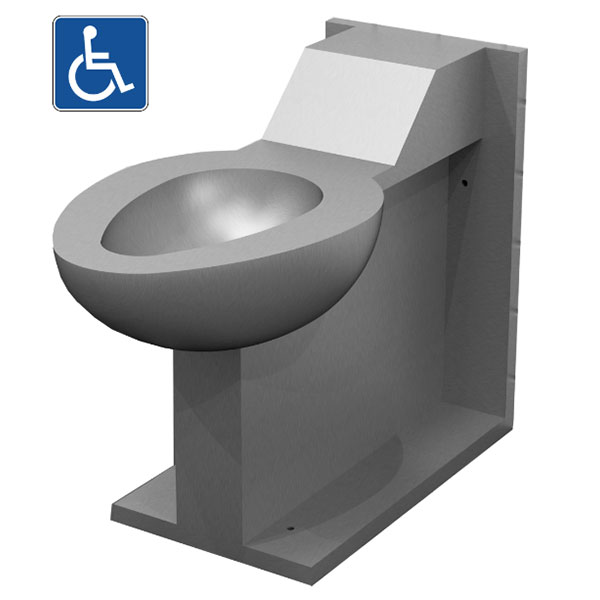

image of the Metcraft 4650 and 4655 stainless steel handicap toiletsModels 4650/4655
This Stainless Steel Toilet Features:
  • Fully ADA-compliant when installed per ADA guidelines
  • 18" from floor to top of seat
  • Durable stainless steel construction for high abuse restrooms
  • Front mounted, floor outlet waste
  • #4650 model (pictured): 1-1/2" FIP back supply connection - for concealed flushometers
  • #4655 model: 1-1/2" MIP top supply connection - for exposed flushometers
  • Satin finish exposed surfaces except for integral seat area
  • Integral elongated seat area polished to bright mirror finish
  • Designed to withstand 5000 lb load weight
  • Self-draining flushing rim
  • Siphon jet type trap
  • Fully enclosed trap
  • 4-1/4" rough-in - from finished wall to center of outlet
  • Requires 1" incoming supply line
  • Four 3/8" threaded steel studs and tamper resistant cap nuts
    provided - two for floor, two for back
  • Uses water saving flushometers sold separately below

Compliant with California Energy Commission water efficiency standards

Model GPF Description Price & Quantity
HET-4650 1.28 ADA-Compliant Handicap Toilet Fixture - back supply
* printable verification form
$1,775.29 Enter a quantity and
4650 1.6 ADA-Compliant Handicap Toilet Fixture - back supply
* printable verification form
$1,550.29 Enter a quantity and
HET-4655 1.28 ADA-Compliant Handicap Toilet Fixture - top supply
* printable verification form
$1,775.39 Enter a quantity and
4655 1.6 ADA-Compliant Handicap Toilet Fixture - top supply
* printable verification form
$1,550.39 Enter a quantity and
Add Powder Coat Color Option To One Toilet - Porcelain White $300.00 Enter a quantity and


Sloan Manually Operated Flushometers
for 1" Supply Lines

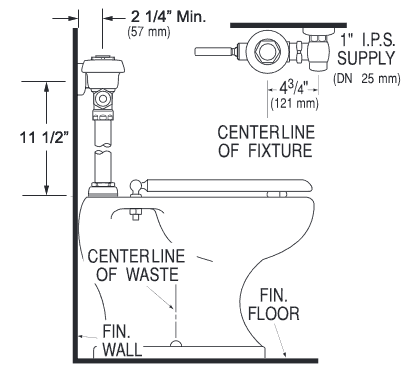

Sloan Royal top supply flushometer
Top supply
Sloan #111-1.28

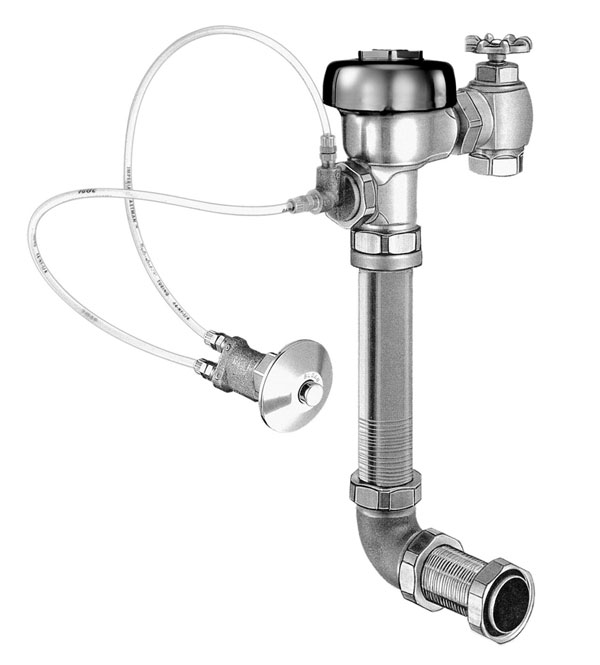

Sloan Royal back supply flushometer
Back supply

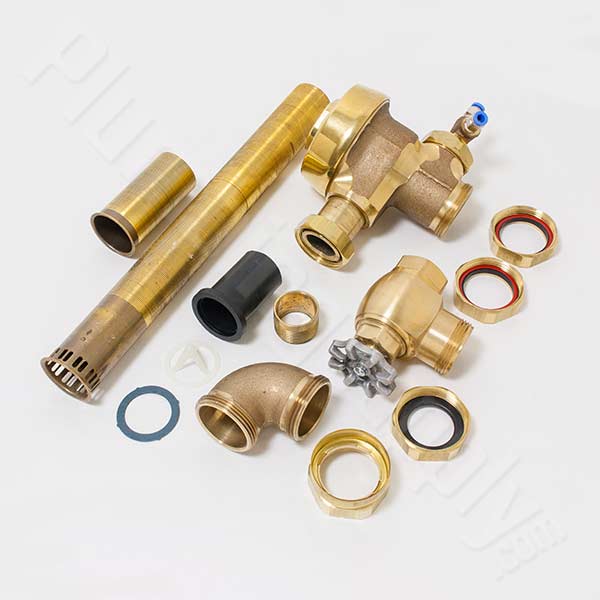

Sloan 9603 Series

If you're looking for a top quality supply flushometer Sloan flushometers are second to none. Top quality ADA compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle packing. PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass 1" I.P.S. Screwdriver Bak-Chek® angle stop w/ free spinning vandal resistant stop cap

The back supply Sloan model 9603 series flushometers are used as an alternative to a top supply valve when extreme vandal protection is needed. The flushometer is mounted behind a wall and is conveniently hydraulically activated with the push of an exposed push button mounted into and through the wall. The push button is ADA Compliant with a non-hold-open feature and can be mounted to either the left or the right hand side of the toilet.

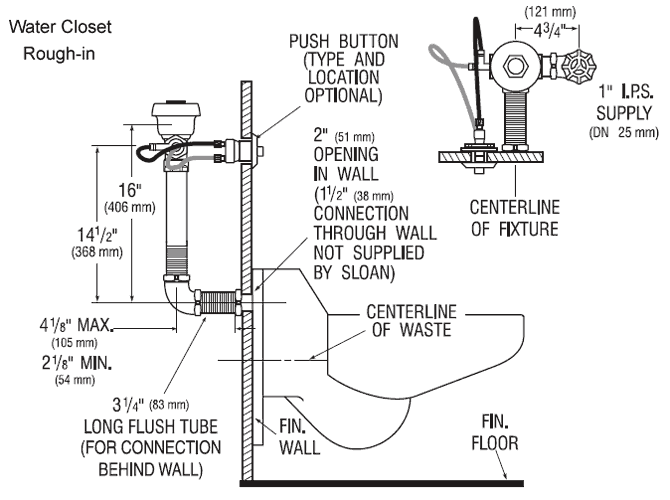

The 9603-1.28 MBFW or 9603-1.6 MBFW (metal button fixture wall actuator) include a wall clamp and threaded rod for through the wall installation for walls up to 8" thick. A spacer is provided for walls less than 2" thick.

The 9603-1.28 AFD MBPM or 9603-1.6 MBPM (metal button panel mount) are recommended for installations where a front access panel is provided or can be used with the Sloan Easy Access Wall Box in places where extreme vandalism is a concern but behind-the-wall access is limited or not available.



Proudly made in the USA USA flag button

Compliant with California Energy Commission water efficiency standards

Model Water Inlet Mounting Type GPF Description Price & Quantity
111-1.28 Top supply Exposed 1.28 Flushometer for floor/wall hung toilets - w/Dual filter bypass diaphragm $219.95 Enter a quantity and
111-1.6 Top supply Exposed 1.6 Flushometer for floor/wall hung toilets - w/Dual filter bypass diaphragm $253.49 Enter a quantity and
9603-1.28 Back supply Concealed 1.28 Flushometer for floor/wall hung toilets
w/Dual filter bypass diaphragm
NO Button Actuator
$441.18 Enter a quantity and
9603-1.28
MBFW
Back supply Concealed 1.28 Flushometer for back supply floor/wall hung toilets - includes dual filter bypass diaphragm and MBFW Metal Button Fixture Wall Actuator (HY-100-A) $482.88 Enter a quantity and
9603-1.28
MBPM
Back supply Concealed 1.28 Flushometer for back supply floor/wall hung toilets - includes dual filter bypass diaphragm and MBPM Metal button panel mount actuator (HY-108A) - for use only with Wall Box or when an Access Panel is provided in a combination (sink/toilet) fixture $461.95 Enter a quantity and
9603-1.6 XL
MBFW
Back supply Concealed 1.6 Flushometer for floor/wall hung toilets
w/MBFW Metal button fixture wall actuator (HY-100A)- includes sweat solder adapter
$471.77 Enter a quantity and
9603-1.6 XL
MBPM
Back supply Concealed 1.6 Flushometer for floor/wall hung toilets
with MBPM Metal button panel mount actuator (HY-108A) - includes sweat solder adapter - for use only with Wall Box or when - an Access Panel is provided in a combination (sink/toilet) fixture
$450.95 Enter a quantity and


Easy Access® Wall Box

Sloan easy access wall box
Sloan Easy Access Wall Box allows you to install a concealed flushometer where behind-the-wall access is not available.

These wall boxes are designed to withstand years of high volume use and install in a 12" x 12" wall opening. The wall box includes a brushed stainless steel wall panel (13 1/2" x 13 1/2") to enhance the appearance of your flushometer installation.

Sloan Easy Access Wall Box #WB-1-A = $243.92

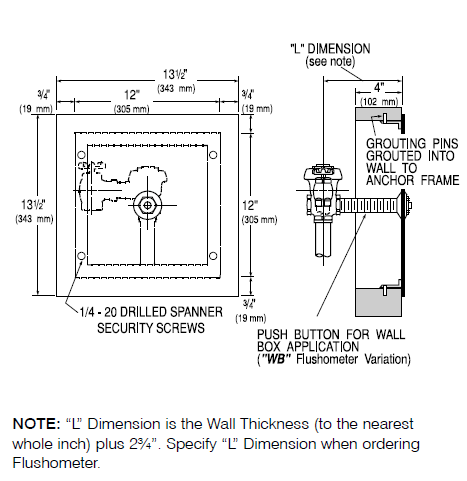

Detailed dimensions of the Easy Access® Wall Box

Please note: This product is NOT made in the USA.

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "What do you mean by "back supply connection" (model #4653) and "top supply connection" (model #4658)?"
A. Back-supplied models use flush valves that are concealed inside the wall, whereas toilets that are supplied from the top use an exposed flush valve. Please look at the diagram above, which shows both types of valves (the #4 arrow is pointing to an exposed valve, while the concealed valve is pictured near #2).

Q. "I need to replace my 3.5GPF toilet. Will these toilets work without needing to change my existing flushometer valve?"
A. You won't need to change the flushometer valve, however, you will need to replace the internal flush valve parts with a rebuild kit so the gallons per flush of the flushometer will match the gallons per flush the toilet you are purchasing requires.

Q. "Can I uses these toilets with 3/4" supply lines?"
A. The manufacturer states these toilets are designed for use with 1" supply piping providing 35 psi flushing pressure.

Q. "Are these stainless steel toilets as sturdy as they claim to be?"
A. The manufacturer states these toilets are designed to withstand 5000 lb. loading weight without permanent deflection and damage. They are fabricated using heavy gauge type 304 stainless steel, seamlessly welded and formed into a vandal resistant fixture to be used in high abuse areas.

Q. "Where are these handicap stainless steel toilets typically installed?"
A. Because these stainless steel toilets are nearly indestructible, they are often installed in prisons, parks, bars, hospitals, schools, rest areas, sports arenas and bus stations. For the most part, they are installed in high "use and abuse" locations.

Q. "What's the point of powder coating a stainless steel toilet?"
A. Adding a "porcelain" white powder coating to your toilet makes it look like a porcelain fixture. This is great if you're tired of replacing broken porcelain fixtures and want the strength of stainless steel, but prefer the look of porcelain.


Please note: While we strive to ensure every product we label as "Made in the USA" really is 100% made in the USA, it is also important to understand that sometimes manufacturers make changes to their products, or for various reasons may receive components or materials that they would normally purchase domestically from an overseas supplier - and they don't necessarily let distributors (like us!) know that they've changed something about the product or where it is manufactured.

If you receive a product that PlumbingSupply.com® says is "Made in the USA" and the product states it was manufactured elsewhere, please contact us. We will happily replace or refund your purchase to your satisfaction.
