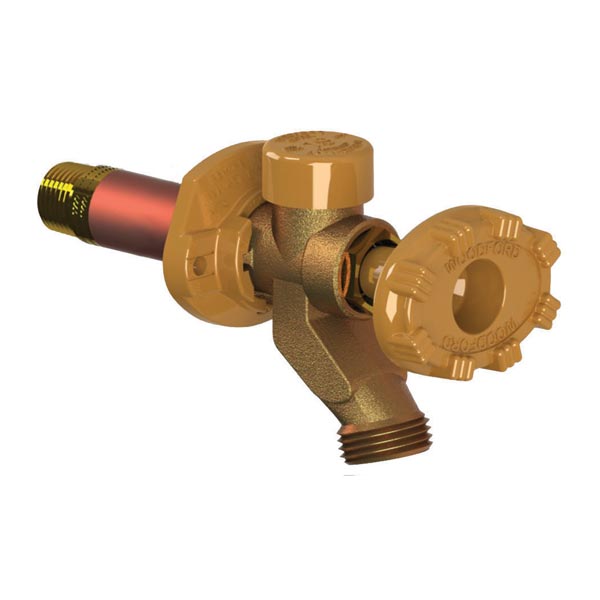

Model 19 Outdoor Anti Siphon Wall Faucets
by Woodford
The Model 19, with it's patented Pressure Relief Valve and anti-siphon protection, is an ideal wall faucet for the chilliest parts of the country. This durable outdoor wall faucet comes standard with the anti-siphon feature plus a durable oval, powder coated, die-cast aluminum handle and multiple options for wall-thickness and inlet type so you can get the exact faucet you need.
Pressure Reducing Freezeless Wall Faucets With Anti-siphon Protection
Features:
- Intended for irrigation purposes and designed for year-round residential regardless of outside temperature
- Contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker
- Pressure relief assembly prevents freezing, even if a hose is attached
- Integral anti siphon vacuum breaker
- 3/4" male hose thread
- Stainless steel seat helps eliminate sediment scratching or abrasion for positive leak free shut-off
- Adjustable wall flange - makes for easy installation
- EPDM packing helps prevent leaking
- Choose the correct faucet determined by wall thickness

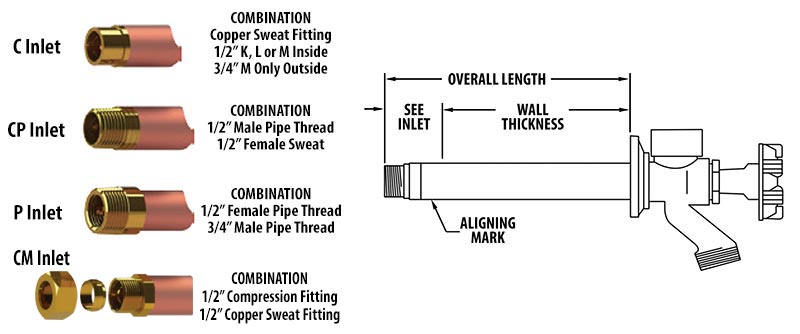

Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.
Model 19 Inlets
Replacement Parts for Model 19
| Item # |
Image |
Part # |
Description |
Price & Quantity |
| 1 |
 |
30002 |
Handle Screw |
$2.75 |
Enter a quantity and
|
| 2 |
 |
30559 |
Metal Wheel Handle - Oval |
$8.10 |
Enter a quantity and
|
| 2a |
 |
50012 |
Tee Key (optional) |
$11.90 |
Enter a quantity and
|
| 3 |
 |
30059 |
Packing Nut |
$7.49 |
Enter a quantity and
|
| 3a |
 |
30512 |
Packing Nut w/ deep stem nut guard (optional) |
$4.10 |
Enter a quantity and
|
| 4 |
 |
30560 |
Packing |
$6.69 |
Enter a quantity and
|
| 5 |
 |
30421 |
Packing Support Washer |
$4.97 |
Enter a quantity and
|
| 6 |
-- |

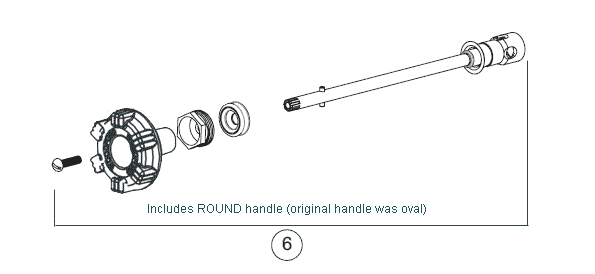

RK-PRV |
Pressure Relief Valve Stem Assembly
Includes items 1, 2(Round), 3, 4, and valve stem |
|
| -- |
RK-ADJ-PRV |
Adjustable Pressure Relief Valve Stem Assembly
(Includes items 2, 3, 4, 7, 8, 9) |
See Adjustable
PRV Stem |
Enter a quantity and
|
| 7 |
 |
30459 |
Check Valve |
$5.70 |
Enter a quantity and
|
| 8 |
 |
30008 |
Valve Seat Rubber |
$3.41 |
Enter a quantity and
|

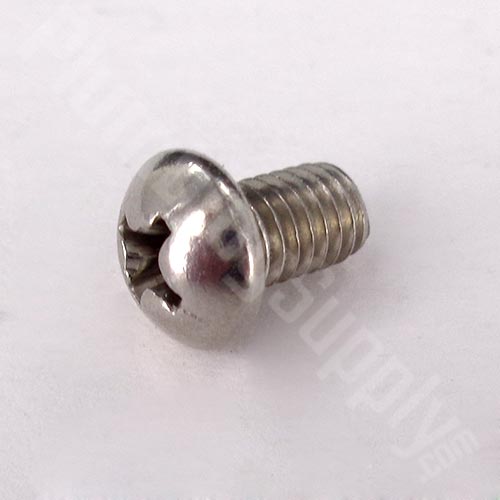

| 9 |
 |

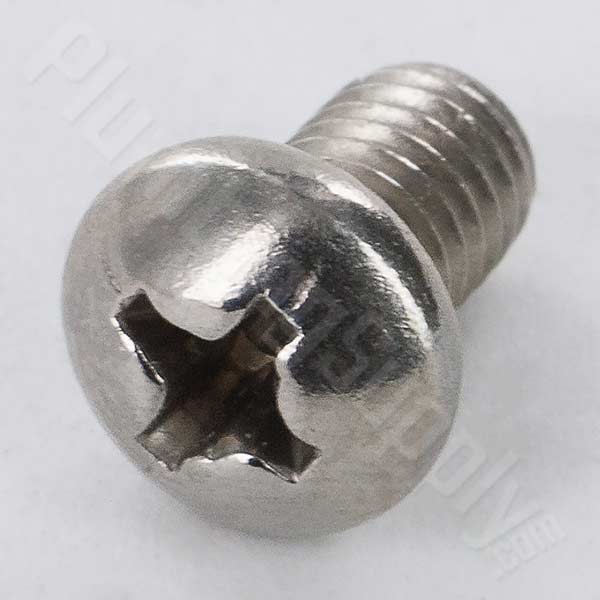

30804 |
Retainer Screw |
$3.55 |
Enter a quantity and
|
| 10 |
 |

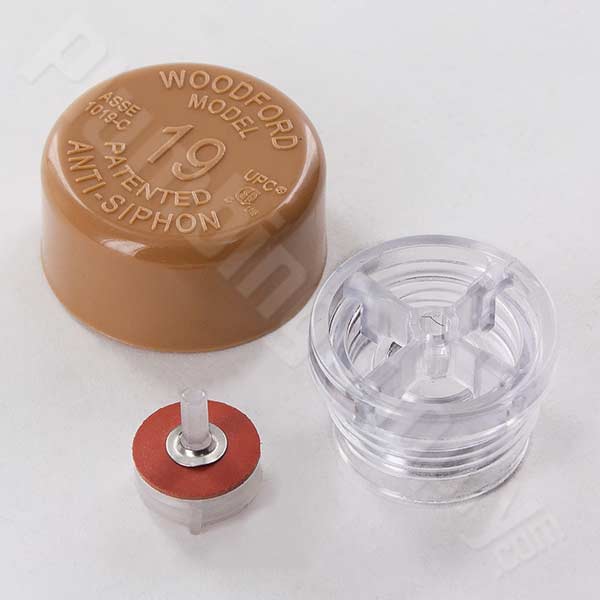

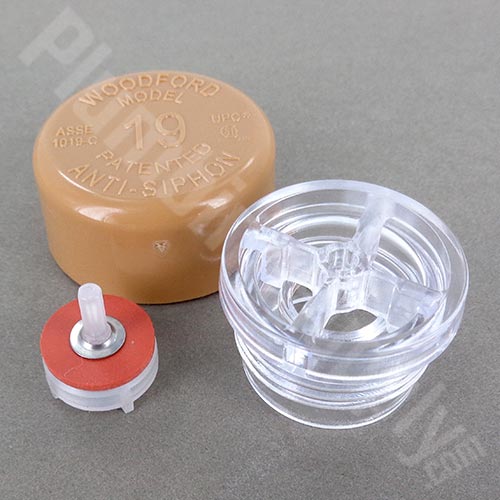

RK-19VB |
Vacuum Breaker Float Kit - Model 19 |
$5.28 |
Enter a quantity and
|
| 11 |
 |
30098 |
Adjustable Flange |
$2.97 |
Enter a quantity and
|
| |
 |

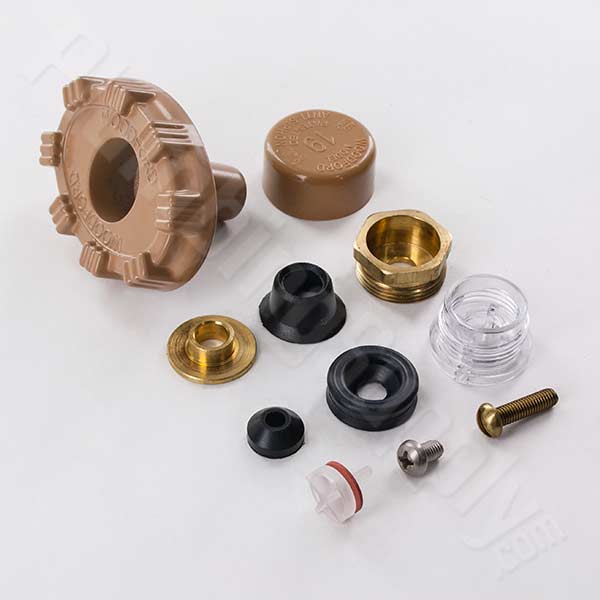

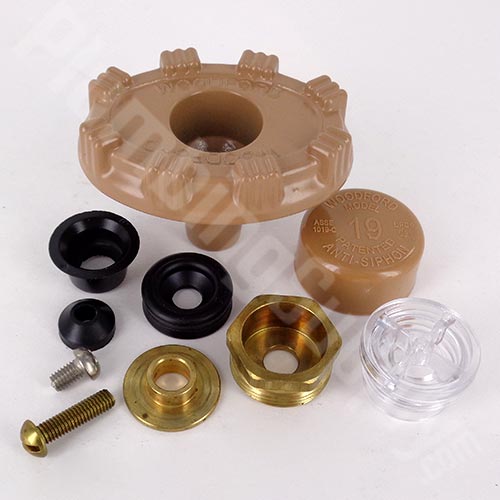

RK-19 |
Repair kit (items 1-5, 7-10)
Includes metal round handle (2a not included with kit) |
$34.67 |
Enter a quantity and
|
Adjustable Operating Rod with Pressure Relief Valve (RK-ADJ-PRV)
Replace your valve stem assembly with an upgraded version
Built-in pressure relief stem helps prevent copper tubing from freeze bursting
(even if the faucet is accidentally left on)
Each kit will adjust to replace operating rods with overall lengths from 5-7/8" to 15-7/8"
Kit includes: 6" pressure relief inlet stem (x1), 3" stem stop (x1), 6 3/4" middle stem (x1), 5 3/16" handle stem (x1), stainless steel clips (x2), EPDM packing (x1), packing nut (x1), round metal wheel handle (x1), and handle screw (x1).
Arrange stem components provided in kit to match the length of your stem.
Adjustable Operating Rod with Pressure Relief = $48.08
Order 10 or more mounting sleeves for additional savings!
Pricing discounts will show up in your shopping cart.
Looking for more freezeless wall faucet options?
Click on any image to see that Woodford outdoor faucet series
Related Items & Accessories
Frequently Asked Questions
Q. "Are these outdoor faucets quarter turn?"
A. No, these quality outdoor faucets are compression style faucets, making them easy to repair.
Q. "How do I choose the correct faucet length?"
A. Determine the thickness of your wall. The faucet must pass through the exterior wall all the way through to the interior of the wall to keep the inlet from freezing. This wall thickness measurement must be from the outside exterior wall to the inside interior of the wall. Next, choose the style of inlet you will need to attach to the type of piping you are using. The inlet length will be determined by the inlet type you choose. The inlet length is the length the faucet shaft is exposed on the interior wall to allow your piping to be connected to the faucet. Order the faucet determined by the actual wall thickness of your wall, not the overall length which includes the inlet length.
If your wall thickness is 4" then select the 4" wall thickness. If your wall is 4-1/2" thick then select the next size up to make sure the inlet of the faucet goes through your wall so the inlet is protected from freezing conditions.
