Model 25 Outdoor Freezeless Wall Faucets
by Woodford

This Model 25 Freezeless Wall Faucet, with a built-in, anti-siphon vacuum breaker, is an effective way to protect your home from water damage caused by a burst pipe. Even if you forget to remove the hose in freezing conditions, this faucet will completely drain so there is no danger of bursting. Suitable for cold or hot water installations, this faucet is made to save you from the high cost of damages due to an unseen leak when the water is turned on after the thaw. When installed per the manufacturer's requirements, you'll have trouble-free performance for years to come.

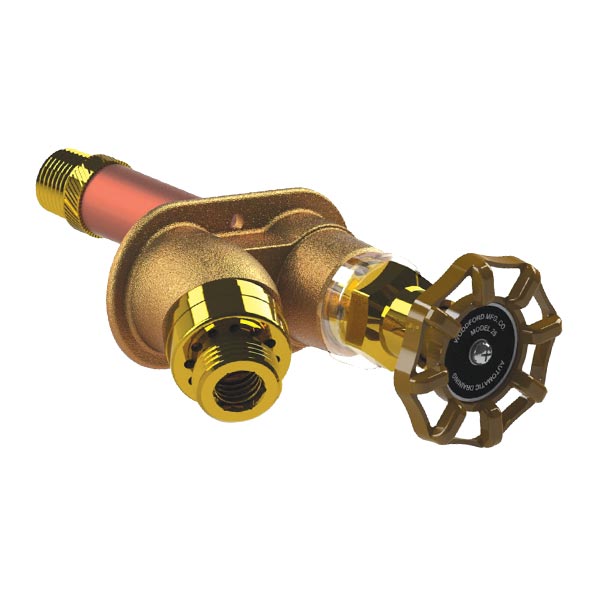

Model 25 Anti-Siphon Automatic Draining Freezeless Wall Faucets

Woodford wall faucet model 25
Features:
  • Excess water drains from faucet even if hose is accidentally left on
  • Removable, single check anti-siphon vacuum breaker with 3/4" male hose thread is designed for non-freezing installations
  • Max pressure: 125psi
  • Max temperature: 120°
  • Valve is molded nitrile which is suitable for hot water
  • Plunger - hemispherical cushion type
  • Standard metal handle or vandal resistant tee key handle
  • Choose the correct faucet determined by wall thickness

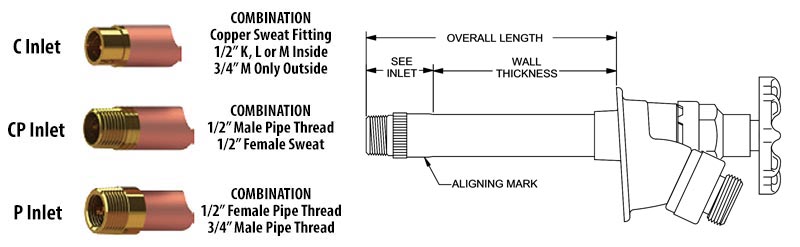

Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.

Models 25 Inlet Descriptions

Woodford Wall Faucet Dimensions
Model # Description Standard Handle Tee Key Handle
25C (1/2" female sweat - 3/4" type 'M' male sweat) Enter a quantity and
25CP (1/2" male pipe thread - 1/2" female sweat) Enter a quantity and
25P (1/2" female pipe thread - 3/4" male pipe) Enter a quantity and

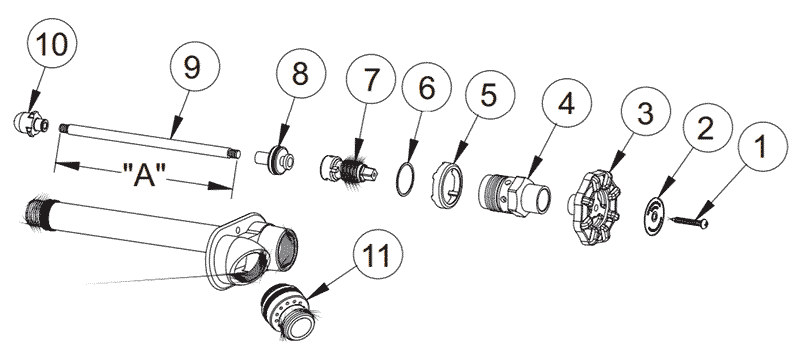

Replacement Parts for Model 25

Wordford outdoor faucet parts model 25
Item # Image Part # Description Price & Quantity
1 Woodford handle screw 30234 Handle Screw $2.05 Enter a quantity and
2 30439 Identification Ring Discontinued
3 Woodford round metal handle 30239 Metal Wheel Handle $6.63 Enter a quantity and
4 Woodford brass head nut 30241 Brass Head Nut $18.88 Enter a quantity and
5 Woodford drain guard 30236 Drain Guard $1.42 Enter a quantity and
6 Woodford head nut gasket 30245 Head Nut Gasket $2.81 Enter a quantity and
7 Woodford stem screw 30238 Stem Screw $5.22 Enter a quantity and
8 Woodford drain valve assembly 35280 Drain Valve Assembly $9.99 Enter a quantity and
9 Woodford operating rod 30304 Operating Rod Enter a quantity and
10 Woodford plunger assembly 30230 Plunger Assembly $7.77 Enter a quantity and
11 Woodford brass vacuum breaker 55057 34HA Brass Vacuum Breaker $36.22 Enter a quantity and
Woodford repair kit RK-25 RK-25 Repair Kit
Includes items #1-8 & #10		 $54.22 Enter a quantity and

Looking for more freezeless wall faucet options?
Click on any image to see that Woodford outdoor faucet series

Woodford Model 14 freezeless wall faucetModel 14
Example of a Woodford Model 16 freezeless wall faucetModel 16
Example of a Woodford Model 17 freezeless wall faucetModel 17
Example of a Woodford Model 19 freezeless wall faucetModel 19

Example of a Woodford vertical Model 22 freezeless wall faucetModel 22
Example of a Woodford Model 27 freezeless wall faucetModel 27
Example of a Woodford Model 30 freezeless wall faucetModel 30

Related Items & Accessories

Flexeel garden hose
Top Quality Garden Hoses Coiled garden hose
Coiled Garden Hoses Garden hose you can drink out of
Drinking Water Safe Hoses Turtle hose bibb
Whimsical Animal Hose Bibbs Brass hose bibb
Hose Bibbs for Potable Water Hose bibb
Standard Brass Hose Bibbs Brass garden hose adapter
Hose Adapters Drip emitter
Drip Irrigation Supplies


Frequently Asked Questions

Q. "Are these outdoor faucets quarter turn?"
A. No, these quality outdoor faucets are compression style faucets, making them easy to repair.

Q. "How do I choose the correct faucet length?"
A. Determine the thickness of your wall. The faucet must pass through the exterior wall all the way through to the interior of the wall to keep the inlet from freezing. This wall thickness measurement must be from the outside exterior wall to the inside interior of the wall. Next, choose the style of inlet you will need to attach to the type of piping you are using. The inlet length will be determined by the inlet type you choose. The inlet length is the length the faucet shaft is exposed on the interior wall to allow your piping to be connected to the faucet. Order the faucet determined by the actual wall thickness of your wall, not the overall length which includes the inlet length.

If your wall thickness is 4" then select the 4" wall thickness. If your wall is 4-1/2" thick then select the next size up to make sure the inlet of the faucet goes through your wall so the inlet is protected from freezing conditions.
