Rêve Toilet Repair Parts
By Kohler

PlumbingSupply.com® is proud to provide the essential repair parts needed to maintain the smooth operation of the Rêve toilet by Kohler. This toilet, known for its sleek and contemporary design, requires minimal upkeep when equipped with the right components. Explore our selection for quality Kohler parts and keep your modern toilet in top condition. For more Kohler parts, visit our page.

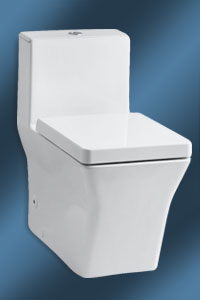

Kohler Rêve toilet

Kohler Toilet Replacement Parts for the Rêve Toilet
One-Piece Model #K-3797

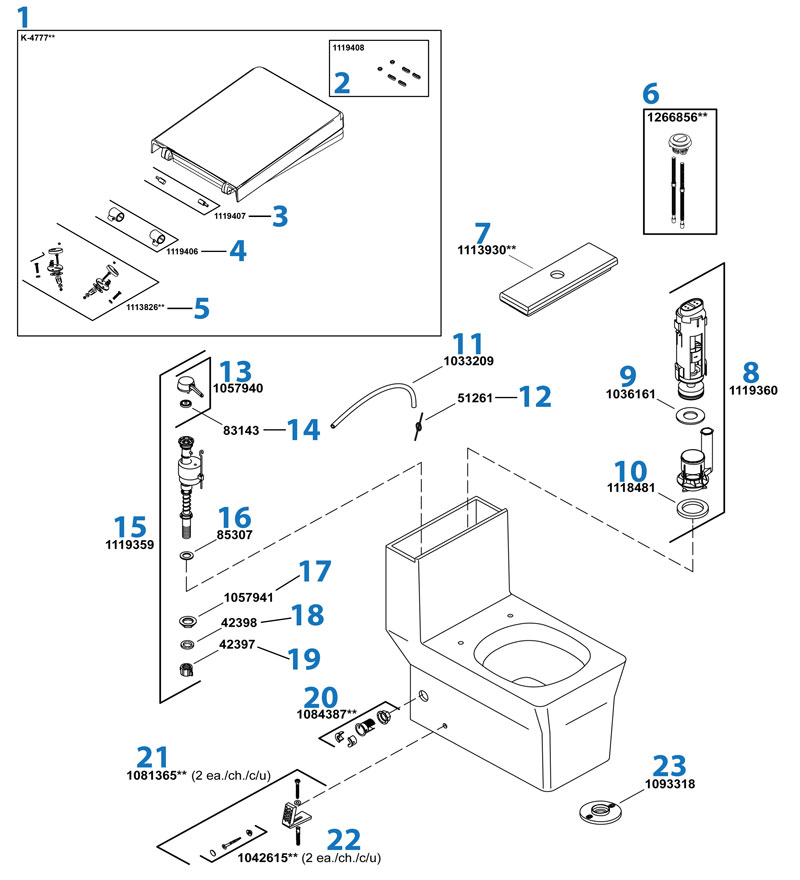

Rêve Toilet repair parts diagram

Item # Image Part # Description Price & Quantity
1 image unavailable K-4777 Elongated Closed Front Toilet Seat Discontinued
2 image unavailable 1119408 Seat Bumper Kit Discontinued
3 kohler damper kit 1119407 1119407 Reve Damper Kit $20.25 Enter a quantity and

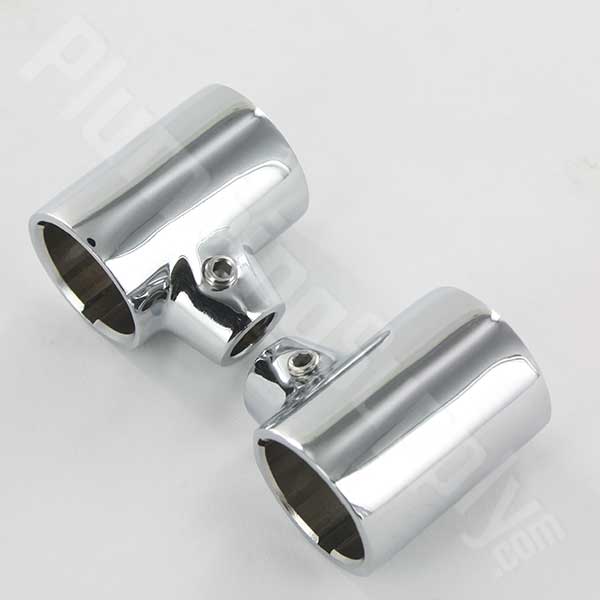

4 kohler toilet damper holder kit 1119406 1119406 Damper Holder Kit $18.95 Enter a quantity and

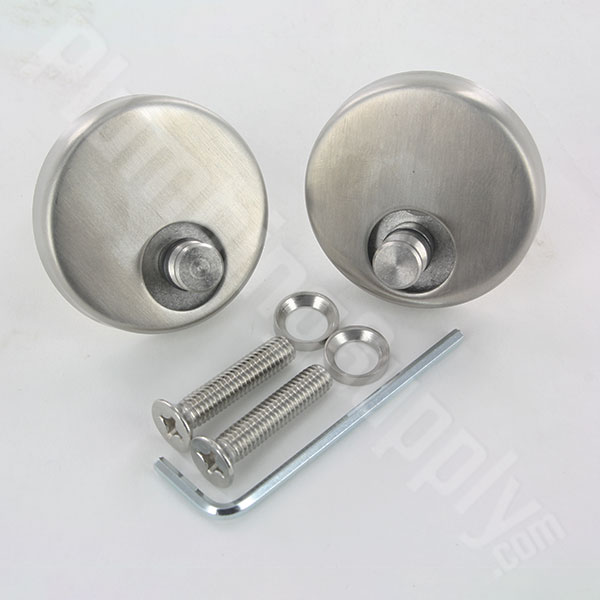

5 kohler hinge assembly polished chrome 1113826 1113826 Hinge Assembly $23.40 Enter a quantity and
6 kohler push button assembly chrome 1266856 1266856-CP Push Button Assembly - Chrome $10.84 Enter a quantity and
Item # Image Part # Description Price & Quantity
7 image unavailable 1113930 Toilet Tank Lid Discontinued
8 image unavailable 1119360 Dual Flush Valve Assembly $54.75 Enter a quantity and
9 kohler dual flush valve flat seal 1131496 1131496 Dual Flush Valve Flat Seal - Replaces 1036161 $8.53 Enter a quantity and

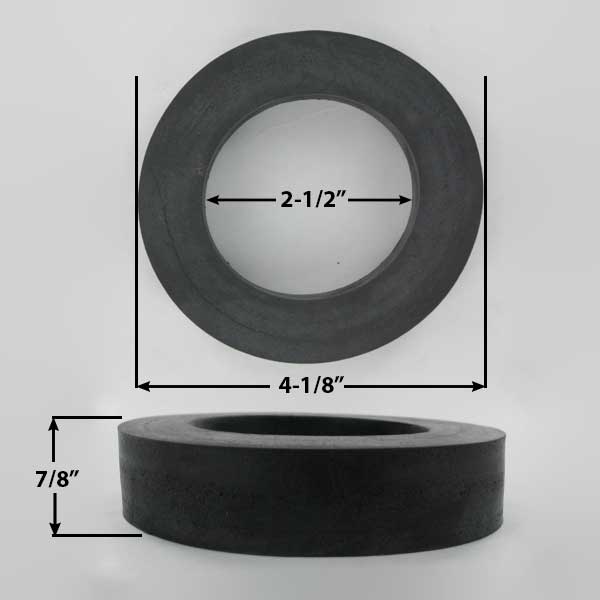

10 kohler toilet flush valve gasket 1118481 1118481 Flush Valve Gasket $4.69 Enter a quantity and
11 kohler refill tube 1033209 1033209 Refill Tube - for 1039862 & GP1083167 fill valves $2.65 Enter a quantity and
12 kohler clip 51261 51261 Refill Tube Clip $3.71 Enter a quantity and
13 kohler cap assembly 1057940 1057940 Top Assembly - for 1060198, GP1083167 & GP1138930 fill valves $8.62 Enter a quantity and
Item # Image Part # Description Price & Quantity
14 kohler seal diaphragm 83143 83143 Seal Diaphragm - for 1060198, GP1083167 & GP1138930 fill valves $4.99 Enter a quantity and
15 image unavailable 1119359 Fill Valve Assembly Discontinued
16 kohler shank washer 85307 85307 Shank Washer $1.67 Enter a quantity and
17 image unavailable 1057941 Shank Nut $1.59 Enter a quantity and
18 kohler washer 42398 42398 Washer $1.57 Enter a quantity and
19 image unavailable 42397 Nut $1.90 Enter a quantity and
20 kohler inlet cover assembly white 1084387 1084387 Inlet Cover Assembly - White $5.34 Enter a quantity and
21 image unavailable 1081365 Floor Mounting Kit - White $22.54 Enter a quantity and
22 kohler hold down covers white 1042615 1042615 White Hold Down Covers $8.86 Enter a quantity and
23 image unavailable 1093318 Wax Ring Plate Assembly $13.99 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
