Adair Toilet Repair Parts
By Kohler

With clean lines and a compact footprint, the Kohler Adair toilet adds modern grace to almost any bathroom. Make sure the inside is functioning as beautifully as the outside with quality genuine Kohler toilet repair parts - from flush valve seals and bolt caps to replacement seats and refill tubes, your friends at PlumbingSupply.com® have just what you're looking for.

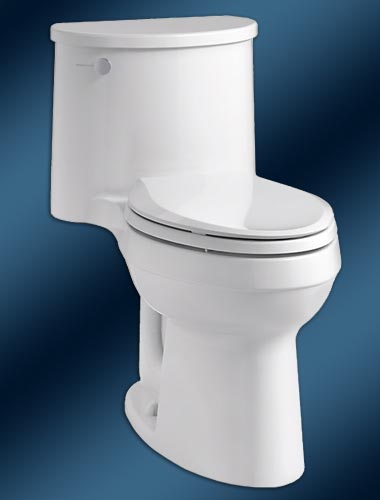

Kohler Adair one-piece toilet - model #K-3946Model #K-3946

Replacement Parts for Kohler Adair Toilets
One Piece Model #K-3946

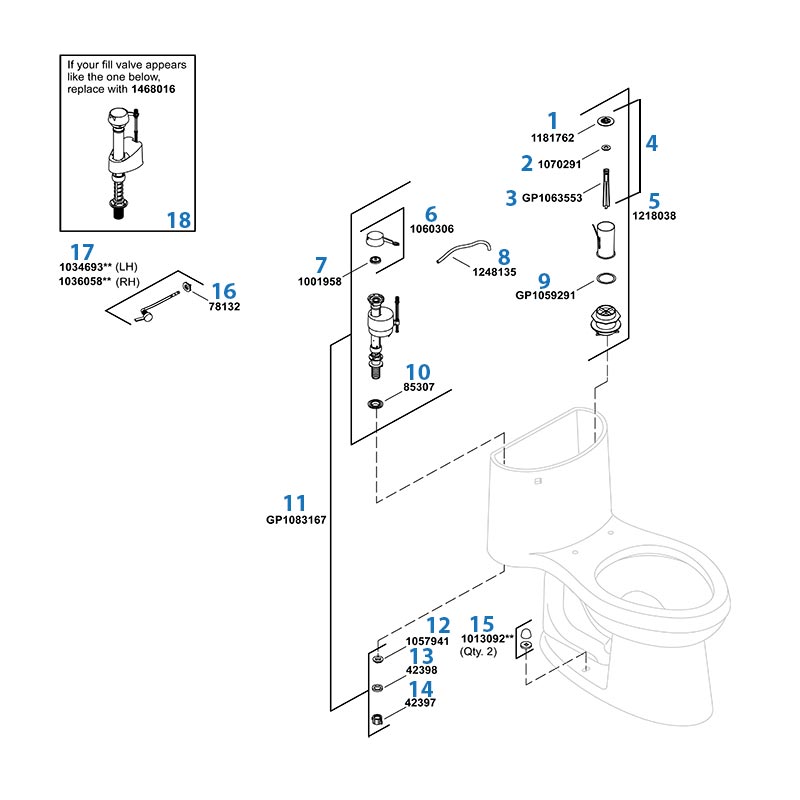

Parts diagram for Kohler Adair one-piece toilet - model #K-3946
Item # Image Part # Description Price & Quantity
1 image unavailable 1181762 Aqua Piston Stop Discontinued
(offered in kit as 4)
2 kohler flush valve washer 1070291 1070291 Canister Flush Valve Washer $3.31 Enter a quantity and
3 image unavailable GP1063553 Flush Valve Canister Discontinued
(offered in kit as 4)
4 kohler flush valve repair kit 1229656 GP1229656 Aqua Piston Repair Kit $9.51 Enter a quantity and

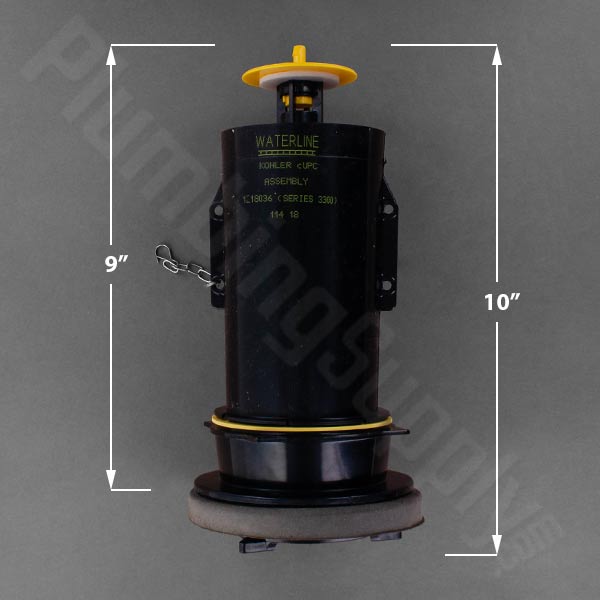

5 kohler canister flush valve 1218038 1218038 Canister Flush Valve $19.95 Enter a quantity and
6 image unavailable 1060306 Fill Valve Top Assembly Discontinued
7 kohler seal diaphragm 1001958 1001958 Seal Diaphragm - for 1083167 and GP1138930 fill valves $6.49 Enter a quantity and
8 image unavailable 1248135 Refill tube $1.49 Enter a quantity and
9 image unavailable 1059291 Flush Valve Seal $9.09 Enter a quantity and
10 kohler shank washer 85307 85307 Shank Washer $1.67 Enter a quantity and
11 kohler fill valve 1083167 1083167 Fill Valve $24.72 Enter a quantity and
12 image unavailable 1057941 Shank Nut $1.59 Enter a quantity and
13 kohler washer 42398 42398 Washer $1.57 Enter a quantity and
14 image unavailable 42397 Nut $1.90 Enter a quantity and
15 kohler bolt caps white 1013092 1013092 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and
16 image unavailable 78132 Retainer Nut $1.69 Enter a quantity and
17 image unavailable 1034693 Left Hand Trip Lever - Chrome $15.35 Enter a quantity and
image unavailable 1036058 Right Hand Trip Lever - Chrome $19.77 Enter a quantity and
18 image unavailable 1468016 Toilet Fill Valve Discontinued

Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight
