Vintage Series Toilet Repair Parts
By Kohler

Replacement parts for the smooth operation of your Vintage toilet are right here on PlumbingSupply.com®! Whether you need a fill valve service kit, or want to replace your worn out plunger assembly, you'll find them right here. Looking for more Kohler parts? Visit our page to see our large selection.

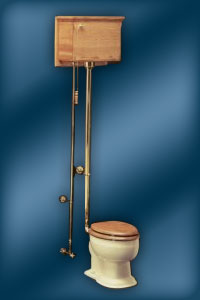

Vintage toilet

Kohler Vintage High-Tank Toilet Replacement Parts
Model # K-3410

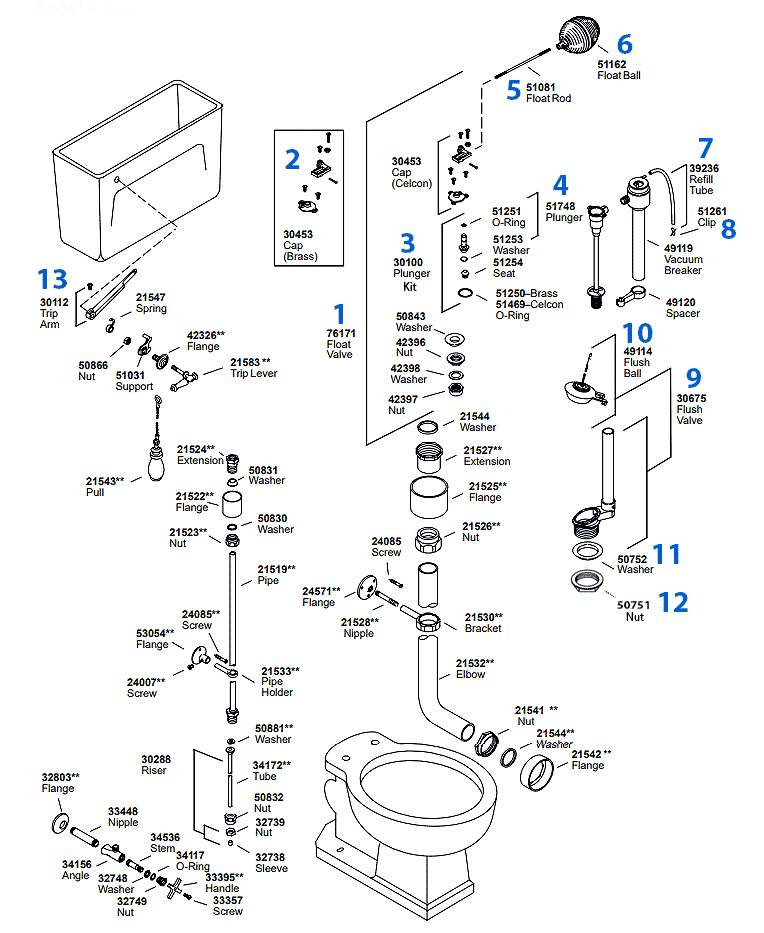

Vintage toilet repair parts by Kohler

Item # Image Part # Description Price & Quantity
1 kohler fill valve 76171 76171 Fill Valve $149.97 Enter a quantity and
2 kohler toilet fill valve cap assembly 30453 30453 Cap Assembly $62.88 Enter a quantity and
3 kohler plunger service kit 30100 30100 Plunger Service Kit $7.62 Enter a quantity and
4 kohler plunger assembly 51748 51748 Plunger Assembly $6.37 Enter a quantity and
5 brass float rod 8 inch 51081 Metal Float Rod Replaced by Will-Fit $3.10 Enter a quantity and
6 plastic float ball "Will-Fit" Float Ball Plastic Float Ball Replaces 51162 $3.70 Enter a quantity and
Item # Image Part # Description Price & Quantity
7 refill tube clear will-fit "Will-Fit" Refill Tube Replaces 39236 $3.70 Enter a quantity and
8 kohler clip 51261 51261 Refill Tube Clip $3.71 Enter a quantity and
9 image unavailable 30675 Flush Valve Discontinued
korky plus flush valve 87 87 Will-Fit Flush Valve with 10-1/2" Overflow Tube $14.99 Enter a quantity and
10 will-fit flapper korky 58 "Will Fit" Flapper Flapper - Replaces 49114 $8.46 Enter a quantity and
11 kohler washer 50752 50752 Friction Washer $1.76 Enter a quantity and
12 kohler nut 50751 50751 Lock Nut $5.12 Enter a quantity and
13 kohler trip arm with screw 30112 30112 Trip Arm Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.
