Saile Toilet Repair Parts
By Kohler

Restore your unique Saile toilet to it's proper function with replacement parts from PlumbingSupply.com®! Keep it operating smoothly with some care and the correct repair parts, and you'll find what you need right here - whether you need a flush valve seal, some hold down covers, or a replacement toilet seat, we've got it.

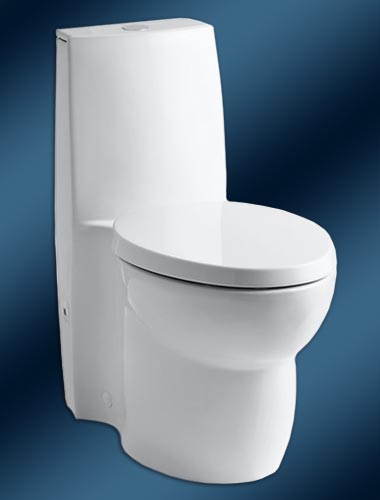

Kohler Saile one-piece toilet - model #K-3564Model #K-3564

Replacement Parts for Kohler Saile Toilets
One Piece Model #K-3564

Parts diagram for Kohler Saile one-piece toilet - model #K-3564
Item # Image Part # Description Price & Quantity
1 kohler fill valve 1097230 1097230 Fill Valve $31.38 Enter a quantity and
2 kohler cap assembly 1057940 1057940 Top Assembly $8.62 Enter a quantity and
3 kohler seal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
4 kohler refill tube 1033209 1033209 Refill Tube $2.65 Enter a quantity and
5 kohler dual flush valve 1097231 1097231 Dual Flush Valve Discontinued
6 kohler dual flush valve flat seal 1131496 1131496 Dual Flush Valve Flat Seal $8.53 Enter a quantity and
7 kohler gasket 83996 83996 Flush Valve Gasket $6.74 Enter a quantity and
Item # Image Part # Description Price & Quantity
8 kohler push button assembly chrome 1266856 1266856 Push Button Assembly - Chrome $10.84 Enter a quantity and
9 kohler anchor kit 84999 84999 Seat Anchor Kit - tools, replacement anchors and instructions for replacing damaged seat anchors - Note: You may also need a Top Mounting Adapter Kit IF you are purchasing a 200E4 or 1200E4 Toilet Seat - Top Mounting Concealed Kits can be found here $54.35 Enter a quantity and
10 elongated bemis affinity toilet seat 1200e4 white 1200E4 Bemis "Will Fit" Elongated Front - Plastic Toilet Seat - SLOW CLOSE - White - view dimensions $67.91 Enter a quantity and
11 kohler inlet cover assembly white 1084387 1084387 Inlet Cover Assembly - White $5.34 Enter a quantity and
12 kohler hold down covers white 1042615 1042615 Hold Down Covers (2) - White $8.86 Enter a quantity and
Not Shown top mounting adapter kit 1200e4 CONCEAL-E4 Top Mounting Adapter Kit for 200E4 and 1200E4 Toilet Seats - Note: this kit may be needed when seat anchors are installed into the toilet and there is no room or access for the seat nuts/bolts included with seat view detailed installation instructions $6.99 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
