Saree Toilet Repair Parts
By Kohler

The clean lines and classic style of the Saree toilet make repairing it rather than replacing it a sensible and money saving option. With many parts to choose from, you'll have your toilet back in top working order in no time. Looking for more parts? Visit our page.

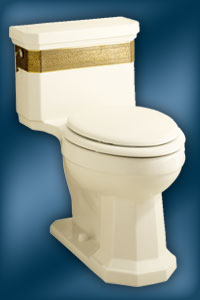

Saree toilet

Kohler Toilet Replacement Parts for the Saree Series
Model # K-14268-S1

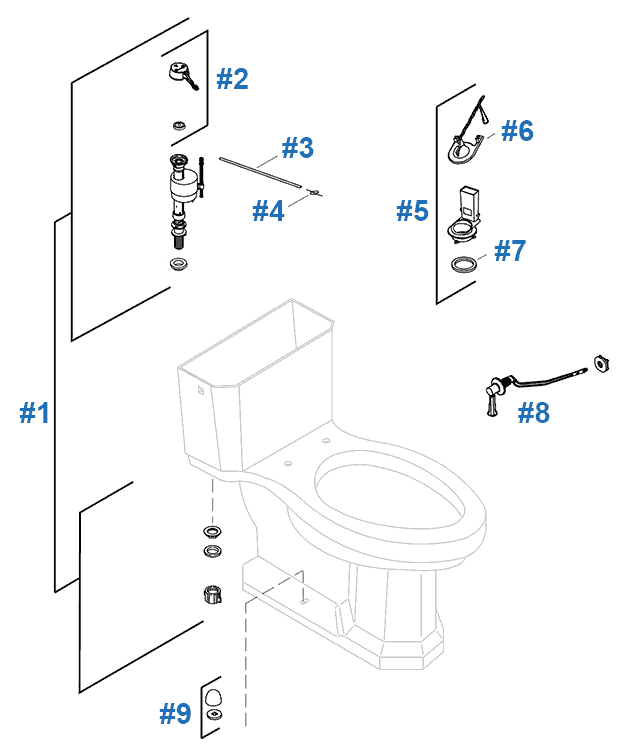

Kohler toilet repair parts model k14268-s1

Item # Image Part # Description Price & Quantity
1 kohler fill valve gp1138930 GP1138930 Fill Valve - Replaces 1059494 $27.14
kohler fillvalve 1083167 GP1083167 Class 5 Fill Valve $24.72 Enter a quantity and
2 kohler cap assembly 1057940 1057940 Top Assembly - for both fill valves #1059494 and #GP1138930 $8.62 Enter a quantity and
3 kohler refill tube 1248136 1248136 Refill Tube - for 1060198, 1060196 & GP1138930 fill valves - Replaces 52156 $2.58
kohler refill tube 1033209 1033209 Refill Tube - for GP1083167 fill valve $2.65 Enter a quantity and
4 kohler clip 51261 51261 Refill Tube Clip $3.71 Enter a quantity and
Item # Image Part # Description Price & Quantity
5 kohler flush valve 87998 87998 Flush Valve Assembly - includes flapper (85655) and gasket (83996) $24.72 Enter a quantity and
6 kohler flapper and chain GP1078440 GP1078440 Flapper & Chain - Replaces 85655 $10.75
will-fit flapper shark fin 2012bp 2012BP "Will Fit" Flapper & Chain $7.30 Enter a quantity and
7 kohler gasket 83996 83996 Gasket $6.74 Enter a quantity and

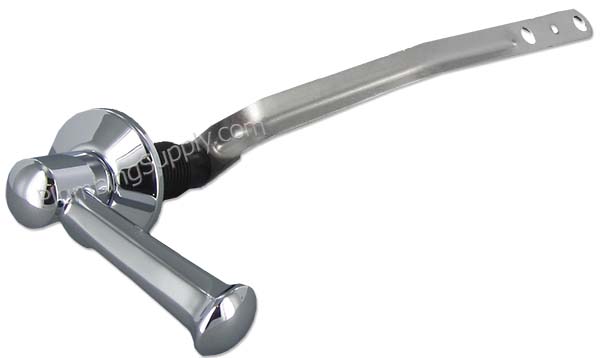

8 jaclo J-9451 chrome trip lever "Will Fit" J-9451 Trip Lever - Replaces 1006495 - Polished Brass (view more finish options) $145.10 Enter a quantity and

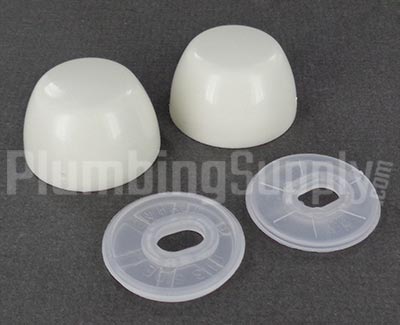

9 toilet bowl cap set linen 1013092 Bolt Caps (2) - Biscuit (view more color options) Biscuit Color
No Longer Available
Enter a quantity and

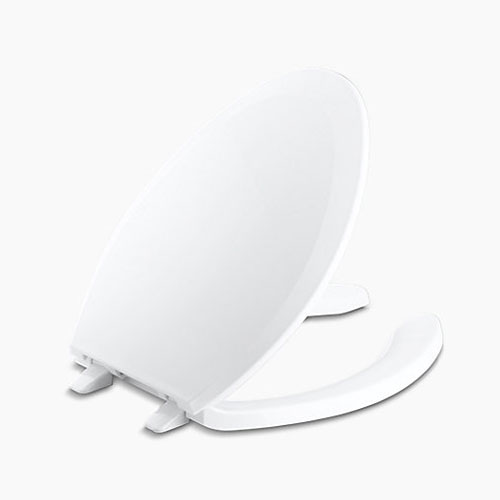

Not Shown kohler toilet seat lustra 4650 4650 Lustra Elongated Toilet Seat - Biscuit see below
bemis affinity premium elongated toilet seat 1200e4 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - Biscuit (view more color options) $77.03 Enter a quantity and
If your existing fill valve stem is GRAY with a small insert, use GP1138930.
If your existing fill valve stem is BLACK with a large insert, use GP1083167.
View this fill valve comparison to help you choose

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "The GP1138930 comes with some colored inserts. What are those for?"
A.Since the Kohler GP1138930 is a replacement for a variety of fill valves, it comes with a selection of color coded flow restrictors. To select the correct insert, check your old fill valve (the one you're replacing) and use the same color restrictor on your new GP1138930 fill valve. See example of the four included restrictors.

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
