San Miguel Toilet Repair Parts
By Kohler

Finding all the right repair parts for your Kohler San Miguel can be a chore, but you'll find them all in one place right here at PlumbingSupply.com®! Whether you need a flush valve or a flapper, we've got it. If you are looking for other Kohler parts, visit our page.

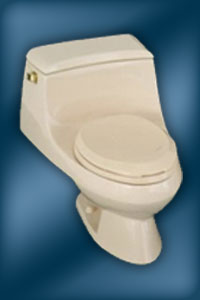

San Miguel toilet

Kohler Toilet Replacement Parts for the San Miguel Series
Model # K-3406

San Miguel repair parts by Kohler

Item # Image Part # Description Price & Quantity
1 kohler fill valve 30671 30671 Fill Valve Kit - Approx: 13" Tall
Includes float ball (42753), rod (51081), nut (41633), refill tube (39236), vacuum breaker (49119), spacer (49120), washer cone (50843), cap assembly (30452), plunger assembly (51748), lock nut (42396), washer (42398), supply nut (42397)
$144.49 Enter a quantity and

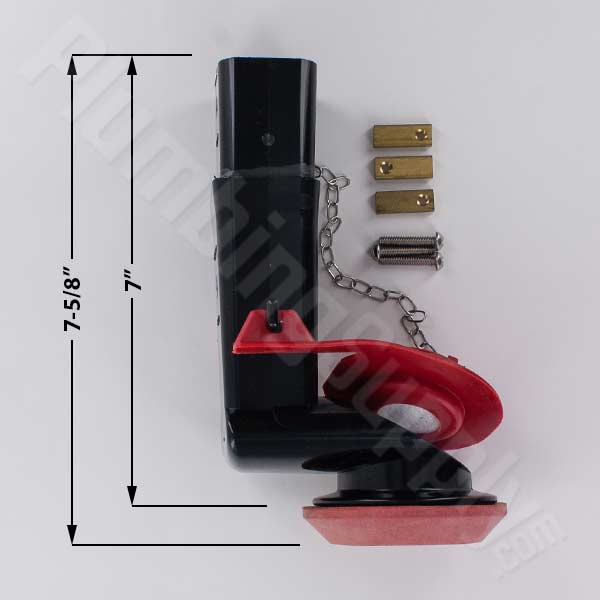

2 kohler flush valve 84216 84216 New Style Flush Valve Kit for Standard Tanks
Includes flush valve, flapper (83064), washer (53410), screws (61052), mounting lugs (87377)
$96.69 Enter a quantity and

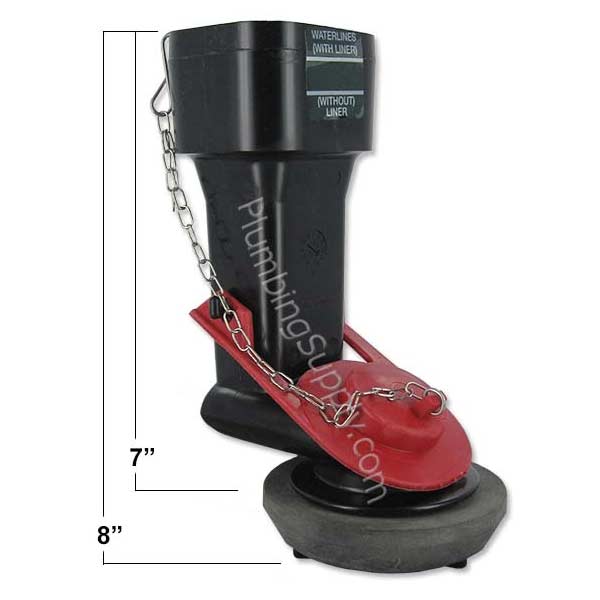

3 kohler flush valve 84217 84217 New Style Flush Valve Kit for Insulated Tanks
Includes flush valve, flapper (83064), flush valve seal (83888)
$44.52 Enter a quantity and
4 kohler plunger assembly 51748 51748 Plunger Assembly $6.37 Enter a quantity and
5 kohler cap assembly 30452 30452 Cap Assembly $34.29 Enter a quantity and
6 kohler clip 51261 51261 Refill Tube Clip $3.71 Enter a quantity and
7 kohler flapper 83064 K83064 Flapper for New Style Flush Valves (fits both standard and insulated tank valves) $11.71 Enter a quantity and
Item # Image Part # Description Price & Quantity
8 will-fit flapper korky 58 "Will Fit" Flapper Flapper for Old Style Flush Valves (fits both standard and insulated tank valves) - Replaces 49114 $8.46 Enter a quantity and
9 kohler washer 53410 53410 Washer for New Style Flush Valve (fits standard tanks) $7.45 Enter a quantity and
10 kohler rubber washer GP1145626 GP1145626 Washer for Old Style Flush Valve (fits standard tanks) - Replaces 53154 $4.31 Enter a quantity and
11 kohler flush valve gasket 83888 83888 Flush Valve Gasket for Insulated Tanks (fits both old and new style valves) $8.00 Enter a quantity and
12 plastic float ball "Will Fit" Float Ball Float Ball - Replaces 42753 $3.70 Enter a quantity and
13 will-fit brass float rod 8 inch "Will Fit" Float Rod Brass Float Rod - Replaces 51081 $3.10 Enter a quantity and
Item # Image Part # Description Price & Quantity

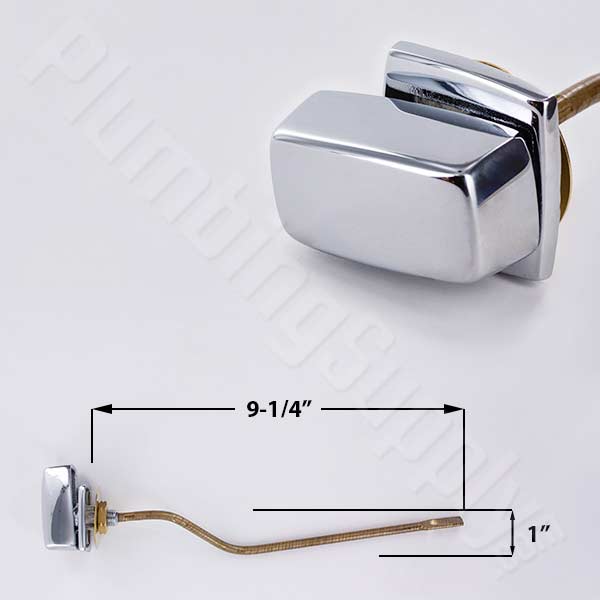

14 kohler trip lever chrome 81608 81608 Side Mount Trip Lever - Left Hand - Chrome - Replaced by 85114 Discontinued
kohler trip lever chrome 85114 85114 Side Mount Trip Lever - Left Hand Enter a quantity and
15 kohler bolt caps white 1013092-0 52048 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and
Toilet Seat bemis affinity premium round toilet seat 200e4 white 200E4 Quality Bemis "Will Fit" Round Front Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 white 1200E4 Quality Bemis "Will Fit" Elongated Front Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
