Persuade Toilet Repair Parts
By Kohler

The streamlined, contemporary look of the Persuade toilet is an integral part of your bathroom, and repairing it is more desirable than replacing it (it is also a lot less expensive!). Find just the parts you need right here with just a few clicks of the mouse. If you are looking for more Kohler parts, visit our page.

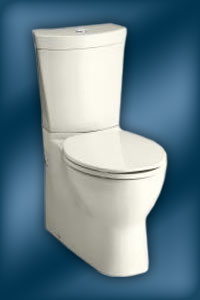

Persuade toilet

Kohler Toilet Replacement Parts for the Persuade Series
Model # K-3654 - Tank # K-4419 - After 2021

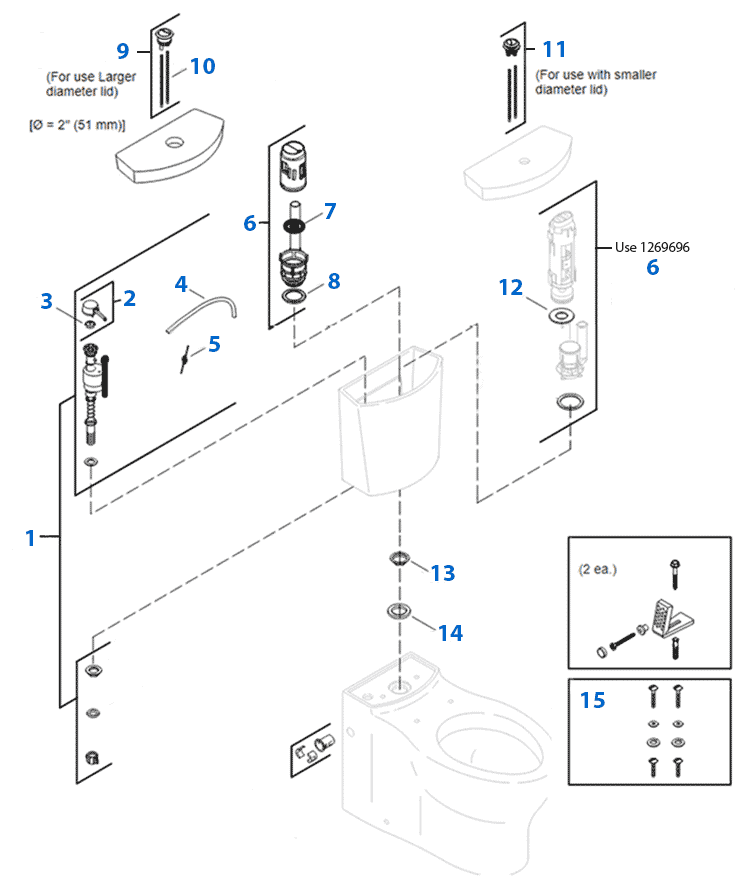

Kohler toilet repair parts persuade k3654 after 2021

Item # Image Part # Description Price & Quantity
1 kohler fill valve gp1138930 GP1138930 Fill Valve - includes top assembly, shank washer, locknut, supply nut, refill tube & clip $27.14 Enter a quantity and
2 kohler cap assembly 1057940 1057940 Top Assembly $8.62 Enter a quantity and
3 kohler seal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
4 kohler tube 1248136 1248136 Refill Tube - for 1060198, 1060196 & GP1138930 fill valves - Replaces 52156 $2.58 Enter a quantity and
5 kohler clip 51261 51261 Refill Tube Clip $3.71

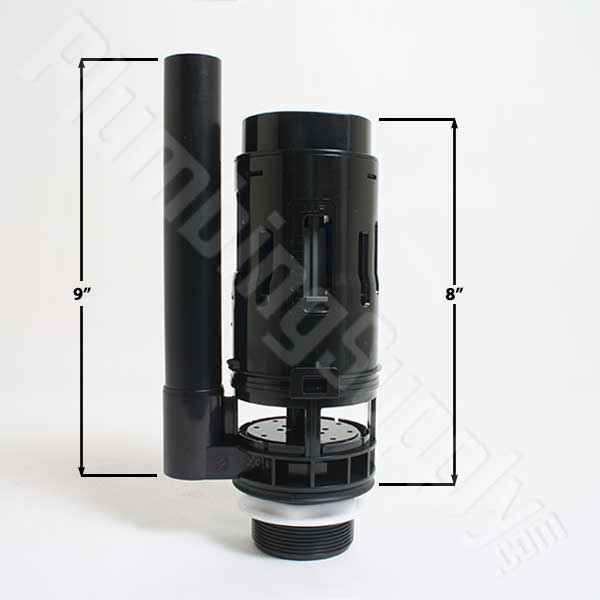

6 kohler dual flush valve 1269696 1269696 Dual Flush Valve $17.94 Enter a quantity and

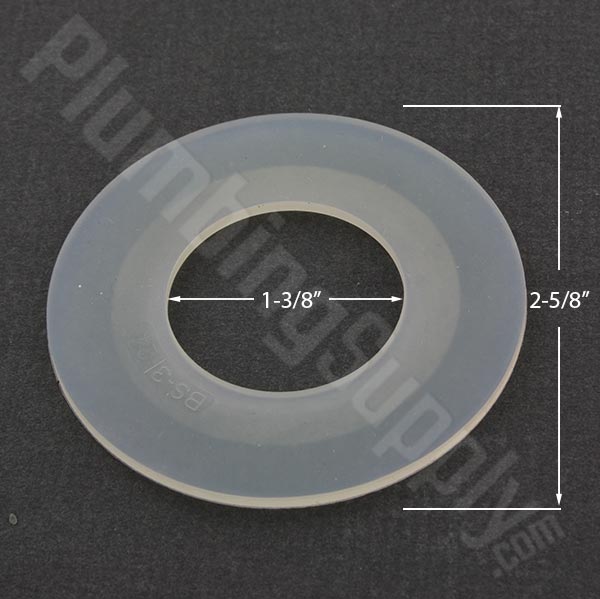

7 kohler seal gasket 1270755 1270755 Seal Gasket for Dual Flush Valve $4.75 Enter a quantity and
8 kohler rubber washer gp1145626 1145626 Flush valve washer $4.31 Enter a quantity and
Item # Image Part # Description Price & Quantity

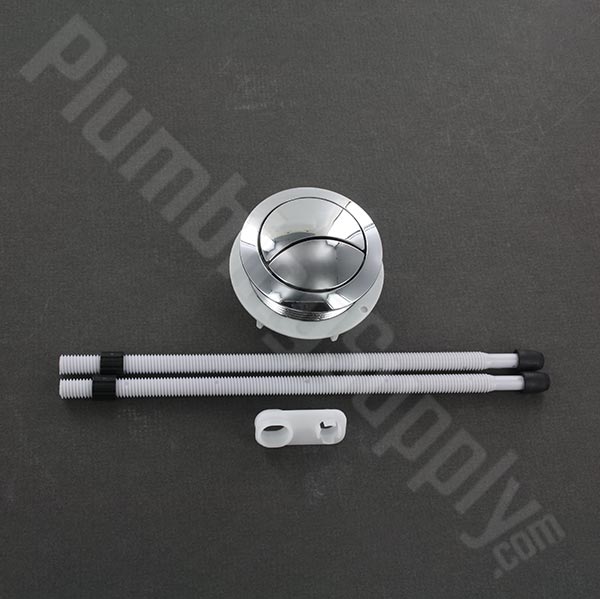

9 kohler push button flush actuator kit 1265519 chrome 1265519-CP Push Button Flush Actuator Kit $8.95 Enter a quantity and

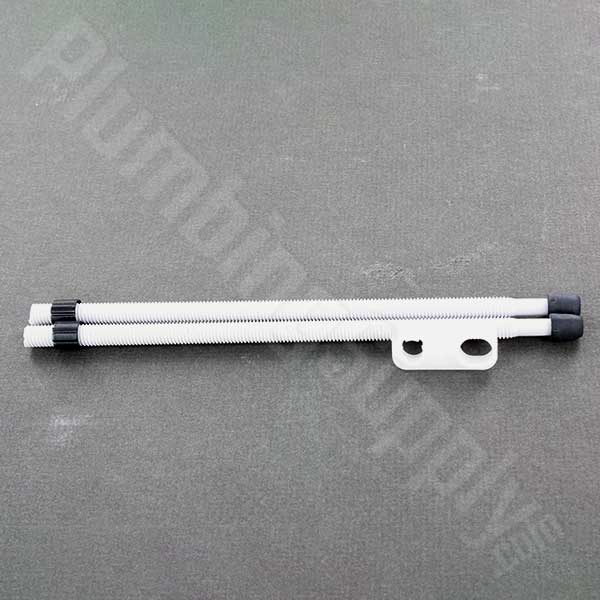

10 kohler dual flush push rods 1266858 1266858 Dual Flush Push Rod Kit $3.38 Enter a quantity and

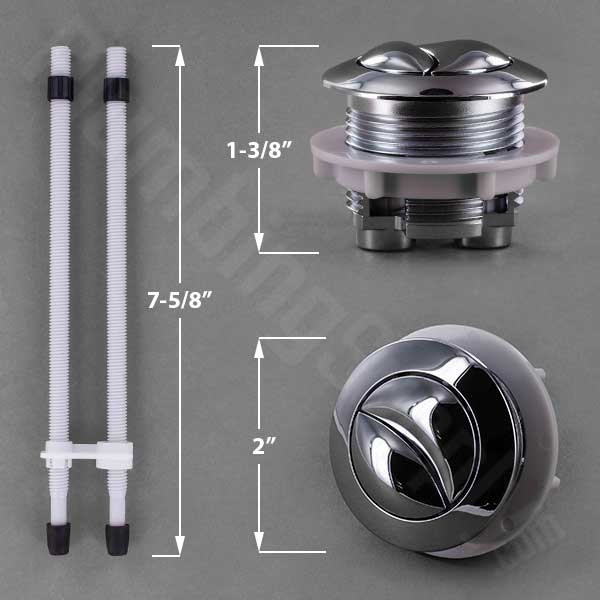

11 kohler push button assembly chrome 1266856 1266856-CP Push Button Assembly - Chrome $10.84 Enter a quantity and
12 kohler dual flush valve flat seal 1131496 1131496 Dual Flush Valve Flat Seal $8.53 Enter a quantity and
13 kohler jam nut 50751 50751 Lock Nut $5.12 Enter a quantity and

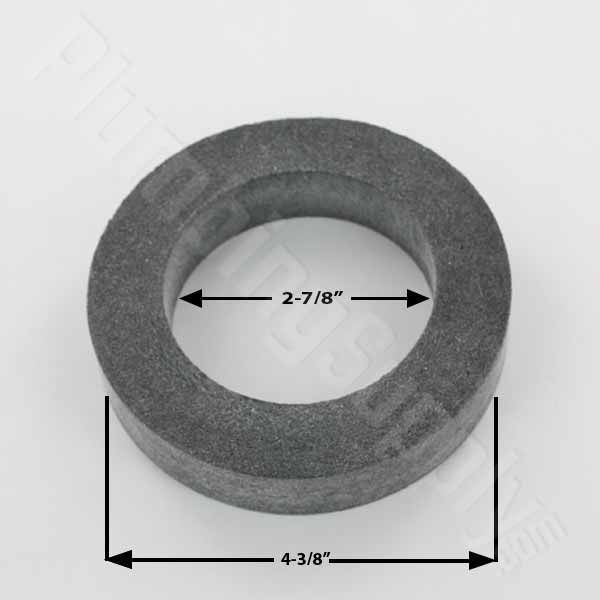

14 kohler tank to bowl gasket 1107584 1107584 Tank to Bowl Gasket $5.87 Enter a quantity and

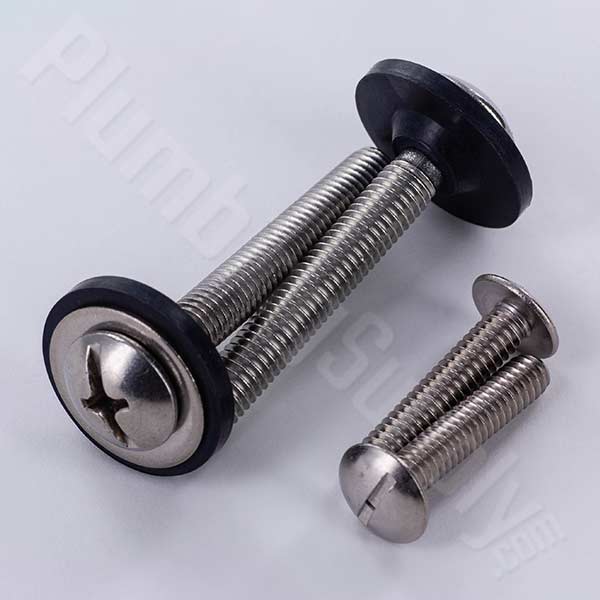

15 kohler tank to bowl kit 1049357 1049357 Tank to Bowl Bolt Kit $11.07 Enter a quantity and
Not Shown image unavailable 4636 Cachet Quiet-Close Elongated Toilet Seat - White Use "will fit"
bemis affinity premium elongated toilet seat 1200e4 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Kohler Toilet Replacement Parts for the Persuade Series
Model # K-3654 - Tank # K-4419 - PRE 2022

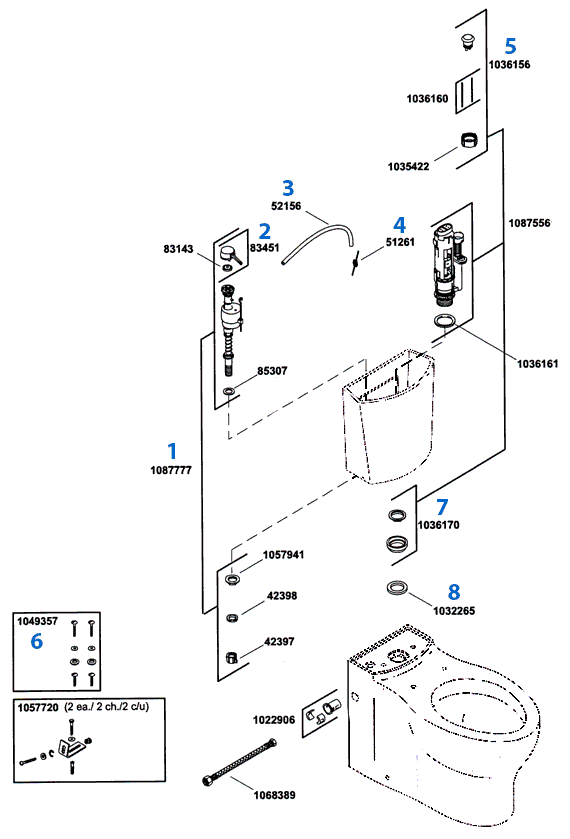

Kohler toilet repair parts model k3654

Item # Image Part # Description Price & Quantity
1 fluidmaster 400a fill valve 400A Fill Valve - Replaces 1087777 $16.62 Enter a quantity and
2 kohler top assembly 83451 83451 Cap Assembly - fits discontinued fill valve 1087777 Discontinued
fluidmsater replacement cap 385 385 Cap Assembly - fits replacement fill valve 400A $5.87 Enter a quantity and
3 kohler tube 1248136 1248136 Refill Tube - for 1060198 & GP1138930 fill valves - Replaces 52156 $2.58 Enter a quantity and
4 kohler clip 51261 51261 Refill Tube Clip - for original fill valve 1087777 only $3.71
fluidmaster angle adapter clip for refill tube b12-350 B12-350 Angle Adapter with Clip - for 400A fill valve only $3.01 Enter a quantity and

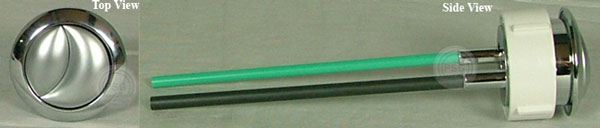

5 push button and rod assembly satin chrome 1036156 1036156-SC Push Button & Rod Assembly - Satin Chrome $23.85 Enter a quantity and
Item # Image Part # Description Price & Quantity
6 kohler tank to bowl kit 1049357 1049357 Tank to Bowl Bolt Kit $11.07 Enter a quantity and

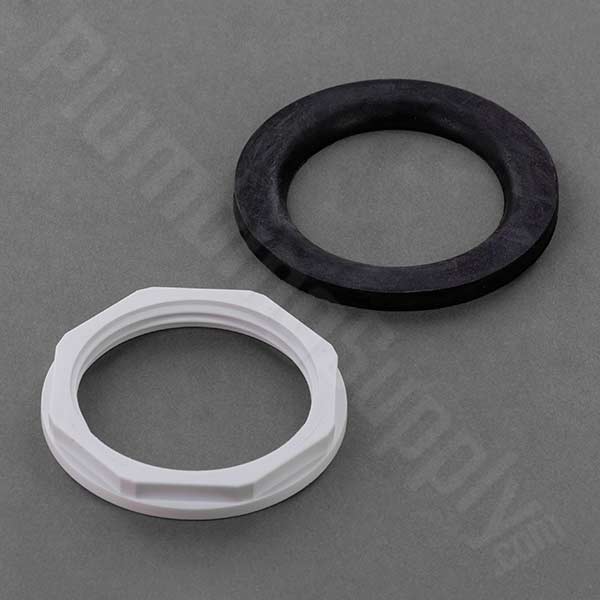

7 kohler flush valve gasket and locknut 1036170 1036170 Locknut and Gasket Kit $19.87 Enter a quantity and

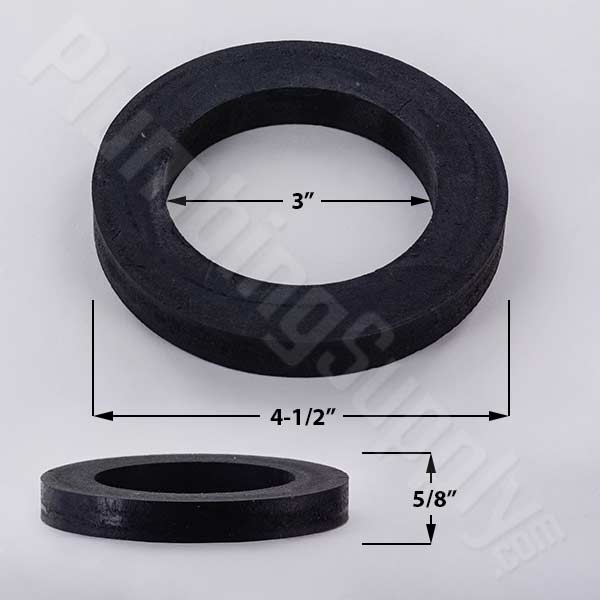

8 kohler tank to bowl gasket 1032265 1032265 Tank to Bowl Bolt Gasket $6.05 Enter a quantity and
Not Shown 4636 Cachet Quiet-Close Elongated Toilet Seat - White Use "will fit"
bemis affinity premium elongated toilet seat 1200e4 white 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and

Kohler Toilet Replacement Parts for the Persuade Series
Model # K-3723 - Tank # K-4441

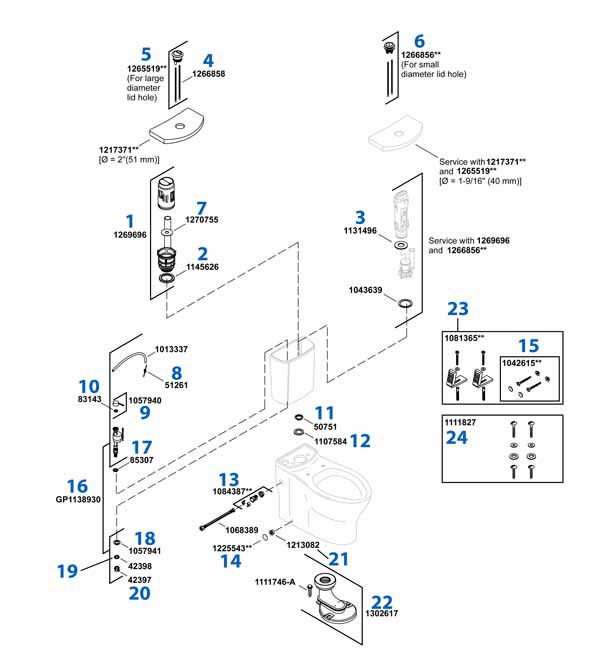

Kohler toilet repair parts model k4441

Item # Image Part # Description Price & Quantity
1 kohler dual flush valve 1269696 1269696 Dual Flush Valve $17.94 Enter a quantity and
2 kohler rubber washer gp1145626 1145626 Flush valve washer $4.31 Enter a quantity and

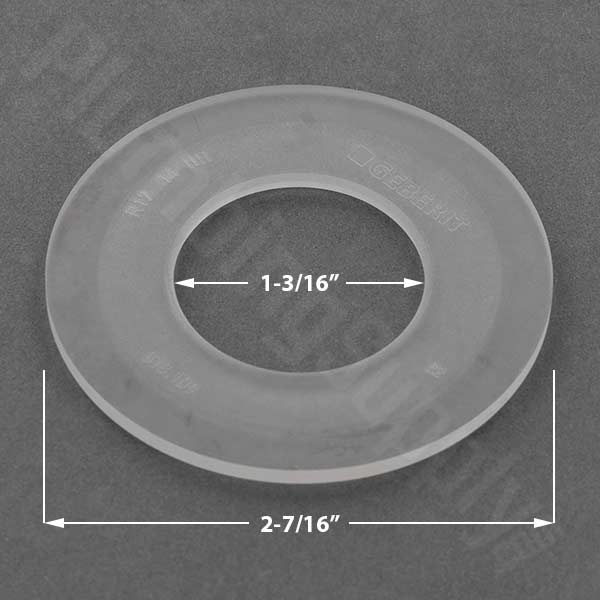

3 kohler dual flush valve flat seal 1131496 1131496 Dual Flush Valve Flat Seal $8.53 Enter a quantity and
4 kohler dual flush push rods 1266858 1266858 Dual Flush Push Rod Kit $3.38 Enter a quantity and
5 kohler push button flush actuator kit 1265519 chrome 1265519-CP Push Button Flush Actuator Kit $8.95 Enter a quantity and
6 kohler push button assembly chrome 1266856 1266856-CP Push Button Assembly - Chrome $10.84 Enter a quantity and
7 kohler seal gasket 1270755 1270755 Seal Gasket for Dual Flush Valve $4.75 Enter a quantity and
8 kohler clip fill valve 51261 51261 Refill Tube Clip $3.71 Enter a quantity and
Item # Image Part # Description Price & Quantity
9 kohler cap assembly 1057940 1057940 Top Assembly $8.62 Enter a quantity and
10 kohler seal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
11 kohler jam nut 50751 50751 Lock Nut $5.12 Enter a quantity and
12 kohler tank to bowl gasket 1107584 1107584 Tank to Bowl Gasket $5.87 Enter a quantity and

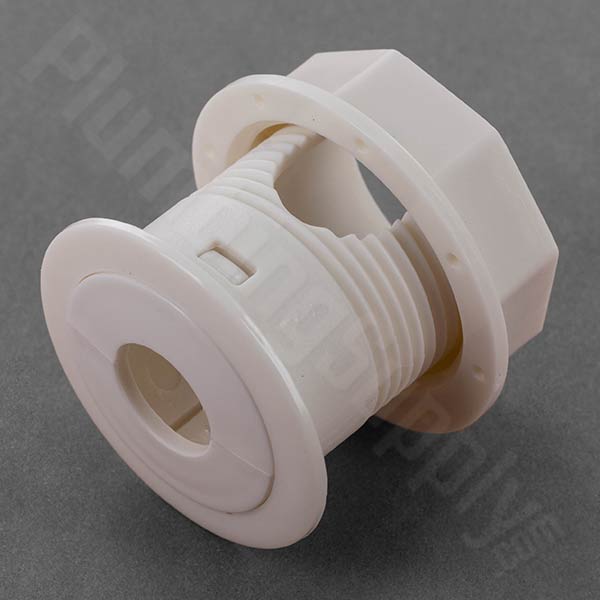

13 kohler inlet cover assembly white 1084387 1084387 Inlet Cover Assembly - White $5.34 Enter a quantity and

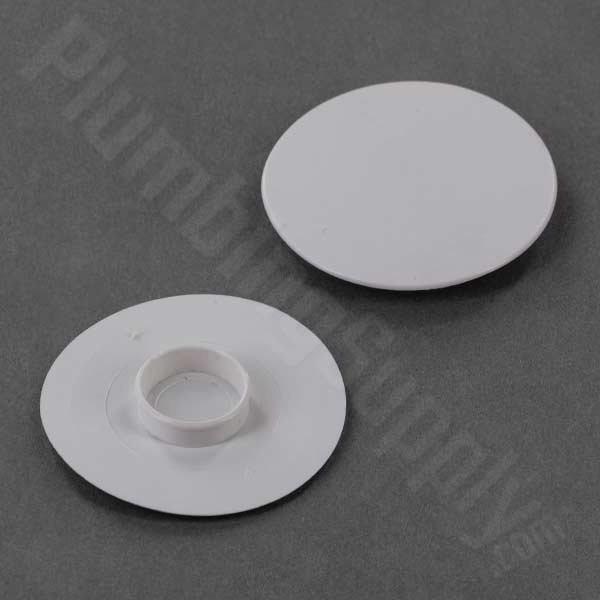

14 kohler bolt caps white 1225543 1225543 Bolt Cap Covers (2) - White $3.68 Enter a quantity and

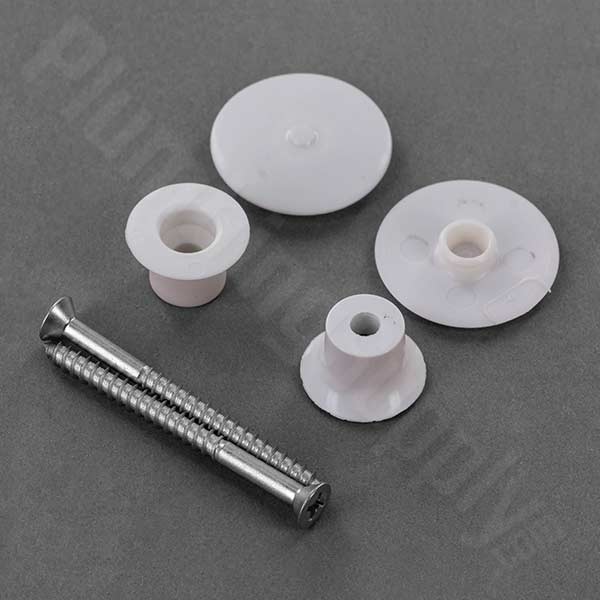

15 kohler hold down covers white 1042615 1042615 White Hold Down Covers $8.86 Enter a quantity and
16 kohler fill valve gp1138930 GP1138930 Fill Valve $27.14 Enter a quantity and
17 kohler shank washer 85307 85307 Shank Washer $1.67 Enter a quantity and
Item # Image Part # Description Price & Quantity
18 image unavailable 1057941 Shank Nut $1.59 Enter a quantity and
19 kohler washer 42398 42398 Washer $1.57 Enter a quantity and
20 image unavailable 42397 Nut $1.90 Enter a quantity and

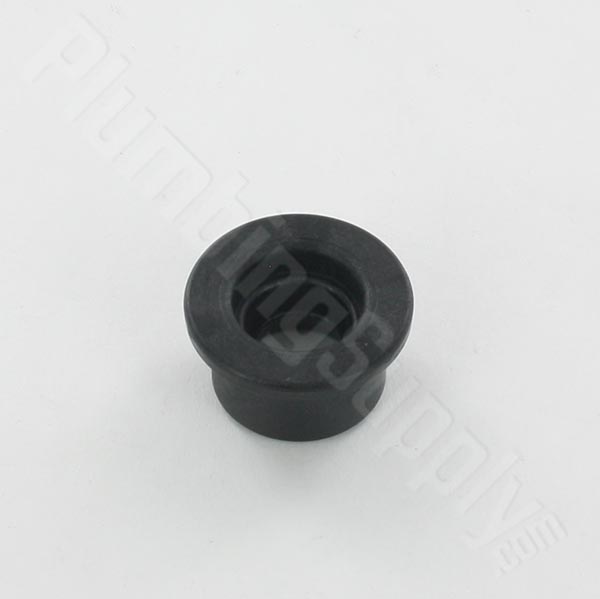

21 kohler spherical bushing 1213082 1213082 Bushing Spherical $2.48 Enter a quantity and

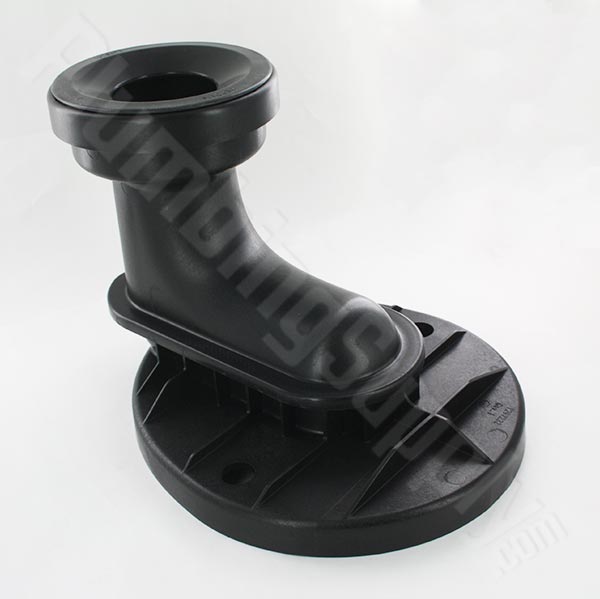

22 kohler trapway service kit 1302617 1302617 Trapway Service Kit - Plastic $63.39 Enter a quantity and
23 image unavailable 1081365 Floor Mounting Kit - White $22.54 Enter a quantity and

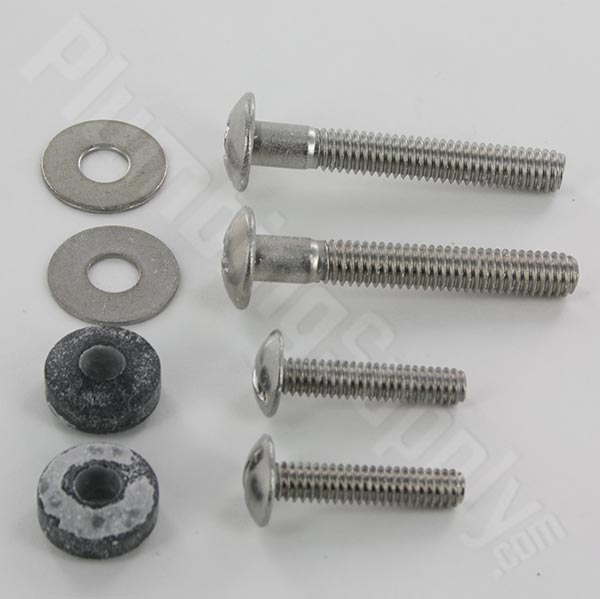

24 kohler tank accessory kit 1111827 1111827 Tank Accessory Kit $4.98 Enter a quantity and

Kohler Toilet Replacement Parts for the Persuade Series
Model # K-3753 - Tank # K-4442

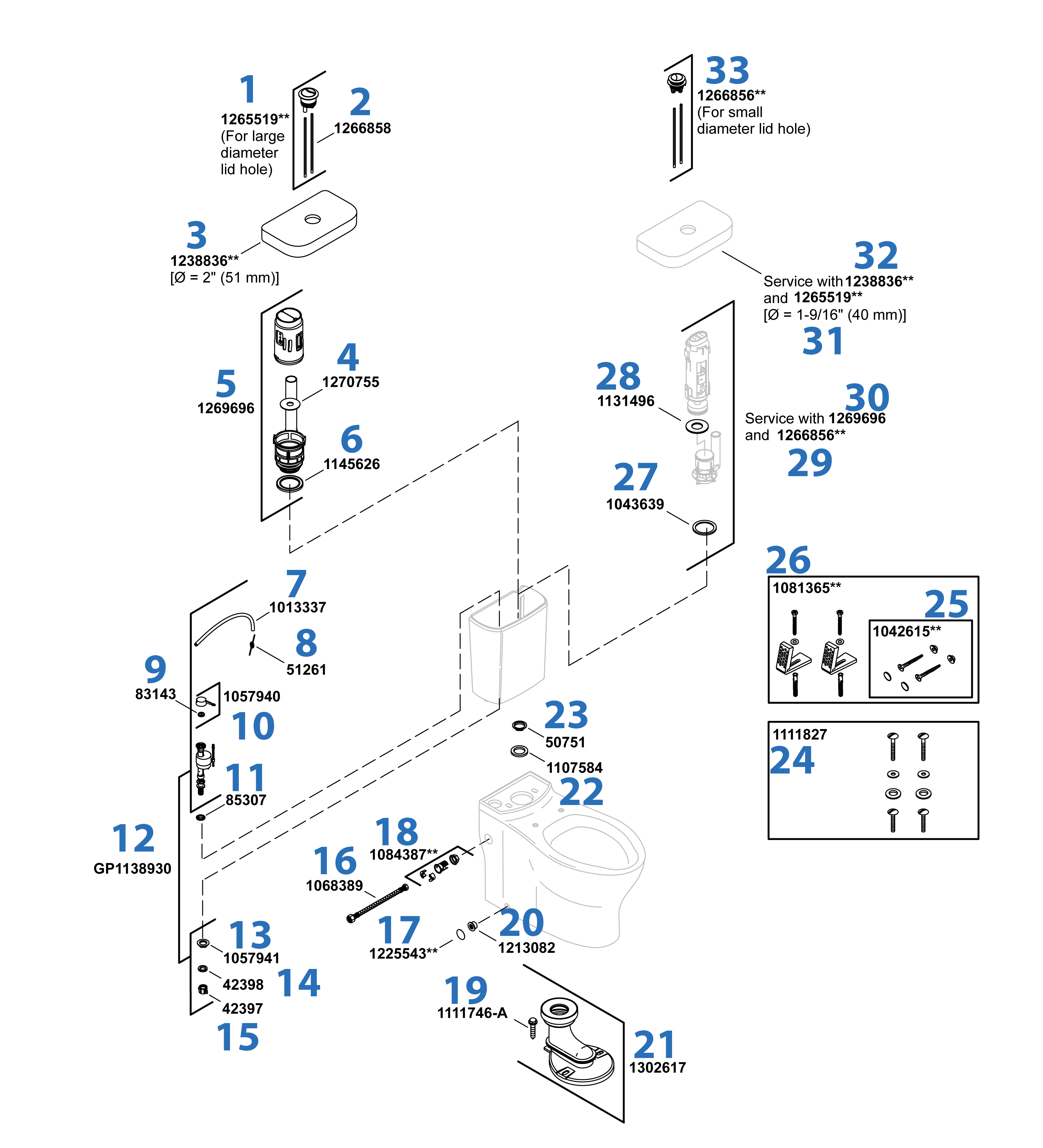

Kohler Toilet Repair Parts Model K4442

Item # Image Part # Description Price & Quantity
1 kohler push button flush actuator kit 1265519 chrome 1265519-CP Push Button Flush Actuator Kit $8.95 Enter a quantity and
2 kohler dual flush push rods 1266858 1266858 Dual Flush Push Rod Kit $3.38 Enter a quantity and
3 image unavailable 1238836 Toilet Tank Lid Discontinued Enter a quantity and
4 kohler seal gasket 1270755 1270755 Seal Gasket for Dual Flush Valve $4.75 Enter a quantity and
5 kohler dual flush valve 1269696 1269696 Dual Flush Valve $17.94 Enter a quantity and
6 kohler rubber washer gp1145626 1145626 Flush valve washer $4.31 Enter a quantity and
7 will-fit refill tube "Will Fit" Refill Tube Fill Valve Refill Tube - Replaces 1013337 $2.22 Enter a quantity and
8 kohler clip fill valve 51261 51261 Refill Tube Clip $3.71 Enter a quantity and
Item # Image Part # Description Price & Quantity
9 kohler seal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
10 kohler cap assembly 1057940 1057940 Top Assembly $8.62 Enter a quantity and
11 kohler shank washer 85307 85307 Shank Washer $1.67 Enter a quantity and
12 kohler fill valve gp1138930 GP1138930 Fill Valve - includes top assembly, shank washer, locknut, supply nut, refill tube & clip $27.14 Enter a quantity and
13 image unavailable 1057941 Shank Nut $1.59 Enter a quantity and
14 kohler washer 42398 42398 Washer $1.57 Enter a quantity and
15 image unavailable 42397 Nut $1.90 Enter a quantity and
16 image unavailable 1068389 Right Hand Connector Hose Discontinued
17 kohler bolt caps white 1225543 1225543 Bolt Cap Covers (2) - White $3.68 Enter a quantity and
Item # Image Part # Description Price & Quantity
18 kohler inlet cover assembly white 1084387 1084387 Inlet Cover Assembly - White $5.34 Enter a quantity and
19 image unavailable 1111746-A Screw Discontinued
20 kohler spherical bushing 1213082 1213082 Bushing Spherical $2.48 Enter a quantity and
21 kohler trapway service kit 1302617 1302617 Trapway Service Kit - Plastic $63.39 Enter a quantity and
22 kohler tank to bowl gasket 1107584 1107584 Tank to Bowl Gasket $5.87 Enter a quantity and
23 kohler jam nut 50751 50751 Lock Nut $5.12 Enter a quantity and
24 kohler tank accessory kit 1111827 1111827 Tank Accessory Kit $4.98 Enter a quantity and
25 kohler hold down covers white 1042615 1042615 White Hold Down Covers $8.86 Enter a quantity and
26 image unavailable 1081365 Floor Mounting Kit - White $22.54 Enter a quantity and
Item # Image Part # Description Price & Quantity
27 image unavailable 1043639 Flush Valve Gasket Temporarily
Unavailable		 Enter a quantity and
28 kohler dual flush valve flat seal 1131496 1131496 Dual Flush Valve Flat Seal $8.53 Enter a quantity and
29 kohler push button assembly chrome 1266856 1266856-CP Push Button Assembly - Chrome $10.84 Enter a quantity and
30 kohler dual flush valve 1269696 1269696 Dual Flush Valve $17.94 Enter a quantity and
31 kohler push button flush actuator kit 1265519 chrome 1265519-CP Push Button Flush Actuator Kit $8.95 Enter a quantity and
32 image unavailable 1238836 Toilet Tank Lid Discontinued Enter a quantity and
33 kohler push button assembly chrome 1266856 1266856-CP Push Button Assembly - Chrome $10.84 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Related Items & Information

Kohler faucet cartridge
ALL Kohler Parts Kohler toilet Seat
Kohler Replacement Toilet Seats Video about installing toilet seats
How to Install Toilet Seats Toilet seat colors
Toilet Seat Color Cross Reference Find your toilet model number
Toilet Model Identification Help Toilet seat with safety bars
Toilet Safety Bars Green toilet bolt caps
Toilet Bowl Bolt Caps Toilet Bowl Cleaning System
Automatic Toilet Bowl Cleaners



Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. This most commonly occurs with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
