Tresham Toilet Repair Parts
By Kohler

Get your stylish, angular Tresham toilet back in good working order with replacement parts from PlumbingSupply.com®! You'll find what you need right here - whether you need a flush valve kit or a replacement toilet seat, we've got it.

Replacement Parts for Kohler Tresham Toilets
One Piece Model #K-3981

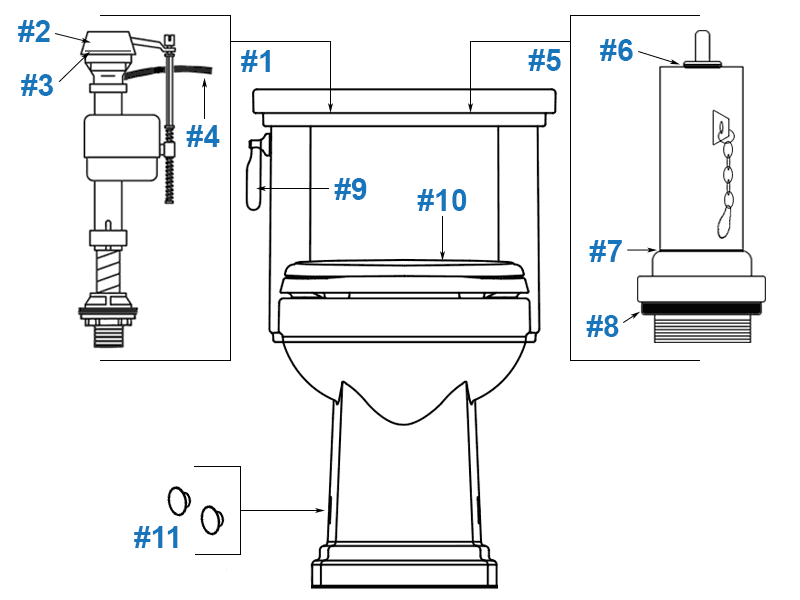

Parts diagram for Kohler Tresham one-piece toilet - model #K-3981
Item # Image Part # Description Price & Quantity
1 kohler fill valve GP1138930 1138930 Fill Valve - includes refill tube & clip, shank washer, locknut, and supply nut & washer $27.14 Enter a quantity and
2 kohler cap assembly 1057940 1057940 Top Assembly $8.62 Enter a quantity and
3 kohler sesal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
4 kohler refill tube 1033209 1033209 Refill Tube $2.65 Enter a quantity and
5 kohler canister flush valve 1244399 1244399 Canister Flush Valve $17.20 Enter a quantity and
6 kohler flush valve washer 1070291 1070291 Flush Valve Washer $3.31 Enter a quantity and
7 kohler seal 1059291 1059291 Flush Valve Flat Seal $9.09 Enter a quantity and
8 kohler gasket 83996 83996 Flush Valve Gasket $6.74 Enter a quantity and
9 kohler side mount trip lever chrome 1161319 1161319 Side Mount Trip Lever - Left Side - Chrome $25.01
kohler side mount trip lever brushed nickel 1161319 1161319-BN Side Mount Trip Lever - Left Side - Brushed Nickel $51.17 Enter a quantity and
10 bemis affinity premiume elongated toilet seat white 1200e4 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
11 kohler bolt caps white 1225543 1225543 Bolt Caps (2) - White $3.68 Enter a quantity and

Replacement Parts for Kohler Tresham Toilets

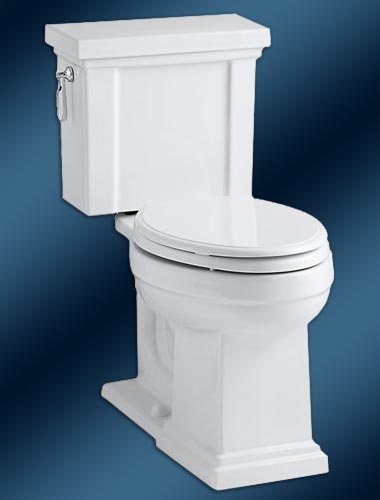

Two Piece Model - Tank #K-4899

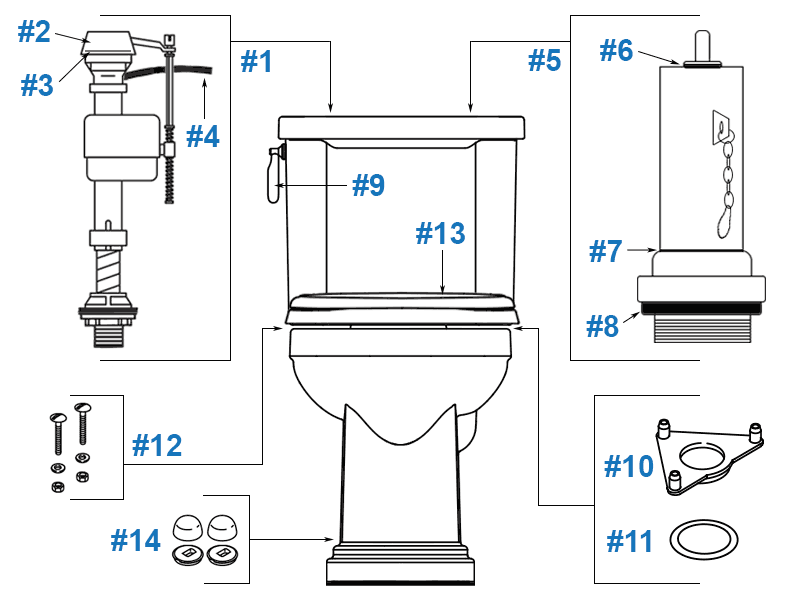

Parts diagram for Kohler Tresham two-piece toilet - tank #K-4899
Item # Image Part # Description Price & Quantity
1 kohler fill valve 1083167 GP1083167 Class 5 Fill Valve - includes top assembly, seal diaphragm, refill tube, shank washer, locknut, washer, & supply nut $24.72 Enter a quantity and
2 kohler cap assembly 1057940 1057940 Top Assembly $8.62 Enter a quantity and
3 kohler seal diaphragm 83143 83143 Seal Diaphragm $4.99 Enter a quantity and
4 kohler refill tube 1033209 1033209 Refill Tube $2.65 Enter a quantity and
5 kohler canister flush valve 1216618 1216618 Canister Flush Valve $21.83 Enter a quantity and
6 kohler flush valve washer 1070291 1070291 Flush Valve Washer $3.31 Enter a quantity and
Item # Image Part # Description Price & Quantity
7 kohler seal 1059291 1059291 Flush Valve Flat Seal $9.09 Enter a quantity and
8 kohler flush valve gasket 1101470 1101470 Flush Valve Gasket $2.07 Enter a quantity and

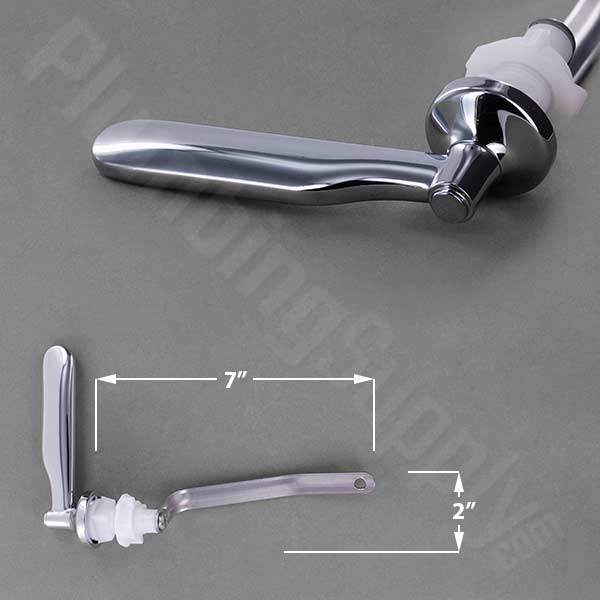

9 kohler side mount trip lever chrome 1161319 1161319 Side Mount Trip Lever - Chrome $25.01 Enter a quantity and

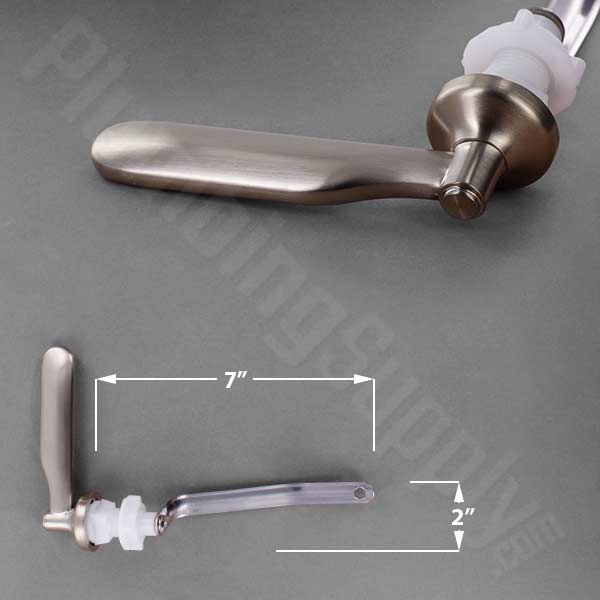

kohler side mount trip lever brushed nickel 1161319 1161319-BN Side Mount Trip Lever - Brushed Nickel $51.17 Enter a quantity and
10 kohler tank to bowl gasket k51487 51487 Tank to Bowl Gasket & Bolt Kit - includes 3 of each: 5/16" bolts, washers, and nuts $14.53 Enter a quantity and
11 kohler washer 50752 50752 Friction Ring $1.76 Enter a quantity and
12 kohler tank accessory pack 30419 30419 Tank Mounting Hardware - includes 3 of each: tank bolt (51624), washer (32572), and nut (51533) $12.31 Enter a quantity and
13 bemis affinity premium elongated toilet seat 1200e4 1200E3 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
14 kohler bolt caps white 1013092-0 1013092 Bolt Caps (2) - White (view more color options) $7.50 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "How do I find my Kohler model number?"
A. For our customers' convenience, we often list both the model number and the tank number of the Kohler toilets we offer parts for. If you already know your model number, that's great - but oftentimes this information won't be available to you. What you'll need to do then is look for the TANK number, which is right where you'd expect it to be on the inside of your toilet tank. Grab a flashlight, carefully remove your tank lid, place your lid somewhere safe, and look around inside your toilet tank for a 4-digit number beginning with either a 3 or a 4. Certain specialty toilets may have a 5-digit number starting with a 1. The number will be either molded into the porcelain or stamped on in blue or black ink. This is your tank number and you can use it to find the parts you need to fix your toilet.

Kohler toilet tank number molded into porcelain tank
Kohler toilet tank number stamped onto side of tank

Q. "There are letters and/or numbers after the model number inside my Kohler toilet tank - what do those mean?"
A. Kohler offers many variations of almost all their toilet models, and has experimented in the past with many different features. Typically, numbers (or a single letter/number combination like K4 or Y2) after the 4- or 5-digit model number indicate the color code for your toilet. If your model number is followed by letters, those usually have different meanings to indicate the features of your toilet or will indicate that you have a specialty Artist Edition toilet.


Code Meaning
AA Water-Guard toilet flushing system - Old flush system that has long been discontinued
EL Toilet with Elongated Bowl
K Eco Lite tank
L Bedpan lugs or a Pressure Lite flush system - Both older features that have been discontinued
RA Tank with RIGHT side trip lever
T Tank locking system (vandal-resistant feature usually on commercial toilets)
U Insuliner® lined toilet tank
UR Insuliner® lined toilet tank with RIGHT side trip lever
X Peacekeeper® seat actuated flushing system - Discontinued
Need a new toilet seat? We offer color-matching toilet seats for almost all the Kohler colors below!
Code Color Name Code Color Name Code Color Name
0 White 02 Spruce Green 03 Lavender
04 Suez Tan 06 Skylight 07 Black
08 Cerulean Blue 10 Peachblow 12 Jersey Cream
17 Teal 18 Sunrise 21 Avocado
24 Expresso 31 Harvest Gold 32 New Orleans Blue
33 Mexican Sand 34 Fresh Green 35 Pink Champagne
40 Parchment 41 Country Grey 42 Aspen Green
44 Swiss Chocolate 45 Wild Rose 47 Almond
49 French Vanilla 52 Navy 53 Raspberry Puree
55 Innocent Blush 56 Tender Grey 58 Thunder Grey
68 Heron Blue 71 Seafoam Green 85 Merlot
89 Desert Bloom 95 Ice Grey 96 Biscuit
97 Timberline 98 Chamois G9 Sandbar
K4 Cashmere NG Tea Green S1 Biscuit Satin
S2 White Satin W2 Earthen White Y2 Sunlight

Have questions about toilet parts or toilet repair?
