These high quality 14 gauge Stainless Steel urinals have construction standards that are hard to beat. Made to withstand vandalism and abuse, these urinals will provide years of service. An additional plus: they offer a washdown feature that helps keep the interior sanitized.
Click on any image to jump to that section
High Abuse
High Abuse
High Security
High Security
High Security
High Security
High Abuse
High Security
High Abuse
High Security
Please Note: These urinals are made-to-order and are non-returnable.
Exclusive Innovative Feature!
Tired of replacing broken porcelain fixtures?
Add "porcelain" white powder coating to your urinal for industrial strength without the institutional feel. Looks like the porcelain you want, wears like the stainless steel you need!
All stainless steel urinals on the page can be powdered coated.
Powder Coat Option - industrial strength without the institutional look
Simply select the powder coat option when ordering a urinal.

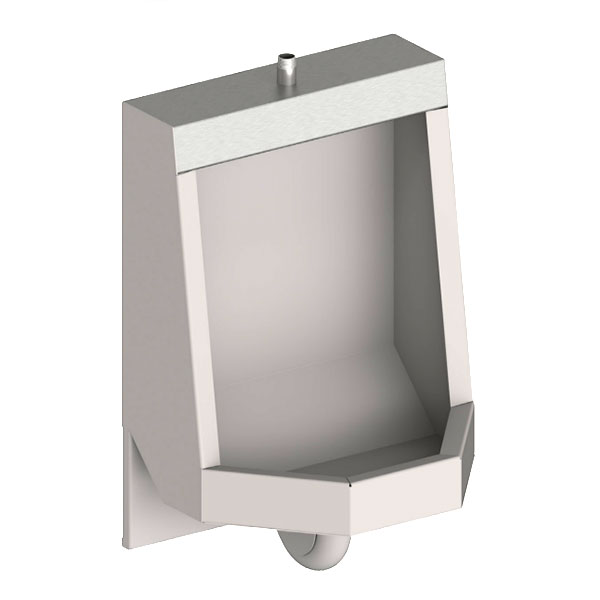

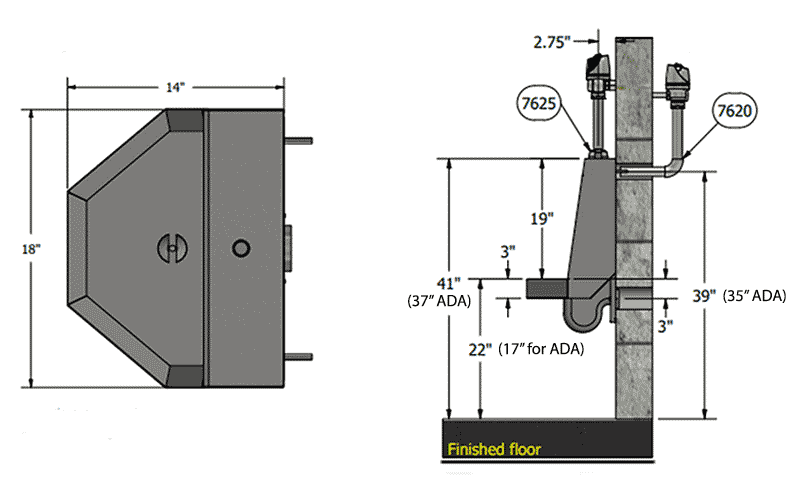

7620 Back Supply / 7625 Top Supply Urinals
These washdown urinals feature:
- Wall hung, choice of top or back mounted
- For high abuse areas where an accessible pipe chase is NOT available
- Fixtures are fabricated using 14-gauge type 304 stainless steel welded to form a tamper resistant fixture
- Flushing dispenses a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are satin finished
- Urinals include high volume beehive type strainer, and 2" fully enclosed integral P-trap
- 7620 back supply connection 3/4" MIPT
- 7625 top supply connection 3/4" MIPT
- Meets ADA requirements when installed to 17" rim height
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards
7110 Back Supply / 7115 Top Supply Urinals
These washdown urinals feature:
- Wall hung, back mounted
- Designed for high security areas with an accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- Fixtures come with beehive type strainer, P-trap and vandal resistant stainless steel trap enclosure
- Plated steel concealed anchor rods and fasteners
- 7110 back supply connection 3/4" MIPT
- 7115 top supply connection 3/4" MIPT
- High volume beehive style strainer
- 1-1/2" OD P-trap for slip-joint connection
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards

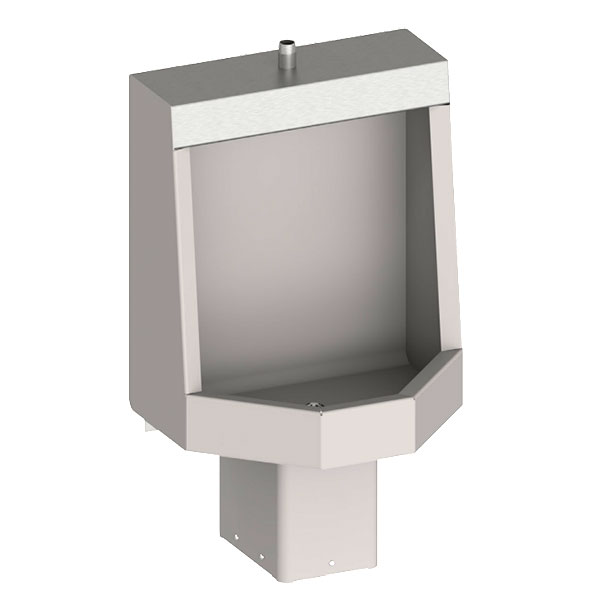

7610 Back Supply / 7615 Top Supply Urinals
These washdown urinals feature:
- Wall hung, front mounted
- Designed for areas where abuse and vandalism occur where an accessible pipe chase is NOT available
- Urinals are fabricated using 14-gauge type 304 stainless steel welded to form a seamless durable fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- 7610 back supply connection 3/4" MIPT
- 7615 top supply connection 3/4" MIPT
- High volume beehive style strainer
- 1-1/2" OD P-trap for slip-joint connection
- Vandal resistant stainless steel trap enclosure
- Integral mounting tabs for exposed anchoring
- 3/8" chrome plated vandal resistant cap nuts (4)
- 3/8" steel studs for anchoring fixture to wall
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards

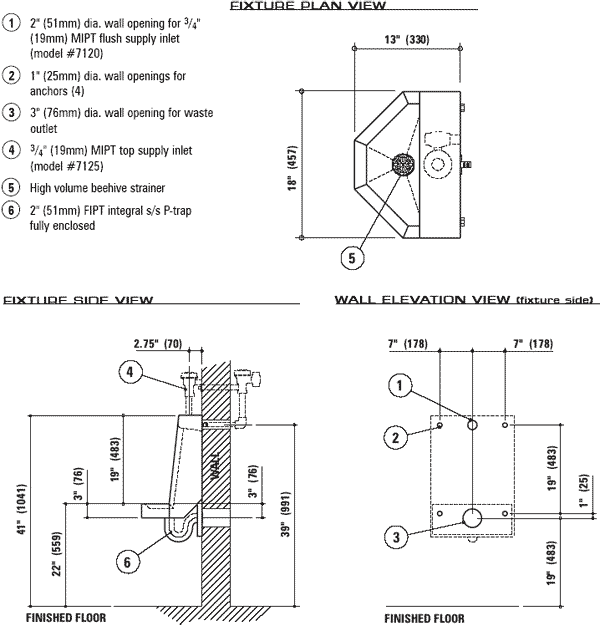

7120 Back Supply / 7125 Top Supply Urinals
These washdown urinals feature:
- Wall hung, back mounted
- Designed for high security areas with accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- Fixtures come with a beehive type strainer and P-trap
- Integral trap is fully enclosed
- Plated steel concealed anchor rods and fasteners
- 7120 back supply connection 3/4" MIPT
- 7125 top supply connection 3/4" MIPT
- High volume beehive style strainer
- 2" FIPT integral stainless steel fully enclosed P-trap
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards

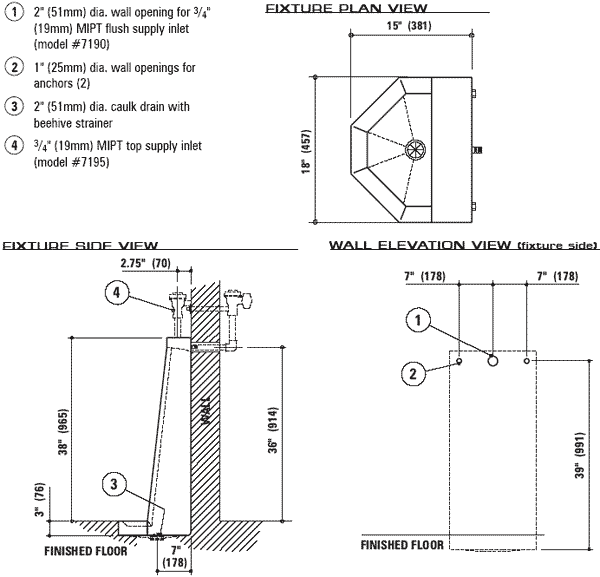

7190 Back Supply / 7195 Top Supply Urinals
These washdown urinals feature:
- Stall type (floor outlet)
- Designed for high security areas with accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- Fixtures come with a beehive type strainer with 2" caulk type outlet
- P-trap sold separately
- Plated steel concealed anchor rods and fasteners
- 7190 back supply connection 3/4" MIPT
- 7195 top supply connection 3/4" MIPT
- Chrome plated strainer with 2" caulk outlet
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards
Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
7130 Back Supply / 7135 Top Supply Urinals - Handicap Urinal Fixtures
These washdown urinals feature:
- Wall hung, straddle type
- Designed for high security areas with accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- Fixtures come with a beehive type strainer, P-trap and vandal resistant stainless steel trap enclosure
- Plated steel concealed anchor rods and fasteners
- 7130 back supply connection 3/4" MIPT
- 7135 top supply connection 3/4" MIPT
- High volume beehive style strainer
- 1-1/2" OD P-trap for slip-joint connection
- Fixture meets ADA requirements when properly installed per ADA guidelines
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards

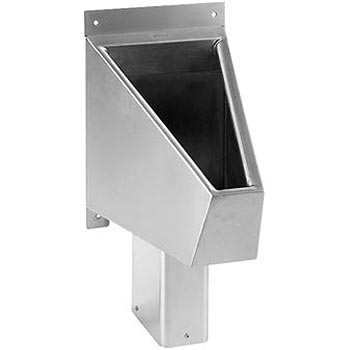

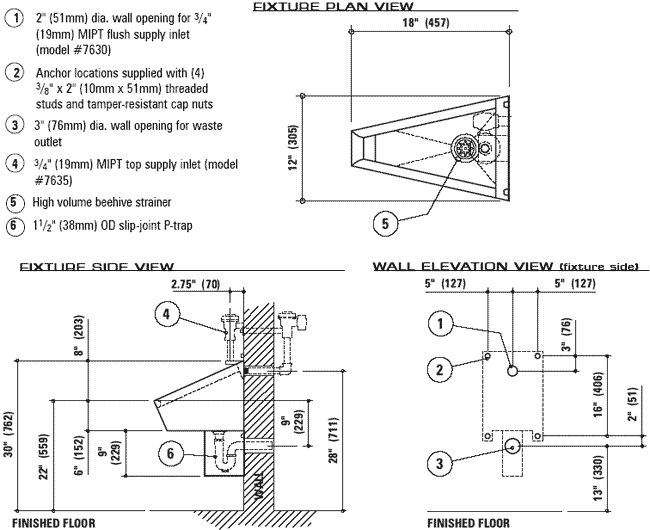

7630 Back Supply / 7635 Top Supply Urinals - Handicap Urinal Fixtures
These washdown urinals feature:
- Front mounted, wall hung
- Designed for areas where abuse and vandalism occur
- Urinals are fabricated using 14-gauge type 304 stainless steel welded to form a seamless durable fixture
- Exposed surfaces are polished to a satin finish
- Integral flushing rim provides a full sanitary washdown
- Flush valve sold separately
- 7630 back supply connection 3/4" MIPT
- 7635 top supply connection 3/4" MIPT
- High volume beehive style strainer
- 1-1/2" OD P-trap for slip-style connection
- Vandal resistant stainless steel trap enclosure
- Integral mounting tabs for exposed anchoring
- 3/8" chrome plated vandal resistant cap nuts (4)
- 3/8" steel studs for anchoring fixture to wall
- Fixture meets ADA requirements when properly installed per ADA guidelines
- Meets HEU requirements for 0.5 gpf
- View detailed dimensions
Compliant with California Energy Commission water efficiency standards

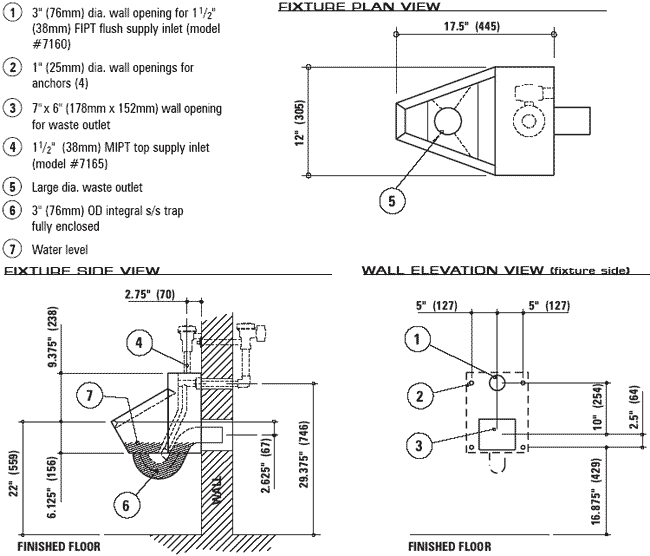

7160 Back Supply / 7165 Top Supply Urinals - Handicap Urinal Fixtures
These blowout urinals feature:
- Back mounted, wall hung
- Designed for high security areas with an accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing rim provides a full sanitary washdown of the interior
- Flush valve sold separately
- Integral trap is fully enclosed
- Plated steel concealed anchor rods with nuts and washers
- 7160 back supply connection 1-1/2" FIPT
- 7164 top supply connection 1-1/2" MIPT
- 3" OD stainless steel fully enclosed trap with blowout jet
- 3" OD stainless steel discharge waste pipe
- Plain end waste extended 4" past back of fixture for flexible type pipe connection or no-hub
- Fixture meets ADA requirements when properly installed per ADA guidelines
- 1.5 GPF
- View detailed dimensions
Please note: Due to low-flow regulations, these units cannot be shipped to customers in California.

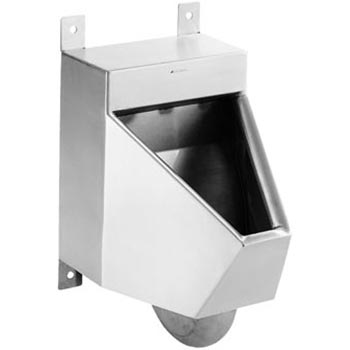

7660 Back Supply / 7665 Top Supply Urinals - Handicap Urinal Fixtures
These blowout urinals feature:
- Back mounted, wall hung, blowout style
- Designed for areas prone to abuse and vandalism where a pipe chase is not available
- Fixtures are fabricated using 14-gauge type 304 stainless steel, seamlessly welded to form a one piece durable fixture
- Flushing rim provides a full sanitary washdown of the interior
- Flush valve sold separately
- Integral stainless steel blowout trap is fully enclosed
- 7660 back supply connection 1-1/2" FIPT
- 7664 top supply connection 1-1/2" MIPT
- Gasket type waste outlet with 5-1/2" diameter recessed gasket flange
- Fixture meets ADA requirements when properly installed per ADA guidelines
- 1.5 GPF
- View detailed dimensions
Please note: Due to low-flow regulations, these units cannot be shipped to customers in California.

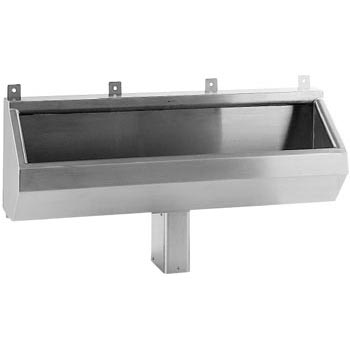

Stainless Steel Trough Urinals
7140-7144 Back Supply / 7150-7154 Top Supply Urinals
These washdown trough urinals feature:
- Wall hung, back mounted trough type
- Designed for high security areas with an accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- Fixtures come with a beehive type strainer, P-trap and vandal resistant stainless steel trap enclosure
- Plated steel concealed anchor rods and fasteners
- High volume beehive style strainer
- 1-1/2" OD P-trap for slip-joint connection
- Models 7140, 7141, 7142, 7150, 7151, 7152 have 3/4" MIPT supply connection
- Models 7143, 7144, 7153, 7154 have 1-1/2" MIPT supply connection
- All models are available with an optional A168 metal template to help the installer make the appropriate wall openings needed for proper installation
- View dimensions
Please note: An accessible pipe chase is required for installation. Anchor rods pass through the wall and screw into threaded sockets on the back of the urinal. The anchor rods are secured on the other side of the chase wall with washers and hex nuts. Wall openings for anchor rods and piping must be provided by the installer in accordance with rough-in drawings provided by the manufacturer.
| Model # |
Description |
GPF |
Price & Quantity |
| Back Supply Trough Urinals |
| 7140 |
Stainless Steel Trough Urinal with BACK Supply - 36" Length
*printable verification form - 3/4" supply connection |
1.5 |
$1,788.00 |
| 7140-A168 |
Stainless Steel Trough Urinal with BACK Supply - 36" Length
WITH A168 Metal Template *printable verification form
- 3/4" supply connection |
1.5 |
$1,938.00 |
| 7141 |
Stainless Steel Trough Urinal with BACK Supply - 48" Length
*printable verification form - 3/4" supply connection |
1.5 |
$1,977.00 |
| 7141-A168 |
Stainless Steel Trough Urinal with BACK Supply - 48" Length
WITH A168 Metal Template *printable verification form
- 3/4" supply connection |
1.5 |
$2,127.00 |
| 7142 |
Stainless Steel Trough Urinal with BACK Supply - 60" Length
*printable verification form - 3/4" supply connection |
1.5 |
$2,307.00 |
| 7142-A168 |
Stainless Steel Trough Urinal with BACK Supply - 60" Length
WITH A168 Metal Template *printable verification form
- 3/4" supply connection |
1.5 |
$2,457.00 |
| 7143 |
Stainless Steel Trough Urinal with BACK Supply - 72" Length
*printable verification form - 1-1/2" supply connection |
3.5 |
$2,457.00 |
| 7143-A168 |
Stainless Steel Trough Urinal with BACK Supply - 72" Length
WITH A168 Metal Template *printable verification form
- 1-1/2" supply connection |
3.5 |
$2,607.00 |
| 7144 |
Stainless Steel Trough Urinal with BACK Supply - 96" Length
*printable verification form - 1-1/2" supply connection |
3.5 |
$2,920.50 |
| 7144-A168 |
Stainless Steel Trough Urinal with BACK Supply - 96" Length
WITH A168 Metal Template *printable verification form
- 1-1/2" supply connection |
3.5 |
$3,070.50 |
| Top Supply Trough Urinals |
| 7150 |
Stainless Steel Trough Urinal with TOP Supply - 36" Length
*printable verification form - 3/4" supply connection |
1.5 |
$1,788.00 |
| 7150-A168 |
Stainless Steel Trough Urinal with TOP Supply - 36" Length
WITH A168 Metal Template *printable verification form
- 3/4" supply connection |
1.5 |
$1,938.00 |
| 7151 |
Stainless Steel Trough Urinal with TOP Supply - 48" Length
*printable verification form - 3/4" supply connection |
1.5 |
$1,977.00 |
| 7151-A168 |
Stainless Steel Trough Urinal with TOP Supply - 48" Length
WITH A168 Metal Template *printable verification form
- 3/4" supply connection |
1.5 |
$2,127.00 |
| 7152 |
Stainless Steel Trough Urinal with TOP Supply - 60" Length
*printable verification form - 3/4" supply connection |
1.5 |
$2,307.00 |
| 7152-A168 |
Stainless Steel Trough Urinal with TOP Supply - 60" Length
WITH A168 Metal Template *printable verification form
- 3/4" supply connection |
1.5 |
$2,457.00 |
| 7153 |
Stainless Steel Trough Urinal with TOP Supply - 72" Length
*printable verification form - 1-1/2" supply connection |
3.5 |
$2,457.00 |
| 7153-A168 |
Stainless Steel Trough Urinal with TOP Supply - 72" Length
WITH A168 Metal Template *printable verification form
- 1-1/2" supply connection |
3.5 |
$2,607.00 |
| 7154 |
Stainless Steel Trough Urinal with TOP Supply - 96" Length
*printable verification form - 1-1/2" supply connection |
3.5 |
$2,920.50 |
| 7154-A168 |
Stainless Steel Trough Urinal with TOP Supply - 96" Length
WITH A168 Metal Template *printable verification form
- 1-1/2" supply connection |
3.5 |
$3,070.50 |
| Back & Top Supply Urinals Options |
| Add Powder Coat Color Option To One Urinal - Porcelain White = $300.00 |
Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
Please note: Due to low-flow regulations, these units cannot be shipped to customers in California.
7640-7644 Back Supply / 7650-7654 Top Supply Urinals
These washdown trough urinals feature:
- Wall hung, front mounted trough type
- Designed for high security areas without an accessible pipe chase
- Fixtures are fabricated using 14-gauge type 304 stainless steel seamlessly welded to form a one piece, tamper resistant fixture
- Flushing provides a sanitary washdown of the interior
- Flush valve sold separately
- Exposed surfaces are polished to a satin finish
- Fixtures come with a beehive type strainer, P-trap and vandal resistant stainless steel trap enclosure and vandal resistant fasteners
- Wall anchors for fasteners must be furnished by the installer
- Chrome plated brass vandal resistant cap nuts with steel studs
- High volume beehive style strainer
- 1-1/2" OD P-trap for slip-joint connection
- Models 7640, 7641, 7642, 7650, 7651, 7652 have 3/4" MIPT supply connection
- Models 7643, 7644, 7653, 7654 have 1-1/2" MIPT supply connection
- View dimensions
| Model # |
Description |
GPF |
Price & Quantity |
| Back Supply Trough Urinals |
| 7640 |
Stainless Steel Trough Urinal with BACK Supply - 36" Length |
1.5 |
$1,788.00 |
| 7641 |
Stainless Steel Trough Urinal with BACK Supply - 48" Length |
1.5 |
$1,977.00 |
| 7642 |
Stainless Steel Trough Urinal with BACK Supply - 60" Length |
1.5 |
$2,307.00 |
| 7643 |
Stainless Steel Trough Urinal with BACK Supply - 72" Length |
3.5 |
$2,457.00 |
| 7644 |
Stainless Steel Trough Urinal with BACK Supply - 96" Length |
3.5 |
$2,920.50 |
| Top Supply Trough Urinals |
| 7650 |
Stainless Steel Trough Urinal with TOP Supply - 36" Length |
1.5 |
$1,788.00 |
| 7651 |
Stainless Steel Trough Urinal with TOP Supply - 48" Length |
1.5 |
$1,977.00 |
| 7652 |
Stainless Steel Trough Urinal with TOP Supply - 60" Length |
1.5 |
$2,307.00 |
| 7653 |
Stainless Steel Trough Urinal with TOP Supply - 72" Length |
3.5 |
$2,457.00 |
| 7654 |
Stainless Steel Trough Urinal with TOP Supply - 96" Length |
3.5 |
$2,920.50 |
| Add Powder Coat Color Option To One Urinal - Porcelain White = $300.00 |
Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
Please note: Due to low-flow regulations, these units cannot be shipped to customers in California.
Flushometers for BACK Supply Urinals

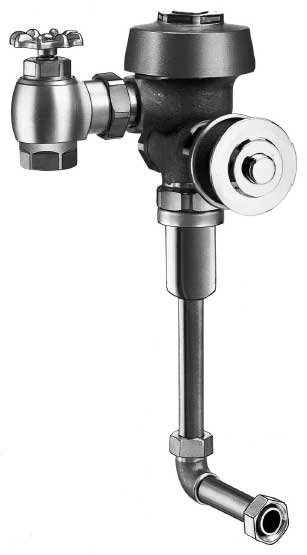

Concealed Urinal Flushometers - Royal® 613 Prison Model
Designed for 3/4" stainless steel back inlet urinals
This urinal flushometer features:
- Rough brass valve conceals behind wall for vandal protection
- Water supply inlet can install on left or right hand side
- 3/4" wheel handle angle stop with integrated Bak-Chek®
- Exposed push button assembly chrome plated
- Designed for non-hold-open water conservation operation
- Elbow flush connection includes 3/4" back inlet coupling nut
- Dual filtered diaphragm keeps sediment or debris from clogging the bypass, helping to protect the valve from being stuck open and continual running
- Chloramine resistant PERMEX® rubber compound used to manufacture the diaphragm, handle packing, stop seat and vacuum breaker helps prolong maintenance intervals

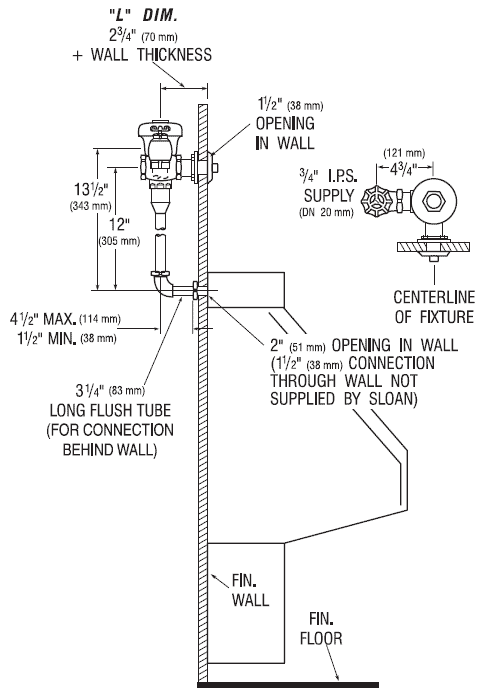

- View detailed dimensions
- High back pressure resistant vacuum breaker
- Adjustable tailpiece
- ASSE 1037 compliant
- 0.5 GPF
- Meets requirements of the Buy American Act
Frequently Asked Questions
Q. "What is the LDIM?"
A. LDIM is the Sloan Valve Company's abbreviation for length dimension and is a measurement of the wall thickness plus the 2-3/4" distance for the installation offset measured from the interior finished wall to the centerline of the flush valve location behind the wall.
Q. "What is Permex?"
A. Permex is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners.
Q. "What is Chloramine?"
A. Chloramine is a combination of a chlorine and ammonia reaction in water. Chloramine is commonly used in low concentrations as a disinfectant in municipal water systems as an alternative to chlorination because it is more stable than chlorine and will not dissipate from the water.
Q. "What is the purpose of the Bak-Chek® in the angle stop?"
A. The internal Bak-Chek® keeps the water flowing in one direction through the angle stop. The Bak-Chek® ensures the flushometer valve stays pressurized if the water supply system were to lose pressure. Without the Bak-Chek®, and the water supply lost pressure, the flushometer will leak water into the fixture and continue to do so even when the supply pressure is restored and up until the flushometer is fully pressurized again.
Q. "What does it mean that a product is compliant with the Buy American Act (BAA) or with the American Recovery and Reinvestment Act (ARRA)? Are these products manufactured in the USA?"
A. The Buy American Act is a part of the American Recovery and Reinvestment Act of 2009 intended to help stimulate the United States' economy through the purchase of American-made goods. While the Buy American Act portion of the bill primarily regulates government spending, the regulations can help guide conscious consumers who wish to purchase American-made products. In general, an item that meets the requirements of the Buy American Act is assembled in the US and at least 50% of its components are domestically produced. While every single component of these products may not be produced in the US, a large portion are - and that portion is helping our American economy to grow and thrive.
