Vail Series Toilet Repair Parts

by Eljer

The low-profile design of the Eljer Vail is what makes it unique, therefore, it is more preferable to repair than to replace it. Find just the right parts to keep yours working and looking good for many years to come with replacement float valves, flappers, or even mounting parts and bolt caps. If you need other Eljer toilet parts, click our page.
Vail toilet by Eljer
Order replacement parts for the Vail one-piece toilet model numbers below:
081-1705

Repair Parts for the Eljer Vail Series Toilets
One-Piece Model # 081-1705

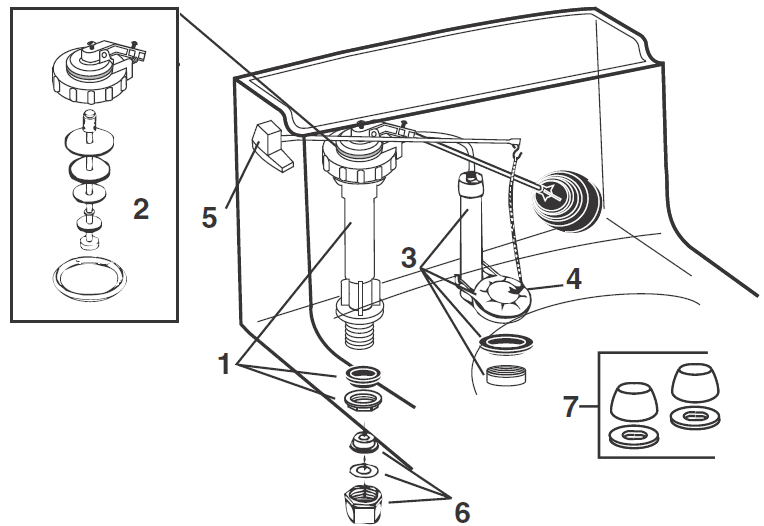

Repair parts for the Vail toilet - #081-1705
Float valve (ballcock) design has changed from a twist-top to a screw kit.
Item # Image Part # Description Price & Quantity
1 eljer fill valve 495-0256-00 495-0256-00 Fill Valve - Must purchase float ball separately Discontinued
american standard adjustable fill valve 7381125-400-0070A 7381125-400-0070A Fill Valve with Built-In Float - Replaces 495-0256-00 - (no float ball or float rod needed) - View dimensions $40.09 Enter a quantity and
2 plunger repair kit 495-0214-00 MARK4KIT Plunger repair kit for 495-0214-00 - fill valve cap imprinted MARK IV $5.45 Enter a quantity and
eljer plunger fill valve repair kit 495-0188-00 495-0188-00 OEM 3-screw cap with plunger fill valve repair for #495-0256-00 Discontinued
3 eljer flush valve 495-5514-00 495-5514-00 OEM Flush Valve - 5-1/2" tall from toilet to top of overflow - turn internal tabs counterclockwise to loosen and remove old flush valve, see below for optional tool to remove or install original flush valves Discontinued
will-fit eljer flush valve 495-5514-00 WF-495-5514-00 Will-Fit Flush Valve - 5-1/2" tall from toilet to top of overflow, includes flapper and chain - fits some Canterbury, Tennison, and Vail toilets $30.94 Enter a quantity and
4 eljer toilet flapper 495-6048-00 495-6048-00 Replaced by: American Standard / Eljer Flapper & chain #738068-0070A (OEM Certain Seal 400) Discontinued
will-fit certain seal 400 flapper "Will Fit"  Flapper Like Certain Seal 400 $13.64 Enter a quantity and

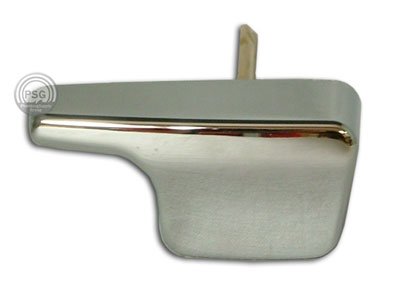

5 jaclo toilet tank trip lever j936 chrome J-936 Side Mount Trip Lever - Chrome (replaces 495-2730-00) $29.78 Enter a quantity and
6 image unavailable 495-6028-00 Mounting Parts Bag Discontinued
7 plastic toilet bolt cap white Bolt Caps Toilet Bowl Bolt Caps (2) - White - view additional color options $3.89 Enter a quantity and
Not Shown flush valve wrench 1818400 Tool Tool for installing and removing original flush valve - view instructions
Insert and turn wrench counterclockwise to loosen and remove old flush valve		 $12.95 Enter a quantity and
Not Shown plastic float ball Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
brass float rod 8 inch Float Rod "Will Fit" 8" Brass Float Rod - View more sizes $3.10 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Related Items & Information

Eljer toilet flapper
ALL Eljer Repair Parts Toilet seat
Eljer Toilet Seats Find your toilet model number
Toilet Model Identification Help Toilet supply valve kit
Toilet Supply Valves Toilet tank gasket
Toilet Tank Gaskets Common Causes of Toilet Leaks
Finding & Fixing Toilet Leaks Brondell bidet seat
Brondell Swash Bidet Seats OEM toilet flush valve
Finding "Will Fit" Toilet Parts

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
