Titan Series Toilet Repair Parts

by Eljer

The simple, classic lines of the Eljer Titan makes it a style that will match almost any décor, making it more preferable to repair than replace this timeless model. Find just the right parts to keep yours working and looking good for many years to come with a replacement float valve, flappers, or even a flush lever or bolt caps.
Titan one-piece toilet by Eljer081-0755 & 081-0777
Titan two-piece toilet by Eljer141-0771, 141-0772, 141-0773, 141-0777 & 141-0782
Titan Elite toilet by Eljer141-2777
Titan Triangle toilet by Eljer141-3777
Keep scrolling to order replacement parts for the Titan toilet model and tank numbers listed above

Repair Parts for the Eljer Titan Series Toilets
Model #'s 081-0755, 081-0777

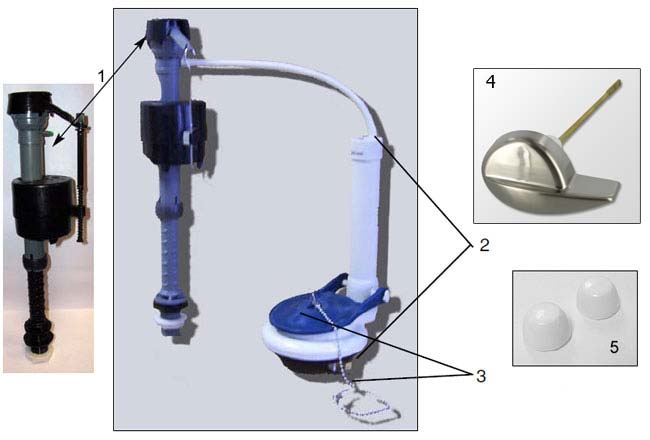

Repair parts for the Titan One-Piece toilet - #091-3505
Item # Part # Description Price & Quantity
1 495-0244-03 Float Valve (Ballcock) - 13" tall - Replaced by Fluidmaster 400A adjustable height fill valve $16.62 Enter a quantity and
2 495-5420-00 Category 7™ Flush Valve - includes flapper & chain Discontinued
3 495-6077-00 Flapper & Chain for 3" flush valves $18.49
3030BP "Will Fit" Flapper with 8" Chain for 3" flush valves
- Fits Titan Models: 081-0755, 141-0772, 141-0773, 141-0782, 141-2777, 141-3777		 $11.52
3060BP "Will Fit" Flapper with 11" Chain - Fits Titan Models: 081-0777, 141-0777 $15.05 Enter a quantity and
4 495-2778-00 Side Mount Trip Lever - Chrome
- For more finish options, please see "will fit" replacement J-904 trip lever at bottom of page		 $19.86
495-2777-00 Side Mount Trip Lever - White $18.17
495-2777-82 Side Mount Trip Lever - Natural $22.40 Enter a quantity and
Note: Tank levers above may or may not have bends in exactly the same places, but are designed to work with these tanks
For more finish options, please see "will fit" replacement J-904 trip lever at bottom of page
5 Bolt Caps Bolt Caps (2) - White - View more color options $3.89 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

Titan Elite series toiletTitan Elite
Model #'s 091-2750, 091-2755, 091-2770 & 091-2777
Titan Triangle series toiletTitan Triangle
Model #'s 091-3750, 091-3755, 091-3770 & 091-3777
Although these toilets look different on the outside please be aware that they use the exact same components on the inside. Order replacement parts for these Eljer toilets below.

Repair Parts For The Titan Elite & Titan Triangle Toilets
Model #'s 091-2750, 091-2755, 091-2770, 091-2777, 091-3750, 091-3755, 091-3770, 091-3777

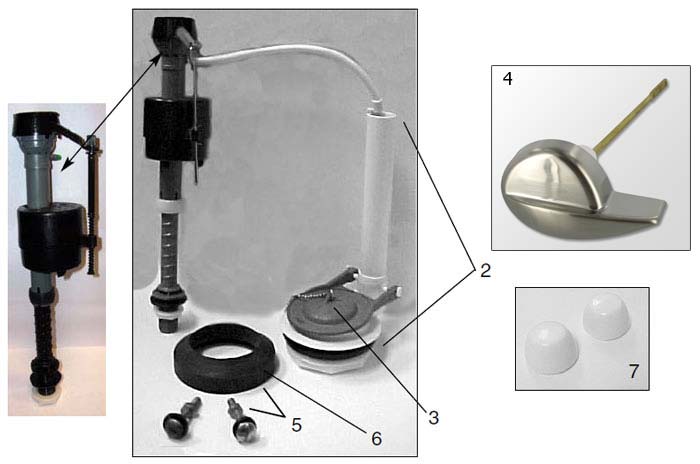

Repair parts for the Titan Elite toilet
Item # Part # Description Price & Quantity
1 495-0244-08 Float Valve - Replaced by Fluidmaster 400H-002 - adjustable 9" - 14" height $17.05 Enter a quantity and
2 495-5400-00 Category 7™ - 3" Flush Valve - includes flapper & chain $21.44 Enter a quantity and
3 495-6077-00 Flapper & Chain for 3" flush valves $18.49
3030BP "Will Fit" Flapper with 8" Chain for 3" flush valves - Fits Titan Models: 081-0755, 141-0772, 141-0773, 141-0782, 141-2777, 141-3777 $11.52
3060BP "Will Fit" Flapper with 11" Chain - Fits Titan Models: 081-0777, 141-0777 $15.05 Enter a quantity and
4 495-2778-00 Side Mount Trip Lever - Chrome
- For more finish options, please see "will fit" replacement J-904 trip lever at bottom of page		 $19.86
495-2777-00 Side Mount Trip Lever - White $18.17
495-2777-82 Side Mount Trip Lever - Natural $22.40 Enter a quantity and
Note: Tank levers above may or may not have bends in exactly the same places, but are designed to work with these tanks
For more finish options, please see "will fit" replacement J-904 trip lever at bottom of page
5 495-6010-00 Mounting Parts Bag
- Order Tank To Bowl Bolts, Gasket and Bolt Caps Separately Directly Below		 Discontinued
Bolts Tank to Bowl Bolts - Solid Brass $6.27 Enter a quantity and
Gasket Tank to Bowl Gasket $6.36 Enter a quantity and
Bolt Caps Bolt Caps (2) - White - View more color options $3.89 Enter a quantity and
6 495-5677-00 Tank to Bowl Gasket - available separately $6.36 Enter a quantity and
7 Bolt Caps Bolt Caps (2) - White - view additional color options $3.89 Enter a quantity and

Repair Parts For The Titan 17" & Titan 15" Toilets
Complete Toilet Model #'s 091-0770, 091-0772, 091-0773, 091-0776, 091-0777, 091-0778, 091-0782, 091-0750, 090-0751, 091-0752, 091-0753, 091-0754, 091-0755, 091-0757, 091-0758, 091-0762

Tank #'s 141-0771, 141-0772, 141-0773, 141-0777, 141-0782
Repair parts for the Titan toilet
Item # Part # Description Price & Quantity
1 495-0244-08 Float Valve (aka Ballcock)- Replaced by Fluidmaster 400H-002 - adjustable height 9" - 14" $17.05 Enter a quantity and
2 495-5400-00 Category 7™ - 3" Flush Valve - includes flapper & chain $21.44 Enter a quantity and
3 495-6077-00 Flapper & Chain for 3" flush valves $18.49
3030BP "Will Fit" Flapper with 8" Chain
- Fits Titan Models: 081-0755, 141-0772, 141-0773, 141-0782, 141-2777, 141-3777		 $11.52
3060BP "Will Fit" Flapper with 11" Chain - Fits Titan Models: 081-0777, 141-0777 $15.05 Enter a quantity and
4 495-2778-00 Side Mount Trip Lever - Chrome
- For more finish options, please see "will fit" replacement J-904 trip lever at bottom of page		 $19.86
495-2777-00 Side Mount Trip Lever - White $18.17
495-2777-82 Side Mount Trip Lever - Natural $22.40 Enter a quantity and
Note: Tank levers above may or may not have bends in exactly the same places, but are designed to work with these tanks
For more finish options, please see "will fit" replacement J-904 trip lever at bottom of page
5 495-6010-00 Mounting Parts Bag
- Order Tank To Bowl Bolts, Gasket and Bolt Caps Separately Directly Below		 Discontinued
Bolts Tank to Bowl Bolts - Solid Brass $6.27 Enter a quantity and
Gasket Tank to Bowl Gasket $6.36 Enter a quantity and
Bolt Caps Bolt Caps (2) - White - View color options $3.89 Enter a quantity and
6 495-5677-00 Tank to Bowl Gasket - available separately $6.36 Enter a quantity and
7 Bolt Caps Bolt Caps (2) - White - View color options $3.89 Enter a quantity and

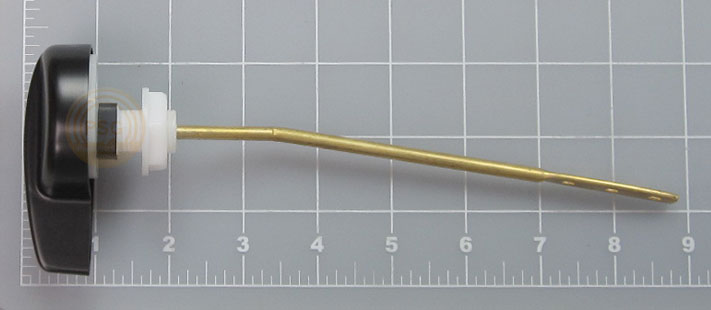

J-904 Trip Lever - Alternate Replacement
For 495-2777 and 495-2778

Toto Tank Lever
Features brass arm - Available in a variety of finishes and powder coats
Side Mount Toilet Trip LeverModel J-904
- OR - View Cart

Related Items & Information

Eljer toilet flapper
ALL Eljer Repair Parts Toilet seat
Eljer Toilet Seats Find your toilet model number
Toilet Model Identification Help Toilet supply valve kit
Toilet Supply Valves Toilet tank gasket
Toilet Tank Gaskets Common Causes of Toilet Leaks
Finding & Fixing Toilet Leaks Brondell bidet seat
Brondell Swash Bidet Seats OEM toilet flush valve
Finding "Will Fit" Toilet Parts
Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
