Calloway Series Toilet Repair Parts

by Eljer

As it is often much easier and less costly to repair your toilet than to replace it, replacing worn out parts is a great way to save money. We here at PlumbingSupply.com® are pleased to offer the replacement parts you need for your Eljer Calloway toilet - from fill valves, flappers, and trip levers, to toilet seats and bolt cap covers.
Calloway toilet by Eljer
Order replacement parts for the Calloway toilet tank numbers below:
4003

Repair Parts for the Eljer Calloway Series Toilet
Models # 091-2760, 091-2761, 091-2775 & 091-2776 - Tank # 4003

Eljer toilet repair parts diagram - the Calloway series
Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a 7381125-400-0070A Fill Valve - Replaces 738565-0070A - adjustable 9" to 12-1/2" $40.09 Enter a quantity and
2 clear will-fit refill tube "Will-Fit" Refil Tube Refill Tube - Replaces 738570-1030A $2.22 Enter a quantity and
3 fluidmaster angle adapter clip for refill tube B282 Angle Adapter & Clip $3.01 Enter a quantity and

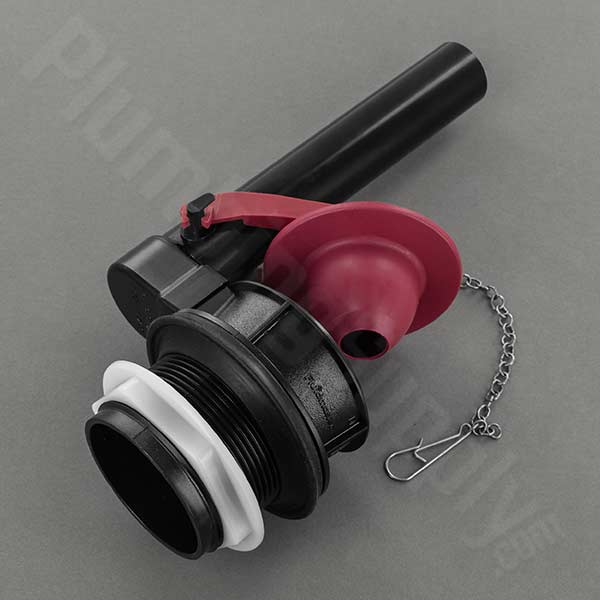

4 american standard flush valve 7381007-400007 7381007-400.007 Flush Valve - includes flapper and gasket - view dimensions Discontinued
korky plus 87 flush valve dimensions Will-Fit "Will-Fit" Flush Valve - includes flapper and gasket - "Will Fit" flush valve will need to be cut down to height of original valve. - Please note: altered valves are non-returnable. $14.99 Enter a quantity and
5 eljer flapper 7381008-400-0070A 7381008-400.0070A Flapper $11.21 Enter a quantity and
6 flush valve gasket wa84 WA84 "Will Fit" Flush Valve Gasket $1.44 Enter a quantity and
7 american standard left front tank lever chrome 7381004-0020a 7381004-0020A Front Mount Trip Lever - Chrome $23.27
image unavailable 7381004-0200A Front Mount Trip Lever - White $21.35
eljer toilet trip lever linen 7381004-2220 7381004-2220A Front Mount Trip Lever - Linen Discontinued
image unavailable 7381004-0210A Front Mount Trip Lever - Bone $23.86 Enter a quantity and
8 tank to bowl gasket wa72 WA72 "Will Fit" Tank to Bowl Gasket - view dimensions $1.73 Enter a quantity and
9 tank to bowl kit 237ss "Will-Fit" Bolt Kit Tank to Bowl Bolt Kit - Replaces 730512-0070A $6.39 Enter a quantity and
10 bemis affinity premium round toilet seat 200e4 Round Premium "Will-Fit" Toilet Seat by Bemis - White (view more color options) $60.56
bemis affinity premium elongated toilet seat 1200e4 Elongated Premium "Will-Fit" Toilet Seat by Bemis - White (view more color options) $67.91 Enter a quantity and
11 american standard toilet bolt cap covers 034783-0200A 034783-0200A Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information

Frequently Asked Questions

Q. "I have an Eljer toilet and I ordered Eljer parts, but the box says American Standard. Did you send me the wrong parts?"
A. While we are human and do make mistakes sometimes, most of the time you did receive the correct parts. In 2008, American Standard purchased both Crane (which previously had purchased Universal Rundle) and Eljer. There are many Eljer branded parts still available, especially for many of their older toilets, but their newer toilet model parts and some of the older parts have been replaced with American Standard branded parts. Rest assured that these parts are generally exactly the same and will function the same, even if it says American Standard and not Eljer on the box. If, for some reason, the parts you ordered do not work in your toilet, please contact our customer service representatives who will be happy to help you identify the problem.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
