Patriot Series Toilet Repair Parts

by Eljer

The Patriot toilet will provide years of dependable service if maintained properly, and what better way to do that than to get replacement parts from PlumbingSupply.com®! Whether you need fill valves, gaskets, or flappers, you'll find them right here. Looking for a new seat for your toilet? Click our page.
Keep scrolling to order replacement parts for the Patriot toilet tank numbers listed above

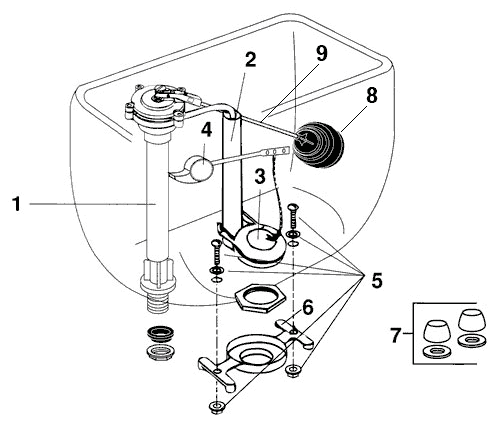

Repair Parts for the Eljer Patriot Series Toilet
Models # 091-1100, 091-1101, 091-1105, 091-1106, 091-1110 & 091-1115 - Tanks # 141-1100, 141-1110 & 141-1101

Eljer toilet repair parts
Item # Part # Description Price & Quantity
1 495-0237-00 Fill Valve (Ballcock) Replaced by 495-0214-00 - float ball sold separately (see item #8) Discontinued
400A Suitable Replacement Fill Valve - Fluidmaster 400A
adjustable (9"-14") fill valve
$16.62 Enter a quantity and
Not Shown 495-0191-00 4 Screw Repair Kit for Old Style Fill Valve - Replaced by "will fit" $10.41
T02-050 Plunger & Seal Repair Kit with 4 Screws for old style fill valve $3.51
495-0185-00 Twist-Lock Repair Kit Discontinued
MARK4KIT Plunger Repair Kit for #495-0214-00 Fill Valve $5.45 Enter a quantity and
2 495-5541-00 Flush Valve Assembly with Flapper and Strap - Replaced by 495-5551-05 Discontinued
USE 495-5551-05
Will-Fit
495-5551-05
'Will-Fit'
Flush Valve Assembly with Flapper and Chain $22.98 Enter a quantity and
3 495-6029-00 Replacement Flapper - Replaced by "will fit" $3.96 Enter a quantity and
100BP Flapper with stainless steel chain - For 495-5551-05 Will-Fit Flush valve $6.15 Enter a quantity and
4 495-2701-00 Trip Lever - Chrome $11.62 Enter a quantity and
5 495-5964-00 Tank to Bowl Bolt Kit (less gasket) - replaced by "will fit" $6.27 Enter a quantity and
6 495-5702-00 Tank to Bowl Gasket - Replaced by "will fit" $4.79 Enter a quantity and
7 Bolt Caps Toilet Bowl Bolt Caps (2) - White - view additional color options $3.89 Enter a quantity and
8 Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
9 Float Rod "Will Fit" 8" Brass Float Rod - View more sizes $3.10 Enter a quantity and
Not Shown Round Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - view more color options $60.56
Elongated Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - view more color options $67.91 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

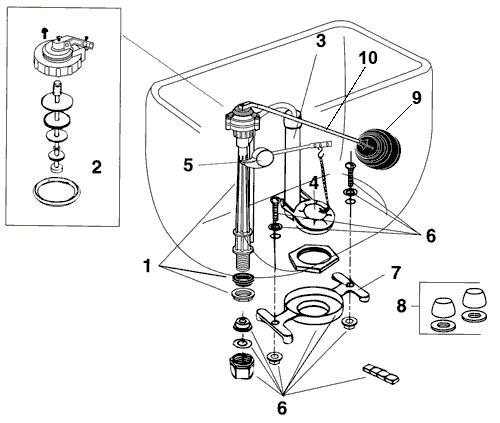

Patriot 1.6 gpf (10" Rough-In)
Models # 091-1150, 091-1155, 091-1165 & 091-1185 - Tanks # 141-1150 & 141-1190

Eljer toilet repair parts
Item # Part # Description Price & Quantity
1 495-0214-00 Fill Valve (Ballcock) - float ball sold separately (see item #9) Discontinued
400A Suitable Replacement Fill Valve - Fluidmaster 400A
adjustable (9"-14") fill valve
$16.62 Enter a quantity and
2 495-0185-00 Fill Valve Repair Kit Discontinued
MARK4KIT Plunger Repair Kit for #495-0214-00 Fill Valve $5.45 Enter a quantity and
3 495-5519-00 Flush Valve Assembly with Flapper and Chain Discontinued
4020 Suitable Replacement
Flush Valve Assembly with Flapper and Chain - Adjustable overflow tube
$10.97 Enter a quantity and
4 495-6040-00 Flapper and Chain only - Replaced by new #738068-0070A Discontinued
53316 Will-Fit   Flapper Like 738068-0070A $13.64 Enter a quantity and
100BP "Will fit" Replacement Flapper and chain $6.15 Enter a quantity and
5 495-2743-00 Trip Lever - Chrome - Replaced by "will fit" $4.77 Enter a quantity and
6 495-5984-00
Replaced by "will fit" parts
"Will Fit" Tank to Bowl Gasket $4.79
"Will Fit" Brass Tank to Bowl Bolt Set (pair) - brass bolts, chrome plated zinc nuts, wing nuts, and washers $6.27 Enter a quantity and
7 495-5702-00 Tank to Bowl Gasket - Replaced by "will fit" $4.79 Enter a quantity and
8 Bolt Caps Toilet Bowl Bolt Caps (2) - White - View additional color options $3.89 Enter a quantity and
9 Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
10 Float Rod "Will Fit" 8" Brass Float Rod - View additional sizes $3.10 Enter a quantity and
Not Shown Round Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - View additional color options $60.56
Elongated Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - View additional color options $67.91 Enter a quantity and

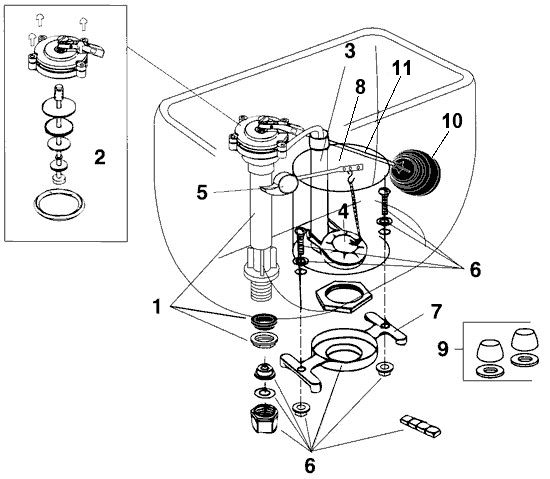

Patriot 1.6 gpf (12" Rough-In)
Models # 091-1120, 091-1125, 091-1175, 091-1176, 091-1178 & 091-1183 - Tanks # 141-1120, 141-1121 & 141-1130

Eljer toilet repair parts
Item # Part # Description Price & Quantity
1 495-0237-00 Fill Valve (Ballcock) - float ball sold separately (see item #10) Discontinued
400A Suitable Replacement Fill Valve - Fluidmaster 400A
adjustable (9"-14") fill valve
$16.62 Enter a quantity and
2 495-0191-00 4 Screw Repair Kit for Old Style Fill Valve - Replaced by "will fit" $10.41
495-0185-00 Twist-Lock Repair Kit Discontinued
MARK4KIT Plunger Repair Kit for #495-0214-00 Fill Valve $5.45 Enter a quantity and
3 495-5525-03 Flush Valve Assembly with Flapper and Chain - Replaced by 495-5551-05 (may include Original style or New style flapper) Discontinued
USE 495-5551-05
Will-Fit
495-5551-05
'Will-Fit'
Flush Valve Assembly with Flapper and Chain $22.98 Enter a quantity and
4 495-6029-00 Flapper - Replaced by "will fit" $3.96 Enter a quantity and
100BP Flapper with stainless steel chain - For 495-5551-05 Will-Fit Flush valve - (set band to open and dial to position 1) $6.15 Enter a quantity and
53438 Flapper with 31 link chain and 5 adjustment inserts - fits original and will-fit flush valves $9.91 Enter a quantity and
5 495-2743-00 Trip Lever - Chrome - Replaced by "will fit" $4.77 Enter a quantity and
6 495-5984-00
Replaced by "will fit" parts
"Will Fit" Tank to Bowl Gasket $4.79
"Will Fit" Brass Tank to Bowl Bolt Set (pair) - brass bolts, chrome plated zinc nuts, wing nuts, and washers $6.27 Enter a quantity and
7 495-5702-00 Tank to Bowl Gasket - Replaced by "will fit" $4.79 Enter a quantity and
8 495-2535-00 Plastic Reservoir - Note: This was a water saving device designed for this toilet model. If removed, the toilet will still function but may use more water. The 100BP or the #53438 flapper can be used to adjust the time the flapper will stay open Discontinued
9 Bolt Caps Toilet Bowl Bolt Caps (2) - White - View additional color options $3.89 Enter a quantity and
10 Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
11 Float Rod "Will Fit" 8" Brass Float Rod - view additional sizes $3.10 Enter a quantity and
Not Shown Round Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - view more color options $60.56
Elongated Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - view more color options $67.91 Enter a quantity and

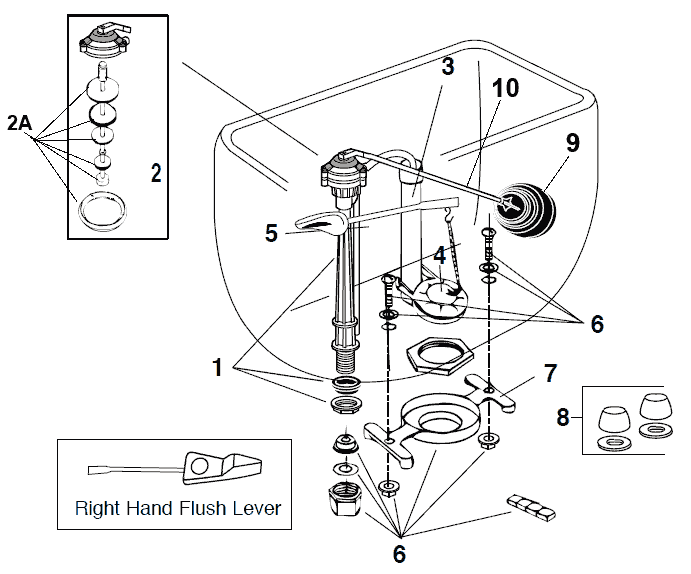

Series III Patriot, Patriot Space Saver, & Patriot 17"
Models # 091-2120, 091-2122, 091-2125, 091-2127, 091-2130, 091-2135, 091-2136, 091-2150, 091-2155, 091-2190, 091-2195, 091-2225, 091-2165, 091-2175, 091-2176, 090-2178, 091-2179, 091-2180, 091-2183, 091-2185
Tanks # 141-2120, 141-2121, 141-2125, 141-2128, 141-2130 & 141-2131

Eljer toilet repair parts
Item # Part # Description Price & Quantity
1 495-0214-00 Fill Valve Assembly - float ball sold separately (see item #9) Discontinued
400A Suitable Replacement Fill Valve - Fluidmaster 400A
adjustable (9"-14") fill valve
$16.62 Enter a quantity and
2 495-0185-00 Twist-Lock Repair Kit Discontinued
2A MARK4KIT Plunger Repair Kit for #495-0214-00 Fill Valve $5.45 Enter a quantity and
3 495-5525-03 Flush Valve Assembly with Flapper and Chain - Replaced by 495-5551-05 (may include Original style or New style flapper) Discontinued
USE 495-5551-05
Will-Fit
495-5551-05
'Will-Fit'
Flush Valve Assembly with Flapper and Chain $22.98 Enter a quantity and
495-5551-07 Flush Valve Assembly with Flapper and Chain - for insulated tanks Discontinued
4 495-6055-00 Original Style Flapper for 495-5551-05 Flush Valve - Replaced by "will fit"
(use orange insert for the same flow rate)
$9.91
100BP Flapper with stainless steel chain - For 495-5551-05 Will-Fit Flush valve $6.15 Enter a quantity and
495-6056-00 Flapper & Chain only - for insulated tanks - Replaced by "will fit"
(use orange insert for the same flow rate)
$9.91 Enter a quantity and
5 495-2120-00 Trip Lever - White Discontinued
6 495-5984-00
Replaced by "will fit" parts
"Will Fit" Tank to Bowl Gasket $4.79
"Will Fit" Brass Tank to Bowl Bolt Set (pair) - brass bolts, chrome plated zinc nuts, wing nuts, and washers $6.27 Enter a quantity and
7 495-5702-00 Tank to Bowl Gasket - Replaced by "will fit" $4.79 Enter a quantity and
8 Bolt Caps Toilet Bowl Bolt Caps (2) - White - Additional color options $3.89 Enter a quantity and
9 Float Ball "Will Fit" Plastic Float Ball $3.70 Enter a quantity and
10 Float Rod "Will Fit" 8" Brass Float Rod - View additional sizes $3.10 Enter a quantity and
Not Shown Round Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - view more color options $60.56
Elongated Premium "Will-Fit" Replacement Toilet Seat by Bemis - White - view more color options $67.91 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information

Frequently Asked Questions

Q. "What does 'will fit' mean?"
A. "Will Fit" is a term used to define an item that may or may not be made by the original manufacturer (OEM), but will function just like the original part.

Q. "What's the best way to replace my toilet flapper?"
A. Generally, with most toilets: Turn off the water supply and flush the toilet. Reach in and unhook the ears of the flapper and unhook the chain from the trip lever. Install an identical flapper to the original that came from the factory. Do expect to get your hands dirty from the old flapper. Simply reinstall the new one in reverse order. Note that should you have very old brass pipes inside of your toilet, be careful not to be rough on them. They can easily break and end up leaking. After you have replaced your flapper, and the toilet tank bowl has refilled, the water fill valve should not leak (be going on and off in cycles). If it does, then we recommend putting some food coloring into your tank. This can help diagnose the problem. The colored water should not be going into the bowl (unless you flush the toilet of course). If the food color does go into the bowl, then possibly the flapper is not the correct one, the surface where the toilet flapper sits has eroded (feel below where the flapper touched the toilet and see if you can feel erosion/groove), or you may only need to add some slack to the chain.

Q. "What are the inserts that came with my flapper for? How do I use them?"
A. These "will fit" flappers are unique in that a variety of inserts are included to allow you to control how much water flushes from your toilet each time it is used. When you flush the toilet, the trip lever lifts the chain on the flapper to allow the water in the tank to flow into the bowl through the flush valve. The bottom cone-like part of the flapper holds air in it. Once lifted, the flapper floats until the water in the tank recedes, when the flapper lands back on the opening of the flush valve. These inserts allow you to control the amount of water that flows into the flapper cone while it is open or floating in the water, thus controlling how fast the flapper seals the flush valve opening.

The benefit of this is that you can easily conserve water by using an insert with a larger hole. As water flows into the flapper cone through a larger hole, it will close faster - meaning you will use less water to complete the flush cycle. If you need more water for a proper, sanitary flush, simply use an insert with a smaller hole.

To change inserts: Carefully twist the existing insert out of the bottom of the flapper. Then, carefully twist the new insert into the flapper. Easy.

click any image below to view in greater detail

How to use flapper inserts How to use flapper inserts How to use flapper inserts How to use flapper inserts How to use flapper inserts How to use flapper inserts How to use flapper inserts How to use flapper inserts

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
