Eljer Toilet Parts Listing

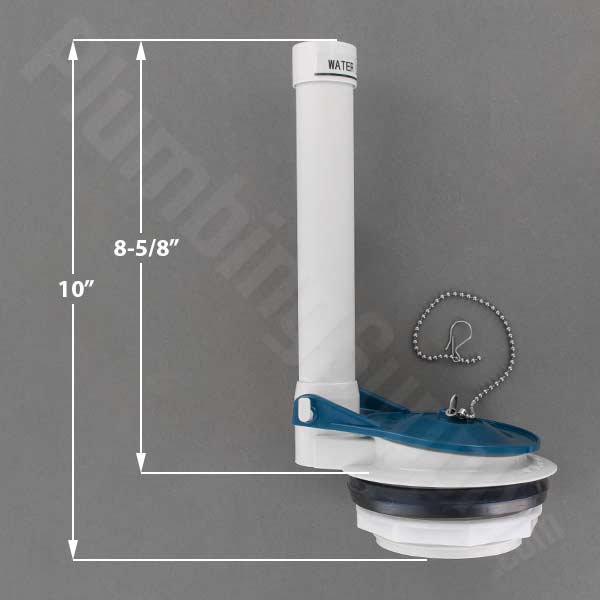

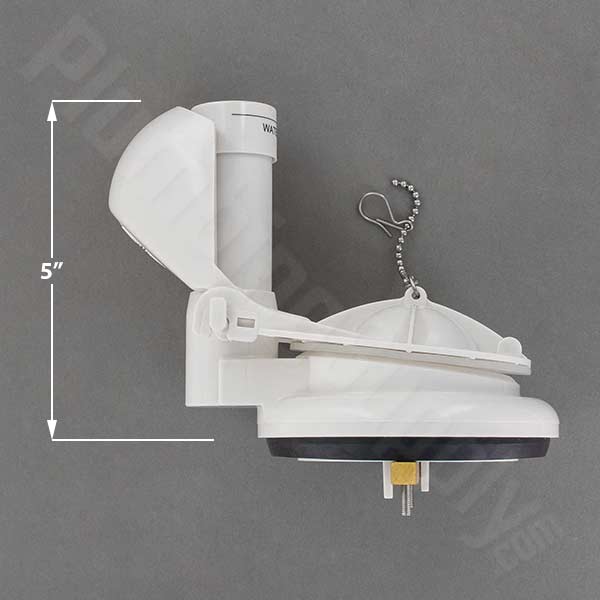

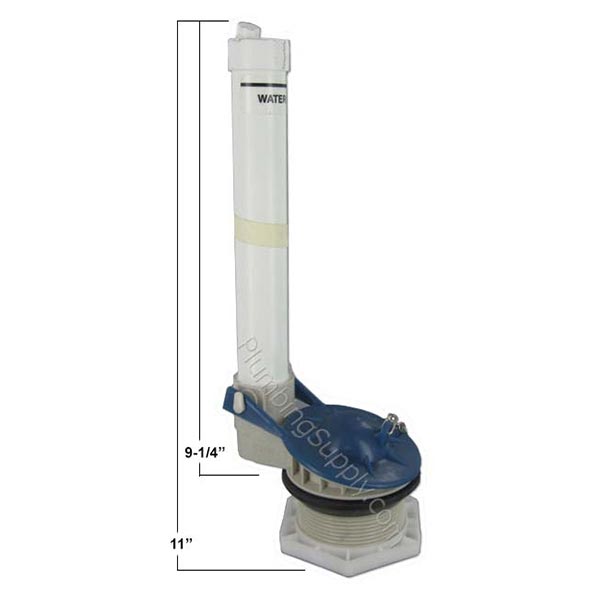

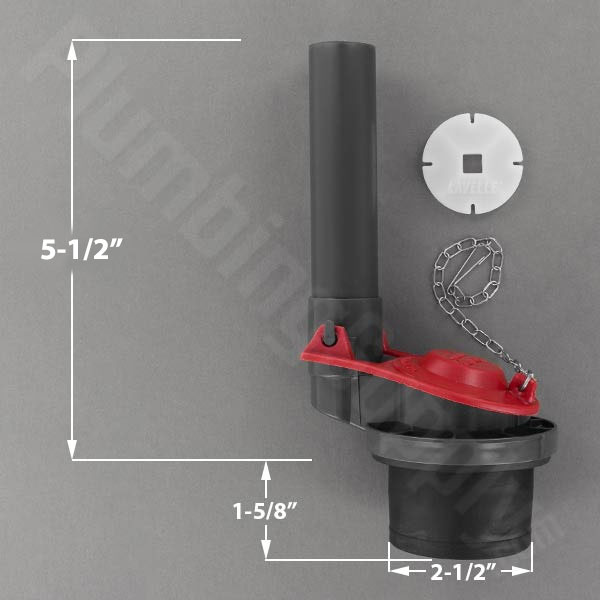

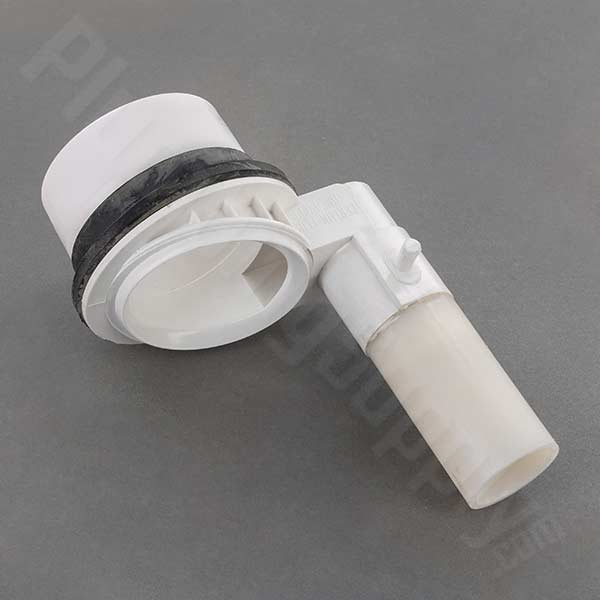

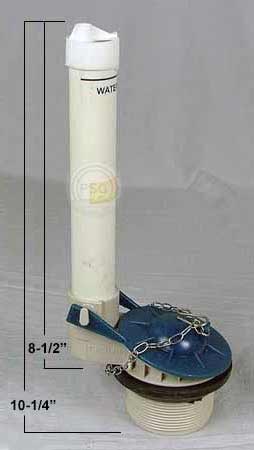

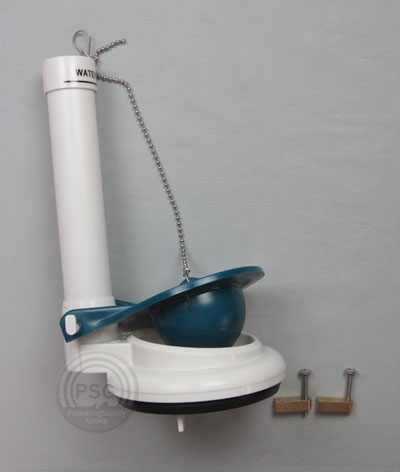

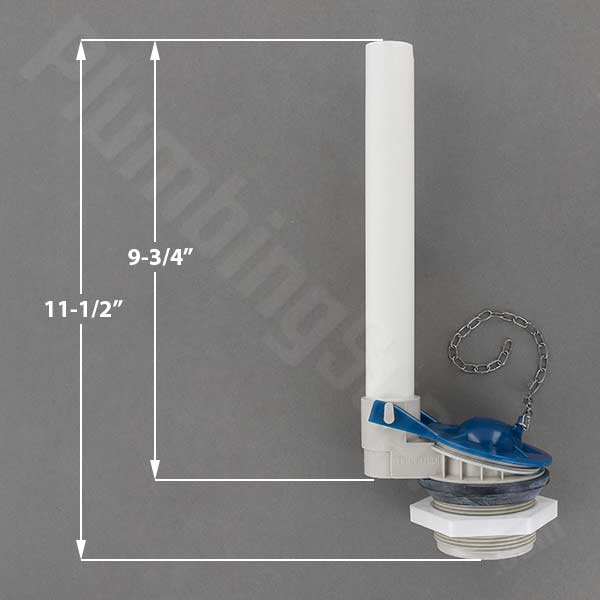

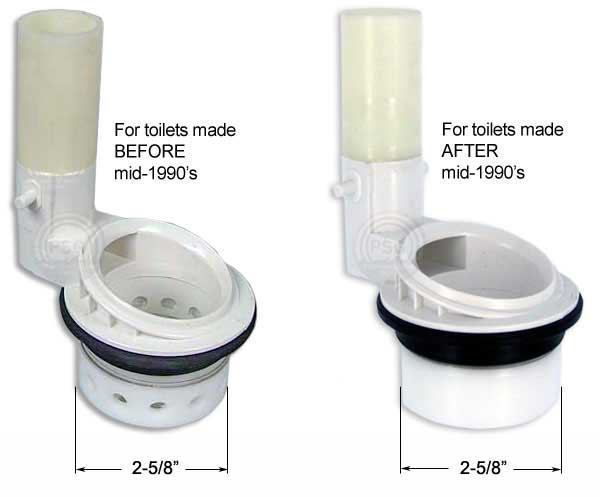

Q. "How do I know if I need the 495-5517-00 flush valve with holes or without holes?"
A. Toilets made BEFORE the mid 1990's used the 495-5517-00 flush valve WITH holes. Toilets made AFTER the mid 1990's used the flush valve WITHOUT holes. Currently the 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes.

Q. "Why does my toilet continue to run after flushing?"

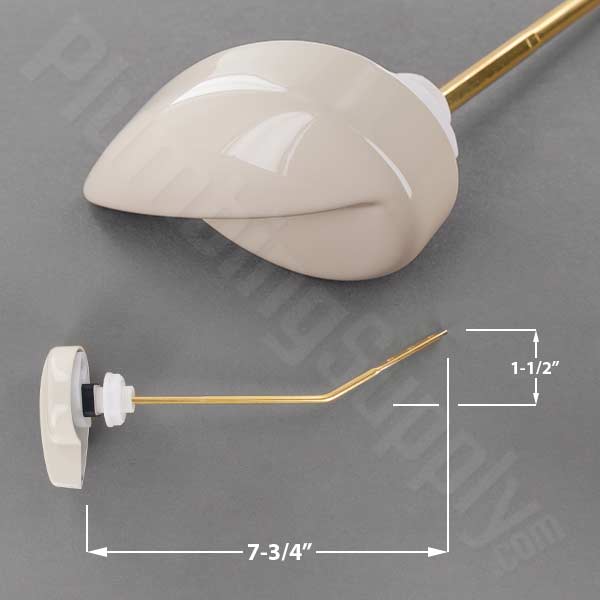

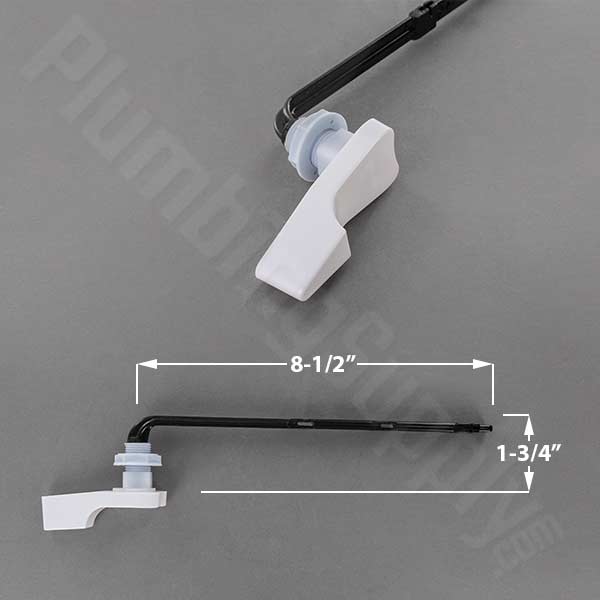

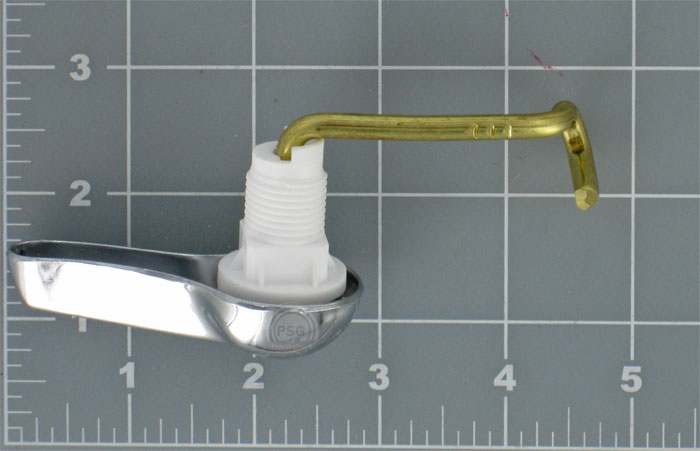

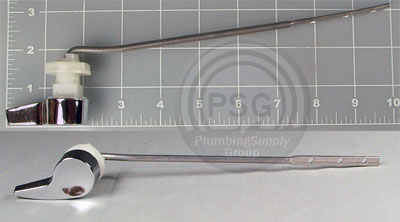

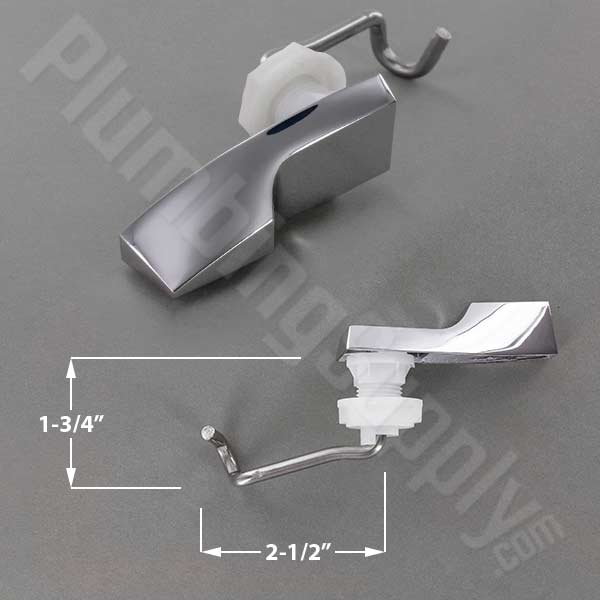

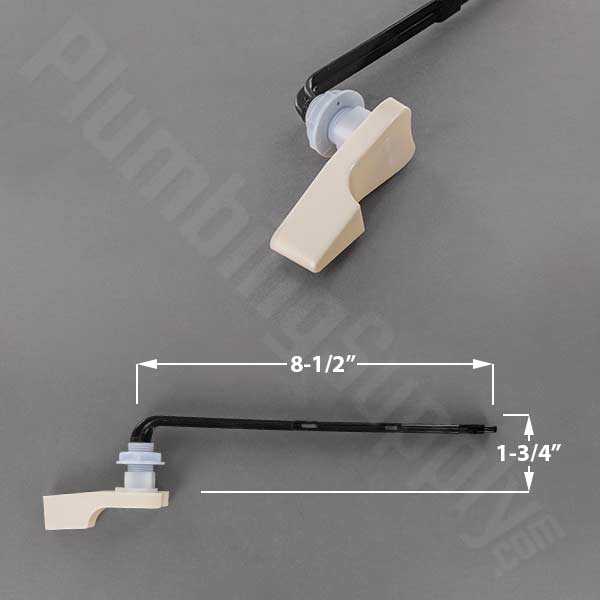

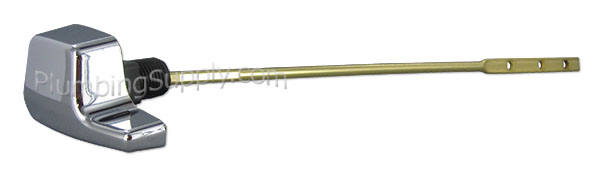

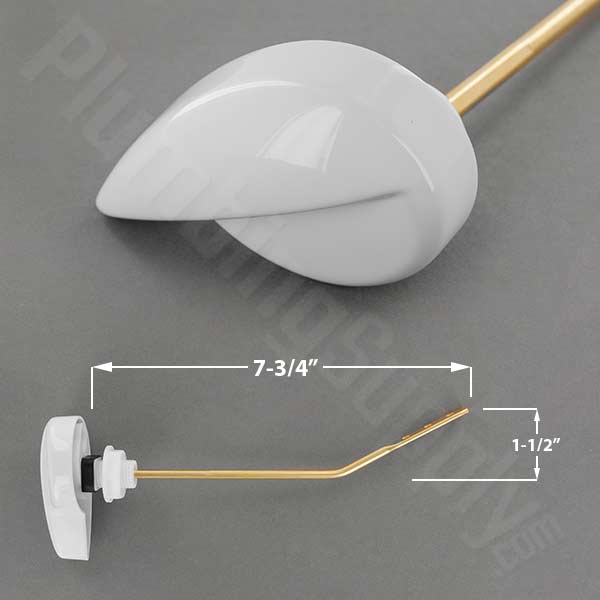

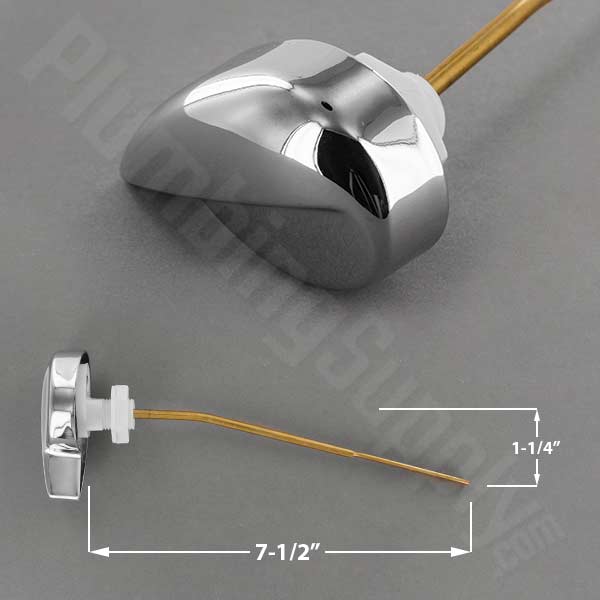

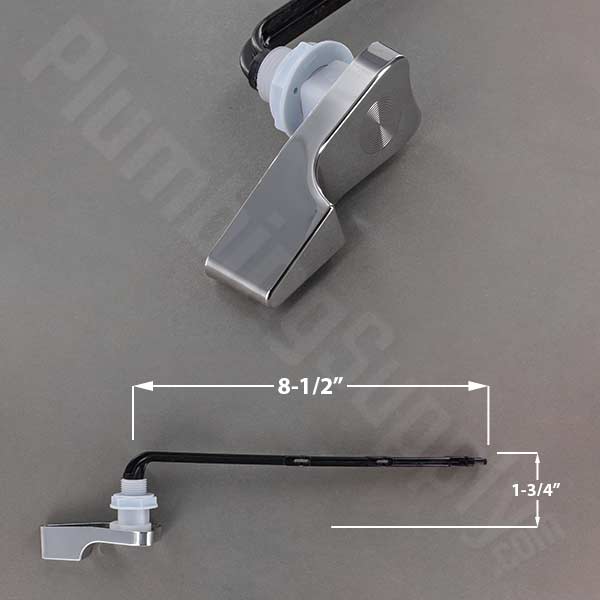

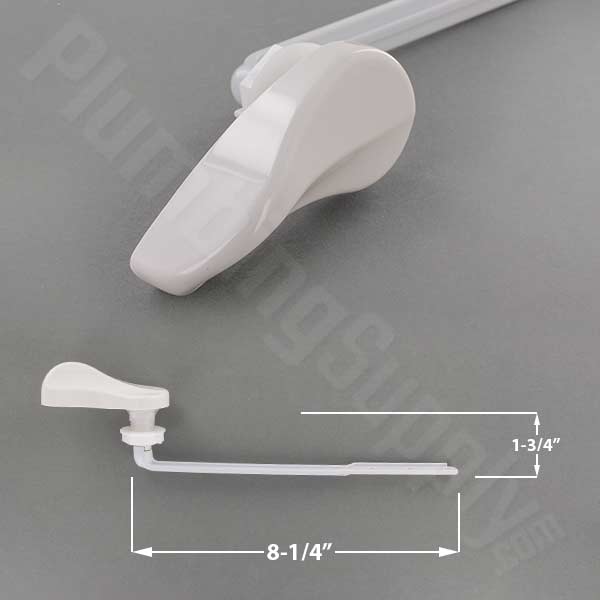

A. If you find that the toilet continues to run after flushing, and you have discovered that by jiggling the handle it will stop, then the problem may be that the chain controlling the flapper is too long. When installing your flapper, you want the flapper chain's S-hook in the hole closest to the handle with very little slack in the chain itself. By doing so, when the toilet is flushed, the chain will fall behind the flapper where it won't snag and cause problems such as keeping the flapper from closing properly. Check to make sure that the flapper has enough clearance to close, i.e. not hitting the float ball when the water level drops. You also want to be certain the toilet's flush handle (aka tank lever) is installed securely so it can't rotate too high, hitting the tank's lid (or other parts) and sticking.

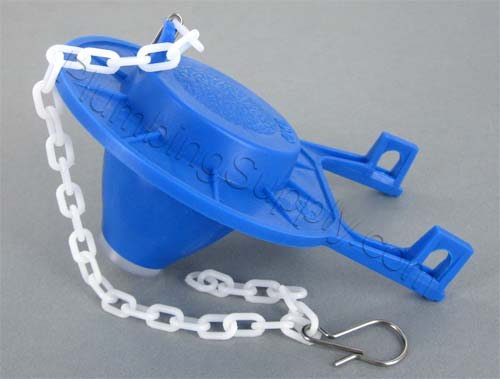

Q. "What's the best way to replace my toilet flapper?"

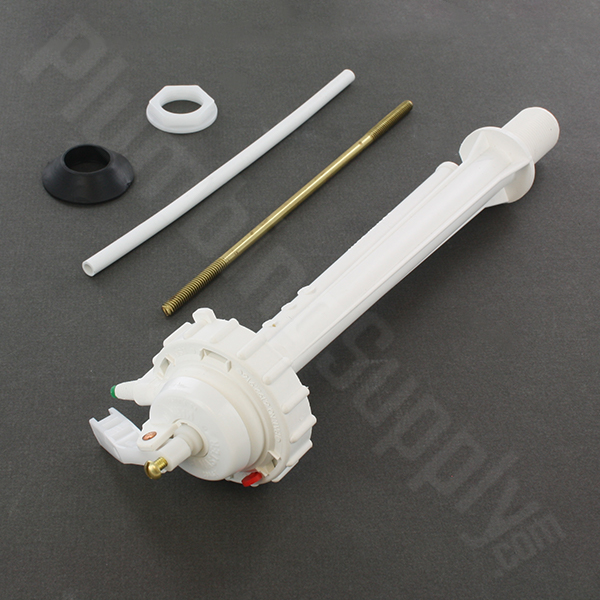

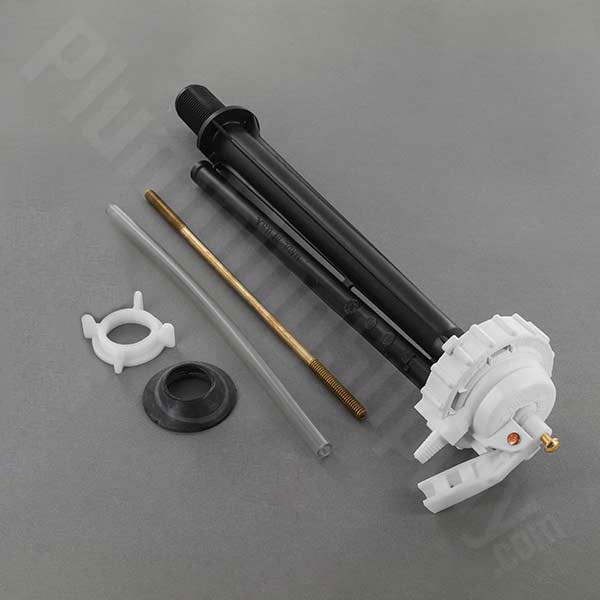

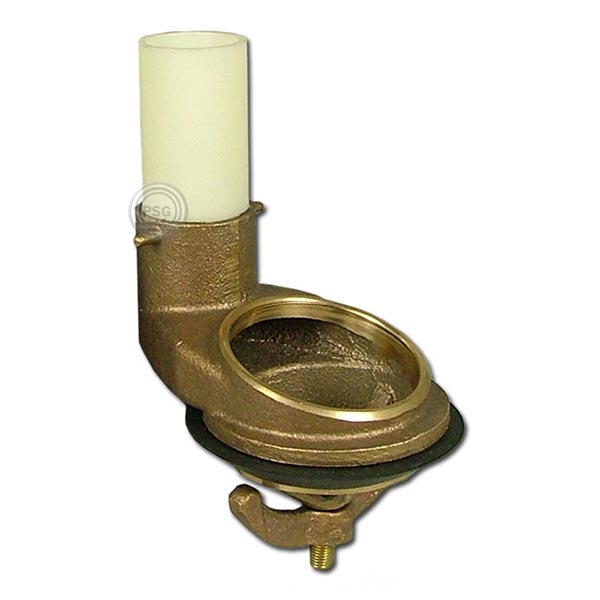

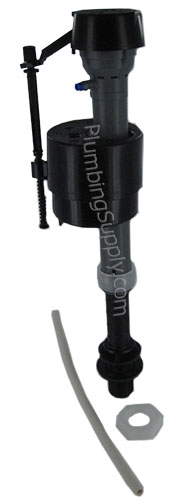

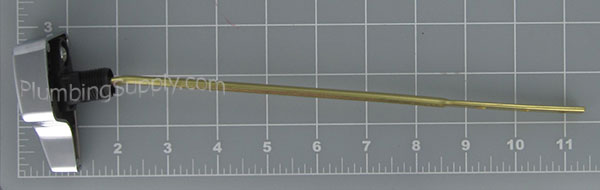

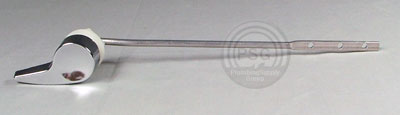

A. Generally, with most toilets: Turn off the water supply and flush the toilet. Reach in and unhook the ears of the flapper and unhook the chain from the trip lever. Install an identical flapper to the original that came from the factory. Do expect to get your hands dirty from the old flapper. Simply reinstall the new one in reverse order. Note that should you have very old brass pipes inside of your toilet, be careful not to be rough on them. They can easily break and end up leaking. After you have replaced your flapper, and the toilet tank bowl has refilled, the water fill valve should not leak (be going on and off in cycles). If it does, then we recommend putting some food coloring into your tank. This can help diagnose the problem. The colored water should not be going into the bowl (unless you flush the toilet of course). If the food color does go into the bowl, then possibly the flapper is not the correct one, the surface where the toilet flapper sits has eroded (feel below where the flapper touched the toilet and see if you can feel erosion/groove), or you may only need to add some slack to the chain.

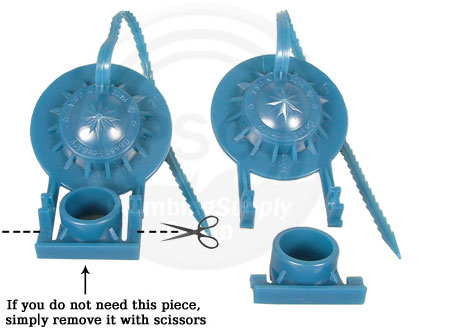

Q. "What are the inserts that came with my flapper for? How do I use them?"
A. These "will fit" flappers are unique in that a variety of inserts are included to allow you to control how much water flushes from your toilet each time it is used. When you flush the toilet, the trip lever lifts the chain on the flapper to allow the water in the tank to flow into the bowl through the flush valve. The bottom cone-like part of the flapper holds air in it. Once lifted, the flapper floats until the water in the tank recedes, when the flapper lands back on the opening of the flush valve. These inserts allow you to control the amount of water that flows into the flapper cone while it is open or floating in the water, thus controlling how fast the flapper seals the flush valve opening.

The benefit of this is that you can easily conserve water by using an insert with a larger hole. As water flows into the flapper cone through a larger hole, it will close faster - meaning you will use less water to complete the flush cycle. If you need more water for a proper, sanitary flush, simply use an insert with a smaller hole.

To change inserts: Carefully twist the existing insert out of the bottom of the flapper. Then, carefully twist the new insert into the flapper. Easy.

Q. "How long 'should' the parts inside of my toilet last?"
A. That depends on a number of variables and which parts. Water quality is one of the major factors. If your water source is heavily chlorinated then many parts won't last long. Or if you have a lot of sand or grit or have a low pH or "aggressive" water source then parts simply won't last as long as the 'average' length of time. Also the quality of the parts matters. The replaceable parts such as flappers and washers/seals generally will last at least 4 to 5 years on "average." If you use a chemical bowl cleaner some flappers won't even last one year. However, some toilet bowl cleaners isolate cleanser from the internal workings of the toilet therefore, maximizing the life of your toilet parts. If your flapper has black "goo" on it then it is either due to age or quality of your water and if it feels soft then it's best to change it.
