Patrician Series Toilet Repair Parts
by Eljer
The sophisticated design of the Eljer Patrician is a style that is hard to replace, so keep this unique toilet working properly with replacement parts from PlumbingSupply.com®! Whether you want to fine tune your existing fill valve or replace it, we have what you're looking for.
Order replacement parts for the Patrician one-piece toilet model numbers below:
081-0215
081-0225
081-0235
081-0245
081-0425
081-0435
081-0445
081-9215
081-9225
081-9235
081-9245
The Patrician was made with a sleek waterfall design tank lid or a "stepped" design tank lid.
Please note: Square front toilet seats for these models are no longer available.
Repair Parts for the Eljer Patrician Series Toilet
Model #'s 081-0215, 081-9215, 081-0225, 081-9225, 081-0235, 081-9235, 081-0245,
081-9245, 081-4515, 081-0425, 081-0435, 081-0445
| Item |
Part # |
Description |
Price & Quantity |
| 1 |
495-0260-00 |

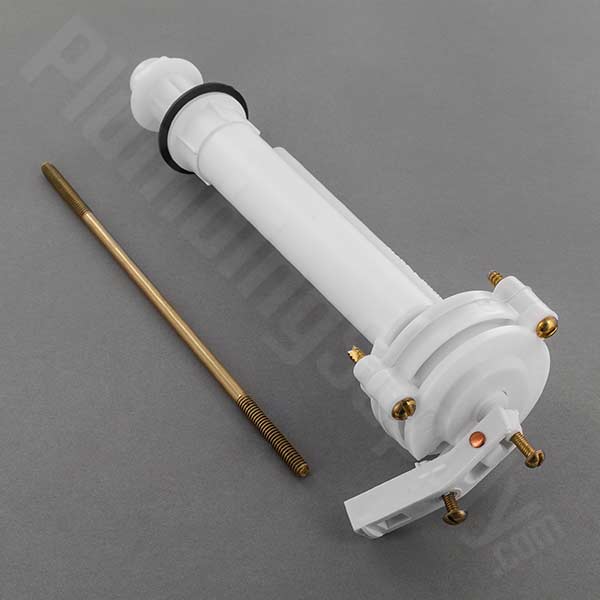

Fill Valve (Ballcock) WITH Diverter Assembly - 11" overall height, 9" from toilet tank to top of valve, includes slip joint nut and washer, friction ring, shank nut and washer, and Float Rod, float ball sold separately - (View old version) |
Discontinued |
| 1B1X-WF |
"Will-Fit" Fill Valve WITHOUT Diverter Assembly - includes slip joint nut and washer, friction ring, shank nut and washer, and float rod (float ball sold separately) - (diverter not necessary for valve operation) |
$51.57 |
Enter a quantity and
|
| 2 |
495-0184-00 |
Diverter Assembly only - works with fill valve 495-0260-00 ONLY (WILL NOT work with 1B1X-WF) - (View old version) |
$16.16 |
Enter a quantity and
|
| 3 |
495-0187-00 |
Fill Valve Repair Kit |
Discontinued |
| 4 |
495-5517-00 |
Flush Valve Body only - WITH Holes - For toilets made before the mid 90's
The 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes.
We suggest purchasing recommended tool for installation and removal of flush valve 495-5517-00
|
Discontinued |
| 495-5517-00-NH |
Flush Valve Body only - WITHOUT Holes - For toilets made after the mid 90's
We suggest purchasing recommended tool for installation and removal of flush valve 495-5517-00-NH |
Discontinued |
| Tool |
Flush Valve Wrench - for installing and removing original flush valves (not shown above) - view an example of this tool in use |
$16.95 |
| 723X |
Possible replacement flush valve "will fit" - Includes internal plastic wrench - Valve may need to be cut down to fit, altered valves are non-returnable
- view "will fit" dimensions |
$19.99 |
Enter a quantity and
|
| 5 |
495-6031-00 |
Flapper and 4-1/2" Beaded Chain only (no hook) |
$8.79 |
| "Will Fit" |
Replacement Ultra Water Saver "Will Fit" Flapper with 8" kink-resistant link chain and hook - provides maximum flush |
$6.15 |
Enter a quantity and
|
| 6 |
596-0215-00 |
Push Button Assembly - Chrome |
$51.14 |
Enter a quantity and
|
| 7 |
495-6012-00 |
Bolt Covers (2) - White |
Discontinued |
| 8 |
1B1XTOP |
Top Assembly only for Original Fill Valve 495-0260-00 - 2 1/4" center to center holes - (not interchangeable with Will-Fit 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws |
Discontinued |
1B1X-TOP
"Will-Fit" |
Top Assembly only for the "Will-Fit" 1B1X - 2 1/8" center to center holes - (not interchangeable with OEM 1B1X Top Assembly) - Includes 2-piece plastic top assembly and 3 screws
Note: We recommend the purchase of the 1B1X-KIT will-fit repair kit (directly below) if purchasing this 1B1X-TOP-WF (your old plunger assembly may not fit into new top assembly) |
$8.03 |
Enter a quantity and
|
| 9 |
1B1XKIT
(Will-Fit) |
"Will-Fit" Plunger Repair Kit for 1B1X fill valve |
$5.59 |
Enter a quantity and
|
Not
Shown |
Float Ball |
"Will Fit" Plastic Float Ball |
$3.70 |
Enter a quantity and
|
Not
Shown |
Float Rod |
"Will Fit" 8" Brass Float Rod - View more sizes |
$3.10 |
Enter a quantity and
|
Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.
Related Items & Information
Eljer Toilet Parts By Series
Frequently Asked Questions
Q. "How do I know if I need the 495-5517-00 flush valve with holes or without holes?"
A. Toilets made BEFORE the mid 1990's used the 495-5517-00 flush valve WITH holes. Toilets made AFTER the mid 1990's used the flush valve WITHOUT holes. Currently the 495-5517-00 WITH holes has been replaced by the 495-5517-00 WITHOUT holes.
Q. "Will the 1B1X-WF Fill Valve work in my toilet that originally had the same type of fill valve but with a diverter?"
A. Yes. The diverter was a type of water saver the manufacturer designed. The purpose of the diverter was to allow water to flow into the bowl until the bowl was full and then stop the flow to the bowl and divert that water flow to help fill up the tank faster. When the toilet was flushed, water not only flowed through the diverter but also flowed into the tank through the tank tube attached to the side of the fill valve. When the diverter eventually diverted the water to the tank it allowed the tank to fill up faster thereby putting pressure on the tank ball to then shut off the fill valve. If you install the 1B1X-WF fill valve you will just put the tube into the hole for the bowl flush, and water will flow until the tank fills up through the tank tube.
Have questions about toilet parts or toilet repair?
Read our comprehensive Toilet Repair Information & FAQs to learn how your toilet works, how to find the right replacement parts, and how to fix common problems.
