Model 122 Mild Climate Hot & Cold Wall Faucets
by Woodford

Live in a mild climate where freezing is not likely? These hot and cold exterior faucets from Woodford are a great solution for those times when you want hot water available for outdoor projects or tasks. Wash the road grime from your dirty vehicles, rinse off after working in the yard or garden, wash hard working horses after a day on the trail, or wash the dog after he rolled in all your yard work! They're also great for an outdoor source of hot water to rinse off toys, tools, and anything else that needs a good rinse at the end of the day.

Model 122 Hot & Cold Wall Faucets For Mild Climates

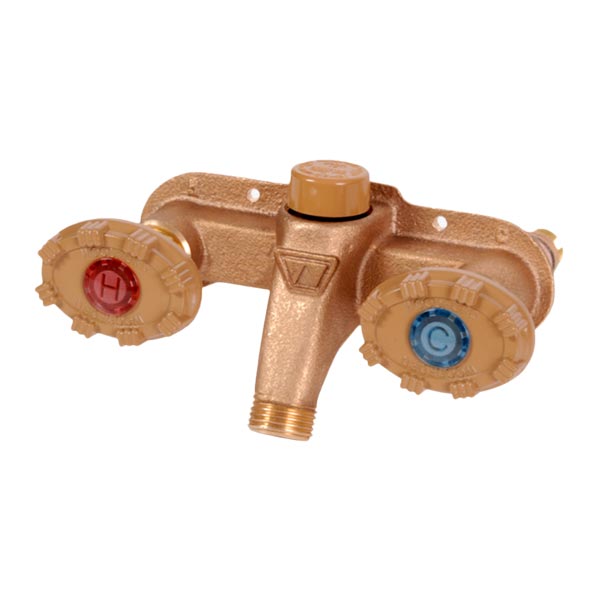

Woodford mild climate wall faucet model 22Model 122
Features:
  • Designed for mild climate areas where freezing is not expected
  • Year round hot, cold or warm water to meet all your watering needs
  • Outdoor or indoor, in a garage, or on a patio
  • Designed for irrigation or cleaning purposes
  • Both vertical and horizontal models fit within 2" x 4" wall
  • 3/4" male hose outlet nozzle
  • 5 inlet options to choose from
  • Rough brass construction for durability
  • Powder coated die cast aluminum handles
  • Maximum pressure: 125 psi
  • Maximum working water temperature: 120°F
  • Anti-siphon with internal check valve and atmospheric vent
  • Available in a Horizontal Mount or Vertical Mount

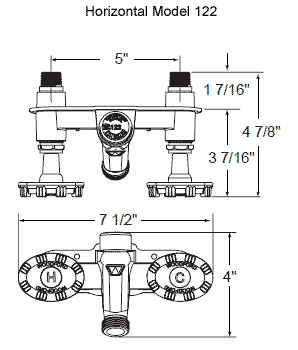

  • Horizontal model 122 - view rough-in dimensions

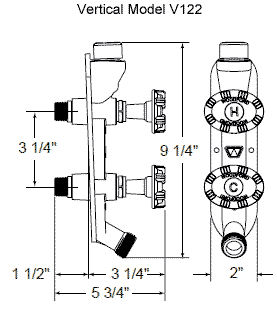

  • Vertical model V122 - view rough-in dimensions
Please note: Wall thickness and overall length of the faucet are NOT the same. Please review the diagram below to determine the length you need prior to ordering.

Horizontal Model 122 Mild Climate Hot & Cold Wall Faucets

Model 122C
(1/2" female sweat)
(3/4" type 'M' male sweat )		 Model 122CP
(1/2" male pipe thread)
(1/2" female sweat)		 Model 122P
(1/2" female pipe thread)
(3/4" male pipe)		 Model 122CM
(1/2" compression )
(1/2" copper sweat)		 Model 122PX
(1/2" PEX tube fitting)

$145.59 $145.59 $148.02 $148.02 $145.59

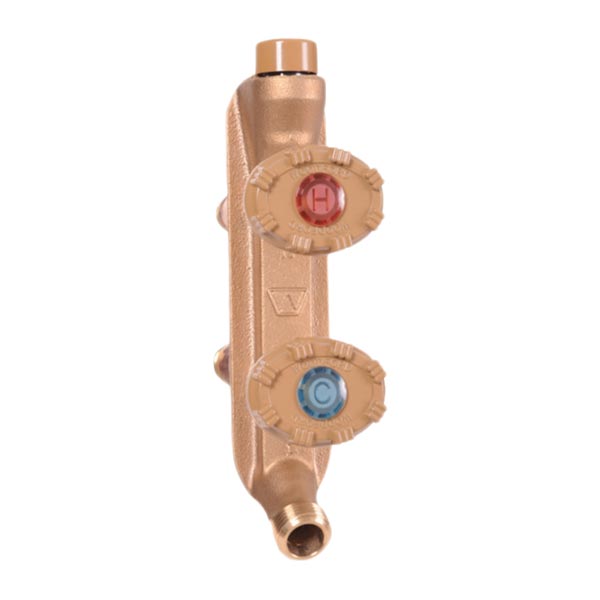

Vertical Model V122 Mild Climate Hot & Cold Wall Faucets

Model V122C
(1/2" female sweat)
(3/4" type 'M' male sweat )		 Model V122CP
(1/2" male pipe thread)
(1/2" female sweat)		 Model V122P
(1/2" female pipe thread)
(3/4" male pipe)		 Model V122CM
(1/2" compression )
(1/2" copper sweat)		 Model V122PX
(1/2" PEX tube fitting)

$145.59 $145.59 $148.02 $148.02 $145.59

- OR - View Cart

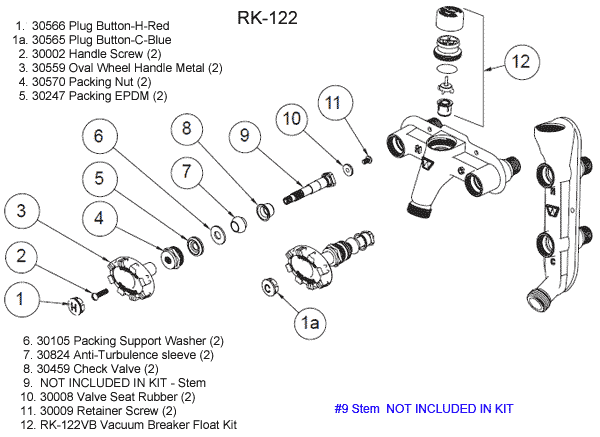

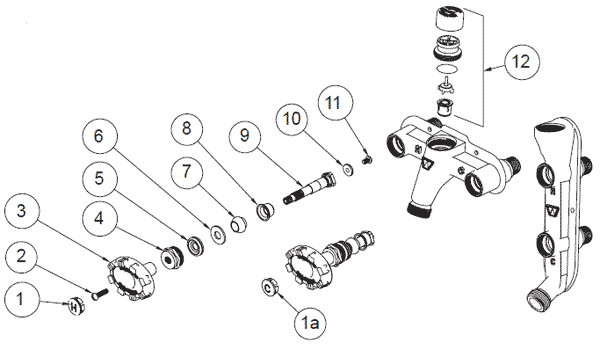

Replacement Parts for Model 122 & V122

Woodford replacement parts for model 122
Item # Image Part # Description Price & Quantity
1 Woodford red hot button 30566 Hot plug button - for #30096 metal handle $2.97
1a Woodford blue cold button 30565 Cold plug button - for #30096 metal handle $2.97
2 Woodford handle screw 30002 Handle Screw $2.75
3 Woodford oval handle 30559 Oval wheel handle - metal (original replacement) - (requires 2 per faucet) $8.10

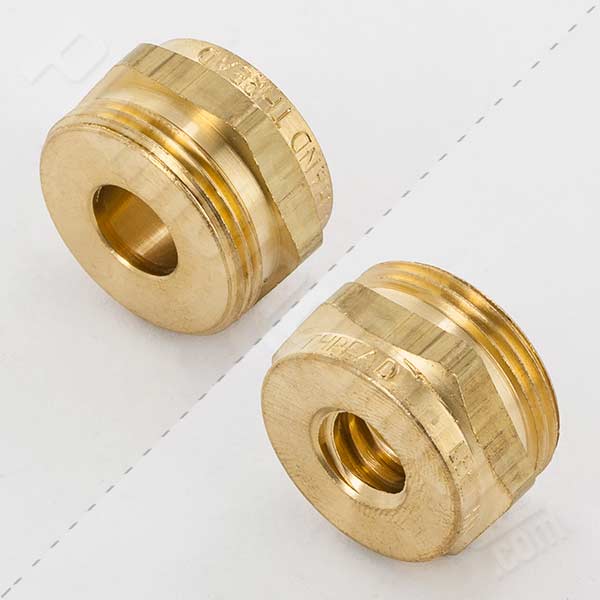

4 Woodford packing nut 30570 Packing nut - (requires 2 per faucet) $15.75
5 Woodford EPDM packing 30247 EPDM Packing - (requires 2 per faucet) $5.36

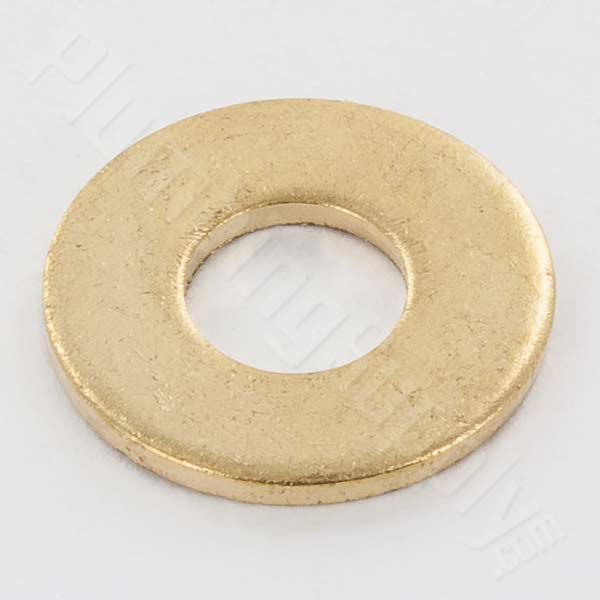

6 Woodford packing washer 30105 Packing support washer - (requires 2 per faucet) $3.12

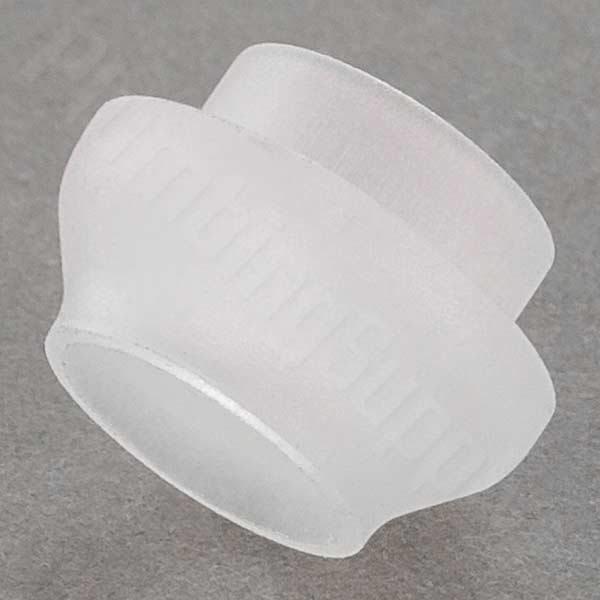

7 Woodford anti-turbulence sleeve 30824 Anti-turbulence sleeve - (requires 2 per faucet) $1.76
8 Woodford check valve 30459 Check valve - (requires 2 per faucet) $5.70

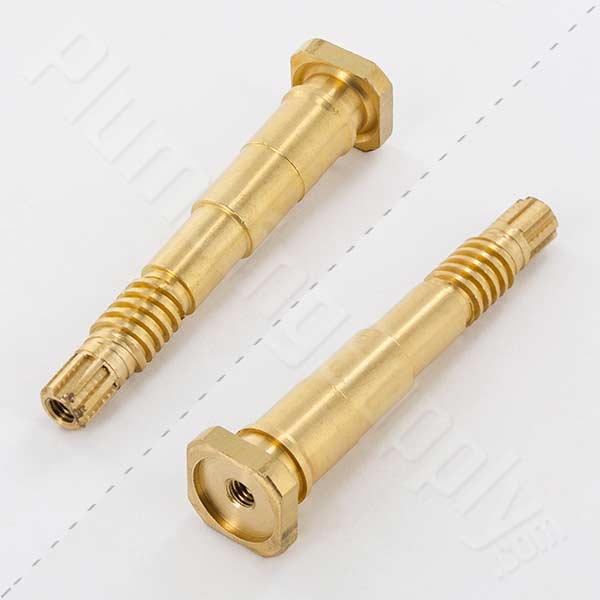

9 Woodford stem 30571 Stem - (requires 2 per faucet) $26.78
10 Woodford valve seat rubber 30008 Valve seat rubber - (requires 2 per faucet) $3.41
11 Woodford retainer screw 30009 Retainer screw - (requires 2 per faucet) $1.64
12 -- RK-122VB Vacuum breaker float kit $2.30
-- RK-122 122 Repair Kit - includes 1 Each Items 1, 1a, & 12;
2 Each Items #2 thru 8, 10 & 11		 $48.44

- OR - View Cart

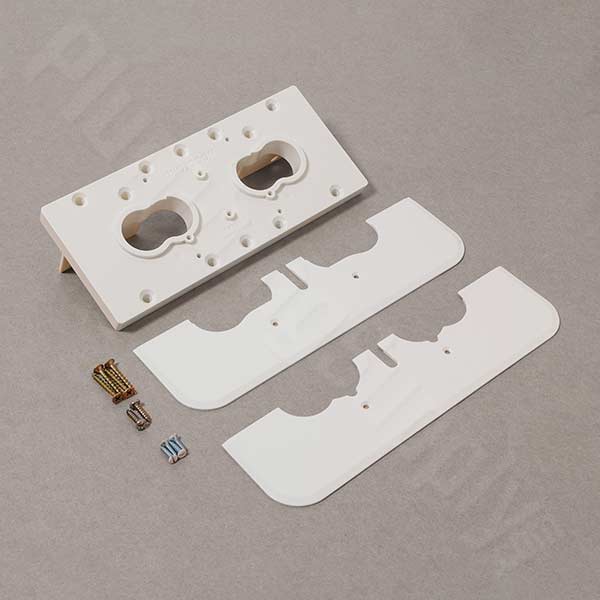

Woodford Model DMP Drywall Mounting Plate

For Woodford freezeless models 22 or V22 and mild climate models 122 or V122

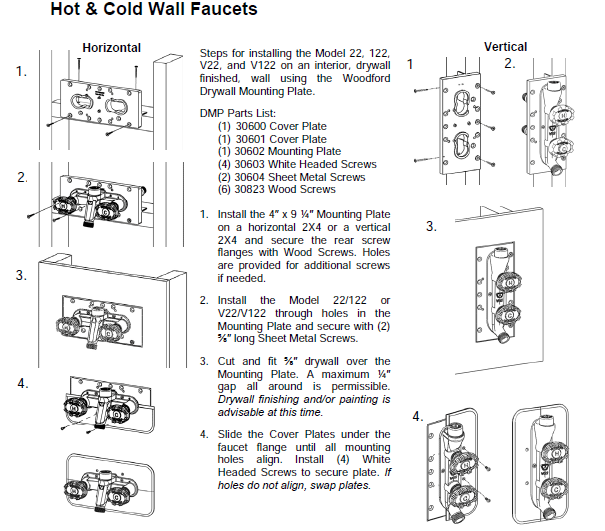

woodford drywall mounting plate installation instructions

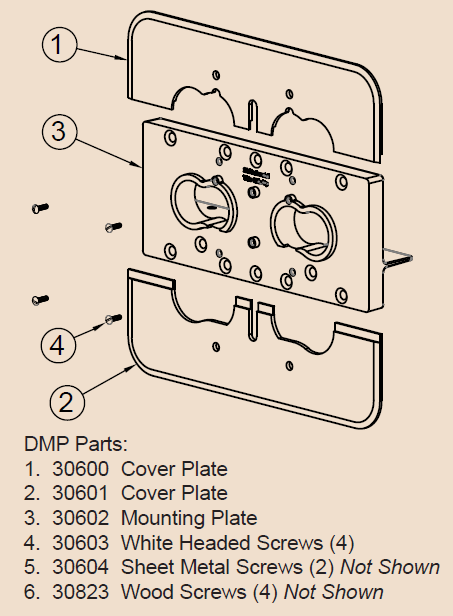

included parts
The Woodford drywall mounting plate is designed as a secure way to anchor the faucet to an interior wall and at the same time provide a durable and protective plate to cover the finished drywall.

The mounting plate installs on a horizontal or vertical 2" x 4" interior stud wall and keeps just the right amount of space between 5/8" drywall and the faucet wall flange. This allows the cover plate to hide the faucet installation for a clean, professional look.

Woodford DMP Drywall Mounting Plate = $24.78

- OR - View Cart

Order 10 or more drywall mounting plates for additional savings!
Pricing discounts will show up in your shopping cart.


Woodford Model 14 freezeless wall faucetModel 14
Example of a Woodford Model 16 freezeless wall faucetModel 16
Example of a Woodford Model 17 freezeless wall faucetModel 17
Example of a Woodford Model 19 freezeless wall faucetModel 19

Example of a Woodford vertical Model 22 freezeless wall faucetModel 22
Example of a Woodford Model 25 freezeless wall faucetModel 25
Example of a Woodford Model 27 freezeless wall faucetModel 27
Example of a Woodford Model 30 freezeless wall faucetModel 30

Related Items & Accessories

Flexeel garden hose
Top Quality Garden Hoses Coiled garden hose
Coiled Garden Hoses Garden hose you can drink out of
Drinking Water Safe Hoses Turtle hose bibb
Whimsical Animal Hose Bibbs Brass hose bibb
Hose Bibbs for Potable Water Hose bibb
Standard Brass Hose Bibbs Brass garden hose adapter
Hose Adapters Drip emitter
Drip Irrigation Supplies


Frequently Asked Questions

Q. "Why do some of the faucets have two different inlet sizes shown?"
A. Some of the faucets shown have two different sized inlets because they are able to fit two different sized pipes. For example: model 101P has 1/2" Female Pipe Thread (FPT) on the inside and 3/4" Male Pipe Thread (MPT) on the outside.

Q. "What is EPDM?"
A. EPDM is Ethylene Propylene Diene monomer (M-class) rubber. It is used in a variety of plumbing applications due to it's compatibility with hot and cold water. It has good resistance to inorganic acids, water, salt, bleach and physical tearing. EDPM washers can withstand temperatures ranging from approximately -58°F to 300°F. and are non toxic. EDPM is the most universal and economical material used for seat washers and o-rings.
