Saturn Series Replacement Toilet Parts

by Universal Rundle

The simple lines of the Saturn toilet give it a timeless look, so it will never go out of style. Keep this reliable toilet in properly working condition with repair and replacement parts from your on-line source, PlumbingSupply.com®! Whether you need a trip lever or a flush valve, you'll find it right here. Looking for more Universal Rundle parts? Visit our page.

Saturn one-piece toilet
4012/4013
Saturn  one-piece toilet
4022/4023
Saturn two-piece toilet
4445/4464


Replacement Parts for Saturn Series Toilet
One-Piece Model - 4012/4013 (3.5 gpf)

Saturn series toilet repair parts
Aug. 1987 - Oct. 1990
Saturn one piece toilet parts diagram
Oct. 1990 - Dec. 1993

Model & Service Years Image Description Part # Price & Quantity
Saturn Toilet
Models: 4012 / 4013
Aug. 1987 - Oct. 1990
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - includes #599 refill tube & clip
- Click for 400A fill valve repair parts here - Replaces original ballcock
133 $20.49 Enter a quantity and
universal rundle 275 tilt valve Flush Valve Tilt Assembly
- includes flush valve seal
275 Discontinued
universal rundle seat and pinion 258 Pinion Holder Assembly 258 Discontinued
brass float rod 10 inch Float Rod (10") - (for original #133 ballcock valve) - Replaced by #128 126 $2.66 Enter a quantity and
plastic float ball Float Ball - (for original #133 ballcock valve) 102 $3.70 Enter a quantity and
american standard side push button actuator 738100-0020a chrome #738100-0020A Trip Lever - Chrome - Replaces original trip lever 319 $29.34 Enter a quantity and
image unavailable Trip Lever - Brushed Nickel Discontinued
american standard side push button actuator 738100-0990a polished brass #738100-0990A Trip Lever - Polished Brass - Replaces original trip lever $49.40 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Saturn Toilet
Models: 4012 / 4013
Oct. 1990 - Dec. 1993
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock - - Find 400A fill valve repair parts here 134C $16.62 Enter a quantity and
universal rundle flush valve uvb 251 Flush Valve 251 Discontinued
See alternate
replacement below
lavelle flush valve korky flapper 723x Flush Valve #251 Possible Alternative Solution
- Replacement "Will Fit" Flush Valve - view "Will-Fit" flush valve dimensions
- "Will Fit" flush valve will need to be cut down to height of original valve.
- Please note: altered valves are non-returnable.
- Make sure the hole cavity underneath your tank has 1-1/2" depth completely around the hole
$19.99 Enter a quantity and
brass float rod 10 inch Float Rod (10") - (for original #134C ballcock valve) - Replaced by #128 126 $2.66 Enter a quantity and
plastic float ball Float Ball - (for original #134C ballcock valve) 102 $3.70 Enter a quantity and
american standard side push button actuator 738 #738100-0020A Trip Lever - Chrome - Replaces original trip lever 319 $29.34 Enter a quantity and
image unavailable Trip Lever - Brushed Nickel Discontinued
american standard side push button actuator 738100-0990a polished brass #738100-0990A Trip Lever - Polished Brass - Replaces original trip lever $49.40 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts for Saturn Series Toilet
One-Piece Model - 4022/4023 (1.6 gpf)

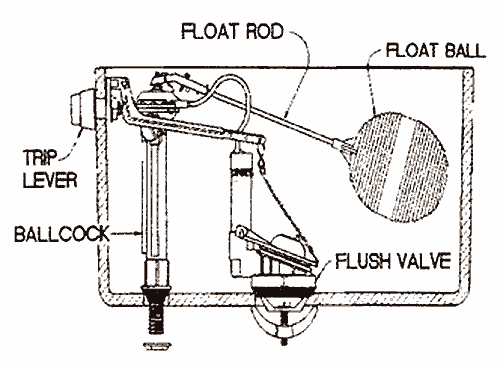

Saturn one piece toilet parts diagram

Model & Service Years Image Description Part # Price & Quantity
Saturn Toilet
Models: 4022 / 4023
Feb. 1989 - Dec. 1995
universal rundle 109b fill valve Ballcock 109B Discontinued
universal rundle flush valve 246 Flush Valve 246 Discontinued
See alternate
replacement below
lavelle flush valve korky flapper 723x Flush Valve #246 Possible Alternative Solution
- Replacement "Will Fit" Flush Valve - view "Will-Fit" flush valve dimensions
- "Will Fit" flush valve needs to be cut down to height of original valve.
- Please note: altered valves are non-returnable.
- Make sure the hole cavity underneath your tank has 1-1/2" depth completely around the hole
$19.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original #109B ballcock valve) 121 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original #109B ballcock valve) 102 $3.70 Enter a quantity and
american standard side push button actuator 738100-0020a chrome #738100-0020A Trip Lever - Chrome - Replaces original trip lever 319 $29.34 Enter a quantity and
image unavailable Trip Lever - Brushed Nickel Discontinued
american standard side push button actuator 738100-0990a polished brass #738100-0990A Trip Lever - Polished Brass - Replaces original trip lever $49.40 Enter a quantity and

Replacement Parts for Saturn Series Toilet
Two-Piece Model - Tank 4445 (3.5 gpf)

Saturn series toilet repair parts
Feb. 1987 - July 1990
Saturn two piece toilet parts diagram
Aug. 1990 - Dec. 1993

Model & Service Years Image Description Part # Price & Quantity
Saturn Toilet
Model: 4445
Feb. 1987 - July 1990
fluidmaster 400a fill valve Fluidmaster 400A FIll Valve - Replaces original ballcock - includes #599 Refill Tube & Clip
- Click for 400A repair parts here
135B $20.49 Enter a quantity and
universal rundle tilt valve 276 Flush/Tilt Valve 276 Discontinued
universal rundle 268 flush valve seat Flush/Tilt Valve Seat - view dimensions 268 Discontinued
brass float rod 8 inch Float Rod (8") - (for original #135B ballcock valve) 121 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original #135B ballcock valve) 102 $3.70 Enter a quantity and
american standard side push button actuator 738100-0020a chrome #738100-0020A Push Button Trip Lever - Polished Chrome
Replaces original trip lever
327 $29.34 Enter a quantity and
image unavailable Push Button Trip Lever - Brushed Nickel Discontinued
american standard side push button actuator 738100-0990a polished brass #738100-0990A Push Button Trip Lever - Polished Brass - Replaces original trip lever $49.40 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Saturn Toilet
Model: 4445
Aug. 1990 - Dec. 1993
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original fill valve - adjustable 9"-14" 135D $16.62 Enter a quantity and
universal rundle 253 flush valve Flush Valve #253 - 6-13/16" 253 Discontinued
korky plus 87 flush valve "Will Fit" 10-1/2" tall - Flush Valve with chemical resistant flapper
The overflow tube will need to be cut down to original valve height - can use any type of saw (wood saw, hack saw, etc.) - Please note: altered valves are non-returnable.
$14.99 Enter a quantity and
brass float rod 8 inch 8" Float Rod - (for original #135D ballcock valve) 121 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original #135D ballcock valve) 102 $3.70 Enter a quantity and
american standard side push button actuator 738100-0020a chrome #738100-0020A Push Button Trip Lever - Polished Chrome - Replaces original trip lever 327 $29.34 Enter a quantity and
image unavailable Push Button Trip Lever - Brushed Nickel Discontinued
american standard side push button actuator 738100-0990a polished brass Push Button Trip Lever - Polished Brass - Replaced by #738100-0990A $49.40 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and

Replacement Parts for Saturn Series Toilet
Two-Piece Model - Tank 4464 (1.6 gpf)

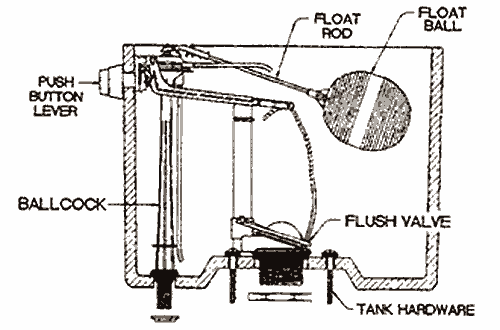

Saturn two piece toilet parts diagram

Model & Service Years Image Description Part # Price & Quantity
Saturn Toilet
Model: 4464
Made after April 1994
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original fill valve
- Click for 400A repair parts here
137 $16.62 Enter a quantity and
universal rundle flush valve 237 Flush Valve #237 237 Discontinued
korky plus 87 flush valve "Will Fit" 10" tall - Flush Valve with chemical resistant flapper The overflow tube will need to be cut down to original valve height - can use any type of saw (wood saw, hack saw, etc.) - Please note: altered valves are non-returnable. $14.99 Enter a quantity and
brass float rod 8 inch 8" Float Rod - (for original #137 ballcock valve) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original #137 ballcock valve) 102 $3.70 Enter a quantity and
american standard side push button actuator 738100-0020a chrome #738100-0020A Push Button Trip Lever- Polished Chrome - Replaces original trip lever 327 $29.34 Enter a quantity and
image unavailable Push Button Trip Lever - Brushed Nickel Discontinued
american standard side push button actuator polished brass 738100-0990a #738100-0990A Push Button Trip Lever - Polished Brass - Replaces original trip lever $49.40 Enter a quantity and
recessed tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
