Atlas Series Replacement Toilet Parts

by Universal Rundle

Keep your Atlas toilet running strong for years with the right replacement parts. Whether you need a trip lever or a flush valve, you'll find it here on PlumbingSupply.com®! And if you need more Universal Rundle parts, you'll find them right on our page.

Atlas two-piece toilet
4471 / 4472 / 4473 / 4474
Atlas  two-piece toilet
4481 / 4482 / 4483
Atlas two-piece toilet
4490 / 4492 / 4493 / 4494 / 4496

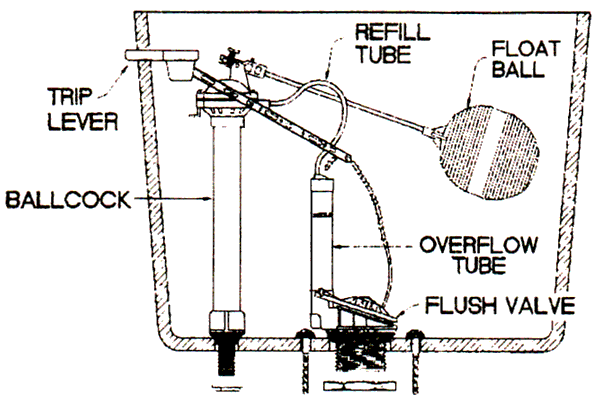

Replacement Parts for Atlas Series Toilet
Two-Piece Model - Tanks 4471/4472/4473/4474 (1.6 gpf)

Atlas toilet repair parts

Model & Service Years Image Description Part # Price & Quantity
Atlas Toilet
Model: 4471
Made after March 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve Replaces original ballcock
- Go to 400A repair parts page
148
149
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" Flush Valve - Replaces 7" tall original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
270 $14.99 Enter a quantity and
brass float rod 8 inch "Will-Fit" Float Rod (8") - Replaces original float rod - (for original 148/149 ballcock) 129 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 148/149 ballcock) 102 $3.70 Enter a quantity and
toilet tank lever universal brass arm fluidmaster pro64 chrome "Will Fit" PRO64 - Chrome - Replaces original trip lever 344 $9.95 Enter a quantity and
korky flapper red Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas 10" Toilet
Model: 4472
Made after Sept. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to 400A repair parts page
148
149
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" Flush Valve - Replaces original 7" tall flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
270 $14.99 Enter a quantity and
brass float rod 8 inch "Will-Fit" Float Rod (8") - (for original 148/149 ballcock) 129 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 148 or 149 ballcock) 102 $3.70 Enter a quantity and
toilet tank lever universal brass arm fluidmaster pro64 chrome "Will Fit" PRO64 Trip Lever - Chrome - Replaces original trip lever 344 $9.95 Enter a quantity and
korky flapper red Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas 14" Toilet
Model: 4473
Made after Sept. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to 400A repair parts page
148
149
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" Flush Valve - Replaces 7" tall original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
270 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - Replaced by #120 - (for original 148/149 ballcock) 129 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 148/149 ballcock) 102 $3.70 Enter a quantity and
toilet tank lever universal brass arm fluidmaster pro64 chrome "Will Fit" PRO64 Trip Lever - Chrome - Replaces original trip lever 344 $9.95 Enter a quantity and
korky red flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas Anti-Sweat Toilet
Model: 4474
Made after Sept. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Click here for 400A repair parts
148
149
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" Flush Valve - Replaces 7" tall original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
270 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - Replaced by #120 - (for original 148/149 ballcock) 129 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 148/149 ballcock) 102 $3.70 Enter a quantity and
toilet tank lever universal brass arm pro64 chrome "Will Fit" PRO64 Trip Lever - Chrome - Replaces original trip lever 344 $9.95 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.

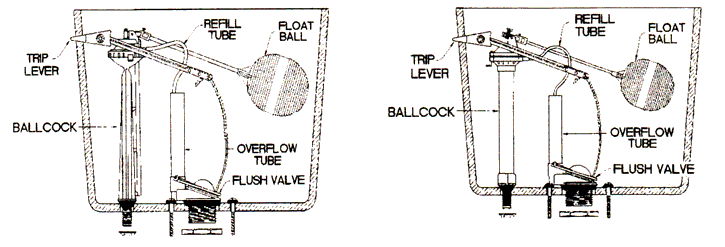

Replacement Parts for Atlas Series Toilet
Two-Piece Model - Tanks 4481/4482/4483 (3.5 gpf)

Atlas toilet repair parts
Please note: Actual tank design may be a variation of either view

Model & Service Years Image Description Part # Price & Quantity
Atlas Toilet
Model: 4481
July 1983 - Feb. 1992
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to 400A repair parts page
145 $16.62 Enter a quantity and
korky plus 87 flush valve 10-1/2" tall "Will-Fit" Flush Valve -
Replaces (original 6-13/16")
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
252
253
$14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 145 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 145 ballcock) 102 $3.70 Enter a quantity and
"tank lever basic front mount left hand plastic chrome plated "Will-Fit" Trip Lever - Chrome - Left Hand
Replaces trip Lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas Toilet
Model: 4481
March 1992 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Click here for 400A repair parts
142
143
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" 10-1/2" tall Flush Valve
Replaces original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
239 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 142/143 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 142/143 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome plated "Will-Fit" Trip Lever - Chrome - Left Hand
Replaces original trip lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas 10" Toilet
Model: 4482
March 1992 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Click here for 400A repair parts
144
145
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" 10-1/2" tall Flush Valve
Replaces original 6-13/16" flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
252
253
$14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 144/145 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 144/145 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome plated "Will-Fit" trip lever - Chrome - Left Hand
Replaces trip lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas 14" Toilet
Model: 4483
March 1988 - Dec. 1996
image unavailable Ballcock 139
144
Discontinued
korky plus 87 flush valve 10-1/2" tall "Will-Fit" Flush Valve -
Replaces original (6-13/16") flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
252
253
$14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 139/144 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 139/144 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome plated "Will-Fit" Trip Lever - Chrome - Left Hand
Replaces trip lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas Anti-Sweat Toilet
Model: 4483
March 1988 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve Replaces original ballcock
- Click to find 400A repair parts here
139
144
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" (10-1/2" tall) Flush Valve
Replaces original (6-13/16") flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
252
253
$14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 139/144 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 139/144 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome plated "Will-Fit" Trip Lever - Chrome - Left Hand
Replaces original trip lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and

- OR - View Cart

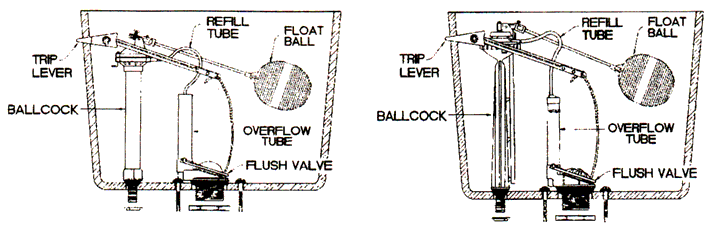

Replacement Parts for Atlas Series Toilet
Two-Piece Model - Tanks 4490/4492/4493/4494/4496 (1.6 gpf)

Atlas toilet replacement parts
Please note: Actual tank design may be a variation of either view

Model & Service Years Image Description Part # Price & Quantity
Atlas Toilet
Models: 4490/4496
Oct. 1988 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to 400A repair parts
104
105
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" 10-1/2" tall Flush Valve
Replaces original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
242 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 104/105 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 104/105 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount lef thand plastic chrome plated "Will-Fit" Trip Lever - Chrome - Left Hand
Replaces original trip lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas 10" Toilet
Model: 4492
Oct. 1988 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to repair parts for 400A Ballcock
104
105
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" (10-1/2" tall) Flush Valve
Replaces original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
242 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 104/105 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 104/105 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome plated "Will-Fit" Trip Lever - Chrome - Left Hand
Replaces original trip lever
341
Will-Fit
$4.77 Enter a quantity and
korky flapper red Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas 14" Toilet
Model: 4493
Oct. 1988 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to repair parts for 400A fill valve
104
105
$16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" (10-1/2" tall) Flush Valve
Replaces original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
242 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 104/105 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 104/105 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome "Will-Fit" Trip Lever - Chrome - Left Hand -
Replaces Trip Lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Model & Service Years Image Description Part # Price & Quantity
Atlas Anti-Sweat Toilet
Model: 4494
Oct. 1988 - Dec. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve Replaces original ballcock
- Go to repair parts for 400A ballcock
104 $16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" (10-1/2" tall) Flush Valve
Replaces original flush valve
"Will-Fit" flush valves may need to be cut down to height of original valve - can use any type of saw (wood saw, hack saw, etc.) - Please note altered valves are non-returnable.
242 $14.99 Enter a quantity and
brass float rod 8 inch Float Rod (8") - (for original 104 ballcock) 120 $3.10 Enter a quantity and
plastic float ball Float Ball - (for original 104 ballcock) 102 $3.70 Enter a quantity and
tank lever basic front mount left hand plastic chrome plated "Will-Fit" trip lever - Chrome - Left Hand
Replaces original trip lever
341
Will-Fit
$4.77 Enter a quantity and
red korky flapper Replacement flapper - red - chemical resistant $2.79 Enter a quantity and
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and

- OR - View Cart

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Related Items & Information




Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs


return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
