Astoria Series Toilet Repair Parts

by Universal Rundle

Keep your classic Astoria toilet working like new with the right replacement parts, brought to you by PlumbingSupply.com®! Whether you need a float ball or a flush valve, you'll find it right here. For more Universal Rundle parts, click on our page.

Astoria one-piece toilet
One-Piece
4001/4002/4003/4004
Astoria two-piece toilet
Two-Piece
4470/4479

Replacement Parts for Astoria Series Toilet

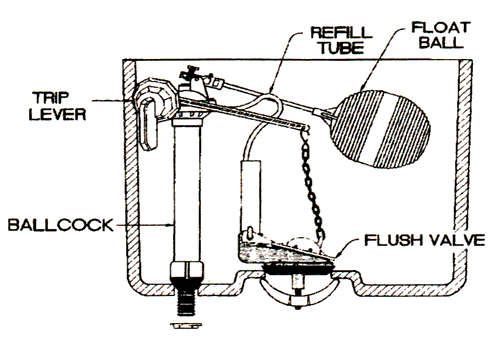

One-Piece Model - 4001/4004, 4002/4003

Astoria toilet replacement parts

Model & Service Years Image Description Part # Price & Quantity
Astoria Anti-Sweat Toilet
Models: 4001 / 4004
Made after Aug 1996
Fluidmaster 400A Fill Valve -
Replaces original ballcock- Go to 400A repair parts
137 $16.62 Enter a quantity and
universal rundle 212 will-fit flush valve Flush Valve WF212 $101.35 Enter a quantity and
sc-tg wa84 Flush Valve Gasket WA84 $1.44 Enter a quantity and
universal rundle toilet flapper 5173 Flapper for WF212 UR-5173 $10.64 Enter a quantity and
image unavailable Float Rod 119 Discontinued
plastic float ball Float Ball 102 $3.70 Enter a quantity and

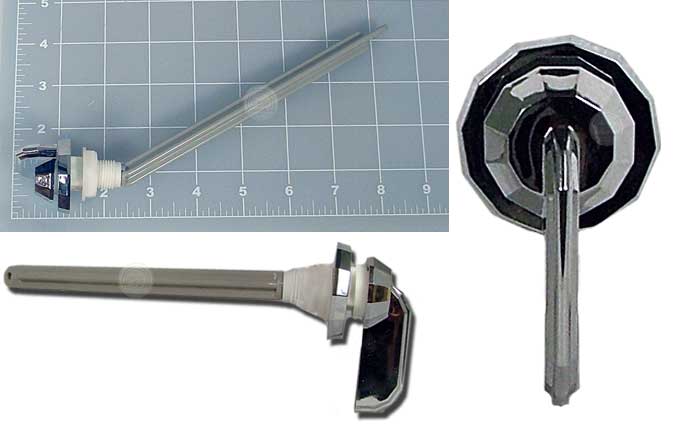

universal rundle trip lever 303 Trip Lever 303 Discontinued
Astoria Toilet
Models: 4002 / 4003
Made after May 1995
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original fill valve
- Go to 400A repair parts
137 $16.62 Enter a quantity and
universal rundle 212 will-fit flush valve Flush Valve WF212 $101.35 Enter a quantity and
sc-tg wa84 Flush Valve Gasket WA84 $1.44 Enter a quantity and
universal rundle toilet flapper 5173 Flapper for WF212 UR-5173 $10.64 Enter a quantity and
image unavailable Float Rod 119 Discontinued
plastic float ball Float Ball 102 $3.70 Enter a quantity and
universal rundle trip lever 303 Trip Lever 303 Discontinued

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Replacement Parts for Astoria Series Toilet

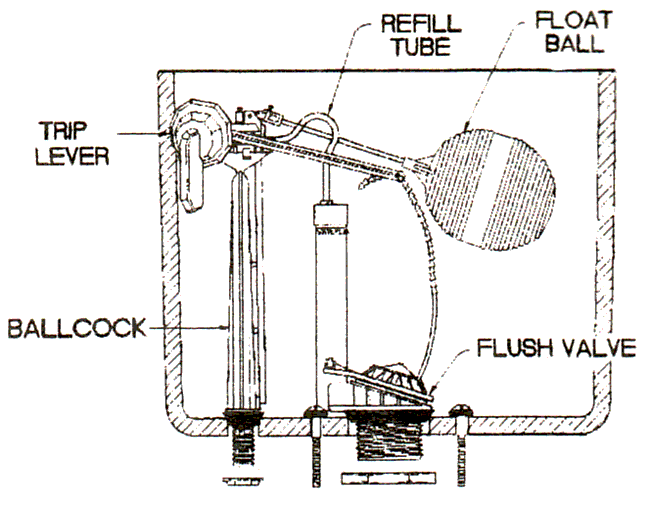

Two-Piece Model - 4470/4479

Astoria toilet parts

Model & Service Years Image Description Part # Price & Quantity
Astoria Toilet
Model: 4470
Made after Feb. 1995
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces original ballcock
- Go to 400A repair parts
138 $16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" Flush Valve
Replaces original flush Valve
- "Will-Fit" flush valve will need to be cut down to height of original valve. Please note: altered valves are non-returnable.
230 $14.99 Enter a quantity and
image unavailable Float Rod (6") 119 Discontinued
plastic float ball Float Ball 102 $3.70 Enter a quantity and
universal rundle trip lever 303 Trip Lever 303 Discontinued
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and
Astoria Anti-Sweat Toilet
Model: 4479
Made after Aug. 1996
fluidmaster 400a fill valve Fluidmaster 400A Fill Valve - Replaces Ballcock
- Go to 400A repair parts
138 $16.62 Enter a quantity and
korky plus 87 flush valve "Will-Fit" Flush Valve
Replaces original flush valve
- "Will-Fit" will need to be cut down to height of original valve.
- Please note: altered valves are non-returnable.
230 $14.99 Enter a quantity and
Float Rod 119 Discontinued
plastic float ball Float Ball 102 $3.70 Enter a quantity and
universal rundle trip lever 303 Trip Lever 303 Discontinued
tank to bowl gasket wa75 Tank To Bowl Gasket - Recessed - #WA75 "Will-Fit" -- $4.39 Enter a quantity and
pas tank to bowl set 237ss Tank To Bowl Bolt Set - Stainless Steel -- $6.39 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
