Wave Toilet Repair Parts
by Mansfield

With a unique design that perfectly complements themed bathrooms, the Wave toilet is definitely worth repairing instead of replacing. If you've got a leaky flush valve seal, a running fill valve, or just need a new trip lever, PlumbingSupply.com® has all the quality Mansfield parts you'll need.

Mansfield Wave Toilet

Replacement Parts for Mansfield Wave Toilet
Two Piece 1.6 Model - 189

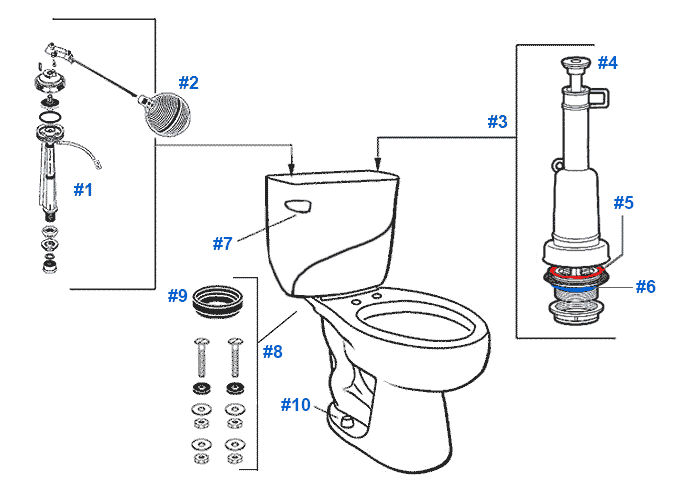

Parts diagram for Mansfield two-piece 1.6gpf Wave toilets

Item # Image Part # Description Price & Quantity
1 mansfield fill valve 08ulf-1112 #08ULF-1112 Plastic Fill Valve - 11-1/2" - Replaces 88-1112 - includes float rod, refill tube & locknuts Discontinued
Use 400A
fluidmaster 400a fill valve 400A "Will Fit" Replacement Fluidmaster Fill Valve - Adjustable 9" to 14" $16.62 Enter a quantity and
mansfield service kit 630-7984 630-7984 Repair Kit for discontinued 88-1112 and 08ULF-1112 Fill Valves - includes 1 upper and 1 lower diaphragm $5.23 Enter a quantity and
2 plastic float ball Float Ball "Will Fit" Plastic Float Ball - 4" x 5" - for discontinued 88-1112 and 08ULF-1112 Fill Valves $3.70 Enter a quantity and
3 mansfield 1.6gpf 211-1112 flapper-less flush valve 211-1112 Flapper-Less Flush Valve - 12" $18.68 Enter a quantity and
4 mansfield stop cap for 211-1112 flush valve 225-5907 Replacement Stop Cap for 211-1112 Flush Valve $2.39 Enter a quantity and
5 mansfield flush valve seal m001 M001 Replacement Flush Valve Seal - 3-1/2" O.D. x 2-1/8" I.D. $3.29 Enter a quantity and
Item # Image Part # Description Price & Quantity
6 will-fit flush valve gasket sc-tg-wa84 WA84 "Will Fit" Replacement Flush Valve Gasket $1.44 Enter a quantity and
7 mansfield tank trip lever 55 chrome 55 Front Mount Trip Lever with Metal Handle & Arm - LEFT Hand Enter a quantity and
tank lever front mount right hand universal fit chrome with brass arm 55RH Front Mount Trip Lever with Metal Handle & Arm - RIGHT Hand - Chrome Discontinued
8 mansfield 630-0204 2 inch tank to bowl kit 630-0204 SmartFasten 2" Tank to Bowl Kit
- includes tank to bowl gasket, three 1/4" x 2-1/4" bolts, & three nuts - view dimensions
$7.20 Enter a quantity and
9 tank to bowl gasket wa75 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket - View dimensions $4.39 Enter a quantity and
10 toilet bolt caps bone Bolt Caps Bolt Caps (1 pair) Enter a quantity and
  bemis affinity premium round toilet seat 200e4 white Round Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis Enter a quantity and
  bemis affinity premium elongated toilet seat 1200e4 Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis Enter a quantity and
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

Mansfield Wave Toilets Related Items




Frequently Asked Questions

Q. "I have installed the tank to bowl kit (630-0204) and tightened the 3 nuts and bolts to attach the tank to the bowl but water still seeps around the bolts and puddles on my floor. Are these the correct size bolts for this toilet?"

A. The bolts are the correct size. This will usually happen when the bolts and nuts are not tightened adequately. The manufacturer says the white nylon nuts should be hand tigtened and then a 7/16" socket should be used on them to tighten them 2 or 3 turns more. Make sure to tighten each bolt one turn at a time in rotation. By tightening in a rotation you will help prevent one side of the tank from to much stress which could cause the tank to crack. After each bolt has been tightened one turn, go back in the same order and tighten each bolt one turn again until the black rubber on each screw squishes down to seal the holes. After each bolt has been properly tightened there should be no leaks.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
