Aleur Toilet Repair Parts
by Mansfield

With it's one-piece look and two-piece design, the Aleur toilet by Mansfield is a keystone for transitional bathroom designs. Keep your look and the water efficiency of this toilet going with quality Mansfield repair parts. From fill valves to tank gaskets and everything in between, we've got what you need for your beautiful Mansfield Aleur toilet!

Mansfield Aleur Toilet

Replacement Parts for Mansfield Aleur Toilet
Two Piece 1.6gpf Model - 163/163NS

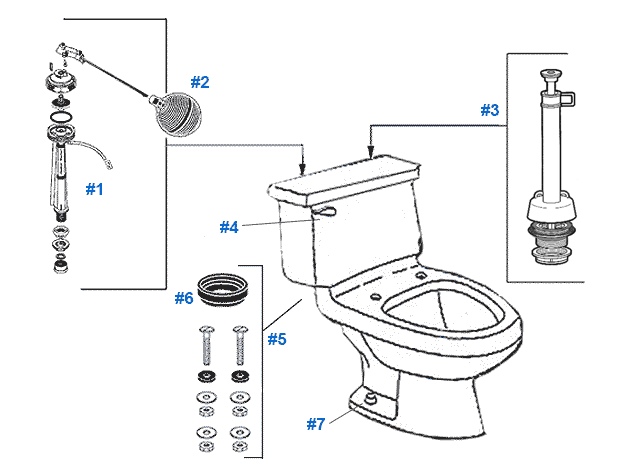

Parts diagram for Mansfield two-piece 1.6gpf Aleur toilets

Item # Image Part # Description Price & Quantity
1 mansfield fill valve 08ulf-10 08-10 Anti-Siphon Ballcock - 10" - includes float rod, refill tube, acetal locknut & coupling nut Discontinued
Use 400A
fluidmaster fill valve 400a 400A "Will Fit" Replacement Fluidmaster Fill Valve - Adjustable 9" to 14" $16.62 Enter a quantity and
2 plastic float ball Float Ball "Will Fit" Plastic Float Ball - 4" x 5" - (for original 08-10 fill valve) $3.70 Enter a quantity and
3 mansfield 211-1000 flush valve 211-1000 Flapper-Less Flush Valve - 10" - includes shank gasket, lock nut, and chain Discontinued
alternative replacement flush valve 4020 Alternative Solution:
Adjustable Overflow Replacement Flush Valve
$10.97 Enter a quantity and
4 mansfield trip lever 71 chrome 71 Front Mount Trip Lever with Metal Handle & Arm - Replaced by "universal" #55 Select your color and
5 mansfield 630-0204 tank to bowl kit 630-0204 SmartFasten 2" Tank to Bowl Kit
- includes tank to bowl gasket, three 1/4" x 2-1/4" bolts, & three nuts
$7.20 Enter a quantity and
6 tank to bowl gasket wa75 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket - view dimensions $4.39 Enter a quantity and
7 toilet bolt caps bone Bolt Caps Bolt Cap Covers (1 pair) Select your color and
Not Shown bemis affinity premium elongated toilet seat 1200e4 Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis Select your color and
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

Mansfield Aleur Toilets Related Items


Frequently Asked Questions

Q. "I have installed the tank to bowl kit (630-0204) and tightened the 3 nuts and bolts to attach the tank to the bowl but water still seeps around the bolts and puddles on my floor. Are these the correct size bolts for this toilet?"

A. The bolts are the correct size. This will usually happen when the bolts and nuts are not tightened adequately. The manufacturer says the white nylon nuts should be hand tigtened and then a 7/16" socket should be used on them to tighten them 2 or 3 turns more. Make sure to tighten each bolt one turn at a time in rotation. By tightening in a rotation you will help prevent one side of the tank from to much stress which could cause the tank to crack. After each bolt has been tightened one turn, go back in the same order and tighten each bolt one turn again until the black rubber on each screw squishes down to seal the holes. After each bolt has been properly tightened there should be no leaks.
