Protector Toilet Repair Parts
by Mansfield

With top-notch water saving performance and a stylish transitional design, the Protector toilet is definitely worth repairing. If you've got a leaky flapper, a running fill valve, or just need a new trip lever, PlumbingSupply.com® has all the quality Mansfield parts you'll need.

Mansfield Protector Toilet

Replacement Parts for Mansfield Protector Toilet
Two Piece 1.6 Model - 3260

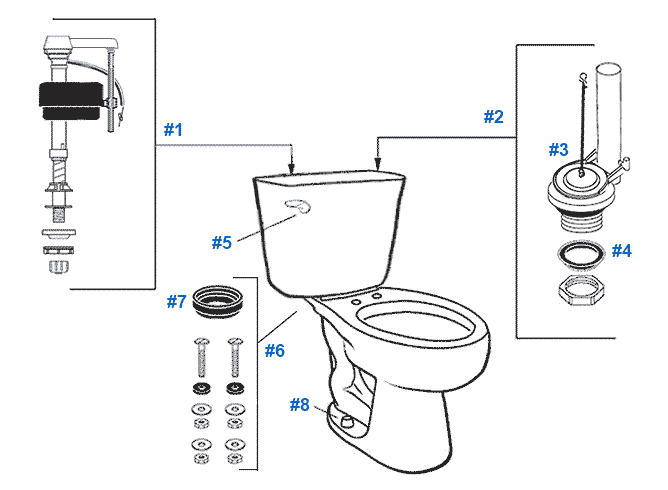

Parts diagram for Mansfield two-piece 1.6gpf Protector toilets

Item # Image Part # Description Price & Quantity
1 mansfield fill valve 2206 adjustable cylinder float dims 2206-1112 Pilot Operated Anti-Siphon Fill Valve - Adjustable height 7-3/4" - 11-1/2" $19.41 Enter a quantity and
mansfield fill valve repair kit 630-2206 630-2206 Repair Kit for 2206 Fill Valve $4.15 Enter a quantity and
2 mansfield 228 hybrid 2 inch flush valve 3 inch flapper 228 2" Hybrid Flush Valve - includes 3" flapper, chain, stainless steel clip, spud gasket, and nut $16.65 Enter a quantity and
3 mansfield 3 inch flapper 630-0207 with multiple flow inserts 630-0207 3" Flapper $10.77 Enter a quantity and
4 will-fut flush valve gasket wa84 WA84 "Will Fit" Replacement Flush Valve Gasket $1.44 Enter a quantity and
Item # Image Part # Description Price & Quantity
5 mansfield tank lever plastic 40 or 31 white 40 / 31 Front Mount Trip Lever with Plastic Handle & Arm - White $8.67 Enter a quantity and
mansfield tank lever plastic 40 or 31 chrome 40 / 31 Front Mount Trip Lever with Plastic Handle & Arm - Chrome $8.67 Enter a quantity and
mansfield tank lever plastic 40 or 31 bone 40 / 31 Front Mount Trip Lever with Plastic Handle & Arm - Bone Discontinued
mansfield tank lever plastic 40 or 31 biscuit 40 / 31 Front Mount Trip Lever with Plastic Handle & Arm - Biscuit Discontinued
6 mansfield 630-0204 2 inch tank to bowl kit 630-0204 SmartFasten 2" Tank to Bowl Kit
- includes tank to bowl gasket, three 1/4" x 2-1/4" bolts, & three nuts - view dimensions
$7.20 Enter a quantity and
7 tank to bowl gasket wa75 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket $4.39 Enter a quantity and
8 toilet bowl cap set white Bolt Caps Bolt Cap Covers (1 pair) - White $3.89 Enter a quantity and
  bemis affinity premium elongated toilet seat 1200e4 Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis - White $67.91 Enter a quantity and
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

Mansfield Protector Toilets Related Items




Frequently Asked Questions

Q. "I have installed the tank to bowl kit (630-0204) and tightened the 3 nuts and bolts to attach the tank to the bowl but water still seeps around the bolts and puddles on my floor. Are these the correct size bolts for this toilet?"

A. The bolts are the correct size. This will usually happen when the bolts and nuts are not tightened adequately. The manufacturer says the white nylon nuts should be hand tigtened and then a 7/16" socket should be used on them to tighten them 2 or 3 turns more. Make sure to tighten each bolt one turn at a time in rotation. By tightening in a rotation you will help prevent one side of the tank from to much stress which could cause the tank to crack. After each bolt has been tightened one turn, go back in the same order and tighten each bolt one turn again until the black rubber on each screw squishes down to seal the holes. After each bolt has been properly tightened there should be no leaks.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
