Easton Toilet Repair Parts
by Mansfield

With its transition design, the Easton toilet complements almost any bathroom décor. Save yourself time, money, and a headache by repairing instead of replacing this quality toilet. From trip levers and bolt caps to fill valves and flappers, we have everything you need to fix your Easton toilet at PlumbingSupply.com® - your source for top quality Mansfield toilet parts!

Mansfield Easton Toilet

Replacement Parts for Mansfield Easton Toilet
Two Piece 1.28gpf Model - 392

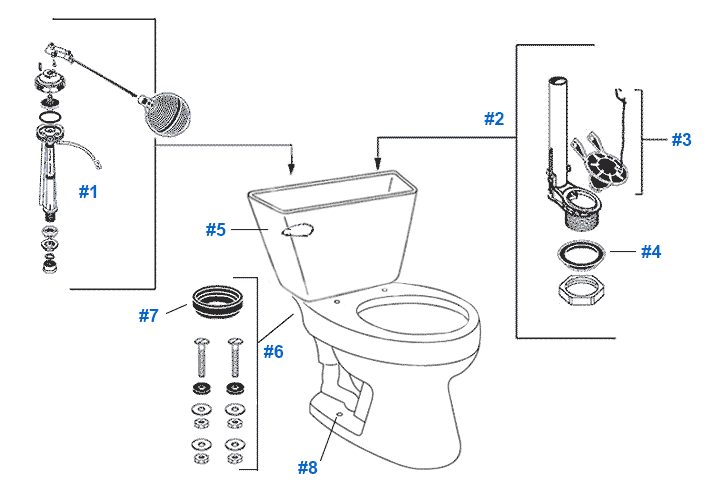

Parts diagram for Mansfield elegant two-piece Easton toilets

Item # Image Part # Description Price & Quantity
1 fluidmaster 400a adjustable fill valve 400A Anti-Siphon Fill Valve - Replaces 89-1012 - Adjustable height 9" - 14" $16.62 Enter a quantity and
2 korky plus 87 flush valve "Will-Fit" Korky 87 2" Flush Valve - Replaces 202-1012 - Includes flapper and chain
Please note: "Will Fit" valve may need to be cut down to fit (altered valves are not returnable)
$14.99 Enter a quantity and

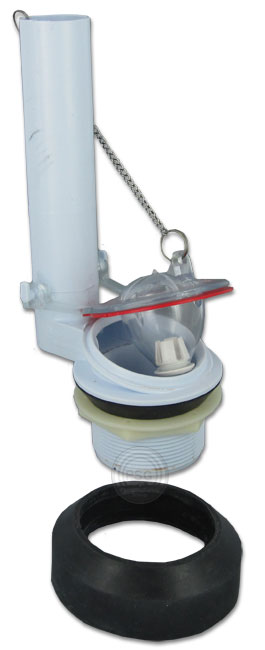

3 mansfield 2 inch blue flapper 630-0173 630-0173 2" Flapper for Original 202-1212 Flush Valve $7.39 Enter a quantity and
korky red flapper with chain 2001 2" Flapper for "Will Fit" Flush Valve $2.79 Enter a quantity and
4 sc-tg-wa84 flush valve gasket WA84 "Will Fit" Replacement Flush Valve Gasket $1.44 Enter a quantity and
5 mansfield left hand trip lever 56 bone 56 Front Mount Trip Lever with Plastic Handle & Arm - Bone Discontinued
toilet tank lever universal brass arm fluidmaster pro64 chrome PRO64 BEST Subsitute: Front Mount Trip Lever with Brass Fully Adjustable Tank Arm - Chrome $9.95 Enter a quantity and
6 mansfield 630-0204 tank to bowl kit 630-0204 SmartFasten 2" Tank to Bowl Kit
- includes tank to bowl gasket, three 1/4" x 2-1/4" bolts, & three nuts
$7.20 Enter a quantity and
7 tank to bowl gasket wa75 WA75 "Will Fit" Replacement 2" Tank to Bowl Gasket - View dimensions $4.39 Enter a quantity and
8 toilet bolt caps bone Bolt Caps Bolt Cap Covers (1 pair) Enter a quantity and
  bemis affinity premium round toilet seat 200e4 white Round Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis Enter a quantity and
  bemis affinity premium elongated toilet seat 1200e4 white Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis Enter a quantity and
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View colored toilet seats.

- OR - View Cart

Mansfield Easton Toilets Related Items




Frequently Asked Questions

Q. "I have installed the tank to bowl kit (630-0204) and tightened the 3 nuts and bolts to attach the tank to the bowl but water still seeps around the bolts and puddles on my floor. Are these the correct size bolts for this toilet?"

A. The bolts are the correct size. This will usually happen when the bolts and nuts are not tightened adequately. The manufacturer says the white nylon nuts should be hand tigtened and then a 7/16" socket should be used on them to tighten them 2 or 3 turns more. Make sure to tighten each bolt one turn at a time in rotation. By tightening in a rotation you will help prevent one side of the tank from to much stress which could cause the tank to crack. After each bolt has been tightened one turn, go back in the same order and tighten each bolt one turn again until the black rubber on each screw squishes down to seal the holes. After each bolt has been properly tightened there should be no leaks.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
