Montclair Toilet Repair Parts
by Mansfield

The classic styling of the Montclair toilet is only enhanced by its water efficiency. Originally made in a 1.6 gpf version, Mansfield upgraded this toilet to be even more efficient with a 1.28 gpf flow rate. Whatever model you have, PlumbingSupply.com® has the quality parts you need to fix this stylish toilet and keep it at peak performance.

Mansfield Montclair Toilet

Replacement Parts for Mansfield Montclair Toilet
Two Piece Models - 108 (1.6gpf) & 3108 (1.28gpf)

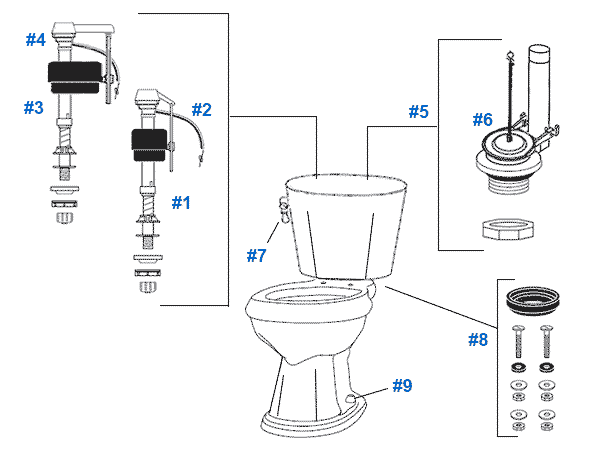

Parts diagram for Mansfield two-piece Montclair toilets

Item # Image Part # Description Price & Quantity
1 fluidmaster 400a fill valve 400A Fluidmaster Fill Valve for 108 Tanks - Adjustable height 9" - 14" $16.62 Enter a quantity and
2 refill tube angle adapter fla-218 218 Replacement Refill Tube & Overflow Clip for 400A Fill Valve $3.95 Enter a quantity and
3 mansfield fill valve 2206 adjustable cylinder float 2206-1112 Pilot Operated Fill Valve for 3108 Tanks - Adjustable height 7-3/4" - 11-1/2" $19.41 Enter a quantity and
4 mansfield fill valve repair kit 630-2206 630-2206 Repair Kit for 2206 Fill Valve $4.15 Enter a quantity and
5 mansfield flush valve 206-1112 206-1112 3" Flush Valve - includes flapper, chain, stainless steel clip, spud gasket, and nut $14.44 Enter a quantity and
6 mansfield 3 inch flapper 630-0207 630-0207 3" Flapper - for 206-1112 flush valve - includes flow control inserts for both 1.28gpf and 1.6gpf tanks $10.77 Enter a quantity and
7 mansfield side mount tank lever 66 chrome 66 Side Mount Trip Lever with Metal Handle & Arm Enter a quantity and
8 mansfield smartfasten 3 inch tank to bowl kit 630-0107 SmartFasten 3" Tank to Bowl Kit
- includes tank to bowl gasket, three 1/4" x 2-1/4" bolts, & three nuts
$11.96 Enter a quantity and
9 toilet bolt caps bone Bolt Caps Bolt Cap Covers (1 pair) Enter a quantity and
  bemis affinity premium elongated toilet seat 1200e4 Elongated Premium Quality Replacement "Will Fit" Slow Close Toilet Seat by Bemis Enter a quantity and
Please note: The toilet seats featured here are the manufacturer's closest color match available & are non-returnable. View more colored toilet seats.

Mansfield Montclair Toilets Related Items




Frequently Asked Questions

Q. "I have installed the tank to bowl kit (630-0204) and tightened the 3 nuts and bolts to attach the tank to the bowl but water still seeps around the bolts and puddles on my floor. Are these the correct size bolts for this toilet?"

A. The bolts are the correct size. This will usually happen when the bolts and nuts are not tightened adequately. The manufacturer says the white nylon nuts should be hand tigtened and then a 7/16" socket should be used on them to tighten them 2 or 3 turns more. Make sure to tighten each bolt one turn at a time in rotation. By tightening in a rotation you will help prevent one side of the tank from to much stress which could cause the tank to crack. After each bolt has been tightened one turn, go back in the same order and tighten each bolt one turn again until the black rubber on each screw squishes down to seal the holes. After each bolt has been properly tightened there should be no leaks.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
