Portsmouth Series Champion PRO Toilet Repair Parts
by American Standard

The Portsmouth series by American Standard uses their unique Champion PRO system to provide a superior flush with plenty of outward style. Whether you need a new canister-style flush valve or a replacement seal, a new trip lever or just a toilet seat, we've got everything you need to keep your Portsmouth Champion PRO toilet in top notch condition!
Portsmouth Champion PROTank #4327A

Replacement Parts for American Standard Portsmouth Champion PRO Toilets
Two Piece Models - #213AA.104, 213BA.104, & 213CA.104 / Tank # 4327A

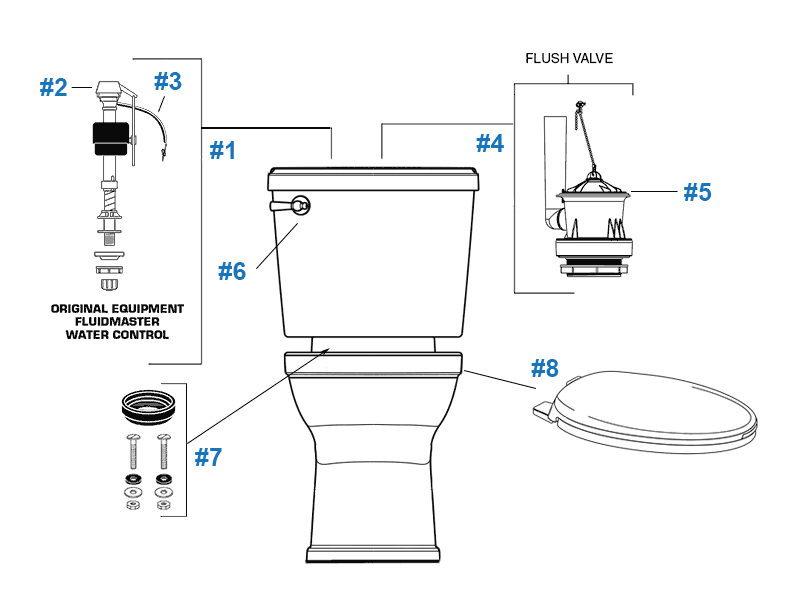

American Standard Portsmouth Champion PRO Series toilet repair parts diagram
Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a 7381125-400-0070A Fluidmaster Water Control Assembly - Replaces 7381548-400.0070A $40.09 Enter a quantity and
2 fluidmaster fill valve repair cap assembly Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 fluidmaster refill tube angle adapter fla 218 Tube & Adapter Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 --- 3174.102-0070A Champion PRO Flush Valve - Replaced by 3174.105-0070A Discontinued
american standard champion4 flush valve 3174-105-0070A 3174.105-0070A Champion PRO Flush Valve - includes flush valve seal and o-ring (sometimes comes in blue) and wrench for easy maintenance Discontinued
american standard toilet flush valve 7381983-400-0070a 7381983-400-007 Champion PRO Flush Valve 7381983-400-007 - instructions to change Gallons per Minute from 1.6 gpm to 1.28 gpm - Replaces 3174.105-0070A $49.39 Enter a quantity and
5 american standard flush valve seal kit 7301111-0070AP 7301111-0070A Flush Valve Seal and O-Ring - (sometimes comes in blue) - for 3174.105 flush valve $12.27 Enter a quantity and
6 american standard trip lever chrome 7381406-200-002 7381406-200-002 Portsmouth Champion PRO Trip Lever - Chrome $41.16 Enter a quantity and
7 american standard tank to bowl kit 7381253-200-0070a 7381253-200.0070A Tank-to-Bowl Seal Kit - includes installation instructions $20.94 Enter a quantity and
8 american standard champion slowclose 5325-5330 5330.010 Champion Slow Close Round Front Seat with Cover - White Not Available
bemis affinity premium round toilet seat 200e4 with dimensions 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
american standard seat champion slowclose 5325-5330 5325.010 Champion Slow Close Elongated Front Seat with Cover - White Not Available
Not Shown american standard toilet bolt cap covers 034783-0200a 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "How are the toilet fill valve lengths measured?"
A. The toilet fill valve measurements we show are measured from the inside bottom of the tank to the top of the fill valve. The threaded water supply shank that fits through the bottom of the tank is not included in this measurement.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
