Carlyle (Carlysle) Series Toilet Repair Parts
by American Standard

The Carlyle, another attractive one-piece toilet with a low profile from American Standard, has a timeless style that looked good when it was new, and still looks good today. Replacing worn out parts maintains the toilet in good working order and is a great way to save money as it is often much easier and less costly to repair your toilet than to replace it. We are pleased to offer the replacement parts you need and get them to you quickly and easily, so your toilet will be back in shape in no time.

American Standard - Carlyle

Replacement Parts for American Standard Carlyle Series Toilets
One Piece Model - #2010

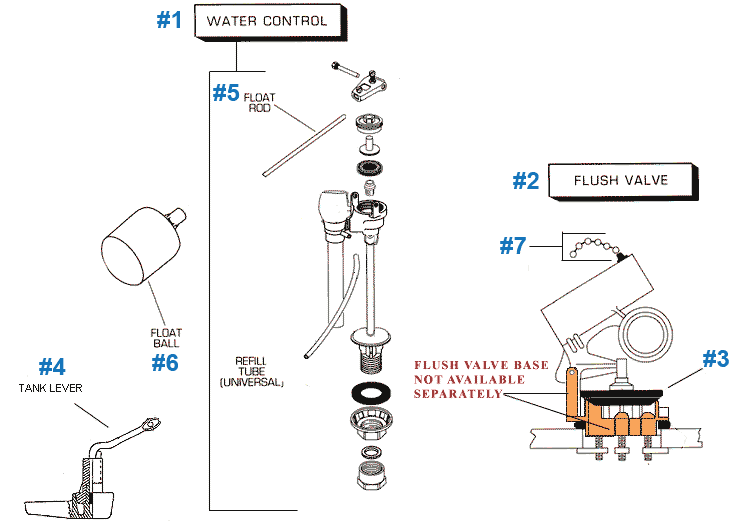

American Standard Carlyle Series parts breakdown

Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a with dimensions 7381125-400-0070a Fill Valve - approx 9-3/4" tall - Replaces old 3137-1550 Fill Valve $40.09 Enter a quantity and
american standard fill valve 3131-0750 3131-0750 Fill Valve - approx 11" tall - (float ball sold separately - see item #6) $84.20 Enter a quantity and
american standard fill valve 3137-0980 3137-0980 Fill Valve - approx 11-1/2" tall - (float ball sold separately - see item #6) $61.53 Enter a quantity and
american standard fill valve 3136-0580 3136-0580 Fill Valve - approx 13-3/4" tall Discontinued
2 american standard flush valve 47086-0700 47086-0700 Flush Valve with Actuator - replaced old #4 flush valve - view component parts - purchase individual flush valve parts on our page $46.75 Enter a quantity and
Item # Image Part # Description Price & Quantity
3 american standard seat disc 033643-0070a 33643-0700A Snap-On Seat Disc Discontinued
american standard seal disk for flush valve as444 421BP "Will Fit" Replacement Seat Disc - fits screw-on and/or snap-on style flush actuators $5.55 Enter a quantity and
4 american standard chrome trip lever 70437-0200 70437-0200 Tank Lever - 4" - Chrome with Plastic Arm $22.04 Enter a quantity and
american standard chrome trip lever 73439-0200 73439-0200 Tank Lever - 6" - Chrome with Brass Arm $16.58 Enter a quantity and
5 --- Float Rod Included with fill valves 3137-1550, 3131-0750, and 3137-0980 Not Sold Separately
6 plastic float ball 4 inch by 5 inch Float Ball "Will-Fit" Plastic Float Ball - Replaces original float ball $3.70 Enter a quantity and
7 american standard chain assembly for flush valve actuator 8321-0700a 8321-0700A Chain Assembly for flush valve - includes chain, grommet, & trip lever attachment hook $2.75 Enter a quantity and

Not sure which model toilet you have? Try looking under the toilet tank lid or inside of the toilet tank.


Unique Seats to Fit American Standard Carlysle (Carlyle) 2010.031 Toilets

Proudly made in the USA, these hard to find toilet seats are constructed of a highly resilient plastic using an eco-friendly manufacturing process. These seats are extra durable and are designed to resist everyday wear, including chips and stains. To top it off they include non-corrosive stainless steel mounting hardware.

View detailed seat dimensions

American Standard LC212 Toilet Seat
Color Price & Quantity
American Standard Toilet Seat Color Sample White White Discontinued
American Standard Toilet Seat Color Sample Bone Bone Discontinued
American Standard Toilet Seat Color Sample Silver Silver Discontinued

Please Note: These toilet seats are no longer being manufactured.
