Champion PRO Series Toilet Repair Parts
by American Standard

The Champion PRO toilet from American Standard offers professional grade performance and designer style, making this toilet worth repairing. Whether you need a new canister-style flush valve or a replacement seal, a new trip lever or just a toilet seat, your friends at PlumbingSupply.com ® have you covered.
Champion PRO toiletTank #4225A
Looking for Champion 4 parts? We've got them!

Replacement Parts for American Standard Champion PRO Toilets
Two Piece Models - #211AA, #211BA, #211CA / Tank #4225A

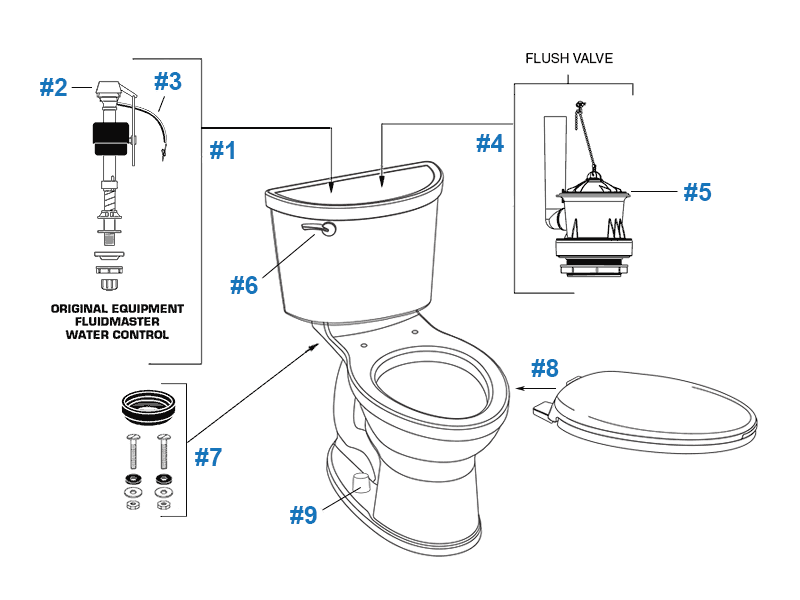

American Standard Champion PRO Series toilet repair parts diagram
Item # Image Part # Description Price & Quantity
1 american standard adjustable fill valve 7381125-400-0070a 7381125-400-0070A Fluidmaster Water Control Assembly - Replaces 738565-459.0070A $40.09 Enter a quantity and
2 fluidmaster replacement cap 385 Cap Assembly Fill Valve Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla-218 Tube & Adapter Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 --- 3174.102-0070A Champion PRO Flush Valve - Replaced by 3174.105-0070A Discontinued
american standard champion4 flush valve 3174-105-0070A with dimensions 3174.105-0070A Champion PRO Flush Valve - includes flush valve seal and o-ring and wrench for easy maintenance Discontinued
american standard toilet flush valve top view 7381983-400-0070a 7381983-400-007 Champion PRO Flush Valve - includes installation wrench - instructions to change Gallons per Minute from 1.6 gpm to 1.28 gpm - Replaces 3174.105-0070A $49.39 Enter a quantity and
5 american standard seal and o ring 7301111-0070a 7301111-0070A Flush Valve Seal and O-Ring - for 3174.105 flush valve $12.27 Enter a quantity and
Item # Image Part # Description Price & Quantity

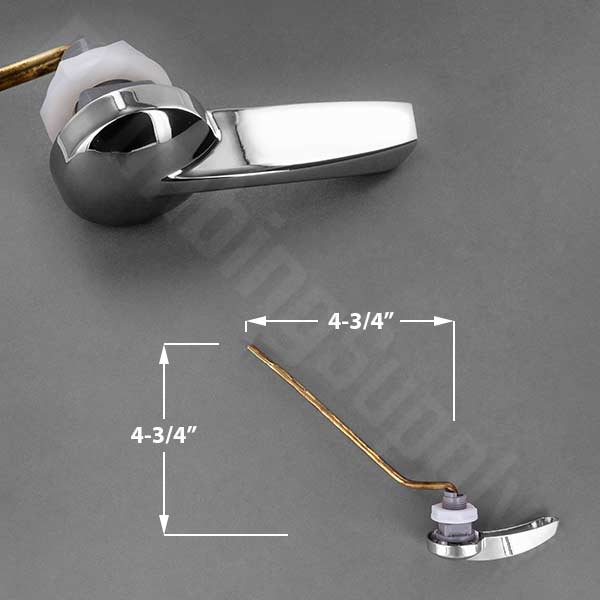

6 american standard trip lever 7381232-200-002 chrome 7381232-200.0020A LEFT HAND Trip Lever - Chrome $39.15 Enter a quantity and
american standard trip lever 7381232-201-002 chrome 7381232-201.0020A RIGHT HAND Trip Lever - Chrome Discontinued Enter a quantity and
7 american standard tank to bowl kit 738756-0070A 738756-0070A Tank-to-Bowl Seal Kit - includes installation instructions $28.75 Enter a quantity and
american standard tank to bowl kit 7381253-200-0070a 7381253-200.0070A Tank-to-Bowl Seal Kit - (no bolts or rubber washers) includes installation instructions $20.94 Enter a quantity and
8 american standard champion slow close 5325-5330 5330.010 Champion Slow Close Round Front Seat with Cover - White Discontinued
bemis affinity premium round toilet seat 200e4 with dimensions 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
american standard champion slowclose 5325-5330 5325.010 Champion Slow Close Elongated Front Seat with Cover - White Discontinued
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 american standard toilet bolt cap covers 034783-0200a 034783-0200A Toilet Bolt Caps (2) - White (view more color options) $8.07 Enter a quantity and

Related Items & Information




Frequently Asked Questions

Q. "How are the toilet fill valve lengths measured?"
A. The toilet fill valve measurements we show are measured from the inside bottom of the tank to the top of the fill valve. The threaded water supply shank that fits through the bottom of the tank is not included in this measurement.

Q. "I installed a new fill valve and my new valve comes on (and then goes off) for a few seconds about once per hour?"
A. This could be caused by many things. The most common is with a Fluidmaster 400. This is a great valve but be sure to install the 1/4" tube per their instructions. Use the clip that comes with it and do not just stick it into the overflow tube or it will go on and off every so often by itself. If that isn't it, take some food coloring and place it in your tank. Wait a few hours and if some of the color has gone into the bowl then you probably need a new flapper.

Q. "My Universal Rundle toilet tank has a tilt valve. How does the Fluidmaster 400A fill valve allow the bowl to refill?"
A. If you are using a Fluidmaster 400A then you must also use the Fluidmaster #599 refill tube & clip. The clip attaches to the back of the tank and keeps the 1/4" refill tube pointed towards and into the overflow tube of the tilt valve. The 1/4" refill tube must not be attached directly into the overflow tube. There must be an air break between the refill tube and the overflow tube to keep the 400A from siphoning the water in the tank and putting it into the bowl continuously causing the 400A to turn on and off continuously.

Q. "Are all American Standard® parts 'standard' and are ALL their products and parts made in America?"
A. A number of their products are made overseas (as is the case with many other plumbing manufacturers as well). Please do not assume that all products made by American Standard (Am. Stan.) are made in the U.S. The word "standard" and "American Standard®" are NOT identical. Most of their faucet parts will only fit their brand (as is the case with their competitors as well). Many of their toilet parts will only fit their brand of toilet. Not all of American Standard® parts are universal ("standard"). We get this question frequently, and it is probably because some people assume that since they have the word "standard" as part of their name that they must be using parts that are "standard"; as in universally fitting. Just as car bumpers don't fit on all brands of cars, parts for "standard" toilets and faucets will generally not fit on other brands. Generally you must buy parts specifically made for (designed to fit) your specific brand of toilet/faucets, etc.

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs
