Amazing Spin Down Sediment Filter Systems

by Vu-Flow

Proudly made in the USA
A unique filter product, the Vu-Flow spin-down water filter spins out sediment from water while keeping a high flow rate, and is used in many applications such as well water to irrigation, homes, businesses or farms, and industrial well water for cooling towers, wastewater, and drinking water. The filter cartridge is cleanable and reusable - eliminating expensive element replacement - and the filter makes sediment removal simple and economical. Recommended for water only, these filters operate at a maximum of 150psi at 73°F, and are not to exceed 100°F at 40psi.

Materials In Water Systems To Protect Recommended Mesh
Shale, Shell General use 24
Debris General use 24, 30, 40
Pipe scale, coarse sand Sprinkler systems, faucet aerators, sand sensitive valves 40, 60
Fine sand, grit from new wells Drip irrigation systems, faucet aerators, sand sensitive valves 100, 140
Poultry growers, watering devices 100
Fogger nozzles 140
Very fine sand and grit Pre-treatment 250, 500
Pre-treatment, ultra water systems, RO systems 1000

NOTE: In general, use the coarsest mesh deemed acceptable to filter the materials you want to remove. This will help to extend the life of your system and reduce how often the filter requires cleaning.


Tee Style Spin-Down Screen Water Filters

Need a filter to remove large debris from your water line? Looking for a system that cleans itself? The Vu-Flow water filters are able to do both. These great screen filters are for use in straight runs. The perfect choice for removing debris from your water system. A wide range of micron sizes provides you with different filtering options from coarse sand and shale down to very fine sand and silt.

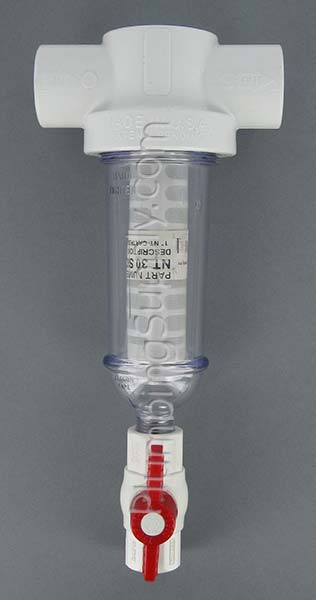

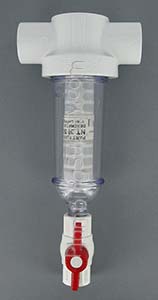

Vu-Flow T style spin-down water filter NT100-140P
Features:
  • Includes a 1/2" FIP ball valve
  • Inlet and outlet can be reduced for smaller pipe sizes using PVC bushings
  • Different screen sizes available to customize your filter to fit your needs
  • For use with flow rates from 1 to 25 gallons per minute
  • Maximum operating pressure is 150psi at 73° F

These fantastic spin-down water filters are a great way to remove dirt and sediment from your water system. Easy to install on the discharge side of the pump, these items filter material and collect it on the outside of the screen. Then simply use the purge valve for easy one step purge cleaning. Use the purged water to irrigate your garden which helps reduce wasted water. The clear poly carbonate housing permits easy inspection of the filter to identify when purging or cleaning is necessary.

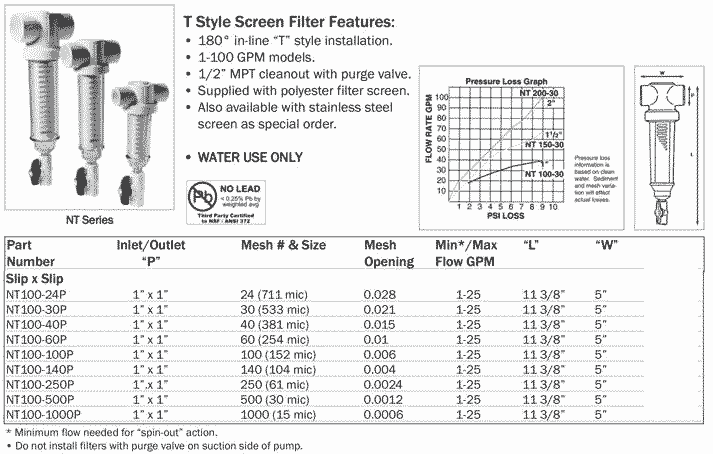

Tee Style Screen Filters

Model Inlet / Outlet Mesh # & Micron Min / Max Flow Price & Quantity
NT100-24P 1" Slip x Slip #24 (711 mic) 1GPM / 25GPM $56.15 Enter a quantity and
NT100-30P 1" Slip x Slip #30 (533 mic) 1GPM / 25GPM $58.92 Enter a quantity and
NT100-40P 1" Slip x Slip #40 (381 mic) 1GPM / 25GPM $56.51 Enter a quantity and
NT100-60P 1" Slip x Slip #60 (254 mic) 1GPM / 25GPM $60.87 Enter a quantity and
NT100-100P 1" Slip x Slip #100 (152 mic) 1GPM / 25GPM $57.39 Enter a quantity and
NT100-140P 1" Slip x Slip #140 (104 mic) 1GPM / 25GPM $65.79 Enter a quantity and
NT100-250P 1" Slip x Slip #250 (61 mic) 1GPM / 25GPM $68.66 Enter a quantity and
NT100-500P 1" Slip x Slip #500 (30 mic) 1GPM / 25GPM $68.15 Enter a quantity and
NT100-1000P 1" Slip x Slip #1000 (15 mic) 1GPM / 25GPM $62.13 Enter a quantity and

Tee Style Filter Related Accessories

Model Description Price & Quantity
NT30B Replacement Head Assembly for 1" Tee Filter Systems $46.97 Enter a quantity and
NT30C Replacement Clear Housing for 1" Filter Systems $52.34 Enter a quantity and
NT30S O-Ring Kit for 1" Filter Systems $3.52 Enter a quantity and

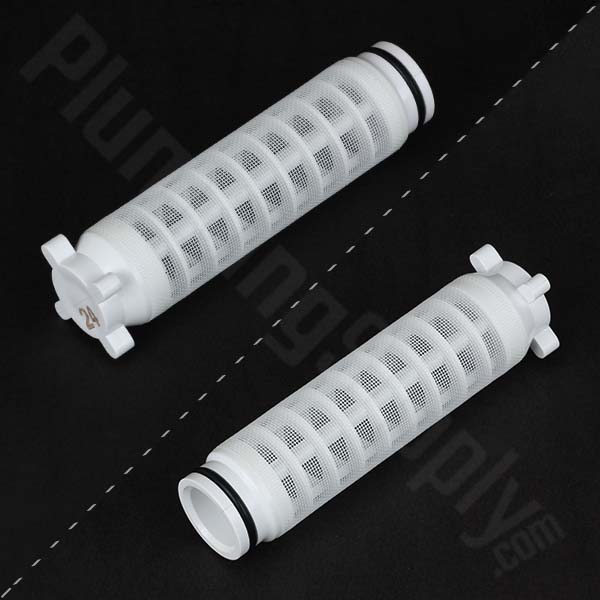

NT30SC24 1" Replacement Filter Screen with #24 Mesh (711 Micron) $14.77 Enter a quantity and

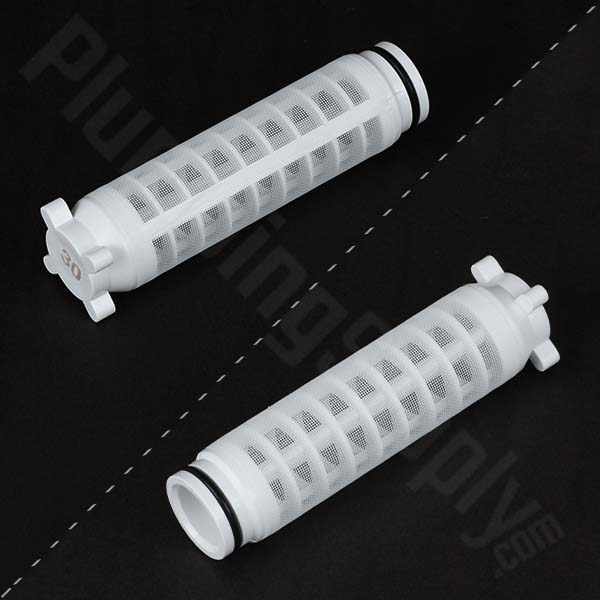

NT30SC30 1" Replacement Filter Screen with #30 Mesh (533 Micron) $10.67 Enter a quantity and
NT30SC40 1" Replacement Filter Screen with #40 Mesh (381 Micron) $12.93 Enter a quantity and

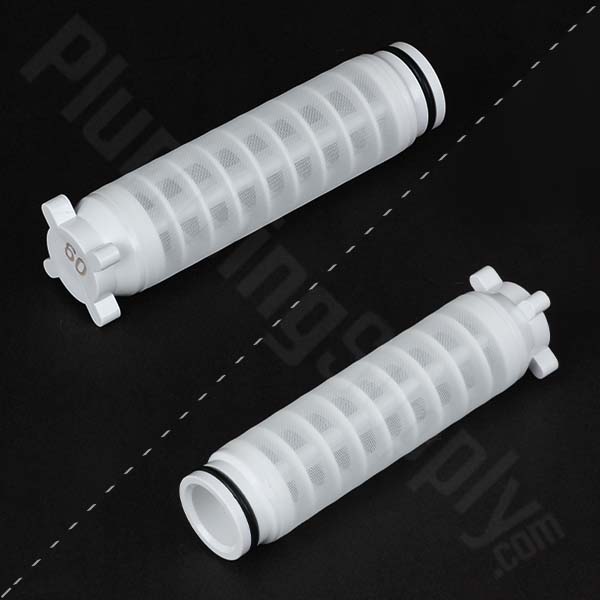

NT30SC60 1" Replacement Filter Screen with #60 Mesh (254 Micron) $15.17 Enter a quantity and
NT30SC100 1" Replacement Filter Screen with #100 Mesh (152 Micron) $15.26 Enter a quantity and

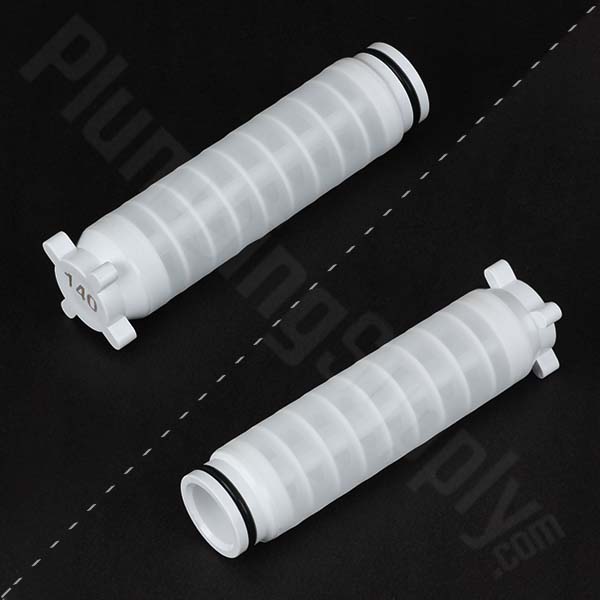

NT30SC140 1" Replacement Filter Screen with #140 Mesh (104 Micron) $8.39 Enter a quantity and
NT30SC250 1" Replacement Filter Screen with #250 Mesh (61 Micron) $13.53 Enter a quantity and

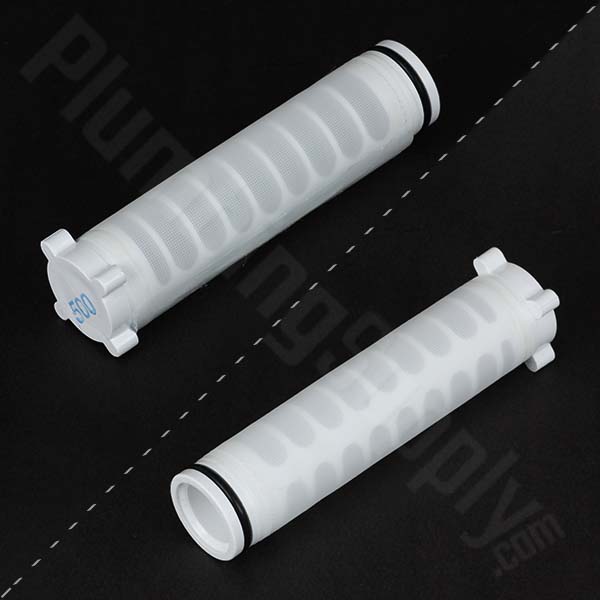

NT30SC500 1" Replacement Filter Screen with #500 Mesh (30 Micron) $16.36 Enter a quantity and

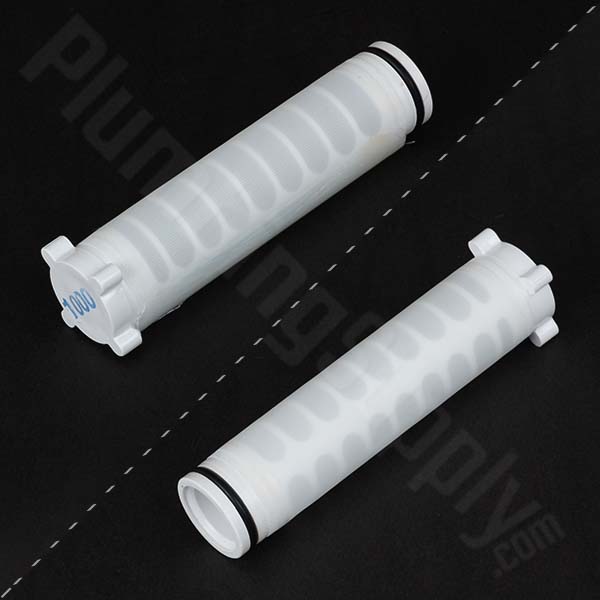

NT30SC1000 1" Replacement Filter Screen with #1000 Mesh (15 Micron) $13.04 Enter a quantity and

Combo Style Spin-Down Screen Water Filters

Top quality spin-down screen filters are the perfect choice for residential or light commercial applications. The combo style screen filter has two outlets and can be used as either a 90° elbow style filter, or as a tee style inline filter. The combo unit includes a 1/2" FIP threaded ball valve for use with purging.

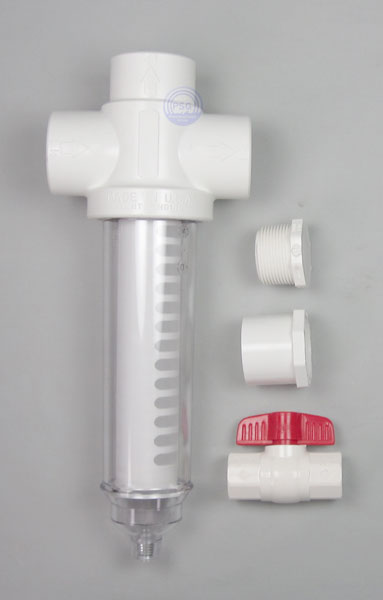

Vu-Flow T style spin-down water filter CF150-600P
Features:
  • Uses a 1/2" MIP purge port for easy connection to the included 1/2" FIP PVC ball valve.
  • Inlet and outlet can be reduced for smaller pipe sizes using PVC bushings
  • Multiple screen sizes available to customize your filter to fit your needs
  • 1-1/2" systems are rated for flow rates from 10 to 50 gallons per minute
  • 2" systems are rated for flow rates from 18 to 100 gallons per minute
  • Maximum operating pressure is 150psi at 73° F
  • 1-1/2" System includes PVC ball valve, PVC 1-1/2" spigot x 1-1/4" threaded reducing bushing, 1-1/4" PVC threaded plug, and PTFE tape
  • 2" System includes PVC ball valve, PVC 2" spigot x 1-1/4" threaded reducing bushing, 1-1/4" PVC threaded plug, and PTFE tape

These fantastic spin-down water filters are a great way to remove dirt and sediment from your water system. Easy to install on the discharge side of the pump, these items filter material and collect it on the outside of the screen. By using the 1/2" FIP PVC ball valve included in the system, you can use the purge valve for easy one step cleaning. Clear poly carbonate housing permits easy inspection of the filter to identify when purging or cleaning is necessary. Please be sure to use the included bushing and plug on the outlet portion of the combo screen filter that is not being used. Please do not use both outlets for the combo style filter as this is not recommended by the manufacturer.

1-1/2" Combo Style Screen Filters

Model Inlet / Outlet Mesh # & Micron Min / Max Flow Price & Quantity
CF150-24P 1-1/2" Slip x Slip #24 (711 mic) 10GPM / 50GPM $92.31 Enter a quantity and
CF150-30P 1-1/2" Slip x Slip #30 (533 mic) 10GPM / 50GPM $84.95 Enter a quantity and
CF150-40P 1-1/2" Slip x Slip #40 (381 mic) 10GPM / 50GPM $81.67 Enter a quantity and
CF150-60P 1-1/2" Slip x Slip #60 (254 mic) 10GPM / 50GPM $98.85 Enter a quantity and
CF150-100P 1-1/2" Slip x Slip #100 (152 mic) 10GPM / 50GPM $89.75 Enter a quantity and
CF150-140P 1-1/2" Slip x Slip #140 (104 mic) 10GPM / 50GPM $90.47 Enter a quantity and
CF150-250P 1-1/2" Slip x Slip #250 (61 mic) 10GPM / 50GPM $92.52 Enter a quantity and
CF150-500P 1-1/2" Slip x Slip #500 (30 mic) 10GPM / 50GPM $93.63 Enter a quantity and
CF150-1000P 1-1/2" Slip x Slip #1000 (15 mic) 10GPM / 50GPM $101.91 Enter a quantity and

1-1/2" Combo Style Filter Related Accessories

Model Description Price & Quantity

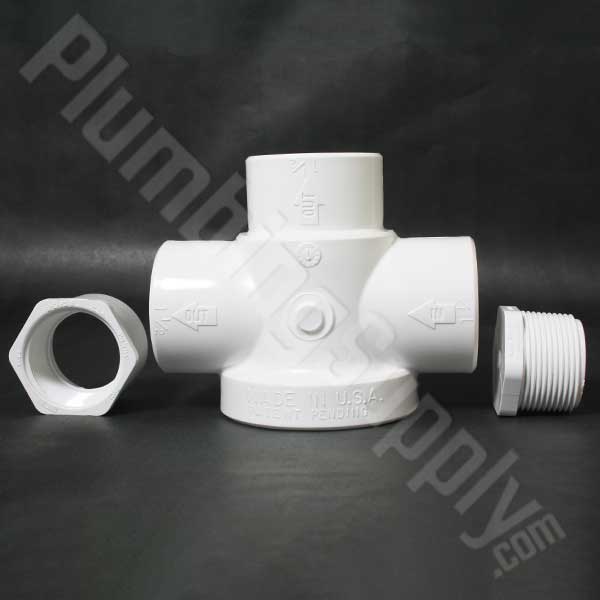

CF60B Replacement Head Assembly for 1-1/2" Combo Filter Systems $76.10 Enter a quantity and
NT60C Replacement Clear Housing for 1-1/2" Filter Systems $48.85 Enter a quantity and
NT60S O-Ring Kit for 1-1/2" Filter Systems $2.81 Enter a quantity and
NT60SC24 1-1/2" Replacement Filter Screen with #24 Mesh (711 Micron) $25.92 Enter a quantity and

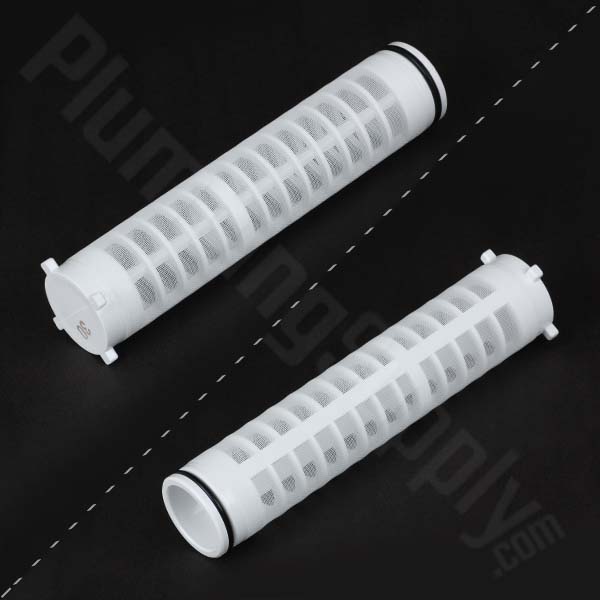

NT60SC30 1-1/2" Replacement Filter Screen with #30 Mesh (533 Micron) $25.97 Enter a quantity and

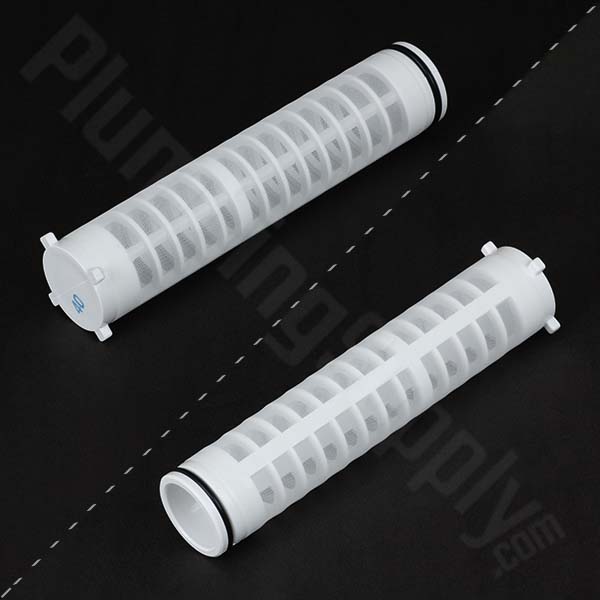

NT60SC40 1-1/2" Replacement Filter Screen with #40 Mesh (381 Micron) $23.05 Enter a quantity and
NT60SC60 1-1/2" Replacement Filter Screen with #60 Mesh (254 Micron) $27.11 Enter a quantity and

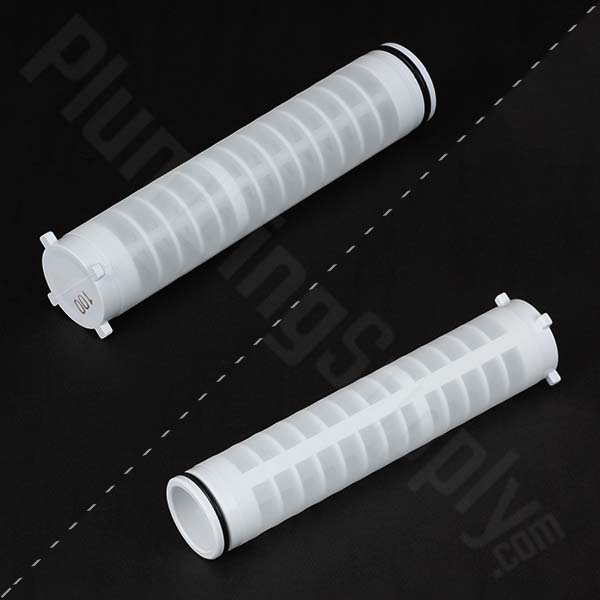

NT60SC100 1-1/2" Replacement Filter Screen with #100 Mesh (152 Micron) $26.57 Enter a quantity and

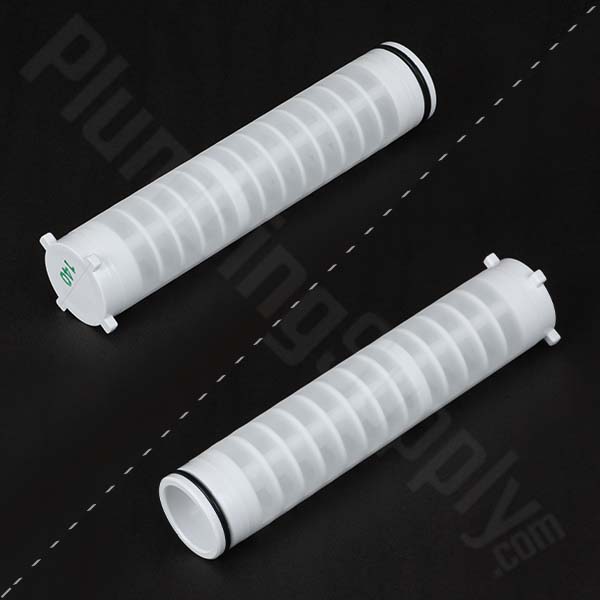

NT60SC140 1-1/2" Replacement Filter Screen with #140 Mesh (104 Micron) $26.58 Enter a quantity and

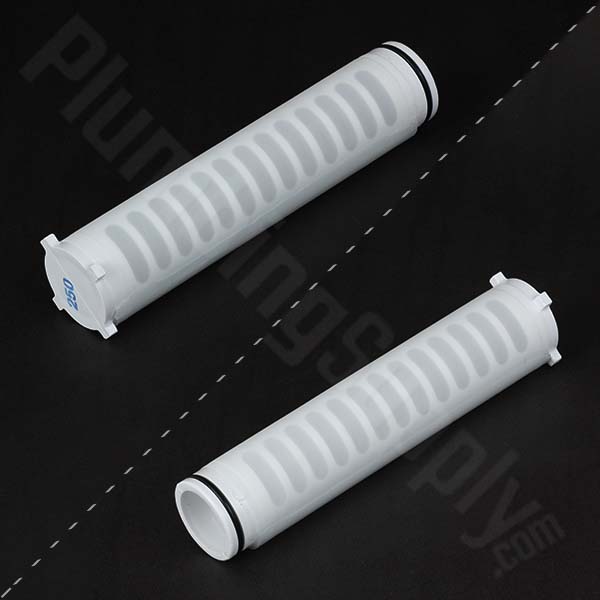

NT60SC250 1-1/2" Replacement Filter Screen with #250 Mesh (61 Micron) $17.94 Enter a quantity and

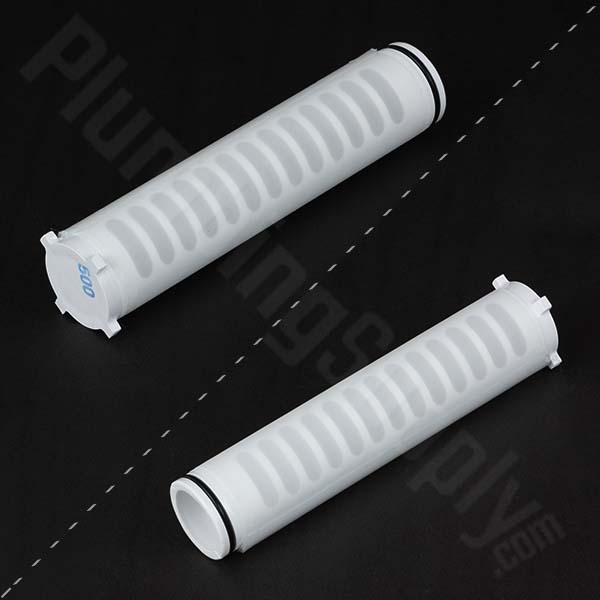

NT60SC500 1-1/2" Replacement Filter Screen with #500 Mesh (30 Micron) $20.88 Enter a quantity and

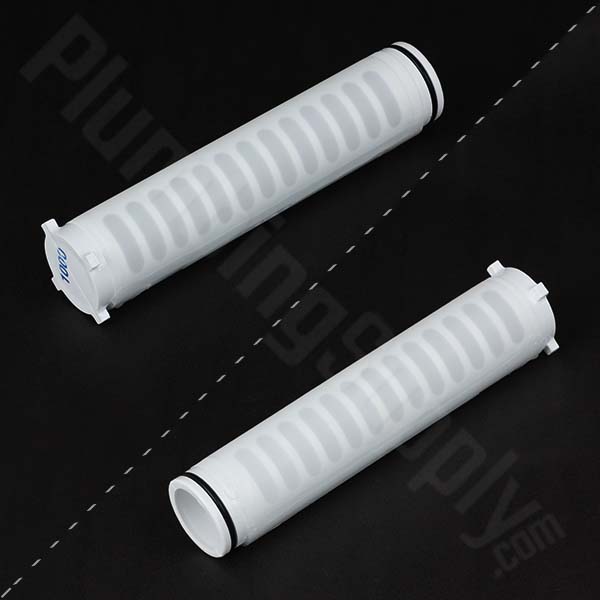

NT60SC1000 1-1/2" Replacement Filter Screen with #1000 Mesh (15 Micron) $18.85 Enter a quantity and

2" Combo Style Screen Filters

Model Inlet / Outlet Mesh # & Micron Min / Max Flow Price & Quantity
CF200-24P 2" Slip x Slip #24 (711 mic) 18GPM / 100GPM $125.78 Enter a quantity and
CF200-40P 2" Slip x Slip #40 (381 mic) 18GPM / 100GPM $124.89 Enter a quantity and
CF200-60P 2" Slip x Slip #60 (254 mic) 18GPM / 100GPM $138.03 Enter a quantity and
CF200-100P 2" Slip x Slip #100 (152 mic) 18GPM / 100GPM $127.76 Enter a quantity and
CF200-140P 2" Slip x Slip #140 (104 mic) 18GPM / 100GPM $137.07 Enter a quantity and
CF200-250P 2" Slip x Slip #250 (61 mic) 18GPM / 100GPM $142.80 Enter a quantity and
CF200-500P 2" Slip x Slip #500 (30 mic) 18GPM / 100GPM $128.28 Enter a quantity and
CF200-1000P 2" Slip x Slip #1000 (15 mic) 18GPM / 100GPM $132.46 Enter a quantity and

2" Combo Style Filter Related Accessories

Model Description Price & Quantity
CF120B Replacement Head Assembly for 2" Combo Filter Systems $59.62 Enter a quantity and
NT120C Replacement Clear Housing for 2" Filter Systems $30.56 Enter a quantity and
NT120S O-Ring Kit for 2" Filter Systems $4.69 Enter a quantity and

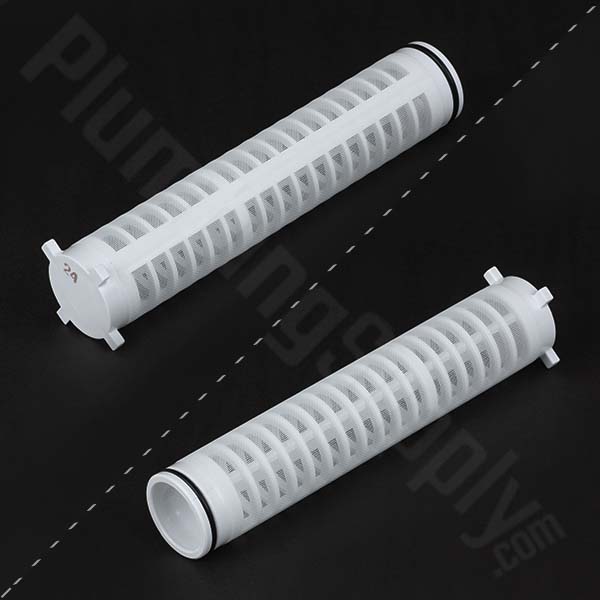

NT120SC24 2" Replacement Filter Screen with #24 Mesh (711 Micron) $44.69 Enter a quantity and

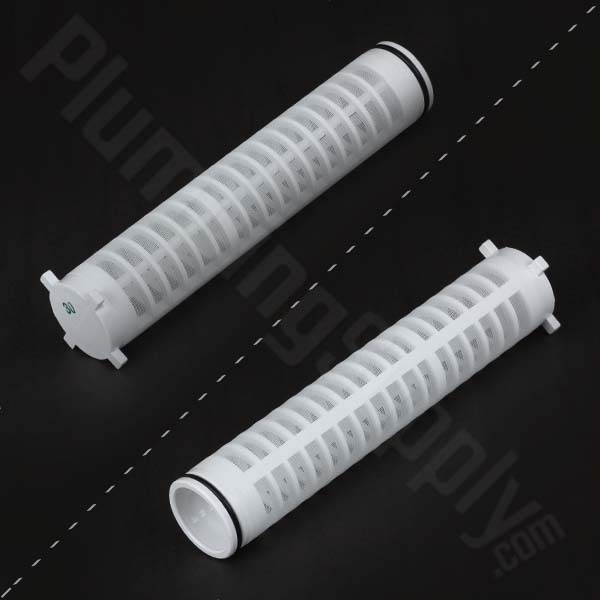

NT120SC30 2" Replacement Filter Screen with #30 Mesh (533 Micron) $38.88 Enter a quantity and
NT120SC40 2" Replacement Filter Screen with #40 Mesh (381 Micron) $42.08 Enter a quantity and

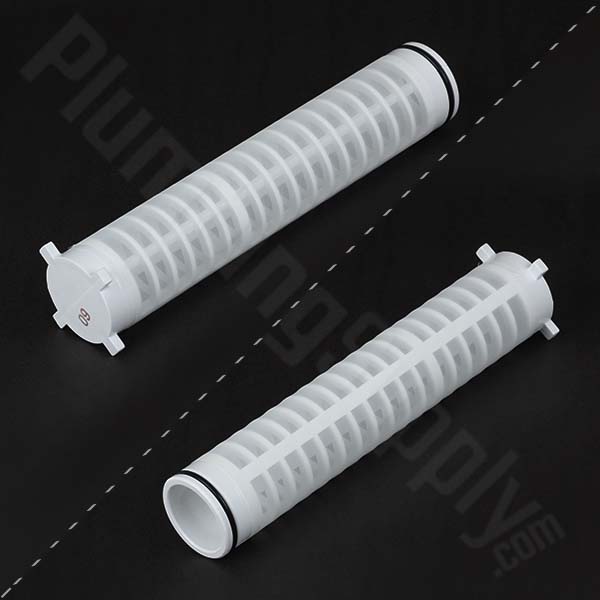

NT120SC60 2" Replacement Filter Screen with #60 Mesh (254 Micron) $65.54 Enter a quantity and

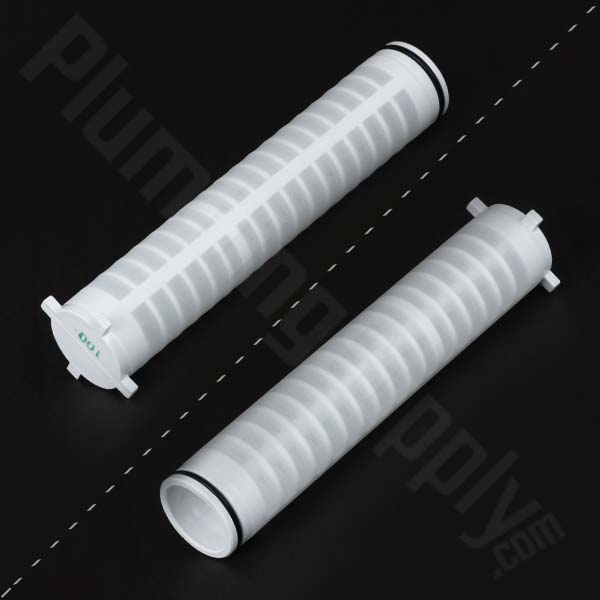

NT120SC100 2" Replacement Filter Screen with #100 Mesh (152 Micron) $39.36 Enter a quantity and

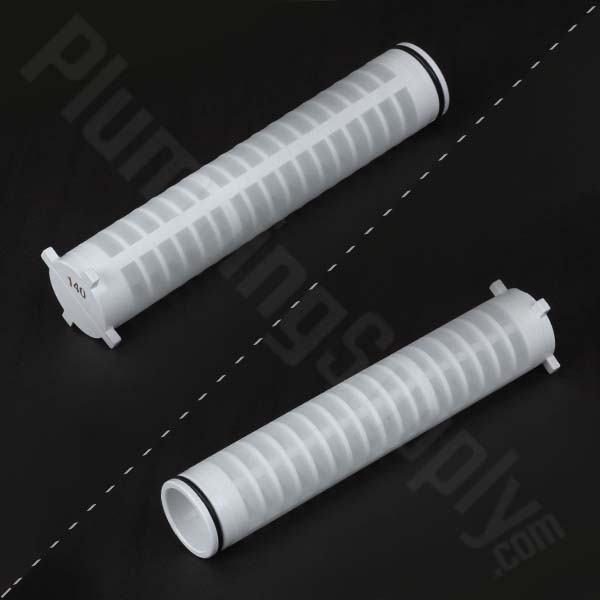

NT120SC140 2" Replacement Filter Screen with #140 Mesh (104 Micron) $46.04 Enter a quantity and
NT120SC250 2" Replacement Filter Screen with #250 Mesh (61 Micron) $47.40 Enter a quantity and

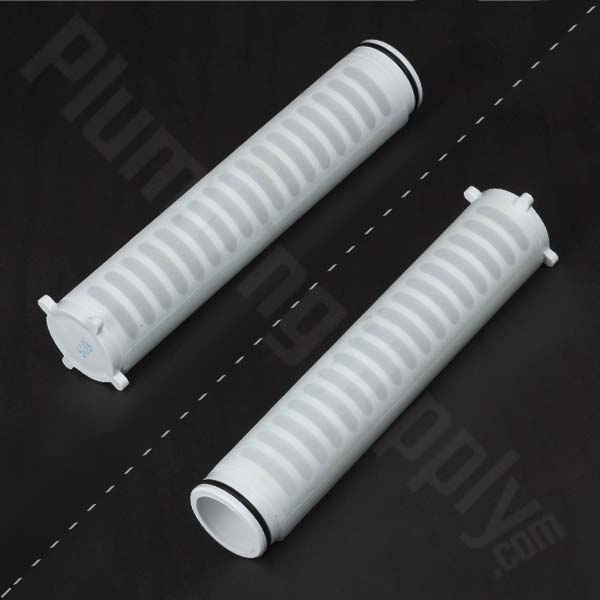

NT120SC500 2" Replacement Filter Screen with #500 Mesh (30 Micron) $44.40 Enter a quantity and

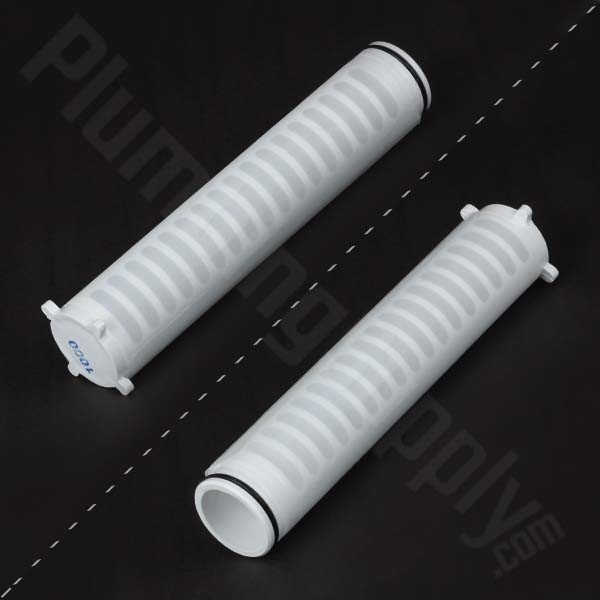

NT120SC1000 2" Replacement Filter Screen with #1000 Mesh (15 Micron) $29.39 Enter a quantity and

Related Items & Accessories



Frequently Asked Questions

Q. "Why should I not install filters with purge valves on the suction side of the pump?"
A. If you are using the purge valve system and not simply capping the purge port, you will need to install this unit on the discharge side of the pump to avoid damage to the pump. With the filter on the suction side, it will starve the pump for water and cause cavitation. Also the filter is just another place to get a suction leak. Any leak in the suction line will cause you to lose prime.

Q. "What if my flow rate is more than 100 gallons per minute?"
A. Simply install two or more units parallel to each other for flow rates greater than 100 GPM.

Q. "Do I have to install the Tee Style Spin-Down water filter in a vertical position?"
A. It is preferable for the filter to be installed in a vertical position with the purge outlet pointing downwards. However, the filter will work in a horizontal position if you are unable to install it vertically.

Q. "What if I require more surface area than the spin down filters offer?"
A. Spin down filters can clog very easy and need to be cleaned or purged quite often if the water supply has quite a bit of sediment since they have a relatively small surface area as compared to a pleated polyester cartridge. Should you need a filter with more surface area than the spin down, we recommend looking at the American Plumber housings and W30PE or W50PE filters.

Q. "Do I need to remove the clear cover from the PVC body in order to glue PVC pipe to the body?"
A. Yes. Any excess glue that comes in contact with the clear cover will damage the clear cover.

Q. "I have flushed my filter screen numerous times. I just flushed it again, but now my filter screen looks like there are small particles stuck in the screen. Can I clean the screen or do I need to purchase another screen?"
A. Yes, you can clean the filter screen. Turn off the water supply and drain some water to relieve any pressure in the line. Unscrew the clear cover and remove the filter screen. First wash off the screen with water spray to dislodge any collected sediment. Then use a soft brush to remove fine particles wedged in the screen. Lubricate the o-rings with food grade silicone grease and reassemble making sure to hand tighten only. The use of tools will void the warranty of the Vu-Flow spin down filters.
