Shower Drains for Acrylic, Fiberglass or Metal Stalls

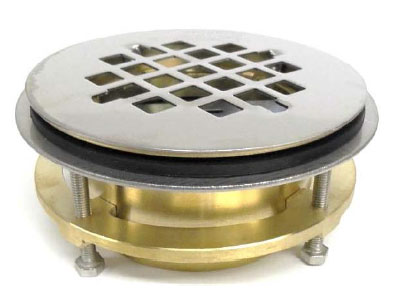

JackRabbit Shower Drain & Replacement Strainers
Great for installation in tight spaces!
Features:
- Designed for replacement of shower drains where the work space is restricted by building members or existing pipe
- Unique design incorporates four zinc plated 'jack bolts' and a pressure plate washer to create the seal between the shower pan and the drain
- Internal gasket wrench is included for tightening the internal compression nut against the internal compression gasket
- Internal compression gasket fits over 2\" Sch. 40 ABS and PVC, Galvanized, and No-hub cast iron DWV pipe - creates a tight seal without the need for gluing or caulking the drain to pipe connection
- 4-1/4" outside dimensions
- View installation instructions
JackRabbit 2" Brass Jacking Bolt Shower Drain - stainless steel strainer
included - $51.96
JackRabbit Snap-In Replacement Strainers:
Insert Style Shower Drain
Model 4000 Insert Style
Shower Drain - $96.17
Replacement Drain Covers:
Solvent Weld Shower Drain
#825-17 -
1-1/2" hub or 2" Spigot solvent weld outlet - snap-in strainer -
PVC - $9.60
#825-27 -
2" Hub solvent weld outlet - snap-in strainer -
PVC - $7.91
#825-27 -
2" Hub solvent weld outlet - snap-in strainer -
ABS - $8.75
Replacement SNAP-IN Drain Cover:
Popular Shower Drain Kits For Fiberglass Or Acrylic Showers
Basic ABS Glue On Style
Shower Drain
Features:
- ABS drain body for fiberglass/acrylic shower bases
- Durable 4-1/4" snap-in plastic strainer - white finish
- Solvent welds over 2" Sch. 40 DWV pipe
- Includes rubber gasket for a tight seal to the base
- Fiber friction ring keeps rubber gasket from twisting when installing
Basic ABS Glue On Style
Shower Drain - $7.21
Replacement SNAP-IN Strainers:
Basic ABS No-Caulk Style
Shower Drain
Features:
- ABS No-Calk® drain for fiberglass/acrylic bases
- 4-1/4" snap-in strainer - plastic with white top
- Compression connection attaches over 2" Sch. 40 DWV pipe
- Rubber gasket included for a tight seal to the base
- Fiber friction ring keeps rubber gasket from twisting when installing
Basic ABS No-Caulk Style
Shower Drain - $10.16
Replacement SNAP-IN Strainers:
OFFSET ABS Glue On Style
Shower Drain
Features:
- ABS drain body for fiberglass/acrylic shower bases
- 1" offset from center of drain strainer to center of pipe inlet
- Durable 4-1/4" screw-in plastic strainer - stainless steel finish
- Solvent welds over 2" Sch. 40 DWV pipe
- Includes rubber gasket for a tight seal to the base
- Fiber friction ring keeps rubber gasket from twisting when installing
- Designer finish replacement strainers 4-1/4" OD 2-5/8" cc screw holes available
- View dimensions
- View drain cover dimensions
Offset ABS Glue On Style
Shower Drain - $16.83
Replacement Round SCREW ON Drain Covers
Solid Brass Caulk Style
Shower Drain
Brass Caulk Style
Shower Drain - $34.93
Replacement SNAP-IN Drain Covers:
ABS Non-Adjustable
General Purpose Drain
Features:
- ABS non-adjustable general purpose drain
- Fits over 3" sch.40 pipe and inside 4" sch.40 pipe
- 4-7/8" outside diameter screw-on stainless steel strainer
- Can be used for landscape walk way drains or other non traffic bearing applications such as garages, pump houses, patios, storage sheds, etc.
- View dimensions
ABS Non-Adjustable
General Purpose Drain - $13.06
Looking for replacement drain covers?
Find them here
Tile-In Shower Pan Drains
Tile-In Shower Drains - by Sioux Chief
18 Gauge Stainless Steel Strainer,
300lb grate load rating
Features:
- 18 Gauge stainless steel 4-1/4" snap in strainer for easy installation
- Metal top strainer covers plastic top housing leaving no plastic rim showing
- Brass female thread inserts in adapter for collar screws
- PVC top housing, collar & adapter
- 2" Schedule 40 hub, solvent weld conforms to ASTM D2665 standard
- 2" FIP thread clamping collar; 2" MIP top housing, & 2" glue on hub outlet
- View tile-in shower drain dimensions here
- Can be used with Designer Finish 5-3/4" Tile Squares with Round screw-in strainer (head adapter has integral plastic pilot holes for standard screws 2-5/8" center-to-center)
- Proudly made in the USA
Shower Pan Drain With Snap-in
Stainless Steel Strainer - Discontinued

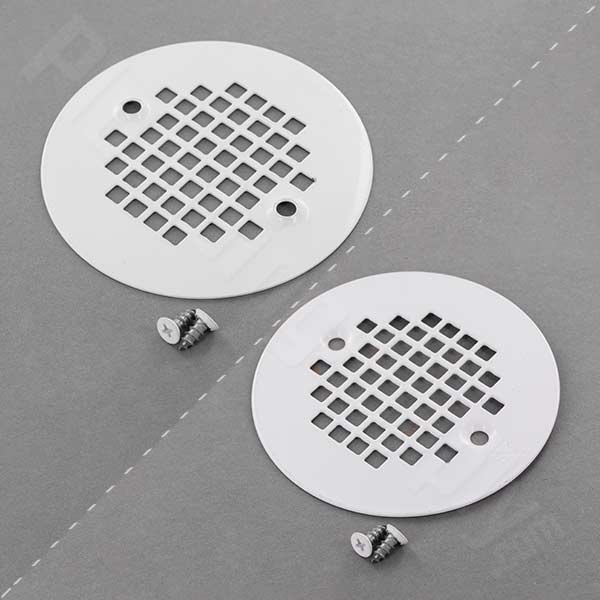

Replacement SNAP-IN Strainers:
Low Profile Shower Pan Drain -
Plastic Rim: PVC
by Sioux Chief
Features:
- 19 gauge stainless steel screw-on strainer with plastic rim
- PVC head adapter provides rim around strainer for easy strainer replacement in tile applications
- 2" Schedule 40 hub, solvent weld conforms to ASTM D2665 standard
- For tile showers - have weep hole and flange for shower pan liner
- Drain is adjustable for different shower pan thickness
- 4-1/4" diameter strainer drain cover holes 2-5/8" center to center
- Brass reinforced integrated inserts for strainer cover screws
- Strainer load rating: 300 lbs.

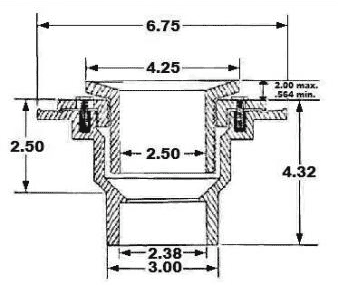

- View dimensions for the shower pan drain with plastic rim
- View round screw-in drain cover dimensions
- Proudly made in the USA
Low Profile Shower Pan Drain -
Plastic Rim - PVC - $12.92
Adapter Kit includes Square Snap-In Stainless Steel Strainer -
view dimensions
Low Profile Shower Pan Drain -
Plastic Rim: ABS
Features:
- Installs in tight places - low-profile design
- Stainless steel 4" O.D. screw-on strainer
- Strainer screw holes located 3-3/8" center to center
- Fits over 2" or inside 3" Schedule 40 DWV ABS pipe
- For tile showers - has weep holes for shower pan liner
- Clamping collar with 4 stainless steel bolts secures into brass inserts
- helps prevent stripping
- Strainer barrel is adjustable for different shower pan thickness
- Proudly made in the USA
Low-Profile Shower Pan Drain -
Plastic Rim - ABS - $11.70
Tile-In Shower Pan Drain with Chrome Head Adapter and Strainer: PVC
by Sioux Chief
Features:
- Quality shower drain with strainer #821-2PCP
- Chrome plated zinc strainer and head adapter
- Head/flange adapter adjusts for different shower pan thicknesses
- Threaded brass inserts molded in body for attaching clamping collar
- 2" outlet hub glues over 2" Sch.40 PVC pipe
- Strainer drain cover holes measure 3-3/8" center to center
- Strainer load rating: 500 lbs.
- Proudly designed, engineered, and made in the USA
- View tile-in shower pan drain dimensions
- Designer drain covers 3 7/8" Round with 3 3/8" center to center fastening holes available here
Round Shower Drain with Chrome Strainer - PVC - $36.99
Round Shower Drain
with Chrome Head Adapter
& Strainer - PVC - $36.99
Replacement Chrome Strainer - Round - $31.46
Replacement Chrome
Strainer - Round - $31.46
Premium Shower Pan Drain with Cast Metal Ring and Strainer: PVC
by Sioux Chief
Features:
- Add a look and feel of luxury to your tile shower
- Premium heavy duty cast metal ring and strainer
- Solid cast strainer and ring material
- Head/flange adapter adjusts for different shower pan thicknesses
- 2" outlet hub solvent welds over 2" Sch.40 PVC pipe
- Strainer drain cover holes 2-5/8" center to center
- Strainer load rating: 1000 lbs.
- Proudly made in the USA
- View premium shower pan drain dimensions
Replacement Premium Cast
Strainer & Ring Only:
5-1/2" Round Tile-Floor Shower Drain - by Sioux Chief
Oil Rubbed Bronze Finsh
Features:
- Perfect for when a standard drain is not enough!
- Designed for tiled showers with multiple heads or body spray options
- Fits 3" PVC or ABS pipe
- 5-1/2" Round floor drain
- Choice of solid nickel bronze or stainless steel top
- Round drain kits can handle 11.5 GPM with 1/8" allowable head or 16.2 GPM with 1/4" allowable head
- View 5-1/2" round tile floor shower drain dimensions
- Proudly made in the USA
5-7/8" Square Tile-Floor Shower Drain - by Sioux Chief
Features:
- Perfect for when a standard drain is not enough!
- Designed for tiled showers with multiple heads or body spray options
- Fits 3" PVC or ABS pipe
- 5-7/8" Square floor drain
- Choice of solid nickel-bronze or stainless steel top
- Square drain kits can handle 19.9 GPM with 1/8" allowable head or 27.5 GPM with 1/4" allowable head
- View 5-7/8" square tile floor shower drain dimensions
- Proudly made in the USA
Shower Floor Drains
Proudly made in the USA
Cast Iron Shower Drains
Features:
- For tile showers
- Cast iron body
- Solid cast strainer and ring material
- EZ Test / Quick test shower drain
- Durable chrome finished strainer
- The cast iron body measures approximately 3-5/8" in height
Replacment Parts & Accessories
Go to Complete Square Tile
Frame Kits in many designer finishes
Replacement Shower Drain Strainers
These handy little strainers are great for helping keep hair and other debris from running down your shower drain. Their versatility means they can also be used anywhere a drain strainer is needed - simply choose the size of pipe you have (2", 3" or 4") and snap one in!
Frequently Asked Questions
Q. "What is the purpose of a quick test or EZ test drain?"
A. Quick test (A.K.A. EZ Test) shower drains are threaded to allow for a test nipple and cap to be inserted from the top of the drain for leak testing or the installer can use an inflatable test ball.
Q. "What is a collector or shower pan?"
A. This is the horizontal surface located at the bottom of the shower. The collector typically consists of a non-slip surface slightly banked towards the center or wherever the drain is located. Combined with three to four inch walls around the side, the goal of your shower drainage plumbing is to get the water to flow to and down the drain.
Q. "Why are some of these listed as No Caulk drains? Don't they need caulking to seal to the shower base?"
A. The are called No Caulk drains because they will fit over drain piping and are sealed by an internal compression ring. Before modern plumbing technology came along, drains would have had to be caulked with lead and oakum to seal the drain to the pipe. Since the lead and oakum process has been eliminated they are referred to as no caulk. You will still need to use some type of caulking to seal the flange of the shower drain to the shower pan.
Q. "How can I prevent my weep holes from clogging during installation?"
A. Before the final mortar application place some pea gravel over the weep holes so the mortar doesn't completely cover them.
Q. "What is a PVD finish?"
A. A PVD finish is designed to not corrode, tarnish, or discolor. It is developed by embedding molecules deep into the surface, creating a bond that is nearly indestructible. This process is known as Physical Vapor Deposition (PVD).
