Exposed, Manually Operated Water Closet Flushometers
Sloan Flushometers are offered in a variety of models, and there's one for every toilet - from exposed-style
top spud flushometers to exposed-style
back spud flushometers, you'll find them here on PlumbingSupply.com
®!
Look for this symbol to find Sloan products that
meet requirements of the Buy American Act
Exposed Toilet/Water Closet Flushometers - Regal® Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
These toilet flushometers feature:
- 1" IPS screwdriver angle stop
- Vacuum breaker flush connection
- Spud coupling, wall and spud flanges for 1-1/2" top spud
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Low flow models available help keep water costs down
- Stylish chrome finish
- Chloramine resistant handle packing, stop seat, & vacuum breaker
- Optional XL packages available - includes ADA handle, vandal resistant stop cap, and sweat solder adapter kit
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- Buy American Act compliant (note symbol for participating products)
| Model |
Type |
Description |
Price & Quantity |
| ↓ 1.28 GPF ultra low consumption exposed toilet/water closet flushometers |
| 111-XL |
top spud |
1.28 GPF water closet flushometer for floor or wall hung toilets
- 11-1/2" tailpiece - View dimensions
- with ADA handle, vandal resistant stopcap/set screw, & sweat solder adapter
Compliant with California Energy Commission water efficiency standards |
$214.25 |
| ↓ 1.6 GPF low consumption exposed toilet/water closet flushometers |
| 111-XL |
top spud |
1.6 GPF water closet flushometer for floor or wall hung toilets
- 11-1/2" tailpiece - View dimensions
- with ADA handle, vandal resistant stopcap/set screw, & sweat solder adapter |
$214.27 |
| 113-1.6-XL |
top spud |
1.6 GPF water closet flushometer for floor or wall hung toilets
- 16" tailpiece - View dimensions
- with ADA handle, vandal resistant stopcap/set screw, & sweat solder adapter |
$168.19 |
| 115-1.6-XL |
top spud |
1.6 GPF water closet flushometer for floor or wall hung toilets

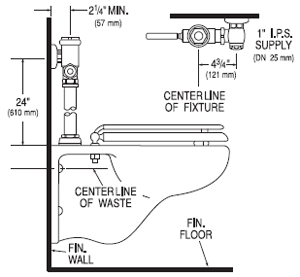

- 24" tailpiece - View dimensions
- with ADA handle, vandal resistant stopcap/set screw, & sweat solder adapter |
$176.02 |
| 116-1.6-XL |
top spud |
1.6 GPF water closet flushometer for floor or wall hung toilets
- 27" tailpiece - View dimensions
- with ADA handle, vandal resistant stopcap/set screw, & sweat solder adapter |
$178.99 |
| ↓ 3.5 GPF exposed toilet/water closet flushometers |
| 110-XL |
top spud |
3.5 GPF water closet flushometer for floor or wall hung toilets
- 11-1/2" tailpiece - View dimensions
- with ADA handle, vandal resistant stopcap/set screw, & sweat solder adapter |
$214.29 |

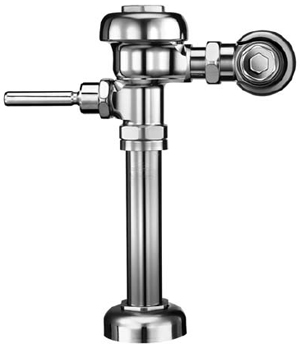

Exposed Water Closet Flushometers - Royal® 110/111 Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" top spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 11-1/2" tailpiece: View dimensions
- Buy American Act compliant (note symbol for participating products)
Exposed Water Closet Flushometers - Royal® 100 Series
Designed for floor mounted 1-1/2" top spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver straight stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" top spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- View dimensions
- Buy American Act compliant (note symbol for participating products)
Exposed Water Closet Flushometers - Royal® 113 Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" top spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 16" tailpiece: View dimensions
- Buy American Act compliant
Exposed Water Closet Flushometers - Royal® 114 Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" top spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 34-3/8" tailpiece: View dimensions
- Buy American Act compliant
Exposed Water Closet Flushometers - Royal® 115 Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" top spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 24" tailpiece: View dimensions
- Buy American Act compliant (note symbol for participating products)

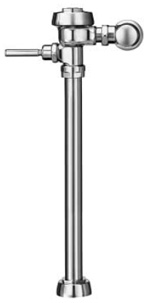

Exposed Water Closet Flushometers - Royal® 116 Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver straight stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" top spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 27" tailpiece: View dimensions
- Buy American Act compliant

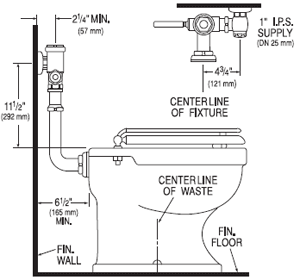

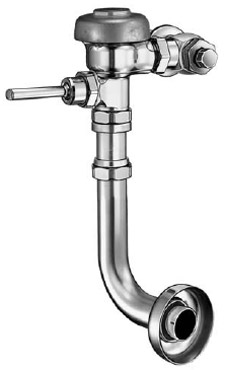

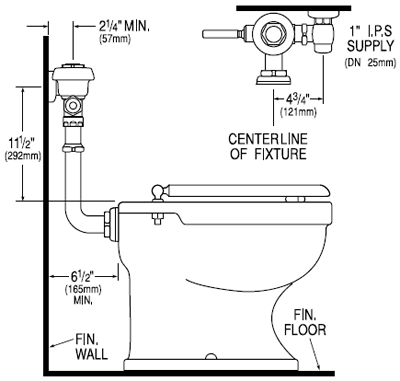

Exposed Water Closet Flushometers - Royal® 120 Series
Designed for floor mounted 1-1/2" back spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" back spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 11-1/2" tailpiece

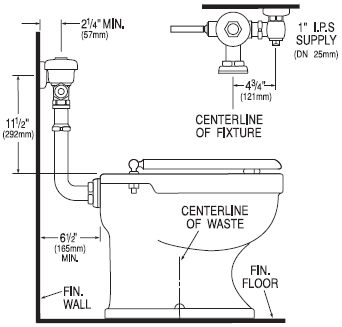

- View dimensions
- Buy American Act compliant (note symbol for participating products)

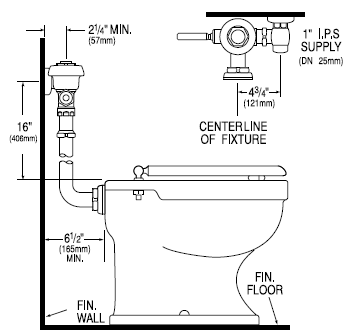

Exposed Water Closet Flushometers - Royal® 121 Series
Designed for floor mounted 1-1/2" back spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" back spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 16" tailpiece
- View dimensions
- Buy American Act compliant

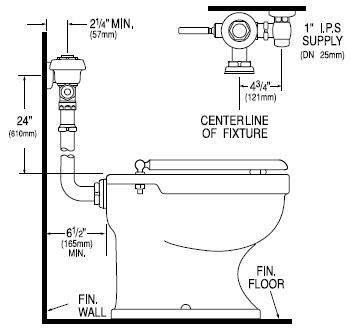

Exposed Water Closet Flushometers - Royal® 122 Series
Designed for floor mounted 1-1/2" back spud bowls
This water closet flushometer features:
- Permex™ molded rubber diaphragm, handle packing, stop seat, & vacuum breaker provides chloramine corrosion resistance
- Dual filtered diaphragm reduces debris from entering the flushometer and ensures maximum performance in demanding environments
- 1" IPS screwdriver angle stop
- Chrome plated handle, tailpiece, and body for an attractive look
- Vandal resistant free-spinning stop cap
- Spud coupling & flange for 1-1/2" back spuds
- Sweat solder adapter & cast set screw wall flange
- High copper, low zinc brass casting for dezincification resistance
- Non-hold open handle to ensure maximum water conservation
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- 24" tailpiece
- View dimensions
- Buy American Act compliant (note symbol for participating products)
Exposed Toilet/Water Closet Flushometers - Regal® Series
Designed for floor mounted 1-1/2" back spud bowls
These toilet flushometers feature:
- 1" IPS screwdriver angle stop
- Vacuum breaker flush connection
- Spud coupling, wall and spud flanges for 1-1/2" back spud
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Low flow models available help keep water costs down
- Stylish chrome finish
- Chloramine resistant handle packing, stop seat, & vacuum breaker
- Optional XL packages available - includes ADA handle, vandal resistant stop cap, and sweat solder adapter kit
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- Buy American Act compliant (note symbol for participating products)
Exposed Toilet/Water Closet Flushometers - Crown® Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
Model #111 Crown II
These toilet flushometers feature:
- Fixed volume piston with filtered o-ring bypass
- Non-hold open handle to ensure consistent water saving flushes
- Contoured cover, handle socket, & flanges give it an attractive look
- 1" IPS screwdriver angle stop
- Vandal resistant stop cap
- One-piece bottom hex coupling nut
- Spud coupling, wall and spud flanges for 1-1/2" top spud bowls
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Low flow models available help keep water costs down
- Stylish chrome finish
- Chloramine resistant handle packing, stop seat, & vacuum breaker
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- Buy American Act compliant (note symbol for participating products)
Exposed Toilet/Water Closet Flushometers - Gem•2® Series
Designed for floor mounted or wall hung 1-1/2" top spud bowls
Model #110 shown
These toilet flushometers feature:
- Fixed volume piston with filtered o-ring bypass
- Non-hold open handle to ensure consistent water saving flushes
- Contoured cover, handle socket, & flanges give it an attractive look
- 1" IPS screwdriver angle stop
- Vandal resistant stop cap
- One-piece bottom hex coupling nut
- Spud coupling, wall and spud flanges for 1-1/2" top spud bowls
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Low flow models available help keep water costs down
- Stylish chrome finish
- Chloramine resistant handle packing, stop seat, & vacuum breaker
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- Buy American Act compliant (note symbol for participating products)
Exposed Toilet/Water Closet Flushometers - Gem•2® Series
Designed for floor mounted 1-1/2" back spud bowls
Model #120 shown
These toilet flushometers feature:
- Fixed volume piston with filtered o-ring bypass
- Non-hold open handle to ensure consistent water saving flushes
- Contoured cover, handle socket, & flanges give it an attractive look
- 1" IPS screwdriver angle stop
- Vandal resistant stop cap
- One-piece bottom hex coupling nut
- Spud coupling, wall and spud flanges for 1-1/2" back spud bowls
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Low flow models available help keep water costs down
- Stylish chrome finish
- Chloramine resistant handle packing, stop seat, & vacuum breaker
- ASSE 1037, ANSI/ASME 112.19.6, & military spec V-29193 compliant
- Buy American Act compliant (note symbol for participating products)

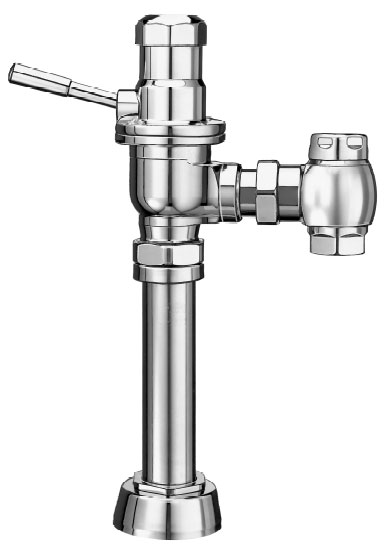

Sloan Dolphin® Flushometer Valves
These toilet flushometers feature:
- Specifically engineered for salt water and severe water conditions
- Non-hold open metal lever handle to ensure consistent water saving flushes
- Vandal resistant stop cap
- Adjustable tailpiece
- 11-1/2" flush tube
- 1" IPS screwdriver angle stop
- Vacuum breaker flush connection available
- Spud coupling and flange for 1-1/2" top spud bowls
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Chloramine resistant handle packing, stop seat & vacuum breaker
- ASSE 1037 compliant
- View dimensions
- Buy American Act compliant
Order 10 or more Dolphin flush valves for additional savings!
Pricing discounts will show up in your shopping cart.

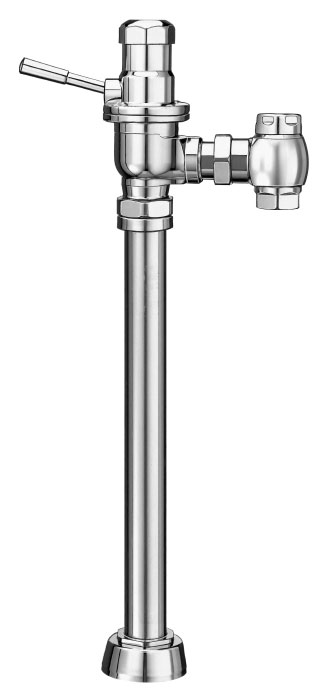

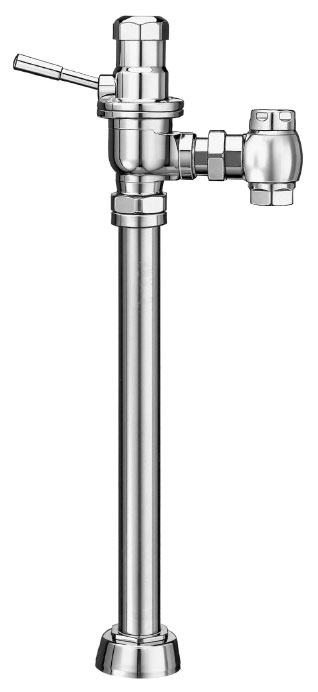

Sloan Dolphin Flushometer Valves
These toilet flushometers feature:
- Specifically engineered for salt water and severe water conditions
- Non-hold-open metal lever handle for regulated water consumption
- Does not require water pressure to positively shut off
- Factory set at 3.5 gpf (for 40psi)
- Valve adjustment range: 0.5 gpf to 16.0 gpf
- Vandal resistant stop cap
- Adjustable tailpiece
- 16" flush tube
- 1" IPS screwdriver Bak-Chek™ angle stop
- Spud coupling and flange for 1-1/2" top spud bowls
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Chloramine resistant handle packing & stop seat
- ASSE 1037 compliant

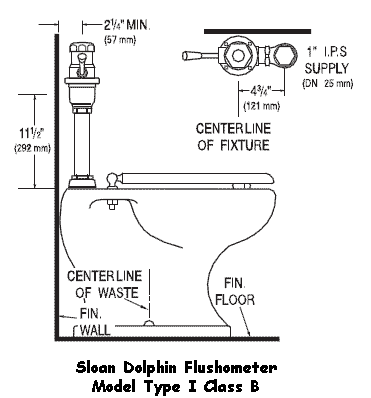

- View dimensions
Order 10 or more Dolphin flush valves for additional savings!
Pricing discounts will show up in your shopping cart.

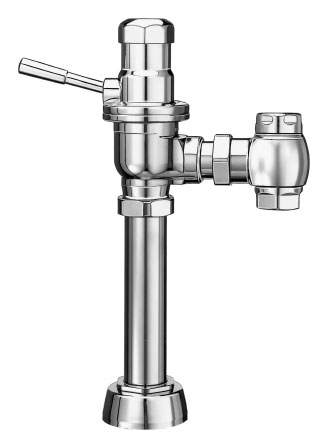

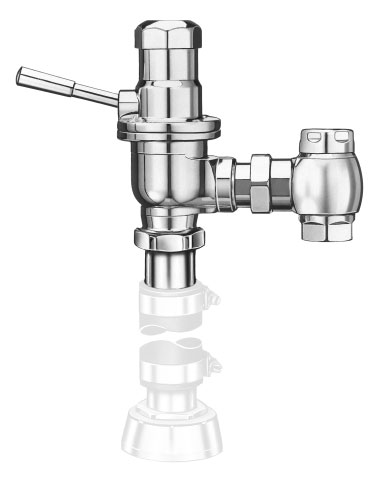

Sloan Dolphin® Flushometer Valves
These toilet flushometers feature:
- Specifically engineered for salt water and severe water conditions
- Non-hold open metal lever handle to ensure consistent water saving flushes
- Meets U.S. Navy Bureau of Ships Specifications MIL-V-0015020F & V-29193
- Factory set at 3.5 gpf (for 40 psi)
- Valve adjustment range: 0.5 gpf to 16.0 gpf
- Vandal resistant stop cap
- 1" IPS screwdriver angle stop
- Spud coupling and flange for 1-1/2" top spud bowls
- High copper, low zinc brass casting for dezincification resistance
- No external volume adjustment to ensure maximum water conservation
- Chloramine resistant handle packing, stop seat & vacuum breaker
- ASSE 1037 compliant
- Available with sil braze inlet adapter
- View dimensions
- Buy American Act compliant
Order 10 or more Dolphin flush valves for additional savings!
Pricing discounts will show up in your shopping cart.
Related Items & Accessories
Frequently Asked Questions
Q. "What is Permex™?"
A. Permex is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners.
Q. "What is Chloramine?"
A. Chloramine is commonly used in low concentrations as a disinfectant in municipal water systems as an alternative to chlorination.
Q. "What is a Saniguard antimicrobial coated handle?"
A. Antimicrobial coatings protect against a broad array of potentially harmful bacteria, fungi, yeast, mold, and mildew. The antimicrobial coating can withstand salt spray, water soak, high humidity, corrosion, and still protect effectively even with light scratches and abrasions.
Q. "What does it mean that a product is compliant with the Buy American Act (BAA) or with the American Recovery and Reinvestment Act (ARRA)? Are these products manufactured in the USA?"
A. The Buy American Act is a part of the American Recovery and Reinvestment Act of 2009 intended to help stimulate the United States' economy through the purchase of American-made goods. While the Buy American Act portion of the bill primarily regulates government spending, the regulations can help guide conscious consumers who wish to purchase American-made products. In general, an item that meets the requirements of the Buy American Act is assembled in the US and at least 50% of its components are domestically produced. While every single component of these products may not be produced in the US, a large portion are - and that portion is helping our American economy to grow and thrive.
return to top ↑
