Dolphin Flushometer Repair Parts

by Sloan Valve

Sloan Dolphin flushometer
The Dolphin series flushometers by Sloan are well known for their top-notch performance and longevity. Add to that the fact that they are specifically designed to withstand salt water and sever water conditions, and you've got the perfect solution for your commercial restroom whether you're safe on solid ground or sailing the high seas. Don't replace your quality Sloan Dolphin flushometer - simply repair it! From couplings and o-rings to complete handle assemblies, we have everything you need to get your flushometer functioning like new again.

Dolphin Flushometer Repair/Replacement Parts

The replacement kits/parts featured below are for use with either toilet or urinal Dolphin Series flushometers.

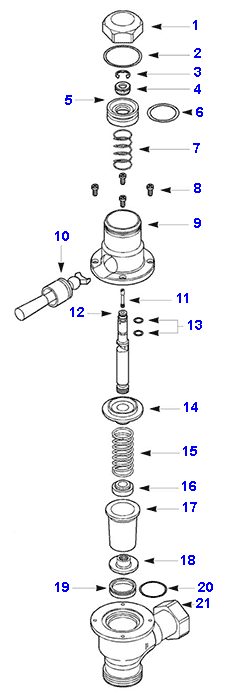

Repair parts schematics for Dolphin toilet/urinal flushometers
Item # Part Description Price & Quantity
1 DO-1 Cover Nut - Chrome $1,584.00

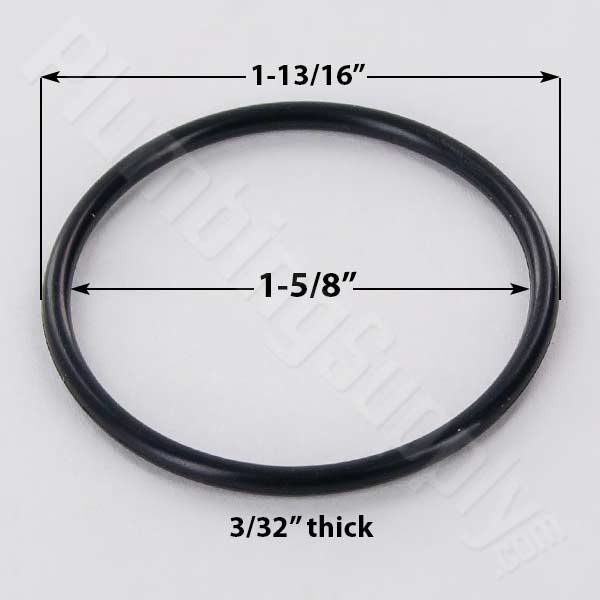

2 DO-2 Seat O-ring (or Cover Gasket) $3.47

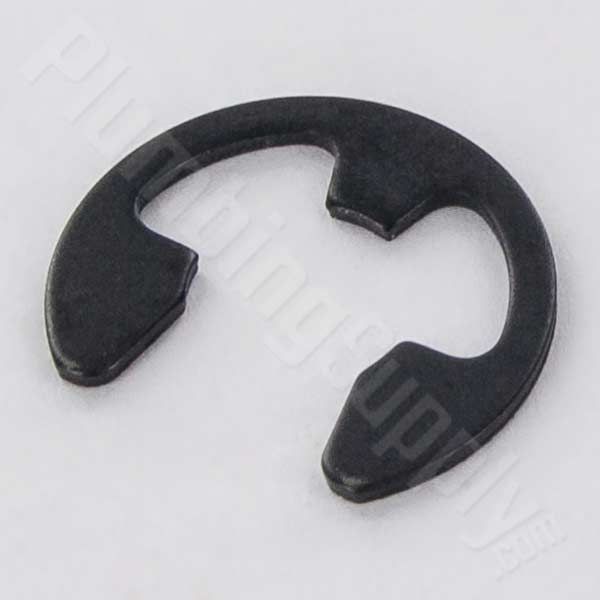

3 DO-28 Retaining Ring $0.98

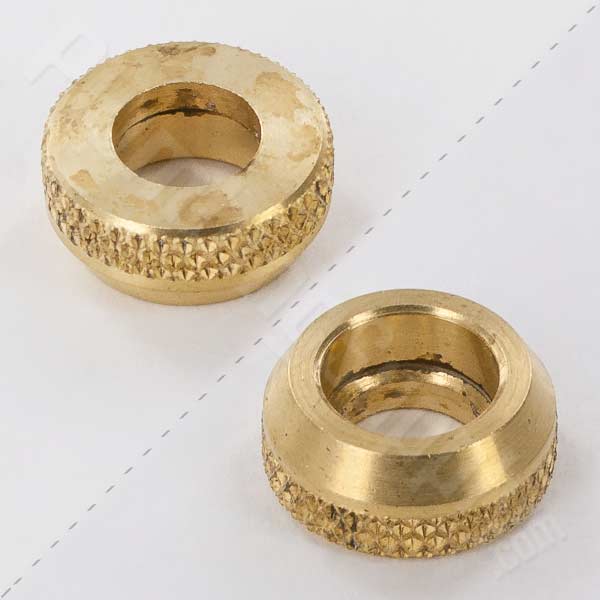

4 DO-4 Stem Nut - Rough Brass $2.29
5 DO-5 Piston Discontinued
6 DO-6 Piston O-ring $1.69
7 DO-7 Piston Spring $1.44

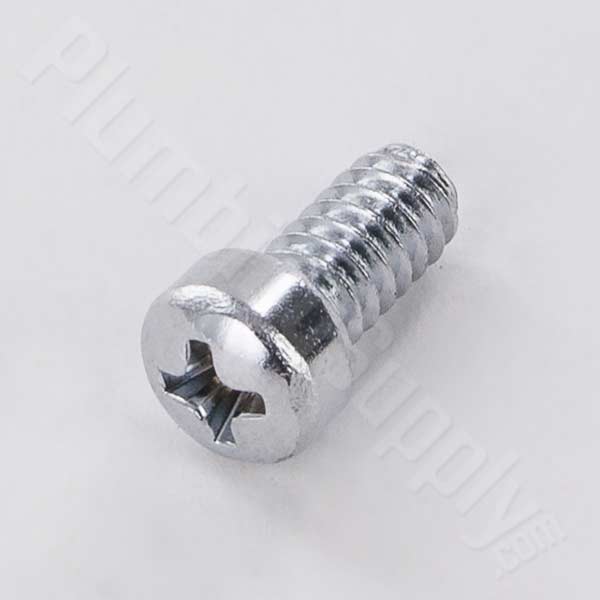

8 DO-11 Cover Screw - Chrome - 4 required $1.11
9 DO-10 Upper Body - Chrome $78.62
10 DO-20 Handle and Socket Assembly - Chrome Discontinued

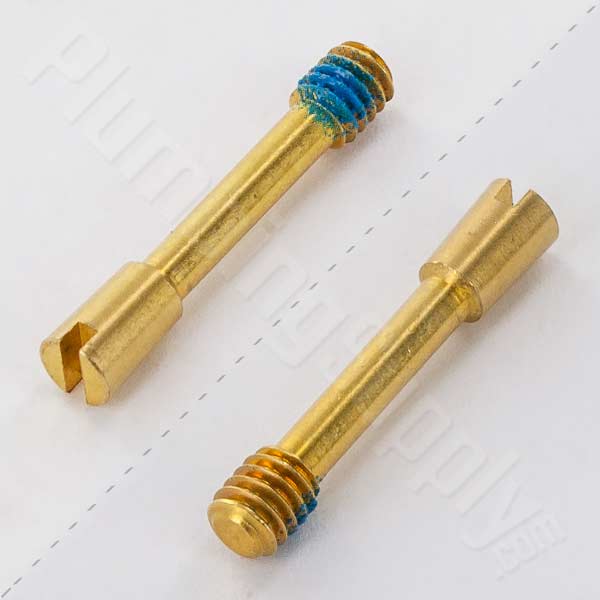

11 DO-3 Regulating Screw - Rough Brass $3.34
12 DO-9 Stem - Rough Brass Discontinued
13 SH-75 Throttle Seal O-ring - 2 required - Available in kits # DO-1001-A, DO-32-AA, and DO-32-AAN Available only in kit
14 DO-14 Bushing - Rough Brass $10.11
15 DO-16 Compression Spring (or Main Spring) $11.60
16 DO-17 Insert - Rough Brass $3.34
17 DO-15 "Flex-Sac" Discontinued
18 DO-18 Seating Nut - Available in kits # DO-32, DO-32-AA, and DO-32-AAN Available only in kit
19 DO-19 Seat Assembly with O-ring Discontinued
20 DO-22 O-ring $1.29
21 DO-13-NC Lower Body for Toilet Flushometers - Chrome $92.55
DO-13-NU Lower Body for Urinal Flushometers - Chrome $73.01

- OR - View Cart

Replacement and Repair Kits for Dolphin Flushometers

Part Description Price & Quantity

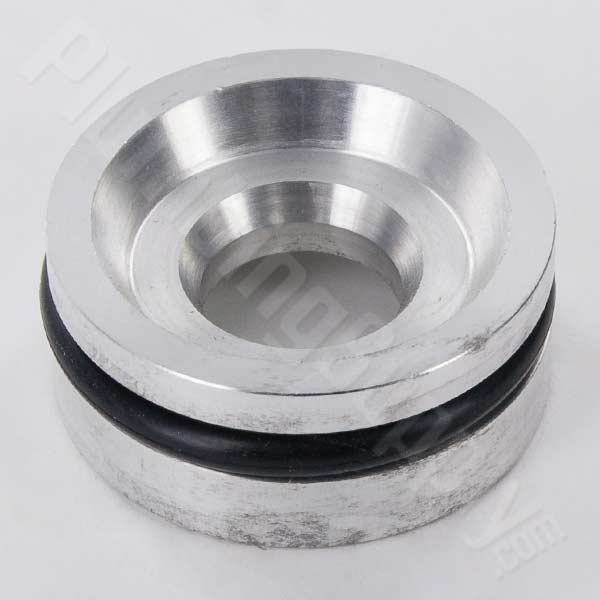

DO-1000-A Piston with O-ring
Includes items 5 (DO-5) and 6 (DO-6) above		 $11.49
DO-1001-A Handle Repair Kit
Includes items 10 (DO-20/26), 11 (DO-3), 12 (DO-9), and 13 (SH-75 - 2 ea.) above		 $97.84
DO-32-AA "Flex-Sac" Assembly Repair Kit
Includes items 2 (DO-2), 6 (DO-6), 13 (SH-75 - 2 ea.), 17 (DO-15), and 18 (DO-18) above		 $25.90
DO-32-AAN "Flex-Sac" Assembly Repair Kit and Stem
Includes items 2 (DO-2), 6 (DO-6), 7 (DO-7), 13 (SH-75 - 2 ea.), 15 (DO-16), 17 (DO-15),
18 (DO-18), 19 (DO-19), and 20 (DO-22) above		 $59.79
DO-19-A Seat Assembly with O-ring
Includes items 19 (DO-19) and 20 (DO-22) above		 $15.93

- OR - View Cart

Repair Parts for Dolphin Flushometer Variations

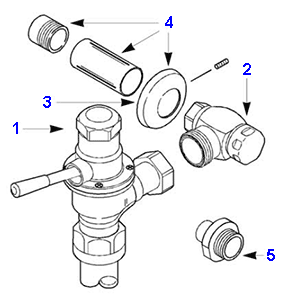

Dolphin flushometer handle variation schematics

Item # Part Description Price & Quantity
1 DO-90-AAGNC Toilet Valve Body and Handle Assembly
for Dolphin Type I flushometers		 Discontinued
DO-90-AAGNU Urinal Valve Body and Handle Assembly
for Dolphin Type II flushometers		 Discontinued

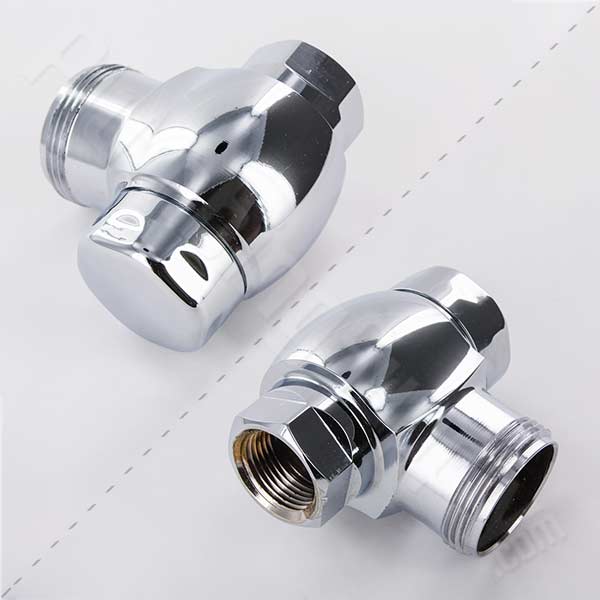

2 H-710-A Bak-Chek® Control Stop
with 3/4" NPTF inlet for adjustable tail		 $66.68
H-710-A Bak-Chek® Control Stop
with 1" NPTF inlet for adjustable tail		 $62.25
NH-710-AG Bak-Chek® Control Stop - Naval Brass
with 3/4" NPTF inlet for ground joint tail
use with shipboard Type II Class A and B; requires 3/4" NPT x 1/2" NPT reducer bushing		 $102.05
3/4" x 1/2" brass reducer bushing $4.61
NH-710-AG Bak-Chek® Control Stop - Naval Brass
with 1" NPTF inlet for ground joint tail		 $98.34
NH-710-AGS Bak-Chek® Control Stop - Naval Brass
with 1" NPSM inlet for ground joint tail
use with shipboard Type I and II when sil-braze adapter is used		 $101.64
3 F-7 1" (25 mm) Supply Flange - Chrome
included in sweat solder kit - available separately		 $5.82
F-7 3/4" (19 mm) Supply Flange - Chrome
included in sweat solder kit - available separately		 $5.82
4 H-633-AA 1" (25 mm) Sweat Solder Kit - Chrome
includes cast set screw and supply flange		 $12.17
H-636-AA 3/4" (19 mm) Sweat Solder Kit - Chrome
includes cast set screw and supply flange		 $12.17
5 F40 Silver Bronze Adapter Discontinued

- OR - View Cart
Parts diagram for Models 110/111 and 115 shipboard flushometers
Models 110/111 and 115
Shipboard Model
Parts diagram for 110/111-XYV and Type I, Class B flushometer
Models 110-XYV, 111-XYV, and Type I, Class B

Parts diagram for Model 186 flushometer
Model 186
Parts diagram for Model 120 flushometer
Model 120

Please note: The parts listed below are designed specifically to fit only the model they are referenced to above.
They will not fit all models. Please be sure you are ordering the correct parts for your model number.

Item # Part Description Price & Quantity
1 V-500-AA 1-1/2" (38 mm) x 10-1/2" (267 mm) Vacuum Breaker Assembly - Chrome
for Models 110/111		 $47.02
2 F-2-AT Coupling with S-30 Gasket - Chrome
for Models 110-XYV, 111-XYV, and Type I, Class B		 $10.82
3 F-101 1-1/2" (38 mm) x 10-1/2" (267 mm) Outlet Tube - Chrome
for Type I, Class B		 $21.29
4 V-500-AA 3/4" (19 mm) x 10-1/2" (267 mm) Vacuum Breaker Assembly - Chrome
for Model 186		 $41.88

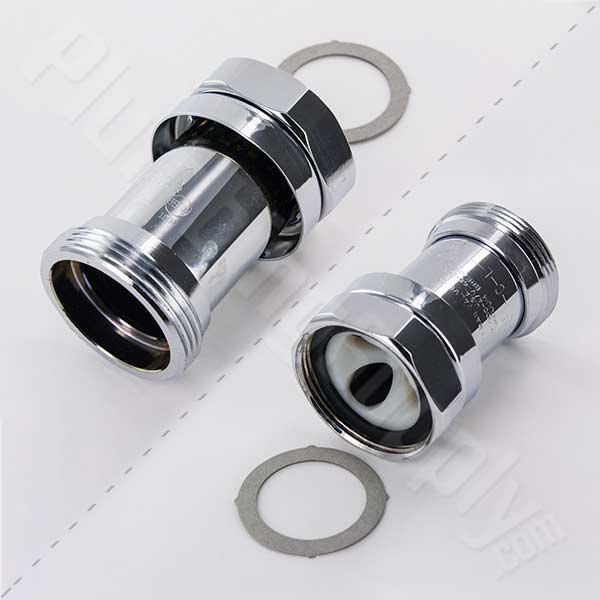

5 V-500-AA 1-1/2" (38 mm) Vacuum Breaker Coupling Assembly - Chrome
for Model 120		 $32.28
6 F-2-A Coupling with S-30 Gasket - Chrome $10.11
7 F-109 1-1/2" (38 mm) Flush Connection - 90° Bend - Chrome
13" (330.2 mm) x 5" (127 mm) 		$54.37
8 F-5-AT 1-1/2" (38 mm) Spud Coupling Assembly
for Models 110/111, 115, and 120		 $20.69
9 F-5-AW 3/4" (19 mm) Spud Coupling Assembly
for Model 186		 $20.69
10 See slip joint gaskets and rings in table below

- OR - View Cart

Slip Joint Gaskets and Rings

Part Description 1-1/2" 1-1/4" 1" 3/4"
F-3 Red Friction Ring $0.55 $0.49 $0.49 $0.49
VBF-5/F-5 Black Slip Joint Gasket $0.85 $0.91 $0.87 $0.87
G-21 Main Sea -- $3.84 -- --
S-30 Flexible Seat $0.98 -- -- --

- OR - View Cart

Related Items & Accessories:

Handsfree soap dispenser
Restroom Hygiene Products Low Flow Flushometer
Water Saving Flushometers Water saving urinal
High Performance Water-Saving Urinals Sloan hands-free faucet
Sloan Hands-Free Bathroom Faucets Low flow faucet aerator
Water Saving Aerators Saniflow high speed hand dryer
Eco-Friendly High Speed Hand Dryers


Frequently Asked Questions

Q. "How do I know which parts will fit my Dolphin flushometer?"
A. The parts listed here should fit both the Dolphin toilet/water closet flushometer and the Dolphin urinal flushometer - unless the part description specifically states which model it is to be used with. Your Sloan Dolphin flushometer should be marked somewhere along the outlet tube, letting you know which model you have.

Q. "Do you sell the oil the flushing mechanism requires to work properly?"
A. We do not. Oil is difficult and can be dangerous to ship. We recommend you purchase any needed SAE 10 oil locally.
