Lakos Sand Separators

Proudly made in the USA
The use of a sand filter (separator) may save you money over time by possibly extending the life of your regular water filters, water heaters and other water-using appliances. They may also prevent sand from depositing in your plumbing lines. Lakos is a leader in the sand filtration industry.

Need more than just sand filtration? Check out our water filter buying guide for more information

Centrifugal-Action Sand Separators

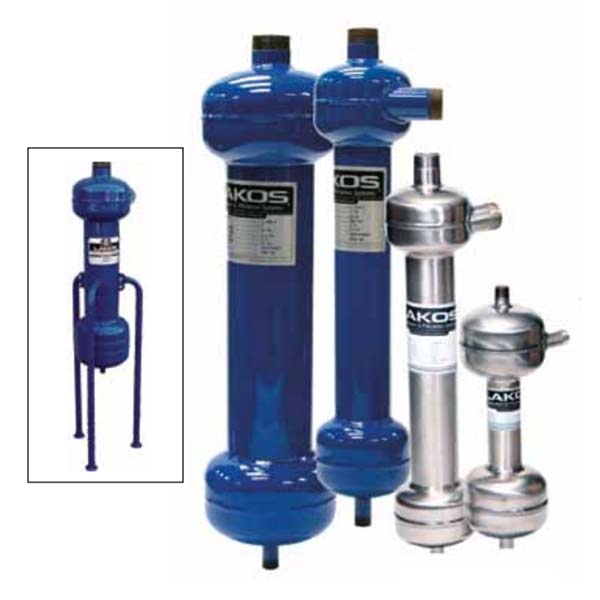

Lakos centrifugal-action sand separators
  • Ideally suited for small system applications, side-stream installations and individual equipment protection
  • Removes sand, grit and other fine solids from source of process water/liquid systems, removing 98% of such particles 200 mesh (74 microns) and larger
  • With heavier solids (metal chips, lead, etc.), expect even better results
  • Unique centrifugal style of filtration is not only efficient, but also trouble-free, boasting these standard features: no moving parts to wear out, no screens, cartridges, cones or filter elements to clean or replace, no backflushing, no downtime requirements, low pressure loss, and available in two standard materials of construction (carbon steel or low carbon content stainless steel (316L)
  • Available in flow ranges from 3 gpm up to 290 gpm
  • 150 psi maximum pressure rating

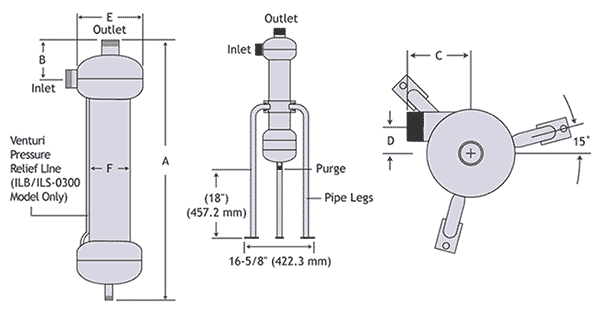

  • View Dimensions
  • View Specifications

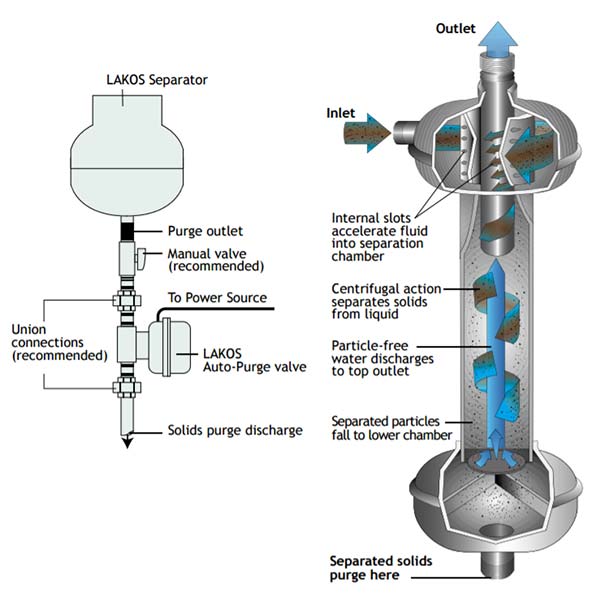

  • How does it work?

ILB Series - Carbon Steel Separators
3/4" NPT Male Purge

Model # Flow Range
gpm
Inlet/Outlet Size
Male NPT
Price & Quantity
ILB-0037 3-6 3/8" $798.62 Enter a quantity and
ILB-0050 4-10 1/2" $546.32 Enter a quantity and
ILB-0075 10-20 3/4" $586.84 Enter a quantity and
ILB-0100 19-32 1" $644.17 Enter a quantity and
ILB-0125 28-48 1-1/4" $697.17 Enter a quantity and
ILB-0150 45-70 1-1/2" $790.94 Enter a quantity and
ILB-0200 65-108 2" $1,031.48 Enter a quantity and
ILB-0250 95-155 2-1/2" $1,288.33 Enter a quantity and
ILB-0300 148-290 3" $2,115.96 Enter a quantity and

Order manual or automatic purge valve separately below

Mounting brackets and attachable legs sold separately below


ILS Series - 316L Stainless Steel Separators
150 PSI Maximum Pressure Rating
3/4" NPT Male Purge

Model # Flow Range
gpm
Inlet/Outlet Size
Male NPT
Price & Quantity
ILS-0037 3-6 3/8" $1,699.65 Enter a quantity and
ILS-0050 4-10 1/2" $1,329.88 Enter a quantity and
ILS-0075 10-20 3/4" $1,378.54 Enter a quantity and
ILS-0100 19-32 1" $1,527.66 Enter a quantity and
ILS-0125 28-48 1-1/4" $1,732.65 Enter a quantity and
ILS-0150 45-70 1-1/2" $1,892.97 Enter a quantity and
ILS-0200 65-108 2" $2,875.35 Enter a quantity and
ILS-0250 95-155 2-1/2" $3,435.85 Enter a quantity and
ILS-0300 148-290 3" $5,679.35 Enter a quantity and

Order manual or automatic purge valve separately below


Mounting brackets and attachable legs sold separately below


Drain Valves / Purge Systems

Manual Purge Valves and Kits

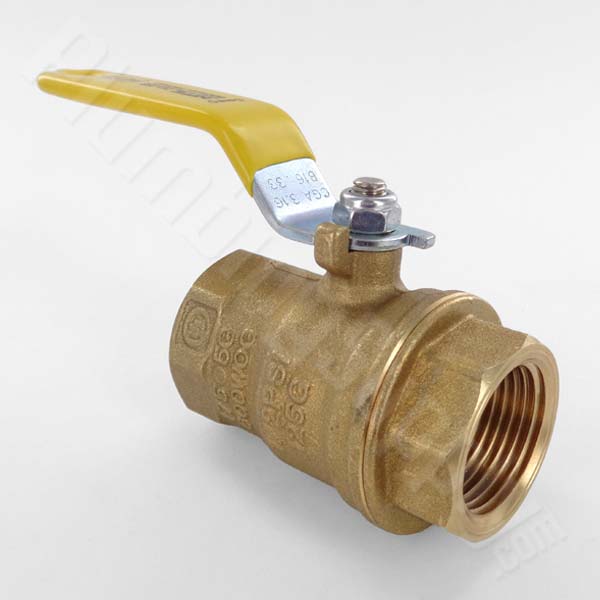

Kitz 3/4in brass ball valve3/4" FIPS Brass Ball Valve

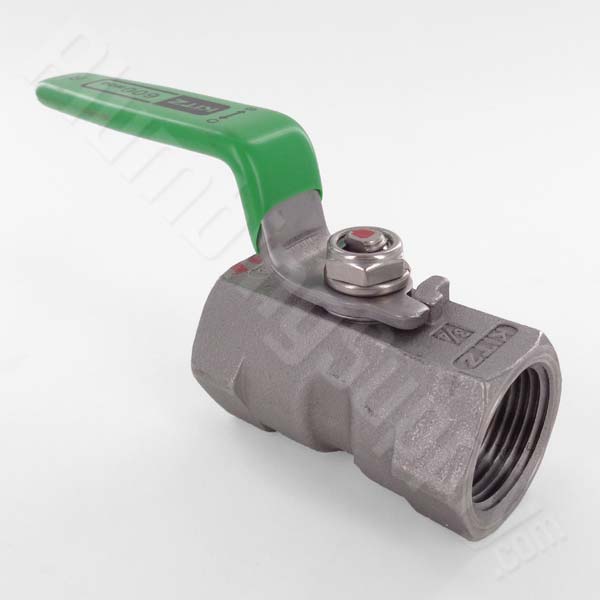

Kitz 3/4in stainless steel ball valve3/4" FIPS Stainless Steel Ball Valve

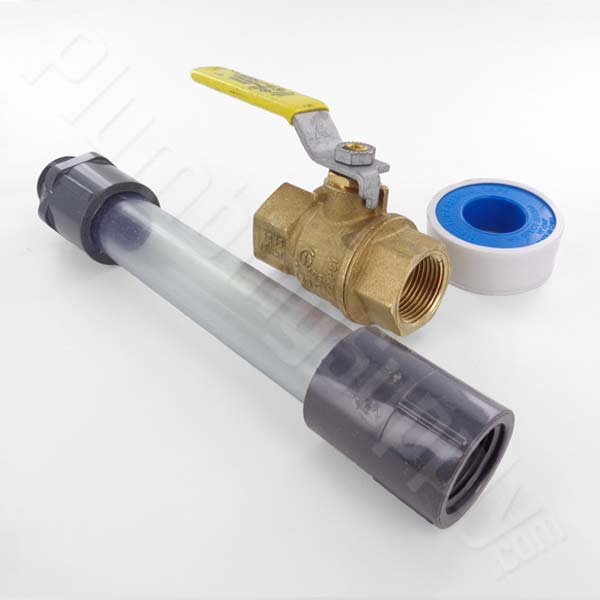

Lakos visual purge kitLakos Visual Purge Kit

Description Size Material Price & Quantity
Manual Purge Valve 3/4" FIPS Brass/Bronze $14.58
Manual Purge Valve 3/4" FIPS Stainless Steel $41.55
Visual Purge Kit 3/4" FIPS Brass/Bronze (Ball Valve) $79.98
- OR - View Cart

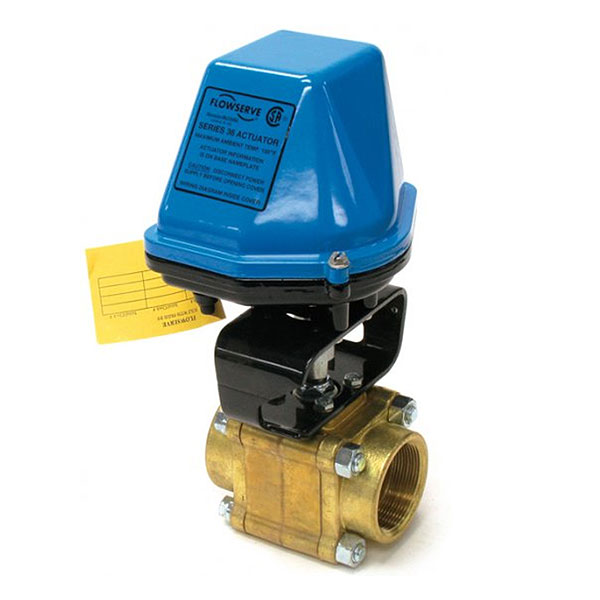

Automatic Purge Systems - Compact Motorized Ball Valve
For use with ILB & ILS sand separators

Purging separated solids from a sand separator is important. Automating that function is intelligent. The compact motorized ball valve makes it easy. Featuring integrated programming circuitry, this valve can be set to purge as often as every 15 minutes or as seldom as every 3-3/4 hours. Purge duration can be set anywhere from 12 to 90 seconds. Settings are fixed with a simple arrangement of switches located within the actuator housing.

3/4in automatic purge system
  • Eliminates the need for routine maintenance
  • Minimizes water loss and concentrates solids for easy handling
  • Bronze valve body with stainless steel ball
  • Straight through ball valve, quick open-close actuator
  • NEMA 4 watertight actuator housing, suitable for indoor-outdoor installation
  • Cast aluminum actuator housing
  • Single phase induction motor, 115 VAC, 1.8 AMP
  • For use with ILB & ILS sand separators
  • Maximum operating pressure: 150 psi
  • Operating temperature range: 40-150°F (5-65°C)

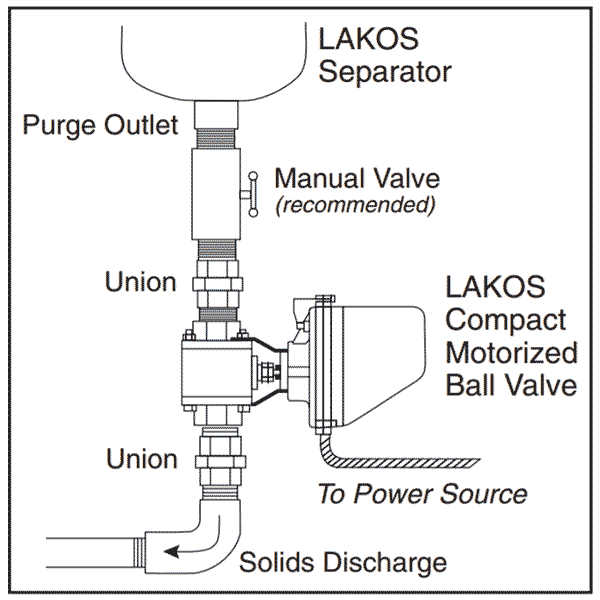

  • Suggested installation
Model # Description Size Price & Quantity
CW-07-MBV Compact Motorized Ball Valve 3/4" $1,515.65
CW-15-MBV Compact Motorized Ball Valve 1-1/2" $1,756.62
CW-20-MBV Compact Motorized Ball Valve 2" $2,122.35

NOTE: The manufacturer recommends a manual ball valve (not included) be used for isolation of the automatic purge valves if needed

We recommend this 3/4" Kitz brand ball valve = $14.58


- OR - View Cart

Mounting Brackets / Attachable Legs

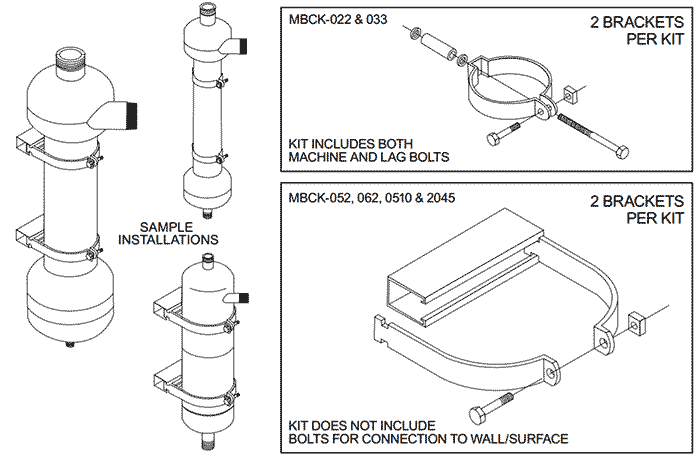

Mounting Bracket Clamp Kits

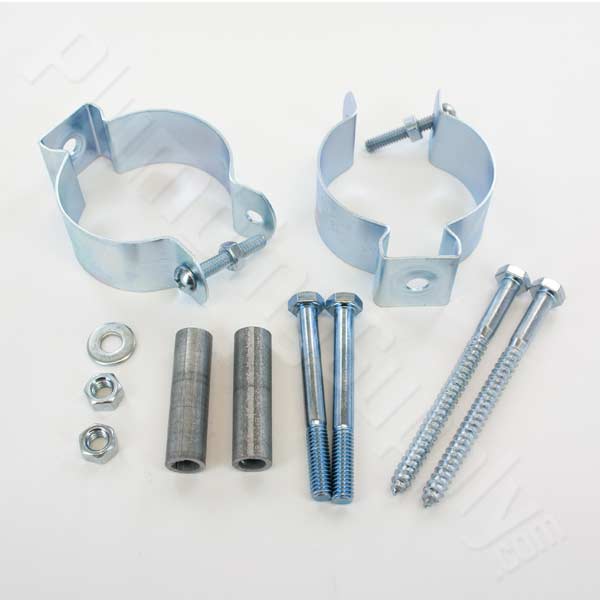

Mounting bracket MBCK-022Shown: MBCK-022 Mounting Bracket
Mounting bracket features:
  • Attaches to most surfaces that can support the weight (with water) of the desired sand separator
  • Designed to mount your desired sand separator in the upright position
  • Provides proper and professional support for the ILB & ILS series sand separators
  • Available with both machine and lag bolts for you desired installation
  • Constructed of high quality steel for superior durability
  • Comes with 2 brackets per kit for added top and bottom support
  • Suggested installation

Separator Model Recommmended Bracket Weight (lbs.) Price & Quantity
ILB/ILS-0037 MBCK-011 0.87 $37.67 Enter a quantity and
ILB/ILS-0050 MBCK-015 1.02 $40.75 Enter a quantity and
ILB/ILS-0075 MBCK-022 1.00 $45.19 Enter a quantity and
ILB/ILS-0100
ILB/ILS-0125
ILB/ILS-0150
MBCK-033 2.00 $54.63 Enter a quantity and
ILB/ILS-0200
ILB/ILS-0250
MBCK-052 5.00 $97.93 Enter a quantity and
ILB/ILS-0300 MBCK-062 5.00 $109.92 Enter a quantity and

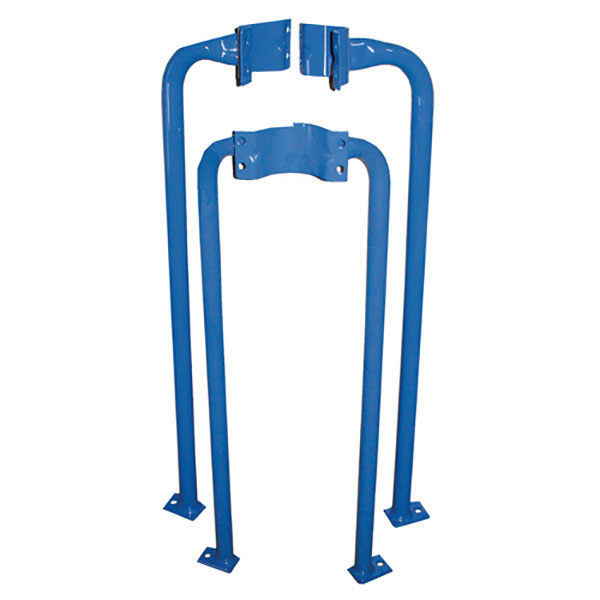

Tripod Attachable Legs

Lakos ill series tripod attachable legs for vertical support of ilb and ils in-line sand separators
Attachable Leg features:
  • Designed specifically for ILB/ILS in-line separators
  • Ideal for applications that require the sand separator to stand vertically on its own
  • Two-part clamp-on tripod legs provide a sturdy foundation for ILB or ILS separators.
  • Provides proper and professional support for the ILB & ILS series sand separators
  • Constructed of high quality steel for superior durability

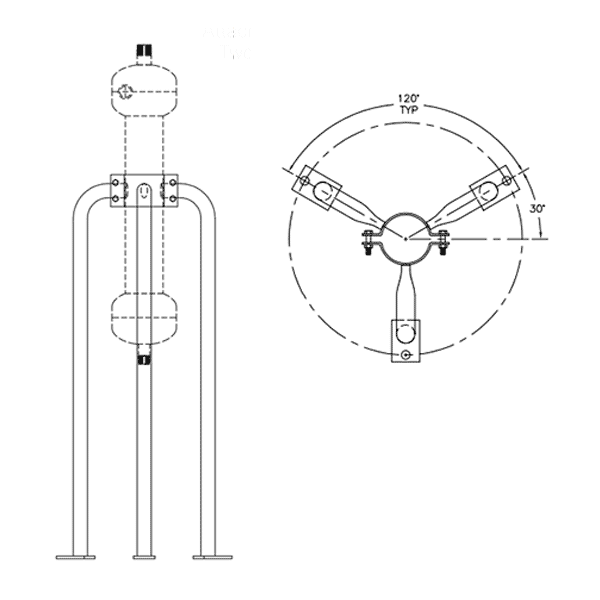

  • View mounting diagram

Separator Model Recommmended
Attachable Legs
Weight (lbs.) Price & Quantity
ILB/ILS-0075 ILL-0075 25.00 $797.85 Enter a quantity and
ILB/ILS-0100
ILB/ILS-0125
ILB/ILS-0150
ILL-1015 25.00 $554.85 Enter a quantity and
ILB/ILS-0200
ILB/ILS-0250
ILL-2025 25.00 $569.27 Enter a quantity and
ILB/ILS-0300 ILL-3099 25.00 $569.29 Enter a quantity and

Related Items & Accessories



Frequently Asked Questions

Q. "What's the difference between 316 and 316L stainless steel?"
A. 316L stainless steel contains less carbon than 316 stainless steel and higher levels of chromium, nickel and molybdenum. 316L is used where high corrosion resistance is required.
