Replacement Water Heater Parts - Ariston

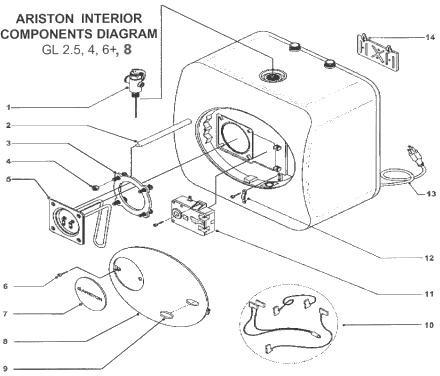

Ariston GL 2.5, 4 and 6 components diagram
Diagram # Image Model # Description Price & Quantity
2 ariston node rod 570241 8738-704480
old #570241
Anode Rod for GL6 and GL8Ti No Longer Offered
ariston node rod 574305 8738-7044470
old #574305
New Style Anode Rod for GL2.5 and 4.0 $25.36 Enter a quantity and
3 ariston element gasket 87387044500 87387044500
old #994147
Element Gasket No Longer Offered
4 ariston element locknut 87387044490 994140 Element Locknut - 4 Each Req. Per Element - sold each $6.25 Enter a quantity and
5 aristom element 994103 994103 Element for GL2.5 and GL4.0
(Note: This item is non-returnable) - Replaced with 87387044390 (has well cavity for thermostat)
No Longer Offered
Use
87387044390
ariston element 87387044390 87387044390
old #7738002301
Element for GL4S - same part used for the Bosch ES 2.5 (Tronic 3000T) - flange has well/cavity for temperature probe -
(Note: This item is non-returnable)
No Longer Offered
ariston element 994104 994104 Element for GL6 and GL8Ti - For older models without a well cavity for a temperature probe. If your existing element has a well cavity then order model #7738006447-KIT (Note: This item is non-returnable) No Longer Offered
11 ariston thermostat 65105602 65105602
old #994062
Thermostat for GL2.5 and GL4.0 No Longer Offered
use 7738006446-KIT
ariston thermostat 65150322 65150322 old #994102 Thermostat for GL6 and GL8Ti No Longer Offered
use 7738006447-KIT

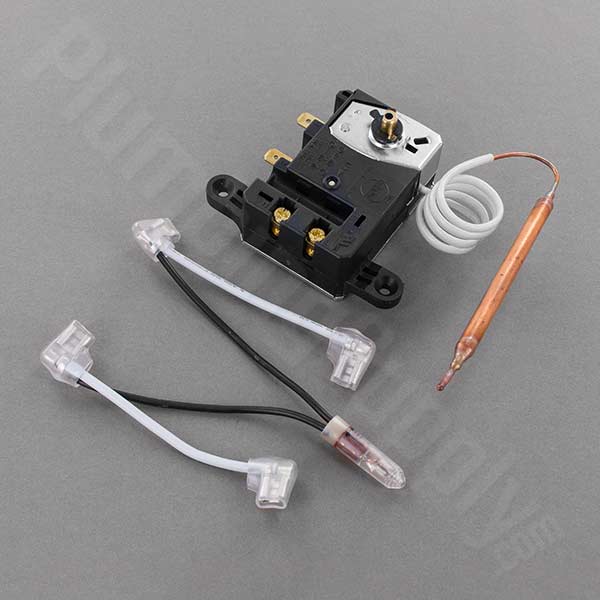

tiny titan thermostat only 87387044410 8738711260 Thermostat For GL2.5Ti & GL4.0Ti - (Note: This item is non-returnable) No Longer Offered
bosch ariston thermostat 7738006446 kit 7738006446
KIT
Thermostat Kit for GL2.5 and GL4 - (LOC 2012)
- includes Thermostat, Heating Element, Anode Rod, Element Gasket Main Plastic Cover, Logo Cover, & Temperature Knob - (Note: This kit is non-returnable)
No Longer Offered
bosch artiston thermostat 7738006447 kit 7738006447
KIT
Thermostat Kit for GL6 & GL8Ti
- includes Thermostat, Heating Element, Anode Rod, Main Plastic Cover, Logo Cover, Temperature Knob, & Element gasket - (Note: This kit is non-returnable)
No Longer Offered

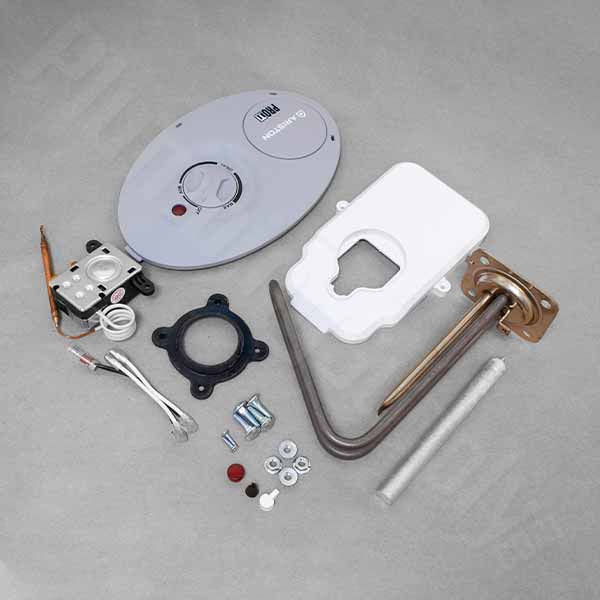

bosch thermostat kit 7738006452 7738006452
KIT
Thermostat Kit for GL2.5-Ti & GL4.0-Ti
- includes Thermostat, Heating Element, Anode Rod, Main Plastic Cover, Logo Cover, Temperature Knob, & Element gasket - (Note: This kit is non-returnable)
No Longer Offered
2,3, & 5 water heater element gasket anode kit gl25-4 GL25-4KIT Element, Element Gasket and Anode Rod Kit
For GL2.5Ti & GL4.0Ti (Note: This item is non-returnable)
No Longer Offered
2,3, & 5 artiston gl6-8kit GL6-8KIT Element, Element Gasket and Anode Rod Kit
For GL6 & GL8Ti (Note: This item is non-returnable)
No Longer Offered

Note: If you don't see your number unfortunately it is no longer available


Ariston P10 and P15 components diagram
Diagram # Image Model # Description Price & Quantity
1 ariston anode rod 7-738-007-315 8738-7044470
old #574305
New Style Anode Rod for P10 & P15 $25.36 Enter a quantity and
2 ariston water heater element 994050 994050
old #810822
Element for P10, P15, and Old Tiny Titan
(Note: This item is non-returnable.)
No Longer Offered
4 ariston element gasket 65100282 65100282
old #570016
Element Gasket for P10 and P15 $13.44 Enter a quantity and
14 thermostat 65105602 65105602
old #994062
Thermostat for P10 and P15 Discontinued
1, 2, 4 -- Ariston Element, Gasket, and Anode Rod Kit for P10 and P15
(Note: This item is non-returnable.)
No Longer Offered

Note: If you don't see your number unfortunately it is no longer available


Related Items & Information



Frequently Asked Questions

Q. "I just replaced the thermostat on my Ariston water heater. It is acting the same as the old one. As soon as I turn the unit on, it runs for a few minutes and shuts off. Is this new thermostat defective?"
A. Not necessarily. It may be working perfectly. If the heating element has become encrusted with scale or lime or if the anode rod is worn out and no longer working correctly, then either one of these conditions can cause the liner of the heater to over heat which in turn causes the thermostat to shut off. The thermostat is equipped with a thermal cut off switch. You will need to push the reset button to reset the thermostat after the problem has been corrected. Unplug the power cord to the water heater and remove the front cover. Press the reset button firmly with the tip of a ball point pin, extra small screwdriver or similar object. A click indicates the thermostat has been reset. Reconnect the power plug. Now check the operation of the thermostat. Turn the temperature dial from high to low. If the red light does not go off on the low setting, disconnect the power supply and replace the thermostat. If the red light does goes off on the low setting then set the dial to the desired setting and replace the cover plate. Note: If the heating element is in good condition and working correctly but the high limit needs to frequently be reset, then we suggest you call an electrical technician for further diagnosis.
