Water Heater Elements & Electric Thermostats

PlumbingSupply.com® is pleased to be your source for replacement water heater elements, electric thermostats, and more. If you already know what you're looking for, please browse our extensive selection to find what you need. However, if you need a little help figuring out the right replacement element for you, keep reading!

Please note: The water heater elements, thermostats and other electrical products shown on this page are non-returnable.


How do I determine which type of water heater element I need?
  1. Examine your existing element.
  2. You will need to find out the voltage and the wattage. This information can usually be found on the label affixed to the side of your water heater tank.
  3. Compare and match your results of volts and watts to the volts and watts columns below.
  4. Choose the volts that match your voltage 120 or 240.
  5. Choose the watts that are closest to your wattage. (Note: if your wattage is not shown then use the closest wattage that is lower than your wattage. The wiring of your water heater may not be made to take higher wattage.)
  6. Make sure the tank diameter of your water heater will accommodate the element you've chosen.
  7. Consider your water quality - ripple style or foldback style elements are especially useful for those with hard water. These elements function the same and have the same voltage/wattage, but the greater surface area causes less wear on the element.
How do I choose which density I need?
  • Good = High Watt Density - made of copper tubing with magnesium oxide and nickel plating. Threaded base made of zinc-plated carbon steel.
  • Better = Low Watt Density - also made of copper tubing with magnesium oxide and nickel plating. Threaded base made of zinc-plated carbon steel.
  • Best = Ultra Low Watt Density - made from high grade Nickel and Chromium Incoloy (stainless steel). Threaded base made of nickel plated steel. Ultra Low Watt Density elements are recommended when water has high mineral content.

Elements for brewing beer
can be found here

How do I install my new water heater element? Read our Water Heater Element Installation Instructions

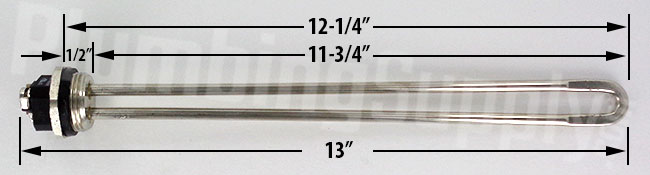

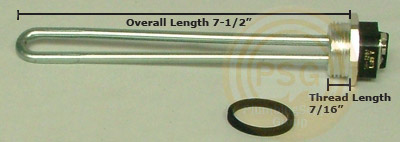

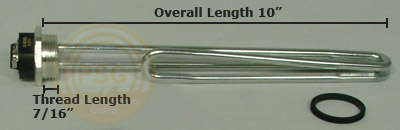

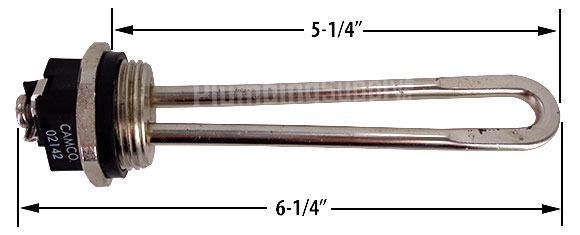

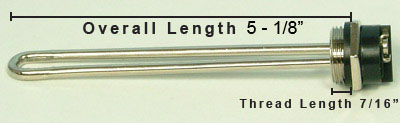

Threaded (Screw-In) Elements
1" NPSM threads & 1-1/2" outer nut w/included rubber seal

Model #240-2500-HWD water heater element

Model # Image Volts Watts Density Min. Tank
Diameter
Price & Quantity

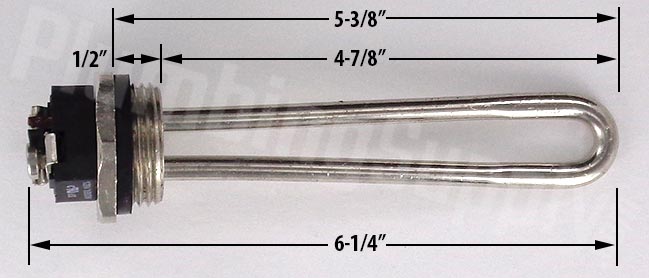

120-1500-HWD water heater element 120-1500-HWD 120 1500 High 9" $4.97 Enter a quantity and

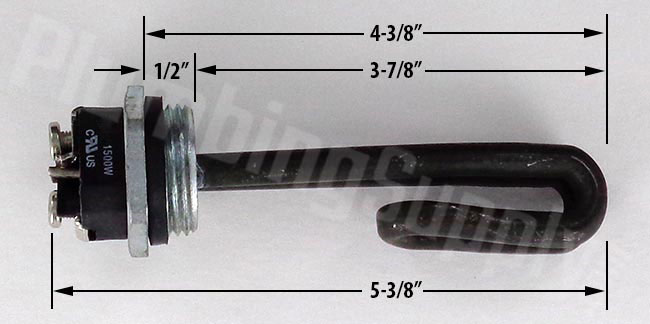

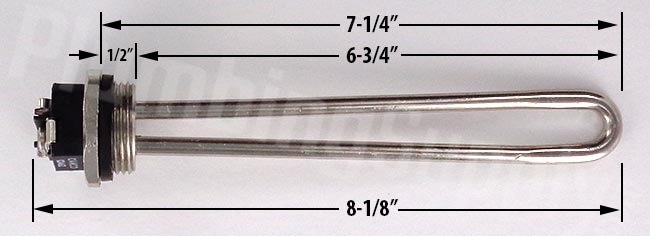

120-1500-LWD water heater element 120-1500-LWD 120 1500 Low 7 1/2" $7.28 Enter a quantity and

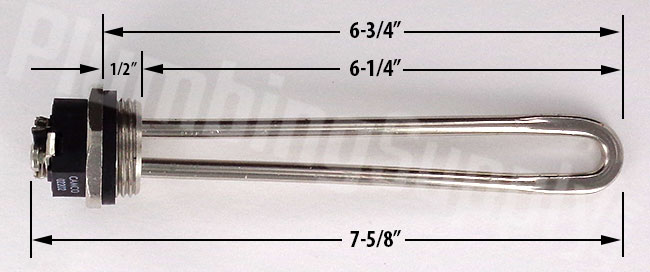

120-2000-HWD water heater element 120-2000-HWD 120 2000 High 9" $8.67 Enter a quantity and

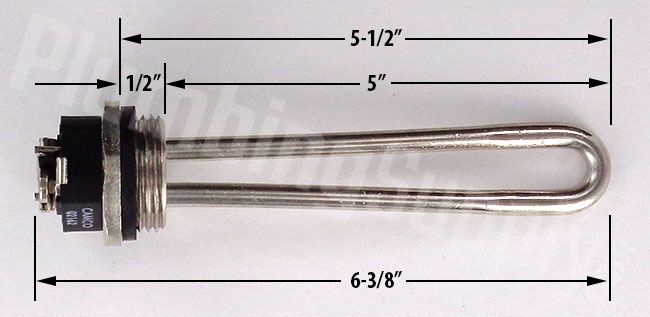

240-1500-HWD water heater element 240-1500-HWD 240 1500 High 9" $7.18 Enter a quantity and
240-1500-ULWD water heater element 240-1500-ULWD 240 1500 Ultra Low 12" $13.38 Enter a quantity and

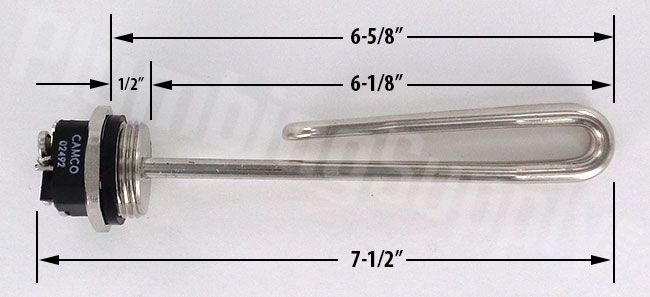

240-2500-HWD water heater element 240-2500-HWD 240 2500 High 14" $6.45 Enter a quantity and

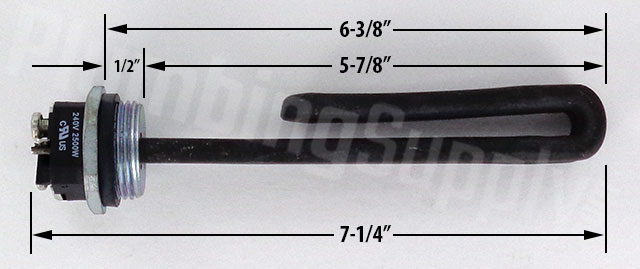

240-2500-ULWD water heater element 240-2500-ULWD 240 2500 Ultra Low 12" $27.13 Enter a quantity and

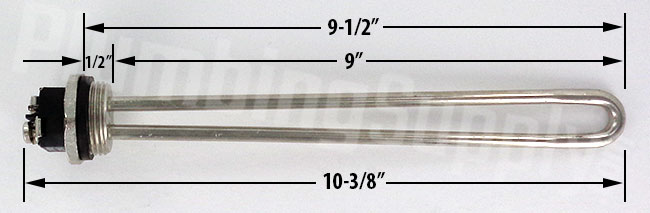

240-3000-HWD water heater element 240-3000-HWD 240 3000 High 15" $10.58 Enter a quantity and

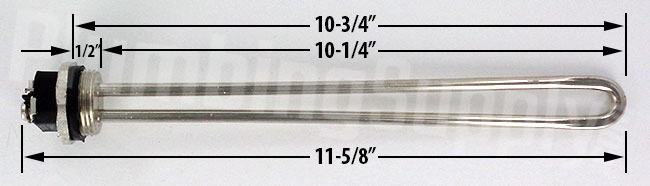

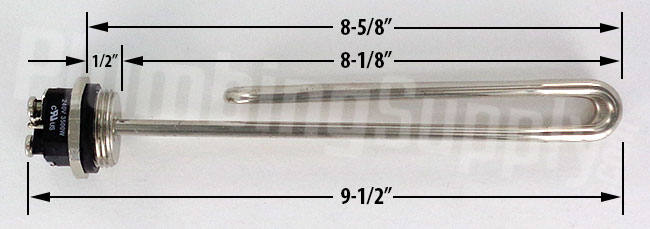

240-3500-HWD water heater element 240-3500-HWD 240 3500 High 14" $6.46 Enter a quantity and

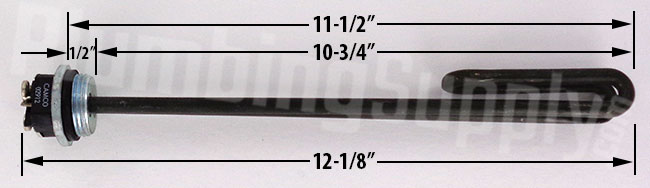

240-3500-ULWD water heater element 240-3500-ULWD 240 3500 Ultra Low 15" $30.66 Enter a quantity and

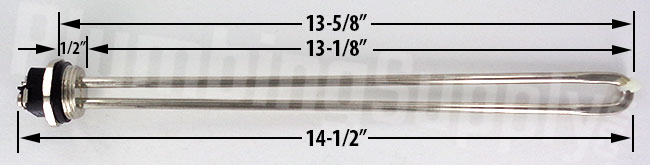

240-4500-HWD water heater element 240-4500-HWD 240 4500 High 15" $5.41 Enter a quantity and

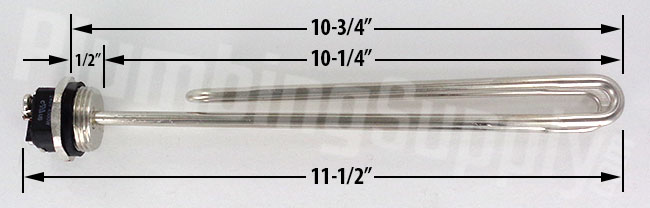

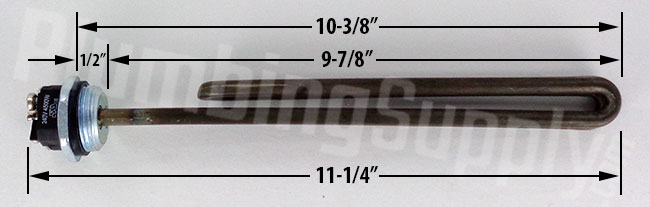

240-4500-LWD water heater element 240-4500-LWD 240 4500 Low 13" $13.48 Enter a quantity and
240-4500-ULWD water heater element 240-4500-ULWD 240 4500 Ultra Low 15" $29.12 Enter a quantity and
240-4500-ULWD water heater element 240-4500-ULWD 240 4500 Ultra Low

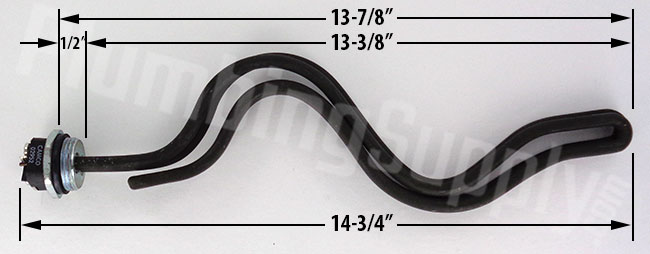

Ripple Style
15" $39.25 Enter a quantity and

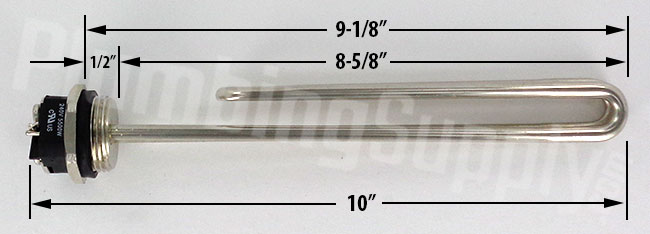

240-5500-HWD water heater element 240-5500-HWD 240 5500 High 11" $7.10 Enter a quantity and

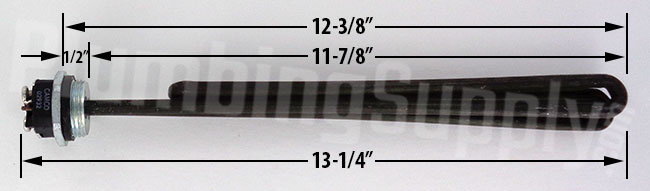

240-5500-ULWD water heater element 240-5500-ULWD 240 5500 Ultra Low
Foldback Style
15" $29.63 Enter a quantity and

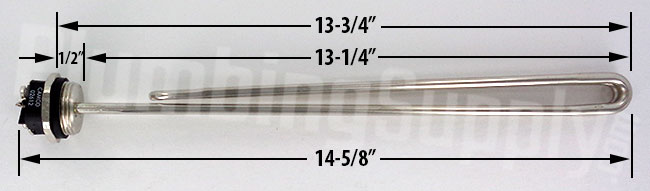

240-6000-LWD water heater element 240-6000-LWD 240 6000 Low 17" $19.88 Enter a quantity and

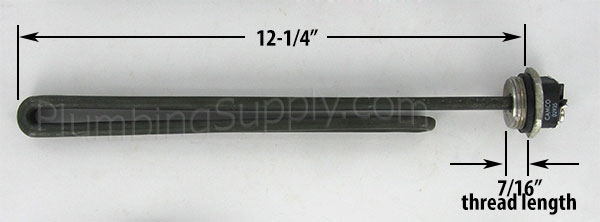

Premium Ultra Low Watt Density Heating Elements

High performance nickel-chromium stainless steel alloy sheath gives it additional strength to resist dry firing and helps prevent caramelizing and scorching. These are great for brewing beer or heating slightly acidic liquids.

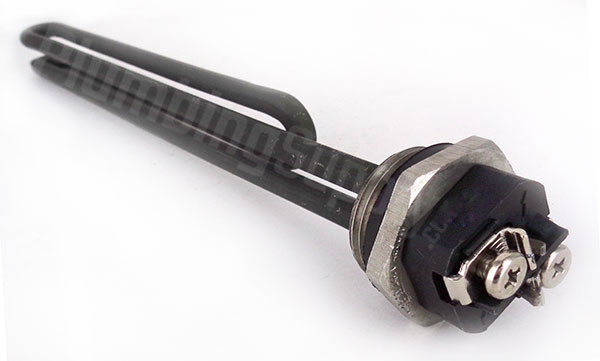

Heating Element 02929

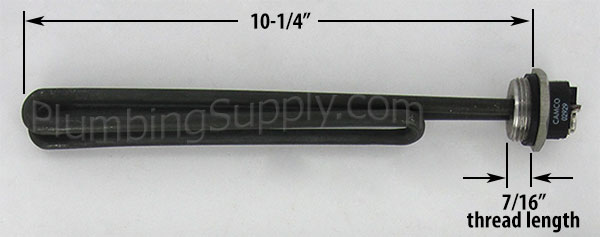

Shown: 240-4500-LWD-SSB

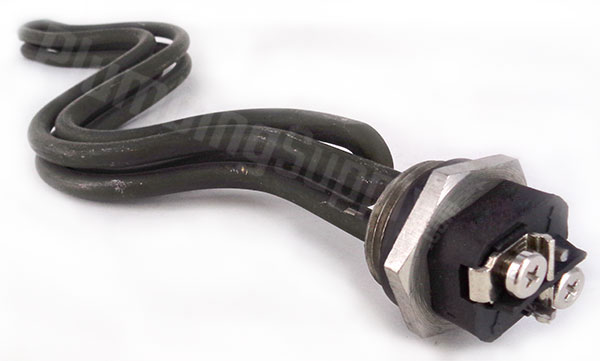

Heating Element 02955

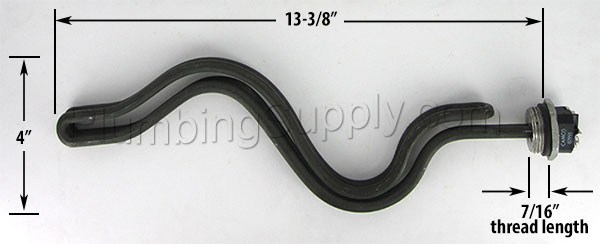

Shown: 240-4500-LWDR-SSB


Model # Image Volts Watts Density Min. Tank
Diameter
Price & Quantity
240-4500-LWD-SSB water heater element low density 02929 240 4500 Ultra Low - Foldback Style 15" $21.98 Enter a quantity and
240-4500-LWDR-SSB water heater element low density 02955 240 4500 Ultra Low - Ripple Foldback Style 15" $28.03 Enter a quantity and

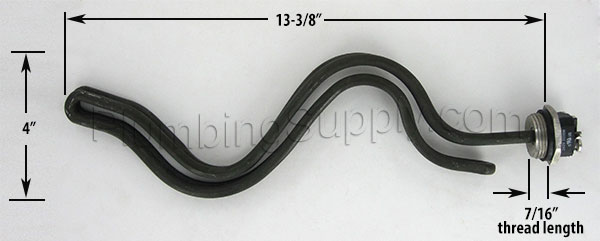

240-5500-LWDR-SSB water heater element low density 02965 240 5500 Ultra Low - Ripple Foldback Style 15" $39.83 Enter a quantity and

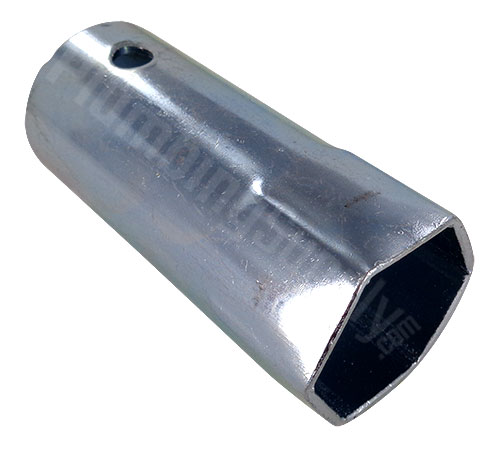

Heavy Duty Water Heater Element Removal Wrench

  • For use with the elements shown directly above with 1-1/2" nut
  • Removes those stubborn water heater elements
  • Heavy duty construction

Water Heater Element Wrench = $11.77

- OR - View Cart

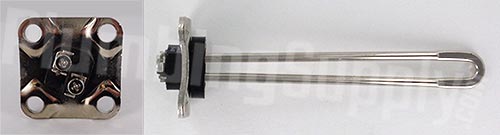

4-Bolt Style Elements

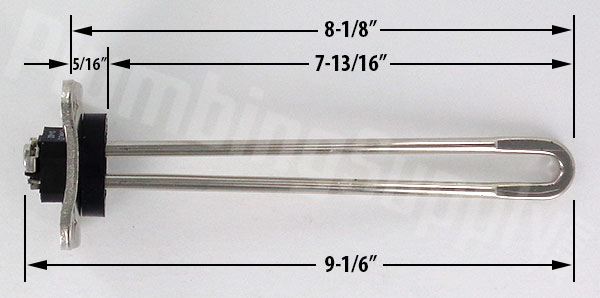

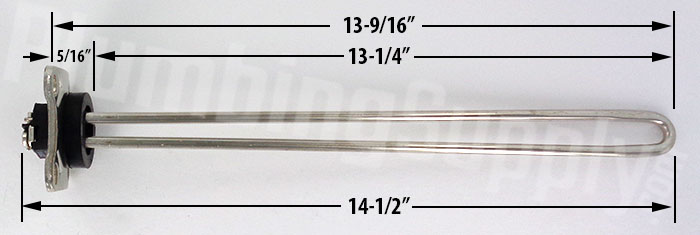

Model #240-4500-HWD-4B water heater element

Model # Image Volts Watts Density Min. Tank
Diameter
Price & Quantity

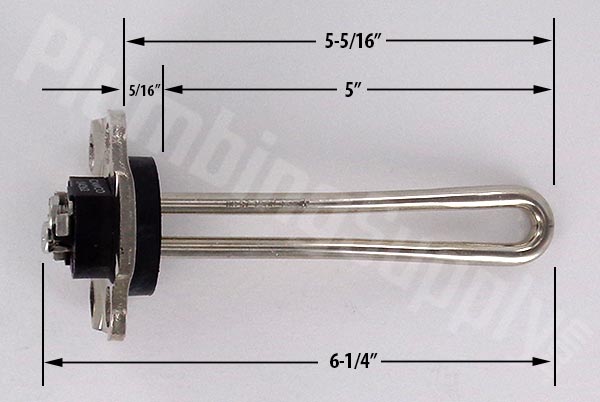

120-1500-HWD-4B water heater element 120-1500-HWD-48 120 1500 High 9" $9.71 Enter a quantity and

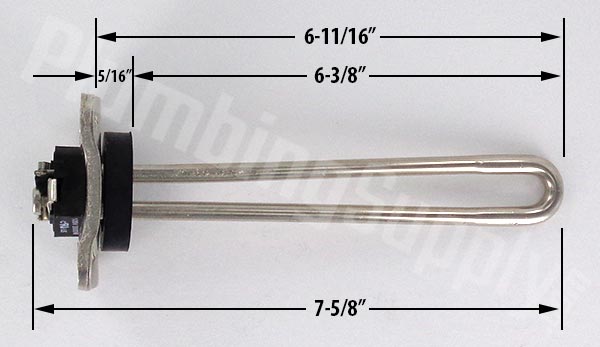

120-2000-HWD-4B water heater element 120-2000-HWD-48 120 2000 High 9" $6.32 Enter a quantity and
240-2500-HWD-4B water heater element 240-2500-HWD-4B 240 2500 High 10" $6.45 Enter a quantity and

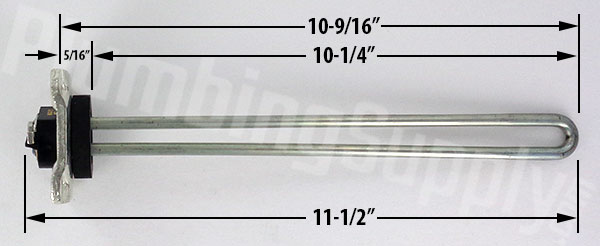

240-3000-HWD-4B water heater element 120-3000-HWD-48 240 3000 High 12" $6.54 Enter a quantity and
240-4500-HWD-4B water heater element 120-4500-HWD-4B 240 4500 High 15" $6.29 Enter a quantity and

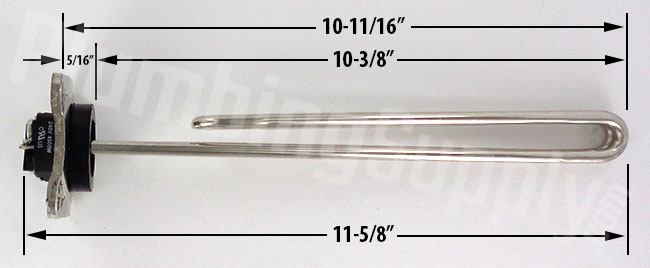

240-4500-LWD-4B water heater element 120-4500-LWD-4B 240 4500 Low 13" $15.53 Enter a quantity and

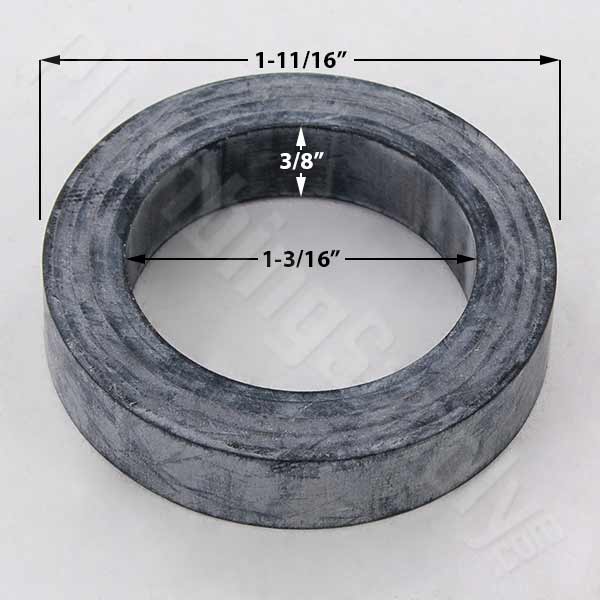

06882 water heater universal element gasket 06882 Universal Element Gasket $1.17 Enter a quantity and

Replacement Parts for New Style Tiny Titan


Item # Image Part Name Description Price & Quantity

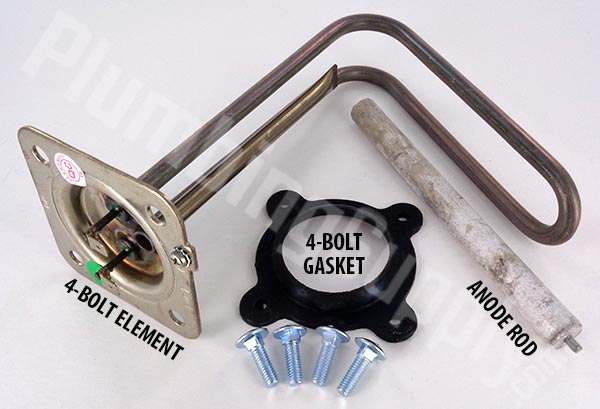

1 water heater tiny titan kit Element Kit 4-Bolt Element, Gasket and Anode Rod (120v, 1500 watts)
Note: This item is non-returnable
$173.54 Enter a quantity and

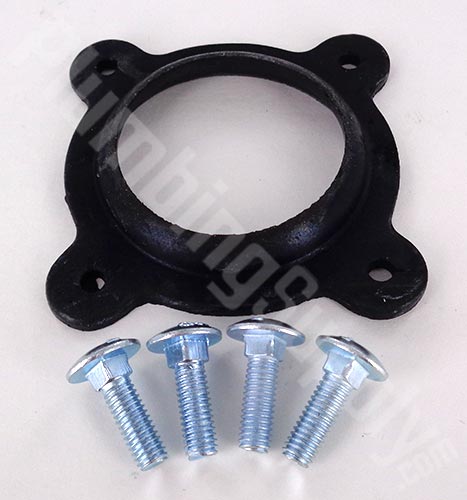

2 water heater element 4bolt gasket 4-Bolt Gasket For Tiny Titan element No Longer Offered
3 tiny titan thermostat kit with element and anode rod Thermostat Kit Thermostat may not fit all Tiny Titans
- includes Element & Anode Rod
- 4 bolt element gasket sold separately (see Item # 2)
$140.27
tiny titan thermostat only 8-738-711-260 Thermostat Only Thermostat Only may not fit all Tiny Titans No Longer Offered
4 ariston anode rod 574305 Anode Rod New Style $25.36 Enter a quantity and

to Ariston mini-tank replacement parts


Replacement Parts for Old Style Tiny Titan


Diagram # Image Description Price & Quantity
1 ariston anode rod 574305 Anode Rod $25.36 Enter a quantity and

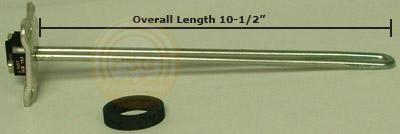

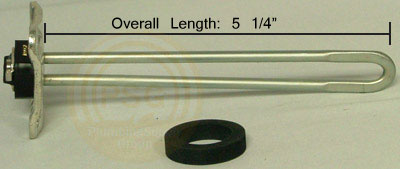

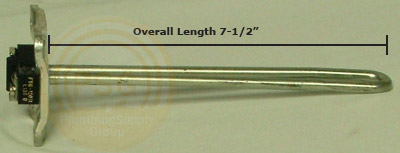

2 ariston water heater element 994050 Oval Water Heater Element (120v, 1350 watts)
Note: This item is non-returnable
No Longer Offered

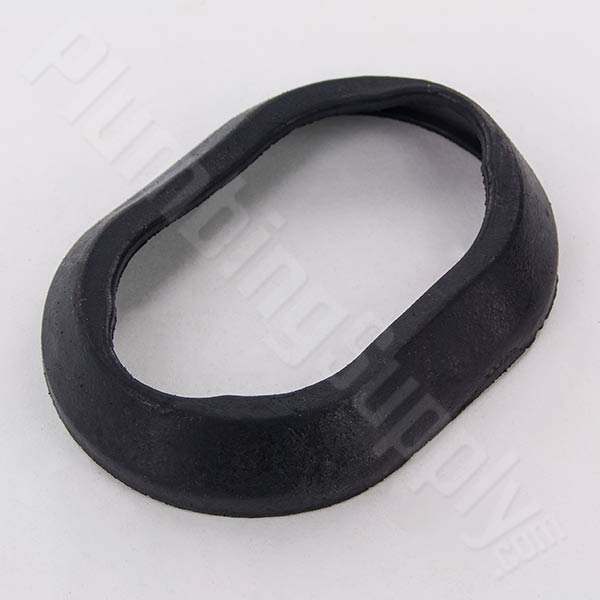

4 ariston element gasket 65100282 Oval Element Gasket $13.44 Enter a quantity and

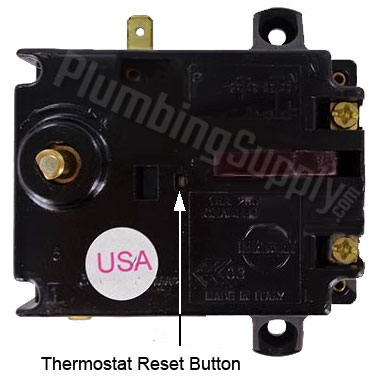

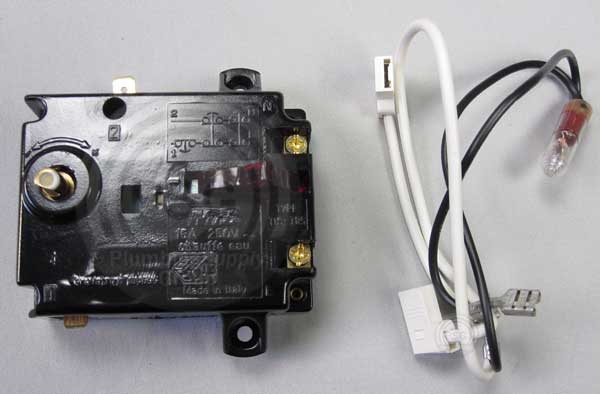

14 water heater wired thermostat 65105602 Thermostat Discontinued

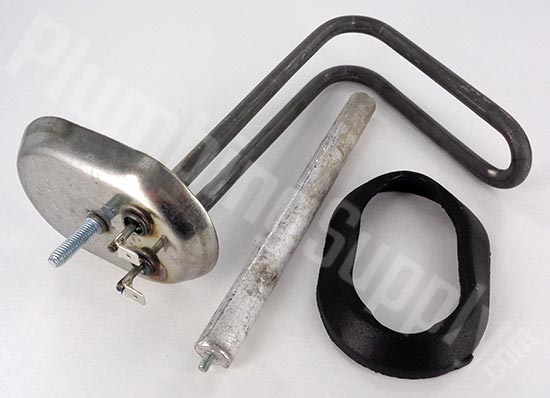

1, 2, 4 water heater tiny titan kit Element Kit - Water Heater Element (120v, 1350 watts), Gasket, and Anode Rod
Note: This item is non-returnable
No Longer Offered
Please note: If you don't see your number, unfortunately, it is no longer available. If you have the old-style, large threaded anode, you will need to replace the anode & element. The new anodes now have a small threaded post.


Water Heater Thermostats

Model # Image Description Price & Quantity
Apcom Style Thermostats
07863 water heater thermostat 07863 Apcom Style Thermostat - For upper thermostat element of dual element water heaters - protective cover included Temporarily
Unavailable
07723 water heater thermostat 07723 Apcom Style Thermostat - For lower thermostat element of dual element water heaters - protective cover included $7.11 Enter a quantity and
07843 water heater thermostat 07843 Apcom Style Thermostat - For single thermostat element - protective cover included $12.68 Enter a quantity and
Residential Therm-O-Disc Style Thermostats

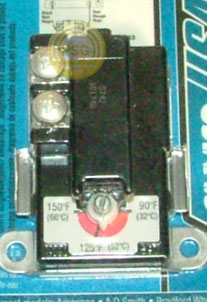

08123 water heater lower thermostat 08123 Therm-O-Disc Style Residential Thermostat - For lower thermostat element of dual element water heaters - protective cover sold separately below $10.16 Enter a quantity and

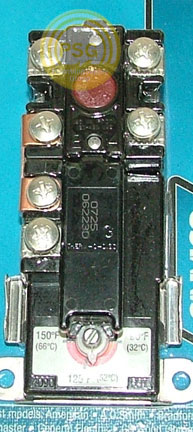

08143 single element thermostat 08143 Therm-O-Disc Style Residential Thermostat - For single thermostat element - protective cover sold separately below $12.69 Enter a quantity and

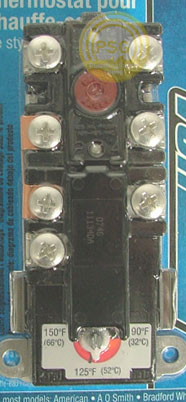

08163 water heater electric upper thermostat thermodic 08163 Therm-O-Disc Style Residential Thermostat - For upper thermostat element of dual element water heaters - protective cover sold separately below $13.35 Enter a quantity and
Commercial Therm-O-Disc Style Thermostats
180°F thermostats that are designed for commercial use
08304 water heater thermostat 08304 Therm-O-Disc Style Commercial Thermostat - For upper thermostat element - protective cover sold separately below $24.35 Enter a quantity and
08314 water heater thermostat 08314 Therm-O-Disc Style Commercial Thermostat - For lower thermostat element - protective cover sold separately below $12.64 Enter a quantity and
Thermostat Protective Covers
Great for residential & commercial therm-o-disc style thermostats shown above

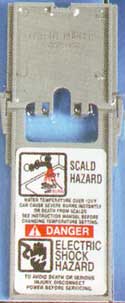

08103 thermostat protective cover 08103 Lower thermostat protective cover $2.09 Enter a quantity and

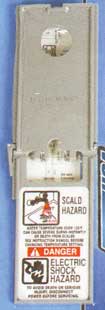

08113 thermostat protective cover 08113 Upper thermostat protective cover $2.20 Enter a quantity and
Please note: Thermostats fit most models (not all) of A O Smith, Bradford White, Craftmaster, General Electric, GS Wood, Kenmore, Lockinvar, Maytag, Mor-Flo, Reliance, Rheem, Richmond, Ruud, Sears, State brands

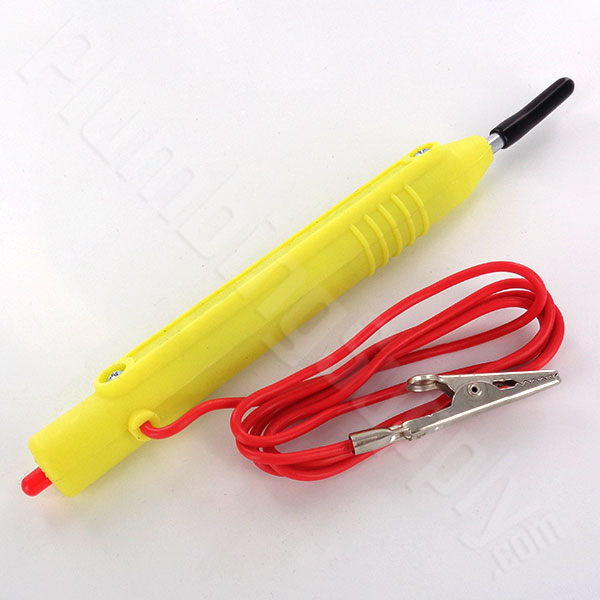

Water Heater Continuity Tester - Therm-O-Disc Style

Features:
  • Tests elements and thermostats while they are in the heater
  • May also be used to test continuity in fluorescent lights, fuses and appliances
  • Sensitive enough to measure even the fine filament wire in a light bulb
  • Sensitive LED light indicates continuity
  • Durable body with protective cover over light and probe
  • More useful and more accurate than a circuit tester
  • Complete instructions & batteries included

Water Heater Continuity Tester = $5.76

- OR - View Cart

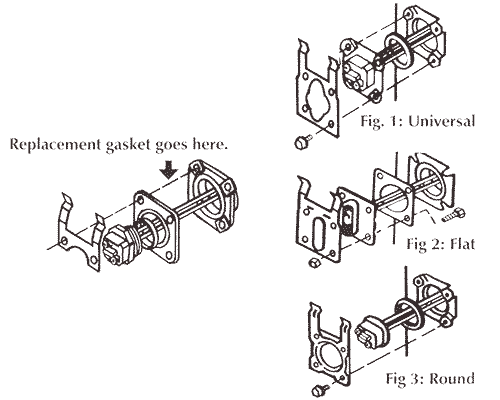

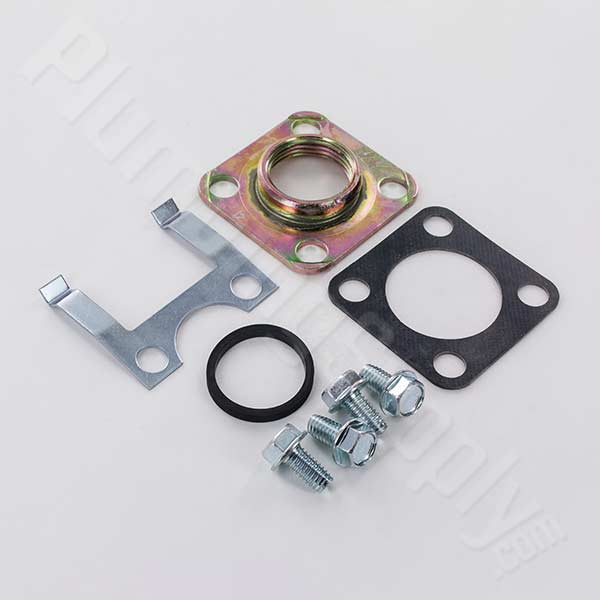

Element Conversion Kit

Features:
  • Replace a flat, universal, or round flange element with a standard screw-in element using this conversion kit
  • This adapter kit is intended for use with a 1" NPSM threaded screw-in type element to replace water heater elements that look like figures 1, 2 or 3
  • Adapt-a-flange, thermostat bracket, and 4-hole gasket feature 1-3/4" center to center bolt holes
Kit Includes:
  • (1) 2-1/2" 4-bolt adapt-a-flange - 1" NPSM female threads
  • (1) 4 hole gasket
  • (4) 5/16" - 18 5/8" hex washer-head bolts
  • (1) Screw-in gasket
  • (1) Thermostat bracket

Universal Element Conversion Kit = $7.83

- OR - View Cart

Related Items & Articles


Frequently Asked Questions

Q. "Do you sell thermostats that will go to higher temperatures than my standard residential thermostat that came with my electric water heater?"
A. We aren't aware of any water heater company that will not void your warranty if you install a higher temperature thermostat. This is for two reasons: the lining of your residential tank probably isn't designed for continuous temperatures over 140 degrees and scalding liability potential. For that reason we also won't sell any electric thermostats that can go over standard temperatures.

Q. "Can I increase the wattage to a higher wattage when replacing an element?"
A. Due to liability, we never recommend that you increase the element wattage over the original element installed by the manufacturer. We are not aware of any water heater manufacturer that will warranty a heater if you have changed wattages.

Q. "What is the difference between High and Low Density elements?"
A. A high density element is able to transfer more energy flow (higher temperature) per square inch to the water in the water heater but these higher temperatures will wear out the element much quicker than a lower density element. If you have scale build-up a high density element will need to generate this higher temperature for a longer length of time to transfer energy through the added coating on the element which will then cause it to burn out quicker. Lower density elements operate at lower temperatures per square inch so if they encounter a scale build up, the higher amount of energy needed to get through the added coating does not cause the element to get hot enough to burn out the element. A lower density element tends to last longer.

Q. "Which is better, one element or two on a water heater?"
A. In our opinion, there is NO doubt about which is best: two elements! Most two element systems work like this: The upper element goes on first and once it is hot enough on top then the lower element goes on. If the water you are getting out of your heater comes from the top, why would anyone think that heating the bottom only is better? We think the only reason is to save manufacturing costs.

Q. "Do you think electric water-heater timers are worth it?"
A. In almost all cases we believe that they should pay for themselves in a short time.

Q. "What does incoloy mean?"
A. Incoloy is a type of extra high-grade stainless steel that helps extend the life of the element, resists burnout and the effects of sand or lime over time. For these elements, incoloy pertains to the element coil, not the threaded base of the elements. The extra low density heating elements are made of incoloy, the threaded base is stainless steel with chromium plating. The normal low density and the high density elements are non-incoloy. Non-incoloy element coils are copper on the inside with a nickel plating on the outside. The threaded bases for the low and high density elements are made of zinc-plated carbon steel.

Q. "I have an electric water heater that isn't working?"
A. For a water heater to work, you need the following:
1) Water in the tank; 2) Electric power to your heater; 3) Thermostats that work; 4) Elements that work.

Q. "I replaced the thermostat in my Tiny Titan water heater. As soon as I turn the unit on it shuts off after being on for just a few minutes. Is my new thermostat defective?"
A. Most likely not. If the heating element has become encrusted with scale or lime or if the anode rod is deteriorated and is no longer working correctly, then either one of these conditions can cause the liner of the heater to over heat which in turn causes the thermostat to shut off. The thermostat is equipped with a thermal cut off switch. You will need to push the reset button to reset the thermostat after the problem has been corrected. Unplug the power cord to the water heater and remove the front cover. Press the reset button firmly with the tip of a ball point pin, extra small screwdriver or similar object. A click indicates the thermostat has been reset. Reconnect the power plug. Now check the operation of the thermostat. Turn the temperature dial from high to low. If the red light does not go off on the low setting, disconnect the power supply and replace the thermostat. If the red light goes off on the low setting then set the dial to the desired setting and replace the cover plate. Note: If the heating element is not corroded and working correctly but the high limit needs to be reset frequently then call an electrical technician for further electrical diagnosis.

Q. "How do I check an electric water heater element? Should the elements be removed to check it, and do I need to drain the tank?"
A. It isn't necessary to remove the elements or drain the tank to test them, but the elements must be removed (and the tank drained) to replace them. To test the elements, you will need a voltage/OHM meter. Turn off the power to the heater first and disconnect the two wires to the elements. Set the meter to the "OHM" function, and check the flow between the two screw connectors of the elements: If there is a positive reading, then the circuit is "closed" and the element is fine; if there is no reading, the circuit is "open" and a new element is needed. Also, if you get a reading on your meter between either of the screw connections and the metal element, the element is shorted and must be replaced.
You should expect an approximation of the following readings on the OHM meter (give or take a little) for functioning elements:

  • 15.5 ohms for 3500 watts
  • 13.0 ohms for 4500 watts
  • 10.0 ohms for 5500 watts

Q. "Will 'low density' water heater elements take longer to heat up than 'high density' elements?"
A. No. Low density water heater elements use less watts of energy per square inch so they are made longer in length to make up the watts rating of the element. A 4500 watt high density element generally has 30 square inches of surface area and a 4500 watt low density element generally has 60 square inches of surface area.

Q. "Will the model #120-1500-ULWD water heater element work as a replacement for the InSinkErator model #W152-1?"
A. Yes, according to InSinkErator, our model #120-1500-ULWD will work as a replacement heating element for their model #W152-1 point of use water heater.
