Sewage Sump Pump Packages
By Zoeller

Sewage sump pump ejection systems are a wonderful solution to installing a complete bathroom, or kitchen, or laundry room in your basement or storm cellar or anywhere else, for that matter, that may be below the grade of your main sewer or septic lines. These systems featured below are very efficient and trouble-free, and come in several pump sizes and basin types - one of which is sure to be the solution to your below-grade installation needs. PlumbingSupply.com® is your source for everything plumbing-related.

Indoor and Outdoor Sewage Systems
912 Series - Pre-assembled


These Zoeller sewage pump systems are a great solution for buildings that could not otherwise have a bathroom due to desired drain locations being lower than where the main drain or sewer lines are located. On this page we offer pre-packaged indoor sewage ejector systems and pre-packaged outdoor sewage ejector systems for easier and quicker on site installation.


Zoeller preassembled sewage packagesINDOOR SEWAGE PACKAGES

These Zoeller sewage pump systems include top quality sewage ejector pumps. These pumps are able to pass 2" spherical solids due to the non-clogging vortex impeller design. The Model 266 pump is 1/2 HP and has a flow rate of 128 gpm@5 ft. of dynamic head pressure, with a maximum vertical lift (shut-off) at 21.5 feet. (How high it will pump before shutting off.) The Model 264 pump is .4 HP and has a flow rate of 90 gpm@5 ft. of dynamic head pressure, with a maximum vertical lift (shut-off) at 18 feet. And the Model 211 pump is .4 HP and has a flow rate of 82 gpm@5 ft. of dynamic head pressure, with a maximum vertical lift (shut-off) at 19.5 feet. View detailed pump flow rates.


A check valve is needed for these sewage sump systems and for your convenience we offer a few choices giving you the freedom to choose the one that is best for your application. Installing a check/ball valve combination in the discharge pipe allows you to keep any back flow from reaching the basin while servicing it. All of the check valves sold separately below can be installed on vertical or horizontal pipe, but vertical mounting is recommended for indoor sewage pump systems.


Basins are made of Polyethylene Structural Foam, Polyethylene, or Fiberglass and typically include one piece solid polyethylene or solid steel covers and a 4" pipe seal hub, and have a 3/16" vent hole drilled. The Deluxe basins will have a 4" PVC hub and the "L.A. Code" models will include a 4" Cast Iron Hub. Premium systems include an anti-flotation device, torque stops and a 4" snap-in hub. Premium indoor basins include split cover for easy pump inspection. Outdoor basins have solid Polyethylene Structural Foam (PSF) lid and basin with 2" discharge on side, and are rated for outdoor burial. Centerline of hub located 10-1/2" from the top of the basin on 18" diameter x 30" and 24" diameter x 36" basins. Centerline of hub on 24" diameter x 24" basin is located 8" from the top of the basin. View gallon capacity of basins and View pump specs.



Indoor Pre-assembled Sewage Systems


The Zoeller indoor sewage pump systems are normally installed by digging a hole wide enough for the diameter of the basin to fit into and deep enough to allow the basin to either sit flush with the top of the floor or slightly above the floor so the top cover will be able to be accessed for future maintenance. The pump is already mounted and installed into the bottom of the basin. Most sewage pump systems are packaged with environmentally safe water soluble peanuts that will not need to be removed. The installer will need to dig a trench and plumb the fixtures to drain into the 4" basin inlet which can be bushed down to 3" if needed. The discharge pipe will need to be plumbed with a check valve to run into the regular gravity flow drain line leading to the sewer or septic tank. Installing a check/ball valve combination in the discharge pipe allows you to stop back flow from reaching the sump while servicing it. The vent is normally installed to vent out the top of the roof of the building. All discharge and venting plumbing, must be installed to meet local codes. Once the sewage system is installed and in use, the fluid level will rise and triggers the float switch which then turns on the pump and pumps the sewage up through the check valve and into the regular drain line.


M211 Automatic Pump
.4 HP - 115 volt - mechanical float mounted to pump - flow rate 82 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 19.5 feet - View detailed pump flow rates.
Model # Vent Size Basin Type Basin Size Price & Quantity
912-0073 2" Polyethylene Structural Foam-Standard 18" x 30" $853.08
912-0112 2" Poly Molded Basin w/ PSF Simplex Cover 24" x 24" $1,041.75

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

M264 Automatic Pump
.4 HP - 115 volt - mechanical float mounted to pump - flow rate 90 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 18 feet - View pump dimensions - View detailed pump flow rates.
Model # Vent Size Basin Type Basin Size Price & Quantity
912-1007 2" Polyethylene Structural Foam-Standard w/ Alarm 18" x 30" $1,316.67
912-0061 2" Polyethylene Structural Foam - Deluxe 18" x 30" $1,181.91
912-1086 2" Premium Polyethylene Structural Foam w/ AFD & Alarm 18" x 30" $1,482.45

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

M266 Automatic Pump
   1/2 HP - 115 volt - mechanical float mounted to pump - flow rate 128 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 21.5 feet - View detailed pump flow rates.
Model # Vent Size Basin Type Basin Size Price & Quantity
912-0010 2" Polyethylene Structural Foam-Standard 18" x 30" $1,097.01
912-1010 2" Polyethylene Structural Foam-Standard w/ Alarm 18" x 30" $1,366.54
912-0063 2" Polyethylene Structural Foam-Deluxe 18" x 30" $1,211.56
912-0088 2" Premium Polyethylene Structural Foam w/ AFD 18" x 30" $1,251.99
912-1088 2" Premium Polyethylene Structural Foam w/ AFD & Alarm 18" x 30" $1,491.88
912-0116 2" Poly Molded Basin w/ PSF Simplex Cover 24" x 24" $1,270.86
912-1116 2" Poly Molded Basin w/ PSF Simplex Cover & Indoor Alarm 24" x 24" $1,653.60

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

BN264 Manual Pump
   .4 HP - 115 volt - with piggyback variable level float switch - flow rate 90 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 18 feet - View pump dimensions - View additional detailed pump flow rates.
Model # Vent Size Basin Type Basin Size Price & Quantity
912-0016** 2" Polyethylene Structural Foam - 10' Stack - **L.A. Code 18" x 30" $1,390.80
912-1055 2" Polyethylene Structural Foam w/ Integral Side Vent w/ Alarm 18" x 30" $1,373.27
912-0065 2" Polyethylene Structural Foam-Deluxe 18" x 30" $1,237.17
912-1080 2" Polyethylene Structural Foam-Deluxe w/ Alarm 24" x 36" $1,878.66
912-1087 2" Premium Polyethylene Structural Foam w/ AFD & Alarm 18" x 30" $1,482.45

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

Outdoor Pre-assembled Sewage Systems


Zoeller preassembled sewage packages - outdoor

The Zoeller outdoor sewage pump systems are normally used where ground elevations make it impossible for normal gravity flow drains to be installed. Some ground conditions will even cause the septic tank to be installed above the house elevation making gravity drains impractical, and the best solution is a sewage pump system.


Installation is normally done by digging a hole at least 24" larger in diameter than the basin diameter to allow for a 12" backfill all around it. The backfill material should be 1/8" -3/4" pea gravel or 1/8" -1/2" crushed stone. The hole should be dug deep enough to allow for 12" of compacted backfill or 6" deep if a concrete pad will be required. Do not backfill until the inlet and discharge plumbing lines have been installed into the basin. The hole should be at least 10 feet from adjacent structures. The top of the basin should be flush with the top of the surface of the ground for access to the pump and basin. When located below grade a riser extension is recommended to bring the lid up to ground surface for easy access to the pump and interior of the basin. The installer will need to dig a trench and plumb the fixtures to drain into the 4" basin inlet which can be bushed down to 3" if needed. A trench will also need to be dug for the discharge pipe and for the electrical conduit. The sewage discharge exits from the side of the basin to be plumbed horizontally underground and tied into the main drain or directly into the septic tank if dictated by ground elevations.


Installing a check/ball valve combination in the discharge pipe allows you to stop back flow from reaching the sump while servicing it. The electrical needs to be protected from weather conditions either in an approved electrical box rated for outdoors, or run back into the building structure. Venting for outdoor systems can normally be vented on the basin cover as necessary, but must be in accordance to all applicable National, State, and Local plumbing codes. Do NOT use an automatic plumbing vent device or air admittance valve that allows air to flow in but not to flow out, similar to "Provent®", or "Studor®" air admittance valves. You might consider using an Maxi-Filtra vent pipe filter. Please remember, all discharge and venting plumbing, must be installed to meet local codes. Most Zoeller sewage pump systems are packaged for shipping with environmentally safe water soluble peanuts that will not need to be removed. Once the sewage system is installed and in use, the fluid level will rise and trigger the float switch which then turns on the pump and pumps the sewage through the check valve and into the regular drain line or septic tank.  View typical installation.


Reminder: A check valve is needed for these sewage sump systems and for your convenience we offer a few choices giving you the freedom to choose the one that is best for your application. All of the Zoeller check valves sold separately below can be installed on vertical or horizontal pipe.


M264 Automatic Pump
4 HP - 115 volt - mechanical float mounted to pump - flow rate 90 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 18 feet - View pump dimensions - View detailed pump flow rates.
Model # Vent Size Basin Type Basin Size Price & Quantity
912-0082 2" Polyethylene Structural Foam 18" x 30" $1,099.70
912-1082 2" Polyethylene Structural Foam w/ Alarm 18" x 30" $1,502.65
912-0090 2" Premium Polyethylene Structural Foam w/ AFD 18" x 30" Discontinued
912-1090 2" Premium Polyethylene Structural Foam w/ AFD & Alarm - Replaced by 912-1082 18" x 30" Discontinued

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

BN264 Manual Pump
   .4 HP - 115 volt - with piggyback variable level float switch - flow rate 90 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 18 feet - View pump dimensions - View detailed pump flow rates.
912-0083 2" Polyethylene Structural Foam 18" x 30" $1,099.70
912-1083 2" Polyethylene Structural Foam w/ Alarm 18" x 30" $1,502.66

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

M266 Automatic Pump
   1/2 HP - 115 volt - mechanical float mounted to pump - flow rate 128 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 21.5 feet - View detailed pump flow rates.
912-0084 2" Polyethylene Structural Foam 18" x 30" $1,119.92
912-1084 2" Polyethylene Structural Foam w/ Alarm 18" x 30" $1,545.78

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart

BN266 Manual Pump
   1/2 HP - 115 volt - with piggyback variable level float switch - flow rate 128 gpm@5 ft. dynamic head pressure - maximum vertical lift (shut-off) 21.5 feet - View detailed pump rates
912-0085 2" Polyethylene Structural Foam 18" x 30" $1,207.51
912-1085 2" Polyethylene Structural Foam w/ Alarm 18" x 30" $1,606.43
912-0093 2" Premium Polyethylene Structural Foam w/ AFD 18" x 30" $1,432.58
912-1093 2" Premium Polyethylene Structural Foam w/ AFD & Alarm 18" x 30" Discontinued

Due to size/weight and to ensure safe delivery, certain items ship by truck and have an additional shipping fee per freight item.
- OR - View Cart


Options: Check Valves

Model # Description Price & Quantity
2200-20UC 2" PVC Ball/Check Valve Combination with Union - Compression $62.21
30-0103 2" PVC "Combo" Check Valve / Union Combination $61.22
30-0020 PVC 2" Compression End Fittings $115.85
30-0021 PVC Plastic, 2" Slip x Slip (neoprene unions w/ stainless steel clamps) $79.63
30-0151 Cast Iron 2", Slip x Slip (neoprene unions w/stainless steel clamps) $99.61

- OR - View Cart

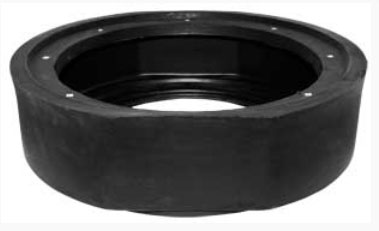

Basin Extensions


Awesome faucet
Features:
  • Use these riser extensions when your basin is below the grade of your ground
  • Fits 18" diameter polyethylene structural foam basins
  • Includes mounting hardware
  • Available in 6" or 12" extensions

Easily installs onto existing basin. Take off the existing bolts and lid. Reuse the lid bolts to fasten the extension to the basin. Use the new bolts provided in the hardware packet to reinstall the lid onto the extension.


Model Description Price & Quantity
#31-1476 6" extension with hardware $156.37
#31-1473 12" extension with hardware $213.39

- OR - View Cart

Total Dynamic Head/Flow Per Minute

Model 211
Feet/Meters Gallons/Liters
5/1.5 82/310
10/3.0 53/201
15/4.6 32/121
20/6.1 -/-
shut-off head: 19.5 ft.
Model 264
Feet/Meters Gallons/Liters
5/1.5 90/341
10/3.0 60/227
15/4.6 23/87
20/6.1 -/-
shut-off head: 18 ft.
Model 266
Feet/Meters Gallons/Liters
5/1.5 128/484
10/3.0 89/337
15/4.6 50/189
20/6.1 10/38
shut-off head: 21.5 ft.

Additional Pump Information

Models Horse Power Phase Voltage
211 .4 1 115
264 .4 1 115
266 1/2 1 115

Basin Gallon Capacities

Basin Size Gallon Capacity
18" x 30" 30
24" x 24" 41
24" x 36" 72


Related Items & Accessories



Frequently Asked Questions

Q. "What does 'AFD' stand for?"
A. The abbreviation "AFD" stands for Anti-flotation device. In this case it is a collar attached to the bottom of the basin to reduce or eliminate the basin from popping up out of the ground when the water table is high.

Q. "What does 'PSF' stand for?"
A. The abbreviation "PSF" stands for Polyethylene Structural Foam. Polyethylene is a type of plastic that's easily molded and resistant to chemicals. It is used for many purposes, such as making containers, tubes, and packaging. In this case it is whipped for a more rigid, thicker structure.

Q. "What is the difference between Poly Molded basins and Polyethylene Structural Foam basins?"
A. The Poly Molded Basins are made of polyethylene much like the Polyethylene Structural Foam basins are made but without the structural foam addition. Polyethylene Structural Foam basins have a slightly thicker wall than the Poly Molded basins in the larger diameter sizes. All of Zoeller's basins are top quality one piece, seamless construction.

Q. "What is the difference between Polyethylene Structural Foam-Standard and Polyethylene Structural Foam-Deluxe basins?"
A.The Polyethylene Structural Foam-Deluxe basins include a 4" PVC inlet hub. The "Standard" come with a press in style 4" pipe seal hub.

Q. "Do I need to install a vent pipe to the tank?"
A.It really depends on how you plumb the piping to the tank and each situation is different. In many cases with any brand of sealed tank the simple answer is yes as you need air to displace the volume of discharge. An AAV may be used in many areas of the country but local codes always prevail and so best to check with your local code authorities before purchasing the enclosed tank system/s such as these shown on this page.

Q. "We noticed some of the basins are listed as 'Premium' Polyethylene Structural Foam basins. What makes them 'premium'?"
A.The "Premium" Polyethylene Structural Foam basins have torque arrestors molded into the bottom of the basin to keep the pump in place during operation and to prevent damage to the pump during shipping.

Q. "What is a vortex impeller and what does it do?"
A. A vortex impeller handles debris better than other impellers. Due to the design of the impeller itself, a whirlpool, or vortex, action is created to move the material, resulting in less clogs as vortex impellers are recessed and generally do not come in contact with solids at all. By contrast vane, or two-vane, impellers are in direct contact with the solids, and so can be more prone to being clogged. Below is an example of a vortex impeller.
vortex impeller

Q. "Can I mount the check valve horizontally?"
A.It is recommended that the check valve (or check/ball valve combination) is mounted vertically, however each can be mounted horizontally. The installation for each unit is similar; the check valve hinge must be at the top.

Q. "What does it mean when it states 10 ft. stack?"
A.This means that the basin can withstand water pressure from a 10 ft. vertical pipe (stack) without leaking.

Q. "Some of the basins you have listed mention 'L.A. code'. Does this mean these are the only type of basins that can be installed in Los Angeles?"
A.Not necessarily. Los Angeles requires cast iron piping be installed for most commercial drains, and these basins come with a 4" cast iron hub for ease of installation. It is always best to consult your local building code authority before purchasing a system if you have any questions regarding type of drain material that may be required.

Q. "What does it mean when it states 18' shut off head?"
A.It means the pump will not move water beyond that point in height. If the pump shut off height is 18 feet and you put a pipe 17 feet 11 inches high straight up from the pump, water would still trickle over and out of the pipe. If you put a pipe at 18' straight up from the pump, while the pump continues to operate, water will just stay at that height in the pipe.

Q. "Why is a 3/16" vent hole pre-drilled into the discharge tube?"
A.A 3/16" vent hole, also known as an air bleed, is drilled into the discharge pipe located in the basin between the pump and check valve to prevent the pump from becoming air locked. This hole is normally drilled a few inches above the pumps "on" level. When a check valve is installed on the discharge pipe, air can be trapped under or behind the check valve. This trapped air blocks the pipe when the pump turns on preventing water to be pumped beyond the trapped air. If a pump becomes air locked it will continue to run but not push water, causing the pump to eventually burn out. This vent hole (air-bleed) allows the air to escape into the basin and helps prevent the pump from burning out.
