Automatic Sensor Activated Urinal Flushometers
For reliable performance every time, choose Sloan for your sensor operated flushometer needs. With decades of dependable product experience behind them, these sensor operated flush valves are built to last. With their hygienic and economical features, you can't go wrong with Sloan, brought to you by PlumbingSupply.com
®. For more Sloan products,
Visit our page.
Look for this symbol to find Sloan products that
meet requirements of the Buy American Act
Royal Optima concealed, Electronic, Sensor Activated Urinal Flushometers
Designed for back spud urinals
Model #190-ES-S
Features:
- Sensor operated urinal flushometer for back spud urinals
- Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability
- Self-adaptive infrared sensor with indicator light
- Chrome plated wall cover plate with vandal resistant screws
- Non-hold-open integral solenoid operation
- Chrome plated wall cover plates with vandal resistant screws
- High back pressure vacuum breaker flush connection
- Spud coupling designed for back spuds
- Sweat solder adapter
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass with no external volume adjustment to ensure water conservation
- Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance
- ASSE 1037, ANSI/ASME A112.19.6 compliance
- Typical Sloan Optima flushometer installation wiring diagram
- Requires EL-154 transformer (available directly below)
- All of the flushometers below are Buy American Act compliant
Model # |
Description |
Price & Quantity |
↓ For 1-1/4" back spud urinals ↓ |

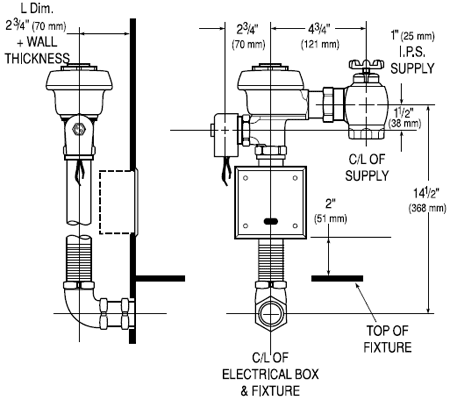

190-1.0-ES-S |
Concealed, sensor activated flushometer for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$532.30 |
190-1.5-ES-S |
Concealed, sensor activated flushometer for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$532.30 |
190-1.5-ES-S |
Concealed, sensor activated flushometer for 1-1/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$620.14 |
190-ES-S |
Concealed, sensor activated flushometer for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 3.5 GPF |
$532.30 |
190-ES-S |
Concealed, sensor activated flushometer for 1-1/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 3.5 GPF |
$620.14 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box - Note: This item is not BAA compliant. |
$55.95 |
|

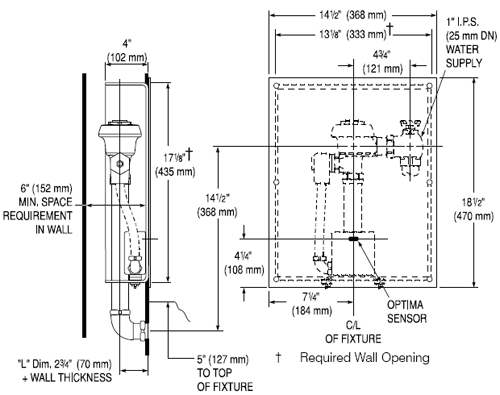

190-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$959.72 |
190-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$823.72 |
190-WB-1.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$823.72 |
190-WB-1.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$959.72 |
190-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 3.5 GPF |
$959.72 |
190-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 3.5 GPF |
$959.72 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box - Note: This item is not BAA compliant. |
$55.95 |
Model # |
Description |
Price & Quantity |
↓ For 3/4" back spud urinals ↓ |

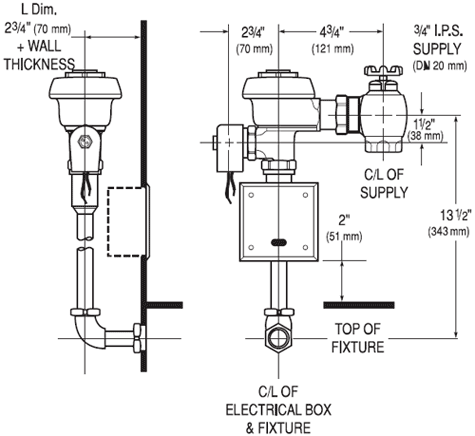

195-0.5-ES-S |
Concealed, sensor activated flushometer for 3/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 0.5 GPF |
$715.15 |
195-0.5-ES-S |
Concealed, sensor activated flushometer for 3/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 0.5 GPF |
$532.30 |
195-1.0-ES-S |
Concealed, sensor activated flushometer for 3/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$532.30 |
195-1.0-ES-S |
Concealed, sensor activated flushometer for 3/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.0 GPF |
$620.14 |
195-ES-S |
Concealed, sensor activated flushometer for 3/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$532.30 |
195-ES-S |
Concealed, sensor activated flushometer for 3/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$620.14 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box - Note: This item is not BAA compliant. |
$55.95 |
|

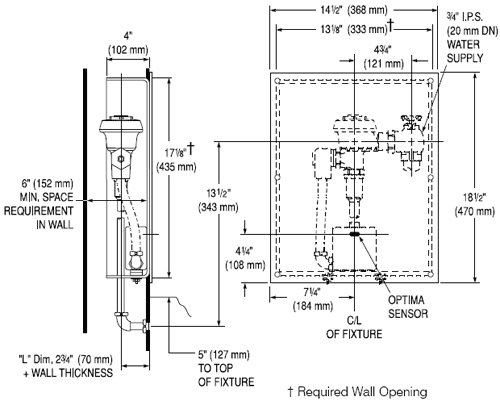

195-WB-0.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 0.5 GPF |
$823.72 |
195-WB-0.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 0.5 GPF |
$823.72 |
195-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$823.72 |
195-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.0 GPF |
$823.72 |
195-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" back spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$959.72 |
195-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" back spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$959.72 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box - Note: This item is not BAA compliant. |
$55.95 |
Royal Optima concealed, Electronic, Sensor Activated Urinal Flushometers
Designed for 1-1/4" top spud urinals
Model #192-ES-S
Features:
- Sensor operated urinal flushometer for top spud urinals
- Synthetic rubber diaphragm with dual filtered fixed bypass for extra durability
- Self-adaptive infrared sensor with indicator light
- Chrome plated wall cover plate with vandal resistant screws
- Non-hold-open integral solenoid operation
- Chrome plated wall cover plates with vandal resistant screws
- High back pressure vacuum breaker flush connection
- Spud coupling designed for 1-1/4" top spuds
- Sweat solder adapter
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass with no external volume adjustment to ensure water conservation
- Permex™ rubber diaphragm, stop seat, & vacuum breaker for chloramine resistance
- ASSE 1037, ANSI/ASME A112.19.6 compliance
- Typical Sloan Optima flushometer installation wiring diagram
- Requires EL-154 transformer (available directly below)
- Buy American Act compliant (note symbol for participating products)
Model # |
Description |
Price & Quantity |
↓ For 1-1/4" top spud urinals ↓ |

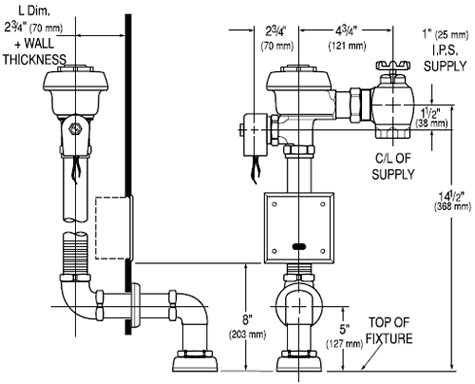

192-1.0-ES-S |
Concealed, sensor activated flushometer for 1-1/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$748.20 |
192-1.0-ES-S |
Concealed, sensor activated flushometer for 1-1/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.0 GPF |
$748.20 |
192-1.5-ES-S |
Concealed, sensor activated flushometer for 1-1/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$642.18 |
192-1.5-ES-S |
Concealed, sensor activated flushometer for 1-1/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$748.20 |
192-ES-S |
Concealed, sensor activated flushometer for 1-1/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 3.5 GPF |
$748.20 |
192-ES-S |
Concealed, sensor activated flushometer for 1-1/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 3.5 GPF |
$748.20 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box |
$55.95 |
|

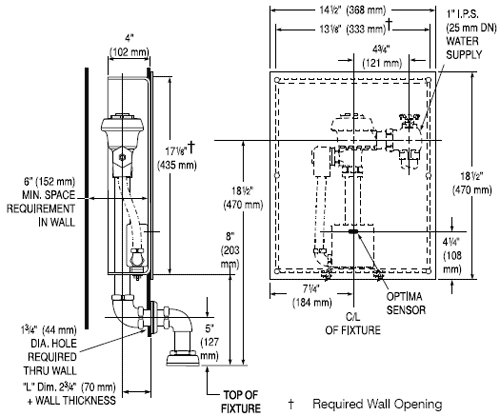

192-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$933.64 |
192-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.0 GPF |
$1,087.75 |
192-WB-1.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$1,087.75 |
192-WB-1.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$1,087.75 |
192-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 3.5 GPF |
$1,087.75 |
192-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 1-1/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 3.5 GPF |
$1,087.75 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box |
$55.95 |
Model # |
Description |
Price & Quantity |
↓ For 3/4" top spud urinals ↓ |
197-0.5-ES-S |
Concealed, sensor activated flushometer for 3/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 0.5 GPF |
$642.18 |
197-0.5-ES-S |
Concealed, sensor activated flushometer for 3/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 0.5 GPF |
$748.20 |
197-1.0-ES-S |
Concealed, sensor activated flushometer for 3/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$748.20 |
197-1.0-ES-S |
Concealed, sensor activated flushometer for 3/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.0 GPF |
$748.20 |
197-ES-S |
Concealed, sensor activated flushometer for 3/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$748.20 |
197-ES-S |
Concealed, sensor activated flushometer for 3/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$748.20 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box |
$55.95 |
|

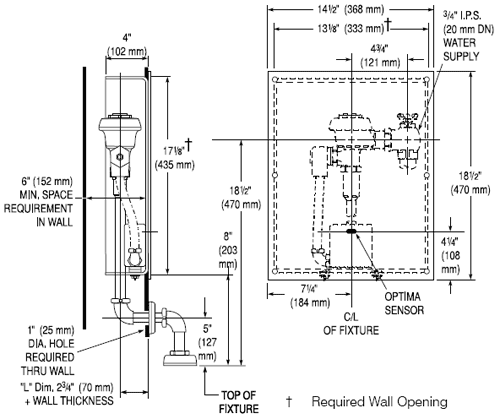

197-WB-0.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 0.5 GPF |
$933.64 |
197-WB-0.5-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 0.5 GPF |
$933.64 |
197-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.0 GPF |
$933.64 |
197-WB-1.0-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.0 GPF |
$1,087.75 |
197-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" top spud urinal 2-3/4" to 10-3/4" LDIM - dimensions - 1.5 GPF |
$1,087.75 |
197-WB-ES-S |
Concealed, sensor activated flushometer w/ 13" x 17" wall box, for 3/4" top spud urinal 11-3/4" to 12-3/4" LDIM - dimensions - 1.5 GPF |
$1,087.75 |
EL-154 |
120 VAC transformer - for up to 10 flushometers within 50ft. - dimensions - 50VA - EL-154 Transformer requires a 2 gang electrical box |
$55.95 |
Related Items & Accessories
Frequently Asked Questions
Q. "What is Permex™?"
A. Permex™ is a patented rubber compound that is formulated to withstand the deteriorating effects of ammonia and chloramine which are often used in water treatment facilities and cleaners.
Q. "What is the LDIM?"
A. LDIM is the wall thickness plus 2-3/4" distance for the installation offset measured from the interior finished wall to the centerline of the flush valve.
Q. "What does it mean that a product is compliant with the Buy American Act (BAA) or with the American Recovery and Reinvestment Act (ARRA)? Are these products manufactured in the USA?"
A. The Buy American Act is a part of the American Recovery and Reinvestment Act of 2009 intended to help stimulate the United States' economy through the purchase of American-made goods. While the Buy American Act portion of the bill primarily regulates government spending, the regulations can help guide conscious consumers who wish to purchase American-made products. In general, an item that meets the requirements of the Buy American Act is assembled in the US and at least 50% of its components are domestically produced. While every single component of these products may not be produced in the US, a large portion are - and that portion is helping our American economy to grow and thrive.
