Avalanche Series Toilet Repair Parts
by Gerber

Don't sacrifice your uncluttered, clean-looking Gerber Avalanche toilet just because of a leaky gasket or broken flush valve. We've got all the replacement parts you need to keep your toilet in perfect running condition - from fill valves and flappers to trip levers and bolt caps, PlumbingSupply.com® is your source for Gerber toilet parts.
Gerber Avalanche one-piece toilet - model number 21-014One-Piece
Model #21-014
Gerber Avalanche two-piece toiletTwo-Piece
Tanks #28-890, 28-892, 28-894, & 28-895
Gerber Avalanche AV two-piece toilet - tank number 28-890AV Two-Piece
Tanks #AV-28-890 & AV-28-892
Gerber Avalanche AV two-piece toilet - tank number AV-28-894AV Two-Piece
Tank #AV-28-894
Gerber Avalanche AV two-piece toilet - tank number AV-28-895AV Two-Piece
Tank #AV-28-895
Gerber Avalanche high efficiency two-piece toilet - tank numbers HE-28-890, HE-28-894, and HE-28-895High Efficiency
Tanks #HE-28-890, HE-28-894, & HE-28-895
Gerber Avalanche Leak Sentry two-piece toilet - tank number LS-28-890Leak Sentry
Tank #LS-28-890
Gerber Avalanche WaterSense certified two-piece toilet - tank numbers WS-28-890 and WS-28-895WaterSense
Tanks #WS-28-890 & WS-28-895
Gerber Avalanche WaterSense certified two-piece toilet - tank number WS-28-894WaterSense
Tank #WS-28-894
Gerber Avalanche two-piece toilet with concealed trapway - tank number CT-28-830Concealed Trapway
Tank #CT-28-830
Gerber Avalanche two-piece toilet - tank number GWS-31-818Two-Piece
Tanks #GWS-38-895, GWS-38-890, GWS-38-89097

Replacement Parts for Gerber Avalanche Toilets
One-Piece Model #21-014

Parts diagram for Gerber Avalanche one-piece toilets - model number 21-014
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and

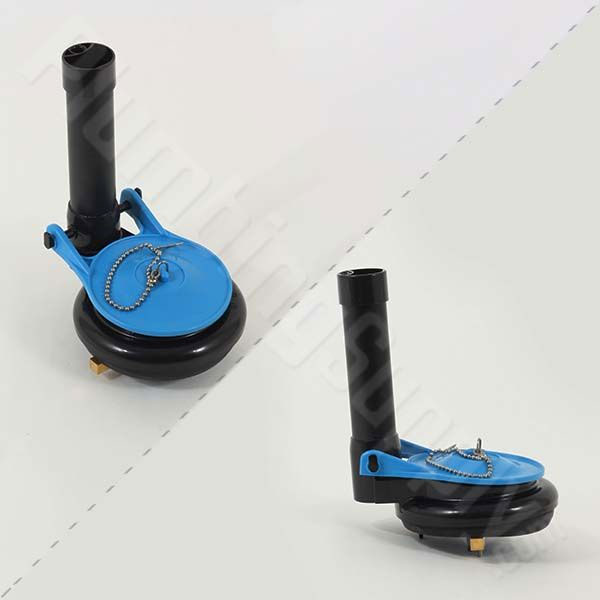

4 gerber toilet flush valve 99-009 99-009 Flush Valve - includes flapper and chain $21.45 Enter a quantity and
5 gerber flapper 99-788 99-788 Flapper with Chain $10.37 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber 99-685 white 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 bemis affinity premium elongaed toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
8 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche Toilets
Two-Piece Models - Tanks # 28-890, 28-892, 28-894, & 28-895

Parts diagram for Gerber Avalanche two-piece toilets - tank numbers 28-890, 28-892, 28-894, and 28-895
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 gerber flush valve 99-780 99-780 Flush Valve - includes flapper and chain $18.27 Enter a quantity and
5 gerber flapper 99-770 99-770 Flapper with Chain $9.22 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber white 99-685 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
tank lever side mount brass arm gerber white 99-659 99-659 Side Mount Toilet Tank Lever - White $29.85 Enter a quantity and
7 gerber tank bowl kit 99-660 99-660 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $12.80 Enter a quantity and
8 gerber will-fit 3 inch gasket WF3 "Will Fit" Tank Gasket ONLY $4.89 Enter a quantity and
9 bemis affinity premium round toilet seat 200e4 white 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche AV Toilets
Two-Piece Models - Tanks # AV-28-890 & AV-28-892

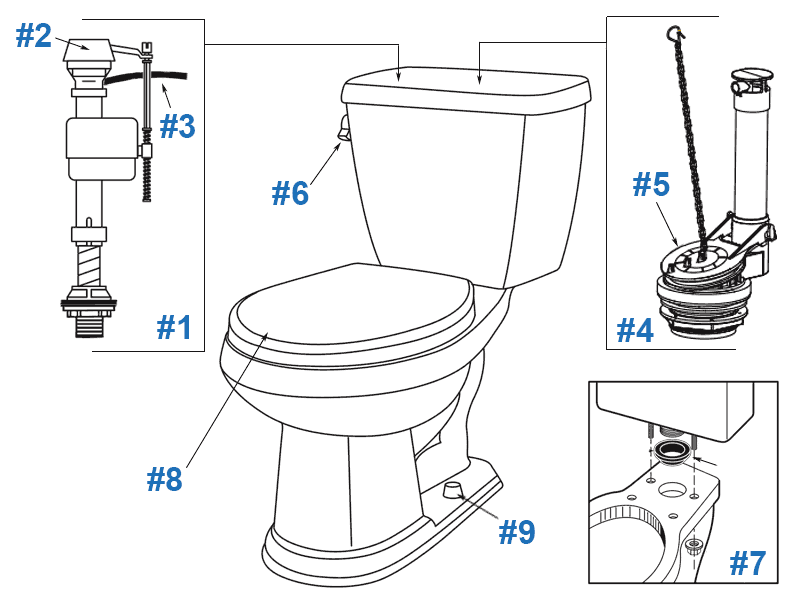

Parts diagram for Gerber Avalanche AV two-piece toilets - tank numbers AV-28-890 and AV-28-892
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and

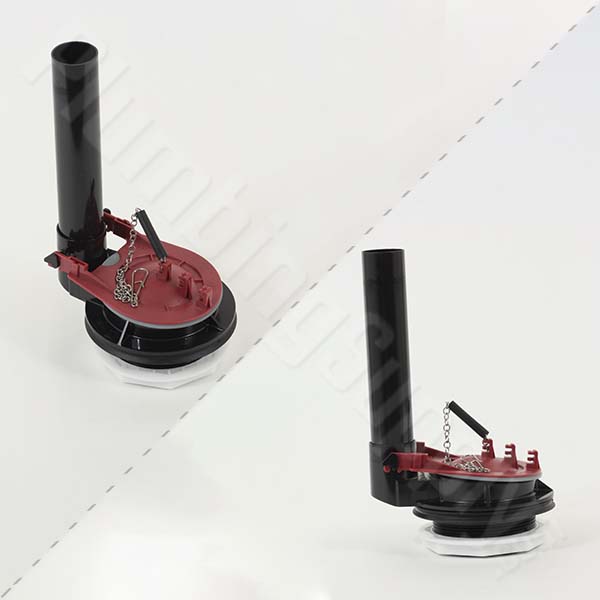

4 gerber toilet flush valve 99-016 99-016 Flush Valve - includes flapper and chain $15.50 Enter a quantity and
5 image unavailable 99-014 Flapper with Chain $10.44 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber white 99-685 white 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
8 bemis affinity premium round toilet seat 200e4 white 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche AV Toilets
Two-Piece Models - Tank # AV-28-894

Parts diagram for Gerber Avalanche AV two-piece toilets - tank number AV-28-894
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and

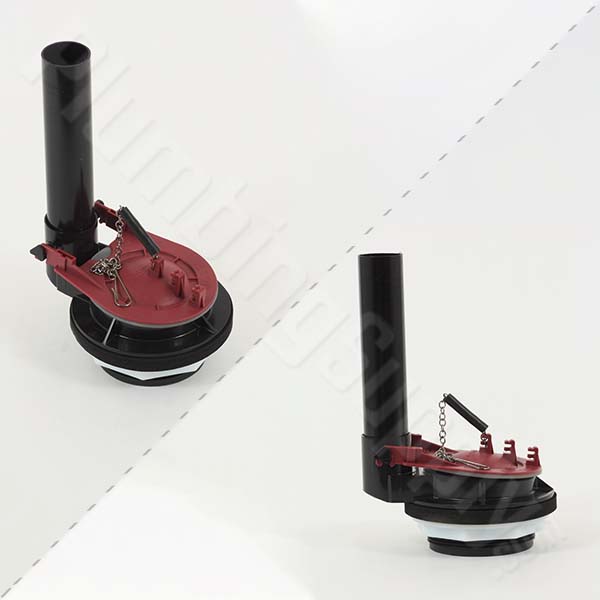

4 gerber toilet flush valve 99-018 99-018 Flush Valve - includes flapper and chain $11.67 Enter a quantity and
5 image unavailable 99-014 Flapper with Chain $10.44 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber 99-685 white 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
8 bemis affinity premium round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche AV Toilets
Two-Piece Models - Tank # AV-28-895

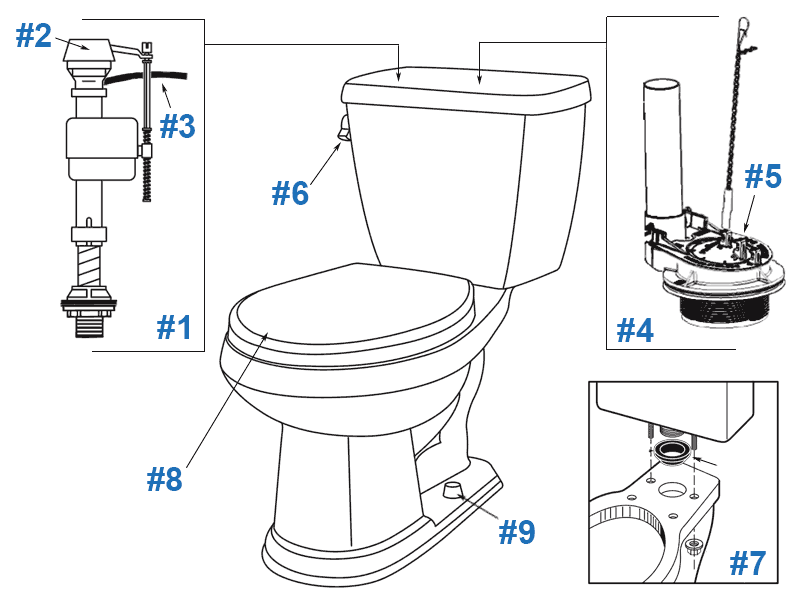

Parts diagram for Gerber Avalanche AV two-piece toilets - tank number AV-28-895
Item # Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 gerber toilet flush valve 99-019 99-019 Flush Valve - includes flapper and chain $11.66 Enter a quantity and
5 image unavailable 99-014 Flapper with Chain $10.44 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
gerber side mount tank trip lever white 99 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
8 bemis affinity premium round toilet seat 200e4 white 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche High Efficiency Toilets
Two-Piece Models - Tanks # HE-28-890, HE-28-894, & HE-28-895

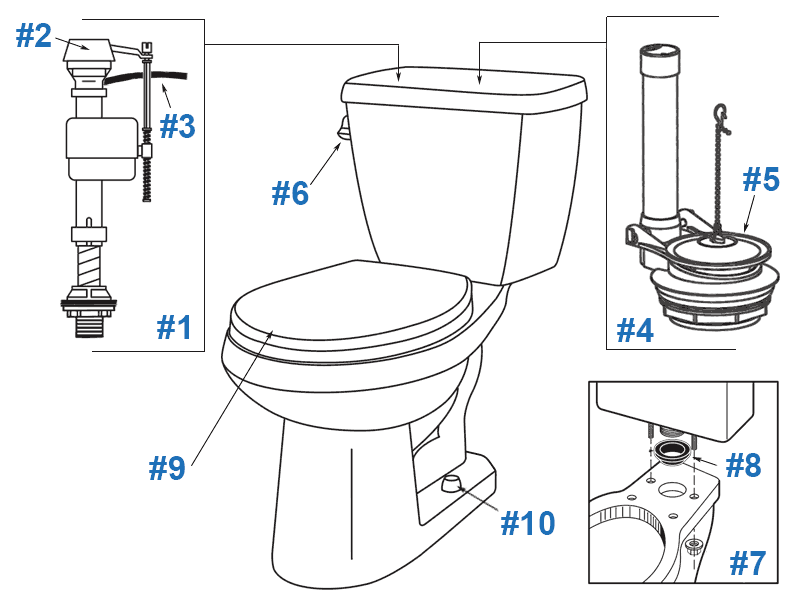

Parts diagram for Gerber Avalanche high efficiency toilets - tank numbers HE-28-890, HE-28-894, and HE-28-895
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 gerber flush valve 99-793 99-793 Flush Valve - includes flapper and chain $20.78 Enter a quantity and
5 gerber flapper 99-788 99-788 Flapper with Chain $10.37 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber white 99-685 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 gerber tank bowl kit 99-660 99-660 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $12.80 Enter a quantity and
8 gerber will fit tank to bowl gasket WF3 "Will Fit" Tank Gasket ONLY $4.89 Enter a quantity and
9 bemis affinity premium round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche Leak Sentry Toilets
Two-Piece Models - Tank # LS-28-890

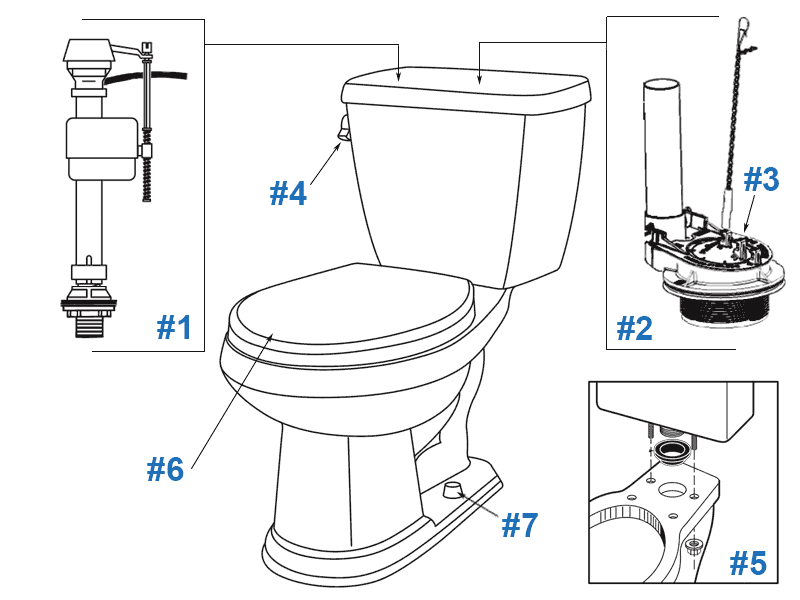

Parts diagram for Gerber Avalanche Leak Sentry toilets - tank number LS-28-890
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-855 and 99-300 $26.39 Enter a quantity and
2 gerber toilet flush valve 99-854 99-854 Flush Valve - includes flapper and chain $13.10 Enter a quantity and
3 image unavailable 99-012 Flapper with Chain $5.84 Enter a quantity and
4 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber white 99-685 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
5 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
6 bemis affinity premium round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
7 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche WaterSense Toilets
Two-Piece Models - Tanks # WS-28-890 & WS-28-895

Parts diagram for Gerber Avalanche WaterSense toilets - tank numbers WS-28-890 and WS-28-895
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmsater replacement 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 gerber flush valve 99-853 99-853 Flush Valve - includes flapper and chain $15.20 Enter a quantity and
5 image unavailable 99-012 Flapper with Chain $5.84 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
side mount tank trip lever white 99-685 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
8 bemis affinity premium round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche WaterSense Toilets
Two-Piece Models - Tank # WS-28-894

Parts diagram for Gerber Avalanche WaterSense toilets - tank number WS-28-894
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 gerber toilet flush valve 99-854 99-854 Flush Valve - includes flapper and chain $13.10 Enter a quantity and
5 image unavailable 99-012 Flapper with Chain $5.84 Enter a quantity and
6 gerber trip lever 99-685 99-685 Side Mount Toilet Tank Lever - Chrome $26.03 Enter a quantity and
tank lever side mount gerber white 99-685 99-685WH Side Mount Toilet Tank Lever - White $26.09 Enter a quantity and
7 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
8 bemis affinity premium round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bems affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
9 toilet bowl cap set white "Will Fit" Toilet Bowl Bolt Caps (2) - White (view more color options) $3.89 Enter a quantity and

Replacement Parts for Gerber Avalanche Concealed Trapway Toilets
Two-Piece Models - Tank # CT-28-830

Parts diagram for Gerber Avalanche two-piece toilet with concealed trapway - tank number CT-28-830
Item # Image Part # Description Price & Quantity
1 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
2 fluidmaster replacement cap 385 385 Fill Valve Cap Assembly Repair Kit - includes diaphragm and float lever fulcrum $5.87 Enter a quantity and
3 refill tube angle adapter fla218 218 Refill Tube & Angle Adapter $3.95 Enter a quantity and
4 gerber flush valve 99-793 99-793 Flush Valve - includes flapper and chain $20.78 Enter a quantity and
5 gerber flapper 99-788 99-788 Flapper with Chain $10.37 Enter a quantity and
6 gerber tank lever chrome 99-001 99-001 Front Mount Left Side Tank Lever - Chrome $27.12 Enter a quantity and
gerber tank lever white 99-001 99-001-WH Front Mount Left Side Tank Lever - White $26.09 Enter a quantity and
7 gerber tank bowl kit 99-660 99-660 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $12.80 Enter a quantity and
8 gerber will-fit beveled gasket WF3 "Will Fit" Tank Gasket ONLY $4.89 Enter a quantity and
9 bemis affinity premium round toilet seat 200e4 200E4 Quality Bemis "Will Fit" Round Toilet Seat - White (view more color options) $60.56 Enter a quantity and
bemis affinity premium elongated toilet seat 1200e4 1200E4 Quality Bemis "Will Fit" Elongated Toilet Seat - White (view more color options) $67.91 Enter a quantity and
10 gerber bolt caps white 99-857 99-857 Toilet Bowl Bolt Caps (2) - White $7.49 Enter a quantity and

Replacement Parts for Gerber Avalanche Toilets
Two-Piece Model #'s:
GWS31800, GWS31817, GWS31810,
GWS31802, GWS31812, GWS31818
Tank #'s:
GWS38895, GWS38890, GWS3889097

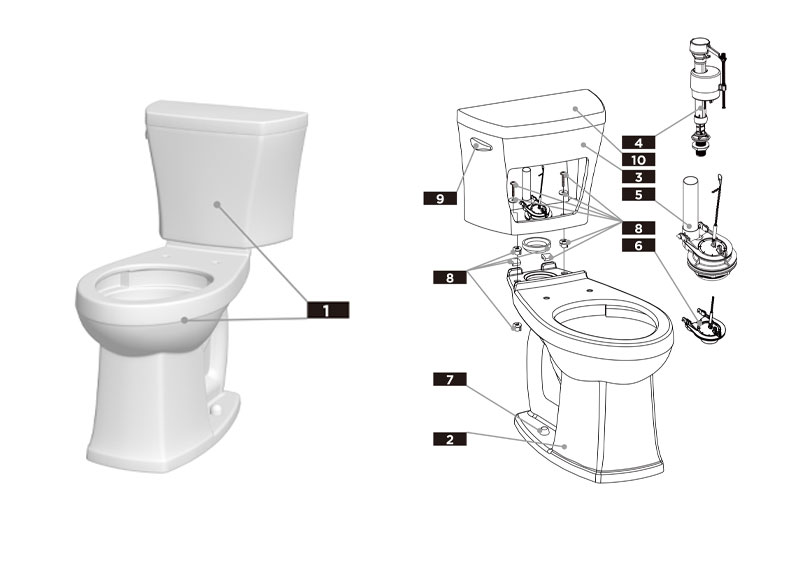

Parts diagram for Gerber Avalanche series with tank GWS38895
Item # Image Part # Description Price & Quantity
4 gerber fill valve GA711048 GA711048 Fill Valve - Replaces 99-300 $26.39 Enter a quantity and
5 gerber toilet flush valve 99-016 99-016 Flush Valve - includes flapper and chain $15.50 Enter a quantity and
6 image unavailable 99-014 Flapper $10.44 Enter a quantity and
7 image unavailable 99-287 Plastic Bolt Caps $1.97 Enter a quantity and
8 image unavailable 99-856 Tank Assembly Kit - includes tank gasket, bolts, washers, and nuts $15.93 Enter a quantity and
9 image unavailable GA713024 Toilet Tank Lever Temporarily Unavailable Enter a quantity and
image unavailable GA713025 Right Hand Toilet Tank Lever Temporarily Unavailable Enter a quantity and

Related Items & Information

Gerber toilet flapper
ALL Gerber Toilet Repair Parts Gerber slow close toilet seat
Gerber Toilet Seats Video about installing toilet seats
How to Install
Toilet Seats Toilet tank gasket
Toilet Tank Gaskets Designer Trip Levers
Designer Trip Levers Improving toilet performance
How to Improve Toilet Performance Toilet flex line
Toilet Flex Lines Toilet Bowl Cleaning System
Automatic Toilet
Bowl Cleaners
Frequently Asked Questions

Q. "How can I find the model number of my Gerber toilet?"
A. Look inside your tank. Always exercise caution when removing the tank lid, as it is fragile and can be easily broken if stepped on or dropped. Look inside the tank starting with the back wall - for non-pressure assist models, the model number will be painted just above the waterline (example below left). For pressure assist tanks, the number will be closer to the top of the tank (example below right). Please note that due to safety concerns with pressure assist toilets, we choose not to offer parts for these models.

How to find your Gerber toilet model number

Have questions about toilet parts or toilet repair?

Toilet Repair Information & FAQs

return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
