Gen-Eye X-POD PLUS Pipe Inspection System

by General Wire
For all those hard to find pipe obstructions, the Gen-Eye X-POD PLUS pipe inspection systems are a must. These "grab and go" units will make all your inspection jobs quicker and easier, saving you money. These great units with a color camera, color monitor, USB port, USB flash drive, Gen-Pack battery adapter, Wi-Fi transmitter, and distance counter for starters. The optional digital locator can help make shorter work of the job and leave extra time for other tasks. Looking for pipe cleaning machines? Click our page.

General Wire Gen-Eye X-POD PLUS

Gen Eye POD pipe inspection location system
    General Wire Gen-Eye X-POD PLUS Systems Feature:

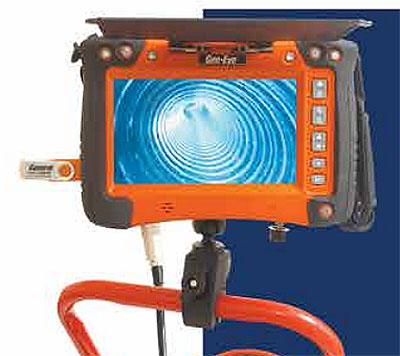

  • 7" LCD color monitor in padded case for added protection
  • Flexible gooseneck monitor mount conveniently secured to the frame to give you the best viewing angle
  • Rugged frame and reel with drag brake and reel lock

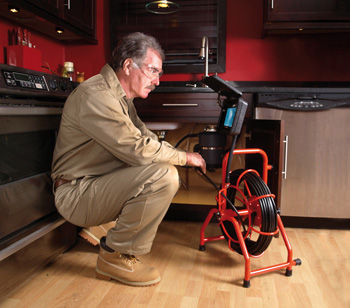

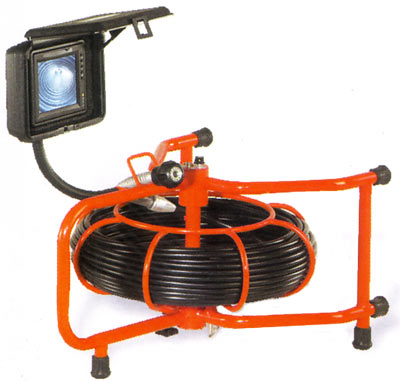

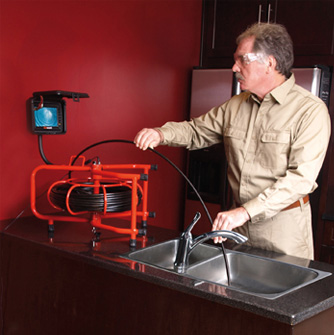

  • The versatile frame allows the unit to be operated horizontally or vertically
  • Self leveling color camera
  • 16 LED camera lights with dimmer control help provide superior quality video
  • Systems include the Gen-Pack battery adapter, Wi-Fi transmitter, and an on-screen distance counter as standard equipment
  • The braided Gel-Rod® push rod protects against moisture and provides for maximum pushing and pulling power
  • Handy video-out connection allows you to easily record your videos on an external device - not included
  • 10" wheels on full-size X-POD reel allow you to easily roll to and from the job
  • Available with hot spot digital locator - uses high tech digital technology to locate the camera within the pipe and tell you exactly where it is and how deep it is, down to the inch!
  • Includes AC and DC power cords - allow the unit to be powered virtually anywhere

General Wire Gen-Eye X-POD PLUS - Color Camera Inspection Systems for 3" to 10" lines

Systems include: GX-500 Command Module, 7" LCD color monitor, USB Port, USB Flash Drive, 39" Probe Rod, Docking Kit, 2", 3" & 6" Trap Skids, and 200 ft. of Gel-Rod,
Model # Description Price & Quantity
SL-GXP-E Gen-Eye X-POD PLUS with Self Leveling Color Camera $8,273.48
SL-GXP-F Gen-Eye X-POD PLUS with Self Leveling Color Camera, Hot Spot Digital Locator & Padded Bag $10,626.53
NOTE: Lead-time to ship of 3-4 weeks
NOTE: A digital locator is required to use the sonde

- OR - View Cart

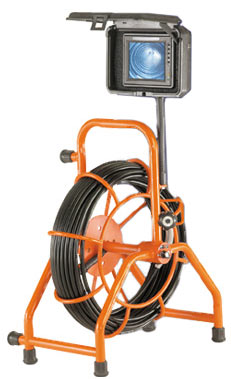

General Wire Gen-Eye Mini POD

The big capacity MINI-POD carries 125 ft. or 175 ft. of mini push-rod and a color mini-camera for inspecting 2" to 3" drain lines.

    General Wire Gen-Eye POD Mini Systems Feature:
  • Rugged lightweight frame and reel with drag brake and reel lock
  • The versatile frame allows the unit to be operated horizontally or vertically
  • Flexible gooseneck monitor mount to give you the best viewing angle
  • 7" LCD color monitor in padded case for added protection
  • Mini-color camera
  • Handy video-out connection allows you to easily record your videos on an external device - not included
  • 8 LED camera lights with dimmer control help provide superior quality video
  • Available with digital locator - uses high tech digital technology to locate the camera within the pipe and tell you exactly where it is and how deep it is, down to the inch!
  • Includes AC and DC power cords - allows the unit to be powered virtually anywhere

General Wire Gen-Eye Mini-POD - Color Camera Inspection Systems for 2" to 3" lines
Systems include: 7" LCD color monitor, Color Mini-Camera,
3" Trap Skid and Open Mini-Reel
Model # Description Price & Quantity
C-GP-A Gen-Eye Mini-POD, 125 ft. Push-Rod and Sonde $5,716.91
C-GP-C Gen-Eye Mini-POD, 175 ft. Push-Rod and Sonde $5,617.23
C-GP-D-2 Gen-Eye Mini-POD, 175 ft. Push-Rod, Sonde, Hot Spot Digital Locator & Padded Bag $7,586.19
NOTE: Lead-time to ship of 3-4 weeks
NOTE: A digital locator is required to use the sonde

- OR - View Cart

General Wire Gen-Eye POD Comparison Chart
  POD MINI-POD
Line Capacity 3" to 10" 2" to 3"
Reel Capacity 200 ft. 125 or 175 ft.
Reel Dimensions 29"L x 16"W x 33-1/2"H 18"L x 16"W x 19"H
Push-Rod Diameter .475" Gel-Rod .400" Gel-Rod
8" Wheels Yes No
Power 110v/60 Hz AC, 12VDC 110v/60 Hz AC, 12VDC
Lighting 16 White LED's 8 White LED's
White Balance Auto High Speed Auto High Speed
Video Format NTSC or PAL NTSC or PAL
Camera Sensitivity .5 Lux .5 Lux
Camera Dimensions
(Self-Leveling Color)
1.375" Dia. x 2.3" Long N/A
Camera Dimensions
(Standard Color)
1.375" Dia. x 2.3" Long N/A
Camera Dimensions
(Mini Color)
N/A 1" Dia. x 1.8" Long
Operating
Temperature
14° F to 122° F
-10° C to 50° C
14° F to 122° F
-10° C to 50° C



General Wire Hot Spot Digital Locator

The Gen-Eye Hot Spot Digital Locator lets you know exactly where the problems are. 100 sensitivity levels let you hone in on the transmitter's signal. The LCD display panel produces a clear digital readout, as well as a graphic display and an audible tone. It's faster and more precise than analog locators.

The Gen-Eye Locator lets you locate almost anything underground with its built-in four-way signal finder. You can find the Gen-Eye camera even when it's deep inside cast iron pipe. When you turn on the Digital Locator, it looks for the 512 hz or 874 hz signal transmitted from the Gen-Eye camera.

Switch the locator to 60 hz, and you can locate underground power lines before you start digging.



The Gen-Eye Transmitter is used to energize metal pipes, fiber optic cables or even CATV cables with a powerful 65 Khz signal. The signal then radiates through the ground allowing the Digital Locator to pick up the signal above ground and tell you exactly where the pipe is and how deep it is buried, down to the inch!

All you need to do is attach one of the transmitter leads to the pipe and the other lead to the ground stake to complete the circuit. Four sending frequencies to choose from, 1 kHz, 8 kHz, 33 kHz, or 65 kHz (65kHz at 1 watt maximum). Easy to read display has icons to indicate power settings and let you know if you have a quality connection.

The Gen-Eye Hot Spot 5 watt transmitter uses 10 "D" type batteries for approximately 100 plus hours of operation. Built-in timer can be set for automatic shut down to save power.


If you'd prefer, the Gen-Eye Sonde 10 can be attached to your drain cleaning cable using the included spring carrrier. The carrier protects the sonde as it travels down the line and transmits a signal at depths up to 10 ft. in cast iron pipe or 15 ft. in clay or plastic pipe. More compact than the transmitters, the Sonde 10 is powered by one AAA battery.

Model Finish Price & Quantity
GL-100 Gen-Eye Hot Spot Digital Pipe Locator with Padded Bag $2,135.47
GL-130 Gen-Eye Sonde 10 with Spring Carrier - (transmits through cast-iron pipe buried 10 ft.) $1,121.70
GL-175 Gen-Eye 5 Watt Pipe Transmitter with Cables and Ground Stake $2,204.86
GL-185 Gen-Eye Hot Spot Digital Pipe Locator and 5 Watt Transmitter Combination
- includes Padded Bag, Cables & Ground Stake
$3,789.40

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "Do the General Wire Gen-Eye POD units record video?"
A. These units do not record video but do include a video out port so that you can capture the video with a device of your choice. If you require a unit that includes a video capture device we suggest looking at the General Wire Gen-Eye SD units.

Q. "What size of lines will this system work with?"
A. The Gen-Eye POD units work with a line capacity of 3" to 10" while the Gen-Eye Mini-POD units will work with a line capacity of 2" to 3".

Q. "What is a 'Sonde'?"
A. A sonde is a small radio transmitter. Gen-Eye Sondes are a great tool for pipe location in cast iron, clay, or plastic lines. Easier than locating an energized line, you simply locate the pinpoint frequency of the Sonde. Attach the sonde to your drain cleaning cable using the included spring carrier. Then find the signal with the General Wire Digital Locator (not included with all units).

Q. "Why do some units include the 'Sonde' but not the digital locator?"
A. The manufacturer does not offer the digital locator with all units as some customers may already have the digital locator. A digital locator is required to use the sonde.

Q. "What kind of camera lighting do these systems have?"
A. The Self-Leveling color camera and standard color camera both include 16 white LED's while the color mini-camera has 8 white LED's.

Q. "What is special about the self leveling camera?"
A. The self leveling camera keeps the water at the bottom of the picture as the camera glides through the line, making it easier for the operator and his/her customer to follow the action. The camera head is just 1.4" in diameter and has sixteen ultra-bright LED's, so there's plenty of flexibility and enough light to handle lines up to 10" in diameter.
