Galvanized Compression Fittings
aka "Dresser" Fittings
Finding a repair fitting in the same material as the pipe when the pipe has frozen and broken can be a challenge, but a dresser fitting may be just the ticket. As long as both ends of the pipe to be repaired are stationary and have no horizontal movement, are in good condition and have little to no corrosion, galvanized dresser couplings can be a great option. Offered in multiple types and sizes, these adaptable fittings are perfect for quick connections and repairs in many environments, and eliminates the need for expensive welding.
Galvanized Compression Couplings

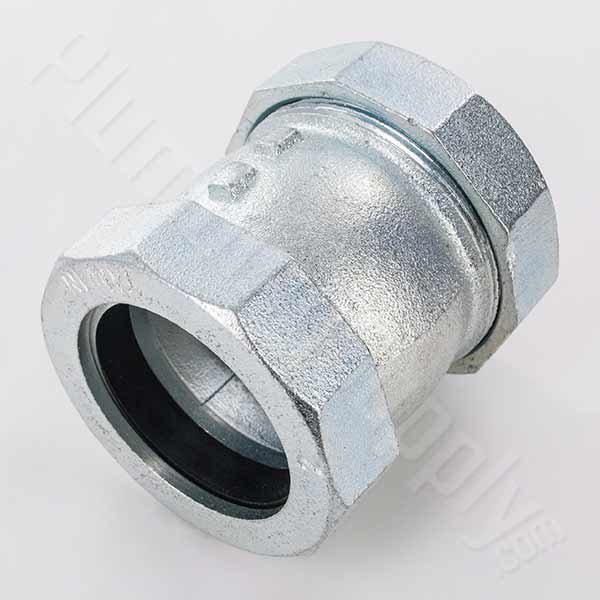

Shown: 2" IPS Short Galvanized Compression Repair Coupling
These "like" Dresser Couplings feature:
- Quickly and easily repair pipe runs
- Install by simply sliding nut over pipe, slip on gasket, then insert into body and tighten nuts - See example
- Hot dipped galvanized for corrosion protection
- Maximum 125 PSI at temperatures up to 120°F
- Fits both IPS sized metal pipes and Schedule 40 plastic pipes
- Includes gaskets
- Compression couplings must be restrained on both ends
- Pipe needs to be clean, round and free of pitting
- Not for use with flammable liquids or gases
- Recommended for cold water applications

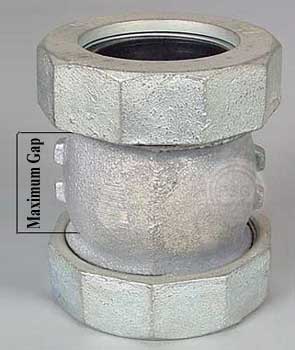

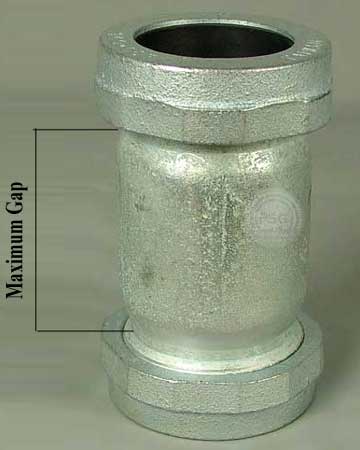

- Please note maximum gap dimensions for proper installation

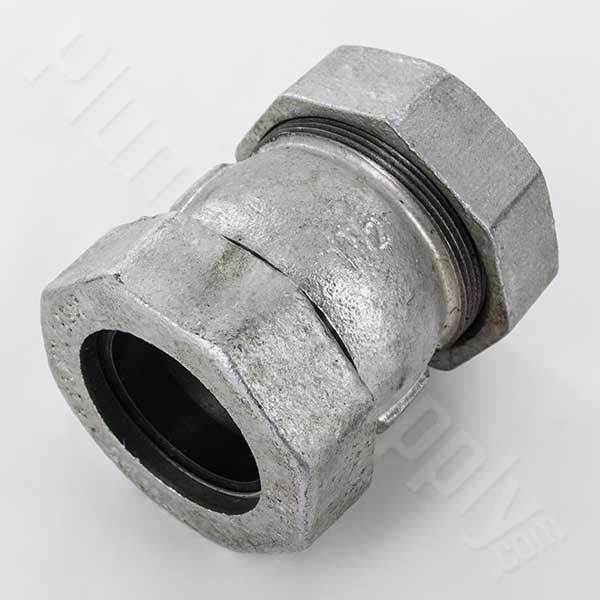

Short Models

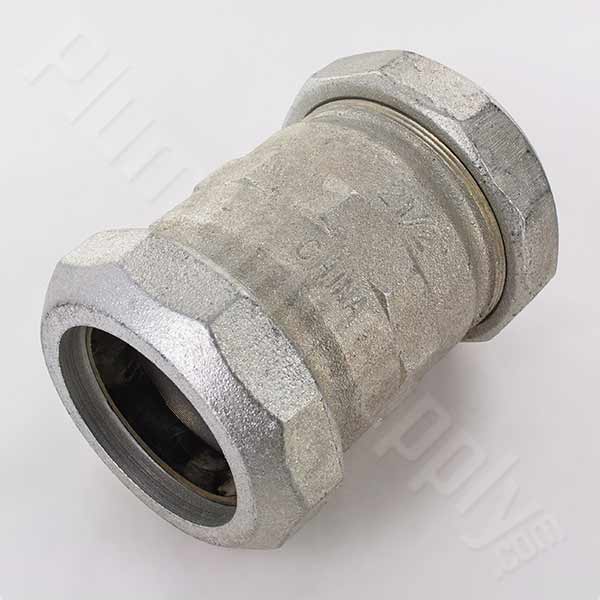

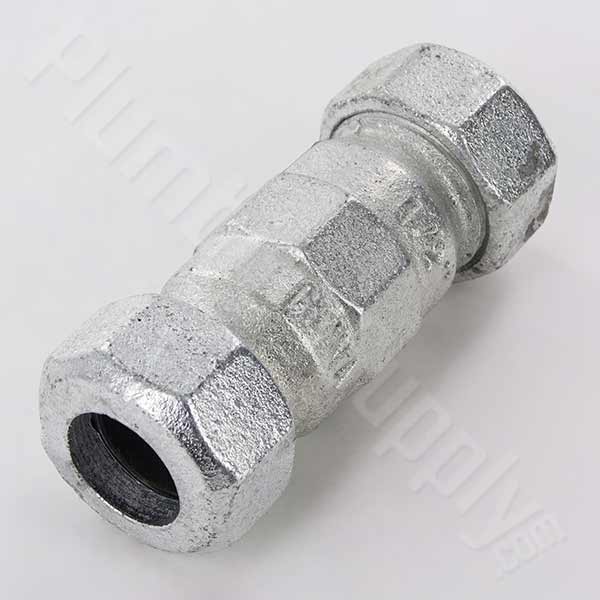

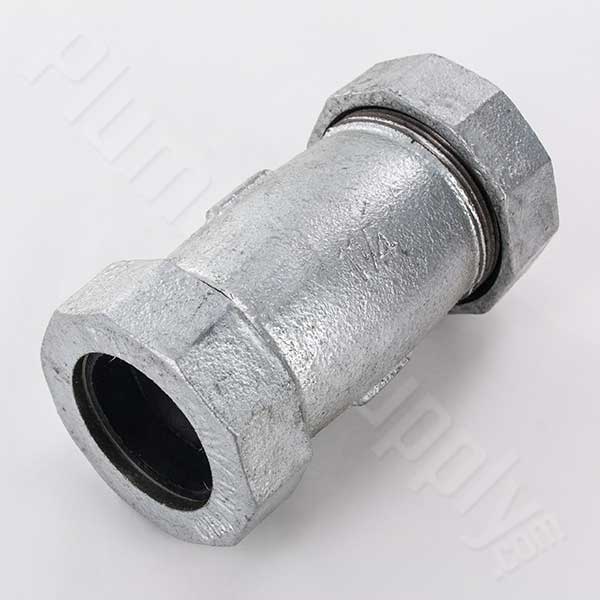

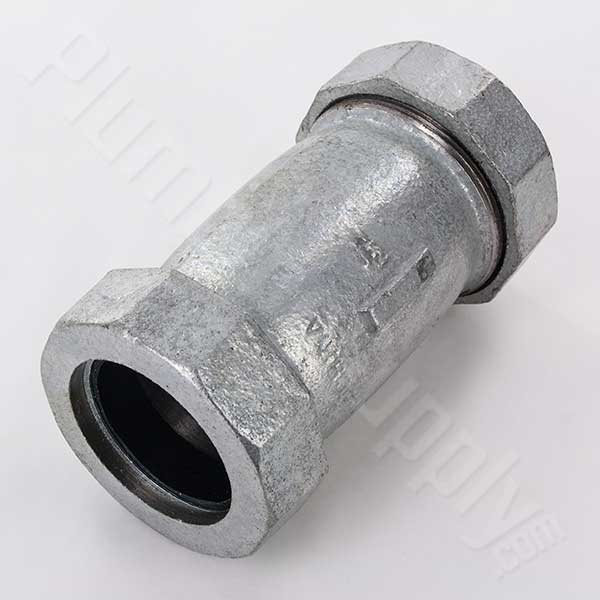

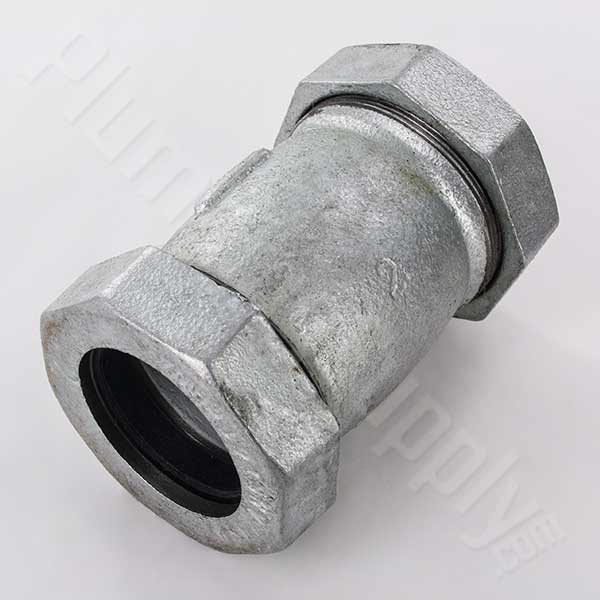

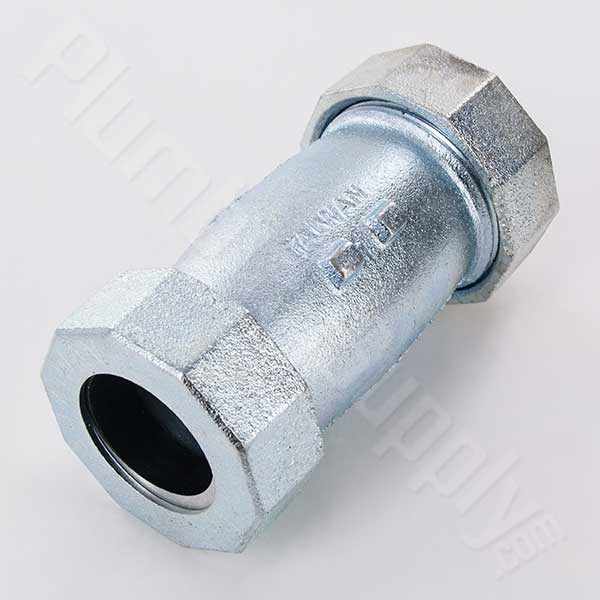

Long Models

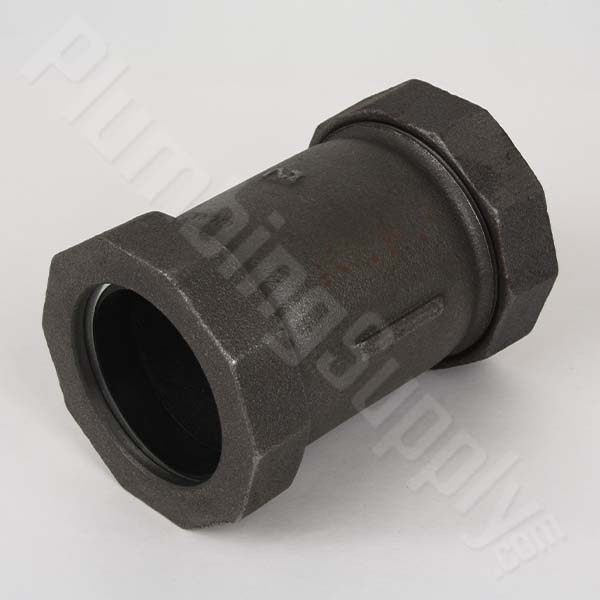

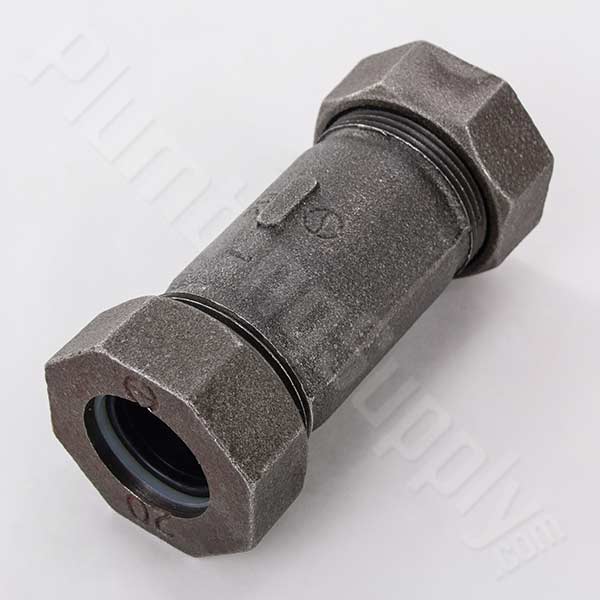

Black Steel Compression Repair Coupling

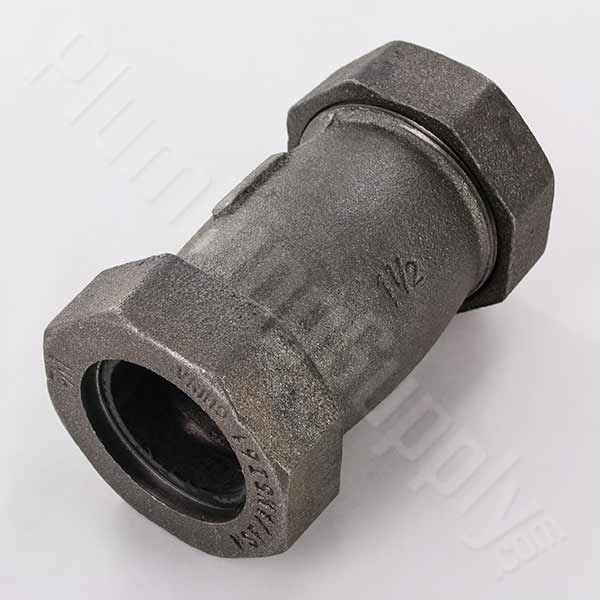

Shown: 1-1/2" Black Steel Compression Repair Coupling
These "like" Dresser Couplings feature:
- Quickly and easily repair pipe runs
- Install by simply sliding nut over pipe, slip on gasket, then insert into body and tighten nuts - See example
- Black malleable iron
- Maximum 125 PSI at temperatures up to 180°F
- Black iron is resistant to high heat and water damage
- Fits Iron Pipe Size (IPS) pipes
- Includes zinc plated friction washer and BUNA-N gaskets
- Compression couplings must be restrained on both ends
- Pipe needs to be clean, round and free of pitting
- Not for use with flammable liquids or gases
- For repairing water piping applications
- Please note maximum gap dimensions for proper installation
Long Style

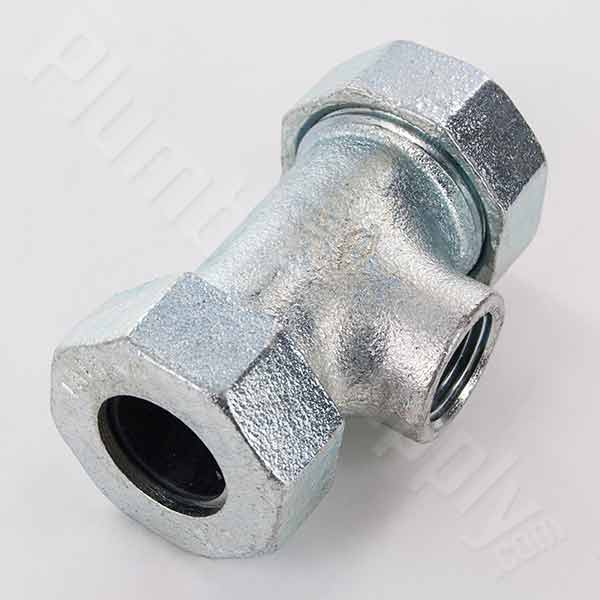

Galvanized Compression Tee
Shown: 1/2" Galvanized Compression Tee
These compression Tee fittings feature:
- Galvanized for corrosion protection
- Fits both IPS sized metal pipes and Schedule 40 plastic pipes
- Maximum 125 PSI at temperatures up to 120°F
- Includes gaskets
- Female iron pipe size (FIPS) branch
- Compression tees must be restrained on both compression ends
- Pipe needs to be clean, round and free of pitting
- Not for use with flammable liquids or gases
- For repairing water piping applications

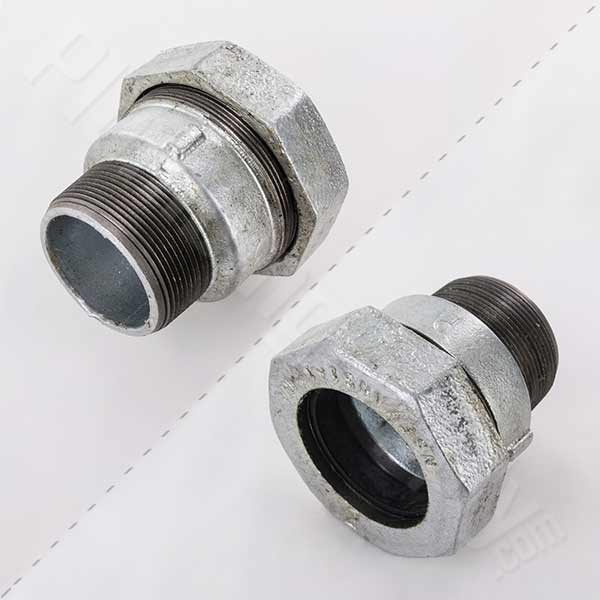

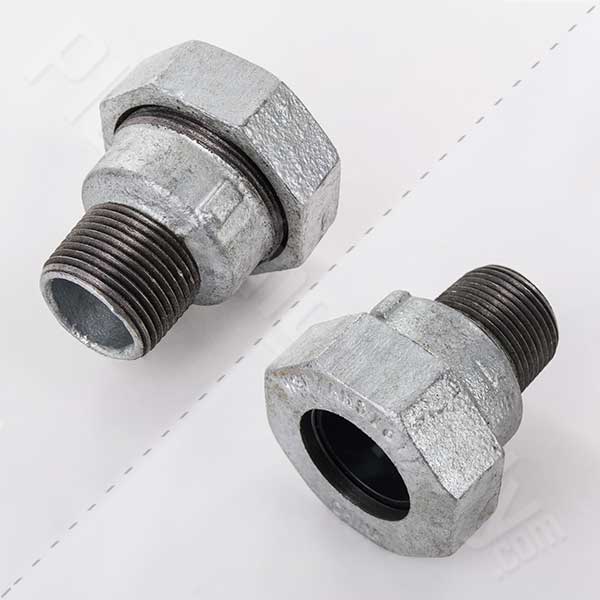

Galvanized Male Compression Adapter

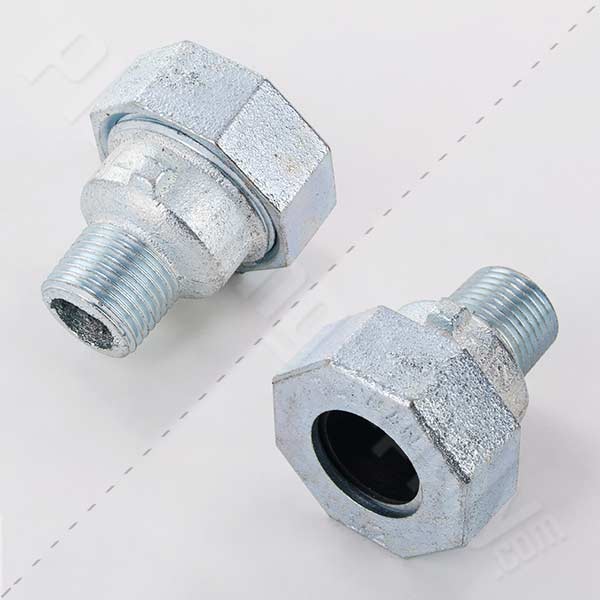

Shown: 1/2" Galvanized Male Compression Adapter
These Male compression fittings feature:
- NPT male threads
- Compression side fits both IPS sized metal pipes and Schedule 40 plastic pipes
- Maximum 125 PSI at temperatures up to 120°F
- Galvanized for corrosion protection
- Compression side piping must be restrained
- Pipe needs to be clean, round and free of pitting
- Includes gaskets
- Not for use with flammable liquids or gases
- For repairing water piping applications
Related Items & Accessories
Frequently Asked Questions
Q. "What do you mean by the pipe must be restrained?"
A. Unlike threaded fittings, compression fittings can seal properly but still slip out of position as a result of forces on a pipe. The compression joints provide a positive seal but do not restrain pipe from thrusts and movement under pressure. Proper installation of a compression joint requires blocking connecting pipe to prevent any movement.
Q. "When are these sorts of fittings used?"
A. "Dresser" couplings and tees are designed to be used for quick connections, system modifications or repairs. Most commonly these are used for repairing sections of old galvanized pipe where it's too difficult to thread the pipe ends. Some municipalities have regulations about where and when galvanized compression fittings can be used, so double check with your local inspector.
