De-Ionized Tankless Commercial Water Heaters
By Eemax

Proudly made in the USA

Install a commercial de-ionized tankless water heater and you can feel good about helping to protect the environment while you are heating ultra-pure water for your pharmaceutical and ultra-sonic applications. Hot de-ionized water has become an attractive replacement for chlorofluorocarbons (CFC's), making it a "green" alternative for cooling. Hot de-ionized water has remarkable cleaning properties and will not pollute the environment, making it a safe alternative to traditional systems.

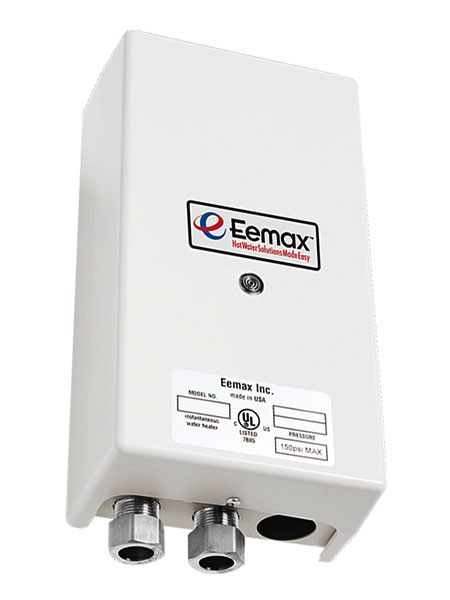

"De-Ionized" Thermostatic Tankless Water Heaters - One Heating Element

Eemax de-ionized models
Features:
  • Supplies you with ENDLESS hot water since there is no water storage container to deplete
  • Applications: Microchip manufacturing, pharmaceutical production, high tolerance component cleaning, ultrasonic cleaning, batch chemical mixing, etc.
  • Capable of heating high purity water with state of the art materials used in construction
  • Cut energy costs since the unit is only activated when water is running - no standby heat loss (99% efficient)
  • These units compact size allows for easy installation on a wall close to the point of use
  • Unique flow activated design allows for constant water movement, even when not heating
  • Stainless steel and engineered plastics for all wetted components
  • All major components are field replaceable and readily available
  • 1/2" (5/8" OD) compression inlet/outlet connections on the bottom of the unit that require no soldering
  • Hot or cold feed: pre-heated or cold water inlet
  • Single phase models
  • Dimensions: 10-3/4"H x 5-1/4"W x 2-7/8"D

Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
0.5
gpm
0.75
gpm
1.0
gpm
1.5
gpm
2.0
gpm
SPEX55T DI 240 5.5kW 23A 10AWG 75° 50° 38° 25° 19° $1,693.05
SPEX75T DI 240 7.5kW 32A 8AWG -- 68° 51° 34° 26° $1,693.05
SPEX95T DI 240 9.5kW 40A 8AWG -- 87° 65° 43° 32° $1,693.05
SPEX60T DI 277 6.0kW 22A 10AWG -- 55° 41° 27° 20° $1,693.05
SPEX80T DI 277 8.0kW 29A 10AWG -- 73° 55° 36° 27° $1,693.05
SPEX100T DI 277 10.0kW 36A 8AWG -- 91° 68° 46° 34° $1,344.11
SPEX2412TDI 120 2.4kW 20A 10AWG 33° 22° 16° 11° $1,693.05
SPEX3012TDI 120 3.0kW 25A 10AWG 41° 27° 20° 14° 10° $1,693.05
SPEX3512TDI 120 3.5kW 29A 10AWG 48° 32° 24° 16° 12° $1,693.05
SPEX48TDI 240 4.8kW 20A 12AWG 64° 42° 31° 21° 16° $1,693.05
SPEX65TDI 240 6.5kW 27A 10AWG -- 59° 44° 30° 22° $1,693.05
SPEX8208TDI 208 8.3kW 40A 8AWG -- 76° 57° 38° 28° $1,693.05
SPEX90TDI 277 9.0kW 33A 8AWG -- 82° 61° 41° 31° $1,693.05

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.

Eemax De-ionized tankless water heaters are built per order so therefore are non-returnable.
De-ionized tankless water heaters have a lead time to ship of 10-12 days.

- OR - View Cart

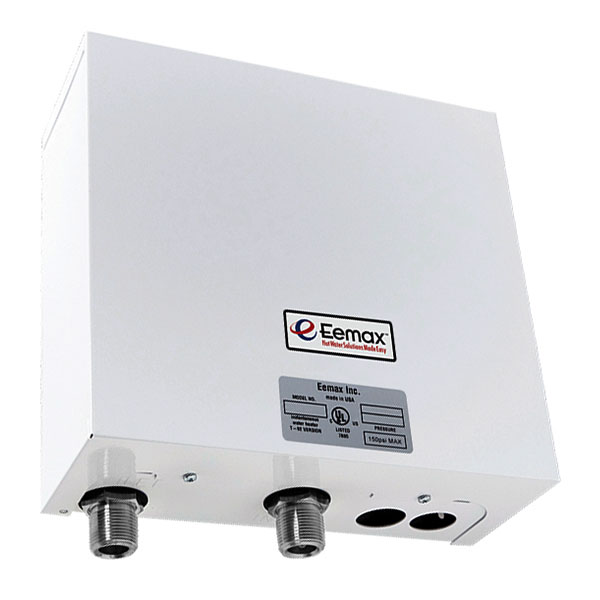

"De-Ionized" Thermostatic Tankless Water Heaters - Two Heating Elements

Eemax de-ionized models
Features:
  • Produces large amounts of clean hot water whenever you need it without the wait like you get with traditional tank water heaters
  • Applications: Microchip manufacturing, pharmaceutical production, high tolerance component cleaning, ultrasonic cleaning, batch chemical mixing, etc.
  • Capable of heating the highest purity (up to 18 meg OHM quality) with no detectable contamination
  • Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
  • Prevents against Legionella bacteria growth while also helping to reduce calcification and sedimentation
  • 1/2" Nominal (5/8"O.D.) stainless steel compression fittings located on the bottom of the unit
  • Unit mount directly to the wall close to the point of use to save on space and allow for an easy installation
  • Pre-heated or cold water feed - capable of reacting to changing temperatures while providing stable output
  • Single phase models
  • Dimensions: 10-1/4"W x 10-3/4"H x 4-1/4"D

  • Turn On Options:
    TC - staged turn on with minimum 0.7 GPM, and max flow is 3 GPM
    T2 - parallel turn on with minimum 1.5 GPM, and max flow is 4 GPM

TC Staged Models

Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
1.0
gpm
1.5
gpm
2.0
gpm
3.0
gpm
EX1608DI TC 208 16.6kW 80(2x40)A 8AWG + 75° 57° 38° $2,832.45
EX144DI TC 240 15kW 64(2x32)A 8AWG + 65° 51° 34° $2,832.45
EX190DI TC 240 19kW 80(2x40)A 8AWG + 87° 65° 43° $2,832.45
EX160DI TC 277 16kW 58(2x29)A 10AWG + 73° 55° 36° $2,832.45
EX200DI TC 277 20kW 72(2x36)A 8AWG + 91° 68° 46° $2,043.13

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.

Eemax De-ionized tankless water heaters are built per order so therefore are non-returnable.
De-ionized tankless water heaters have a lead time to ship of 10-12 days.

- OR - View Cart


T2 Parallel Models

Model # Volts kW Amps Recommended
Wire Size
Temperature Rise °F Price & Quantity
1.5
gpm
2.0
gpm
3.0
gpm
4.0
gpm
EX1608DI T2 208 16.6kW 80(2x40)A 8AWG 75° 57° 38° 28° $2,832.45
EX144DI T2 240 15kW 64(2x32)A 8AWG 65° 51° 34° 26° $2,832.45
EX190DI T2 240 19kW 80(2x40)A 8AWG 87° 65° 43° 32° $2,832.45
EX160DI T2 277 16kW 58(2x29)A 10AWG 73° 55° 36° 27° $2,832.45

Note: Please be sure that the temperature rise of these heaters will meet your needs before you order.

Eemax De-ionized tankless water heaters are built per order so therefore are non-returnable.
De-ionized tankless water heaters have a lead time to ship of 10-12 days.

- OR - View Cart

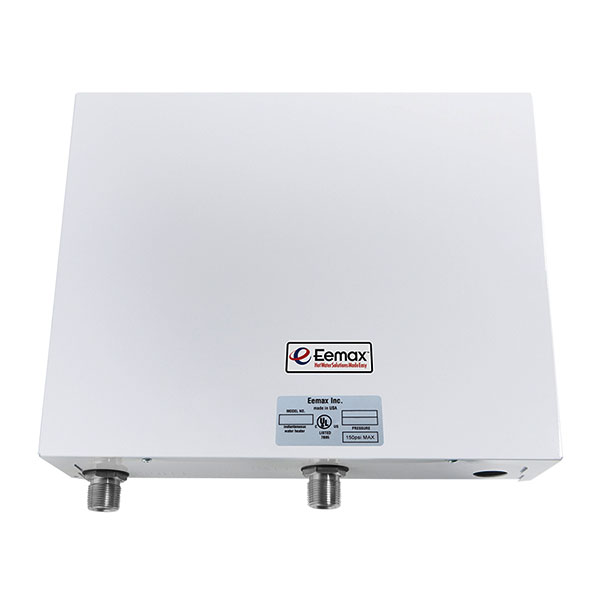

"De-Ionized" Thermostatic Tankless Water Heaters - Three Heating Elements

Eemax de-ionized models
Features:
  • Produces very large amounts of clean hot water whenever you need it with no delay
  • Applications: Microchip manufacturing, pharmaceutical production, high tolerance component cleaning, ultrasonic cleaning, batch chemical mixing, etc.
  • Compact size allows for easy installation close to the point of use
  • Capable of heating the highest purity (up to 18 meg OHM quality) with no detectable contamination
  • 1/2" Nominal (5/8"O.D) stainless steel compression fittings located on the bottom of the unit
  • Three cabinet (cover) types available: Standard non-waterproof steel cover (white powder coated); NEMA 4 water-proof cover powder coated gray; NEMA 4 water-proof, corrosion resistant, cover 304 stainless steel
  • Dimensions: 18-1/4"W x 12-1/4"H x 4-1/4"D

  • Turn on options:
    T2T - staged turn on with minimum .7 GPM, and the max flow is 4 GPM
    T3 - parallel turn on with minimum 1.8 GPM, and the max flow is 5 GPM

Please note: You must fill out an acknowledgment form before the manufacturer will ship any "Three Phase" or larger models.
Why is this form required?

T2T Staged Models

Model # Phase Voltage kW Amps
Per Phase
Recommended
Wire Size
Temperature Rise °F Cabinet
Type
Price & Quantity
2.0
gpm
3.0
gpm
4.0
gpm
EX180T2T DI Three 208 18kW 50A/Phase 6AWG 61° 41° 31° Standard $6,554.93
NEMA 4
gray paint
$5,121.60
NEMA 4
304 SS
$6,414.37
EX180T2T-277 DI Three 480Y/277 18kW 22A/Phase 10AWG 61° 41° 31° Standard $6,554.93
NEMA 4
gray paint
$5,120.72
NEMA 4
304 SS
$6,416.62
EX240T2T DI Three 208 24kW 67A/Phase 6AWG 82° 55° 41° Standard $6,554.93
NEMA 4
gray paint
$5,114.62
NEMA 4
304 SS
$6,430.75
EX240T2T-277 DI Three 480Y/277 24kW 29A/Phase 10AWG 82° 55° 41° Standard $6,554.93
NEMA 4
gray paint
$5,096.73
NEMA 4
304 SS
$6,430.17
ED020480T2T DI Three 480
Delta
20kW 24A/Phase 10AWG 68° 46° 34° Standard $4,546.28
ED032480T2T DI Three 480
Delta
32kW 36A/Phase 6AWG 109° 73° 55° Standard $4,982.70
NEMA 4
gray paint
$5,616.88
EX280T2T DI Single 240 28.5kW 120(3x40)A 8AWG + 64° 48° Standard $6,554.93
NEMA 4
gray paint
$5,110.27
NEMA 4
304 SS
$6,465.20

Eemax De-ionized tankless water heaters are built per order so therefore are non-returnable.
De-ionized tankless water heaters have a lead time to ship of 10-12 days.

- OR - View Cart


T3 Parallel Models

Model # Phase Voltage kW Amps
Per Phase
Recommended
Wire Size
Temperature Rise °F Price & Quantity
2.0
gpm
3.0
gpm
4.0
gpm
5.0
gpm
EX180DI T3 Three 208 18kW 50A/Phase 6AWG 61° 41° 31° 25° $6,554.93
EX240DI T3 Three 208 24kW 67A/Phase 6AWG 82° 55° 41° 33° $6,554.93
EX240T3-277 DI Three 480/277 24kW 29A/Phase 10AWG 82° 55° 41° 33° $4,535.75
EX320T3-277 DI Three 480/277 32kW 39A/Phase 8AWG + 73° 55° 44° $6,554.93

The Eemax tankless water heaters are built per order so therefore are non-returnable.
Products have a lead time to ship of 10-12 days.

- OR - View Cart

Related Items & Accessories



Frequently Asked Questions

Q. "Why do I need to fill out an order acknowledgment form when purchasing one of these Eemax Three Phase tankless water heaters?"
A. The manufacturer requires us to include this form with our shipment request so that they will have verification ("proof") on-file that they manufactured and shipped the correct heater. If you are ordering a 3-phase Eemax heater, you will need to print and fill out the appropriate order acknowledgment form (you can find the correct form below the ordering table for the model you want), and then fax or mail it to us. Eemax manufactures the 3-phase units to order, therefore, these heaters are not returnable.

Q. "Why is the max flow lower for the staged turn on?"
A.The heating modules are set up differently to accommodate different flow rates.

Q. "What's the difference between the parallel turn on and the staged turn on?"
A. The parallel turn on will give you a higher maximum flow rate, and it needs a higher flow rate to turn on than the staged turn on. The staged turn on will turn on with a lower flow rate, and it handles a lower maximum flow rate than the parallel turn on.

Q. "How does the staged turn on work?"
A. Staged turn on models only use the heating modules needed to produce the desired output temperature.

Q. "Does the kW listed under each model represent the amount of energy they use if all the heating elements are on?"
A. Yes, the specification for kilowatt usage for all models show the maximum wattage with all heating elements on.

Q. "Are all Eemax tankless water heaters designed to be hardwired?"
A. Yes, every tankless water heater by Eemax is supposed to be hardwired when it's installed.

Q. "Eemax instant heaters specify the 'temp. rise' based on the GPM flow; what do you mean by this?"
A. Temperature rise is the amount the heater raises the temperature of the incoming water depending on the flow rate of the water.

Q. "What is 'PVDF Kynar'?"
A. PVDF Kynar is a quality plastic that is commonly used in pumping/piping applications.
Some of its features are:

  • High impact strength
  • Max operating temp 275°F
  • Low water absorption
  • UV resistant
  • Resistant to chemical and corrosion
  • Resistant to fungi
  • Resistant to weathering
