Clear & Braided Vinyl Tubing

Find vinyl and poly tubing for applications that require food grade tubing right here at your source for clear and braided vinyl tubing, PlumbingSupply.com®. Whether you need it for water lines, beverage tubing, fish tanks, and many other applications, you'll find it right here.

All tubing listed on this page is non-toxic FDA or NSF approved food grade tubing.
Buy it by the roll or by the foot - we'll cut any length that you like (in 1' increments).


Related Items You Might Need:


Vinyl Tubing

Made with polyvinyl chloride (PVC) tubing with polyester textile yarn for added strength. Braided Vinyl tubing has an operating temperature range between +25° F. to +150° F., however, using at higher temperatures will result in lower working pressures. Certified by NSF International to ANSI/NSF 51 and ANSI/NSF 61
braided clear vinyl tubing

Clear Braided Vinyl Tubing
Food Grade - pricing is per foot or per roll

Size
(I. D.)
O.D. Product
Number
Working Pressure
Rated @ 70°F
Price & Quantity
(Per Foot)
Price & Quantity
(Per Full Roll)
1/4" 1/2" CTB025-1 250 PSI $0.61 100' = $79.47
3/8" 5/8" CTB038 225 PSI $1.14 100' = $80.41
1/2" 3/4" CTB050 200 PSI $1.60 100' = $127.58
5/8" 7/8" CTB062 200 PSI $1.22 100' = $110.02
3/4" 1" CTB075 150 PSI $2.05 100' = $152.58
1" 1-3/8" CTB100 125 PSI $3.77 100' = $259.57
1-1/4" 1-3/4" CTB125 100 PSI $5.21 100' = $391.65
1-1/2" 1.938" CTB150 100 PSI $7.61 100' = $522.55
2" 2.49" CTB200 75 PSI $9.59 100' = $784.71

Please note: Tubing will never be less than the length you order, but it may be a fraction of an inch or more over your order length.

Please also note that the longest single piece we offer is the full roll length for the size selected.
- OR - View Cart

clear vinyl tubing

Clear Vinyl Tubing
Food Grade - pricing is per foot or per roll

Size
(I. D.)
Product
Number
Min. Wall
Thickness
Price & Quantity
(Per Foot)
Price & Quantity
(Per Full Roll)
1/16" CTV010 1/32" $0.22 100' = $24.19
1/8" CTV012 1/16" $0.39 100' = $26.50
3/16" CTV018 1/16" $0.27 100' = $33.23
1/4" CTV025 1/16" $0.39 100' = $35.77
5/16" CTV032 1/16" $0.57 100' = $39.02
3/8" CTV038 1/16" $0.33 100' = $45.94
1/2" CTV050 1/16" $0.65 100' = $58.30
5/8" CTV062 1/8" $0.86 100' = $98.75
3/4" CTV075 1/8" $1.44 50' = $73.59
1" CTV100 1/8" $1.69 100' = $143.29
1-1/4" CTV125 1/8" $3.77 50' = $136.43
1-1/2" CTV150 3/16" $7.11 50' = $370.42
2" CTV200 3/16" $8.83 50' = $461.42

All tubing in this section has a 20 psi working pressure rated @ 70° F

Please note: Tubing will never be less than the length you order, but it may be a fraction of an inch or more over your order length.

Please also note that the longest single piece we offer is the full roll length for the size selected.
- OR - View Cart

Polyethylene Tubing

This linear low density polyethylene tubing is suitable for use in applications requiring low temperature flexibility and durability, and has a wide range of uses including potable water lines, food and beverage dispensing tubing, air lines, instrumentation signal lines, plus uses in industrial, agricultural, and chemical applications. The operating temperature ranges from -40°F to 125°F.

  • Food grade, non-toxic
  • Economical
  • Odorless
  • Tasteless
  • Flexible & lightweight
  • Works well in low pressure & temperature applications
  • General resistance to strong and weak acids and alkalis, and most solvents

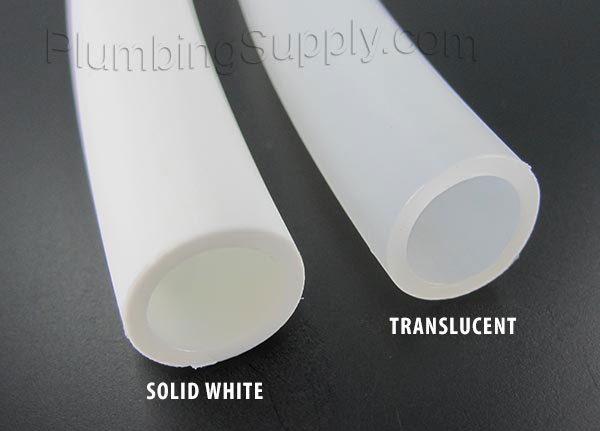

Translucent White Polyethylene Tubing
Food Grade - pricing is per foot or per roll

Size
(O.D.)
Size
(I.D.)
Working Pressure
Rated @ 70°F
Price & Quantity
(Per Foot)
Price & Quantity
(Per Full Roll)
1/4" .170" 100 PSI $0.32 100' = $26.45
5/16" 3/16" 120 PSI $0.29 100' = $34.97
3/8" 1/4" 120 PSI $0.34 100' = $46.60
1/2" 3/8" 75 PSI $0.47 100' = $71.86
5/8" 1/2" 85 PSI $0.81 100' = $109.97

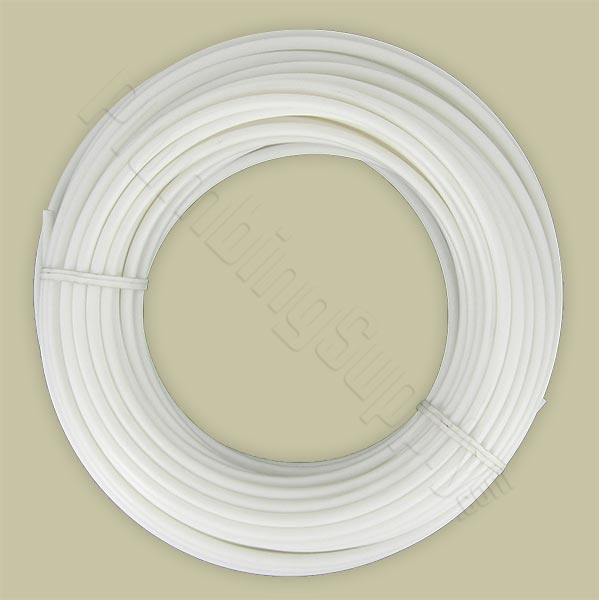

Solid White Polyethylene Tubing
Food Grade - pricing is per foot or per roll

Size
(O.D.)
Size
(I.D.)
Working Pressure
Rated @ 70°F
Price & Quantity
(Per Foot)
Price & Quantity
(Per Full Roll)
1/4" .170" 100 PSI $1.63 100' = $23.86
3/8" 1/4" 100 PSI $0.30 100' = $39.93

Please note: Tubing will never be less than the length you order, but it may be a fraction of an inch or more over your order length.

Please also note that the longest single piece we offer is the full roll length for the size selected.
- OR - View Cart

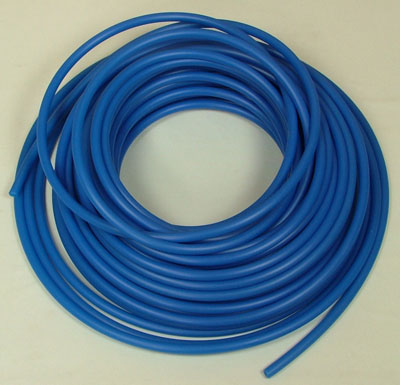

blue polyethylene tubing
  • Food grade
  • Flexible and economical
  • Low pressure & temperature
  • Low density polyethylene tubing has a wide range of uses including water lines, beverage tubing, air lines, instrumentation, plus uses in industrial, agricultural, and chemical applications
  • Has good resistance to alkalis, dilute acid, ammonia gas, ammonium hydroxide, brine water, and most aqueous solutions of metallic salts
  • Has a temperature range of -40F° to 135F°
  • ASTM D-1248-8f - Type 1 - Class B - Category 4

Blue Polyethylene Tubing
Pricing is per foot or per roll

Size Product
Number
Working Pressure
Rated @ 70°F
Price & Quantity
(Per Foot)
Price & Quantity
(Per Full Roll)
3/8"OD x 1/4"ID LDPE-38-14 100 PSI $0.78 100' = $44.12
1/2"OD x 3/8"ID LDPE-12-38 75 PSI $0.70 100' = $54.87

Please note: Tubing will never be less than the length you order, but it may be a fraction of an inch or more over your order length.

Please also note that the longest single piece we offer is the full roll length for the size selected.
- OR - View Cart

Frequently Asked Questions

Q. "I need a piece of vinyl tubing longer than the full roll length. If I pay the cut price per foot, can I get one piece that is longer than the full roll?"
A. No, the longest single piece we offer is the full roll length.

Q. "I need 15ea. 2' lengths of 3/8"od tubing, but when I try to enter 2' more than once, the amount in the shopping cart increases/adds up (ie 2' then 4' then 6' etc)...How can I order 15ea. 2' lengths of tubing?"
A. Because we don't guarantee an exact length of tubing, we will send you at least 30' and let you cut the tubing to the lengths you desire. We only offer one cut piece per tubing size per order.

Q. "What if I order the wrong length? Can I return what I don't need?"
A. Because our tubing is cut specifically for your order, you can return only the full length that you ordered. For instance, we cannot accept 1' of returned tubing from a 3' piece that we sent you, but you can return the entire 3' piece to us if needed. Additionally, please note that (as with any returned item) the tubing must be free of ANY cuts, signs of use, compound debris, etc. and must be dry without spots or stains. We can only accept returns of tubing that has never been cut/altered and is in perfect resalable condition.

Q. "I need to adapt pipe thread (3/4") to vinyl tubing (3/4"). I think your PVC #474 barbed adapter (SxBarb) is the right part. Can you clarify this?"
A. The PVC barbed fittings and brass barbed fittings are the same size barbed fittings. Both refer to the hose/tubing "inside diameter" when they reference the barb size: that is, 3/4" barb will fit 3/4" inside diameter tubing. The main difference is that PVC barbed fittings - on their other end - are either slip (slip = PVC pipe will slip into this end of the fitting) or spigot (spigot = same size as PVC pipe), whereas brass barbed fittings adapt to a threaded fitting. They are used for different applications.

Q. "Does your clear vinyl tubing contain Bisphenol A (BPA)?"
A. No. This clear vinyl tubing does NOT contain Bisphenol A (BPA).

Q. "Please tell me more about the braided tubing."
A. It's clear, flexible and reinforced braided PVC. It's mostly used for food, water and beverage lines.

Q. "What about the clear vinyl tubing?"
A. This tubing has FDA approved materials. It's lightweight and tough. For low pressure, cold water lines, venting, drinking water, refrigeration and more.

Q. "I recently received my shipment of tubing, and there appears to be a few kinks in the roll. Is this normal? Can the kinks be removed?"
A. The manufacturer spools both the clear vinyl tubing and braided tubing in as small of a roll as possible, and then they either box or shrink-wrap the rolls. Unfortunately, there's no way for them to avoid a few kinks. When used in a pressurized water system (which is the usage this tubing is designed for), the kinks will straighten out over time and should not noticeably affect your water flow.

Q. "I have heard that rodents will chew through tubing; why do they do this?"
A. Rodents, such as mice, rats, and squirrels, have a very keen sense of hearing as well as smell. They can hear and smell water running through tubing, and when water (or something that is close enough to water for their tastes) is perceived to be nearby, they can and will chew through the tubing wall to get hydration. They also need to keep their teeth from getting too long, and one of the ways they do this is to chew on things to keep them down.
