Finish Line
™ Adjustable Floor Drains & Cleanout Systems
A one-of-a-kind drainage system that allows for adjustment after the pour
by Sioux Chief
Once you install a Finish Line
™ drain, you'll never go back to the old way of using time consuming, preventative methods and costly fixes after the floor is poured. You'll appreciate how easy the Finish Line
™ is to install - for a perfect finish, done right, every time.
View installation instructions to learn more about this unique drain system,
or keep scrolling to find the perfect fit for your situation.

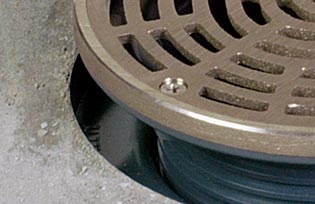

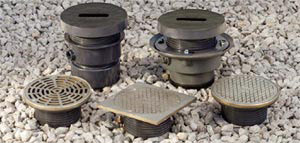

Finish Line
™ adjustable drain and cleanout systems offer a perfect finish every time!

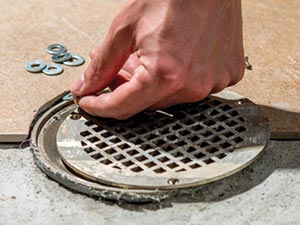

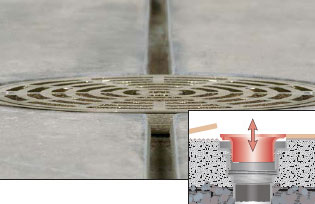

Forever eliminates common drain problems...
including drains and cleanouts set too low or too high, tilted drains and cleanouts, duct taping and boxing out, damaged strainers and covers, thread wrapping around the drain or cleanout, and time consuming fixes like stacking washers or jack
hammering out the drain
No more washer stacking!

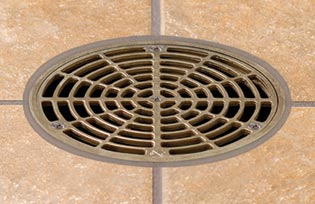

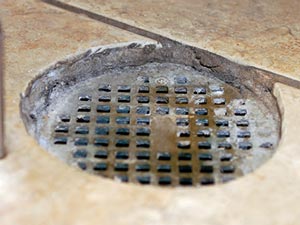

No more tilting or height problems!

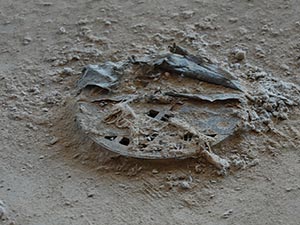

No more duct taping!
click any image below to jump directly to that section
Ductile Iron Adjustable Floor Drain Assemblies
Features:
- Fully assembled rough-in drain
- Adjustable AFTER the concrete is poured
- Separately boxed finish drain fixture
- Ductile iron base adapter, coring sleeve and head adapter
- Coring plug - high impact poly plastic (temporary plug)
- Choice of 3", 4" or 6" no-hub pipe connection
- Optional vandal resistant screws available
- Nickel-bronze and stainless steel covers for use in pedestrian areas
- Ductile iron covers for use in heavy duty areas
- 1000 lbs. strainer load rating (nickel-bronze)
- 1500 lbs. strainer load rating (stainless steel)
- 5000 lbs. strainer load rating (ductile iron)
Finish Fixtures for Ductile Iron Adjustable Floor Drain Assemblies
Round Finish Fixture
Square Finish Fixture

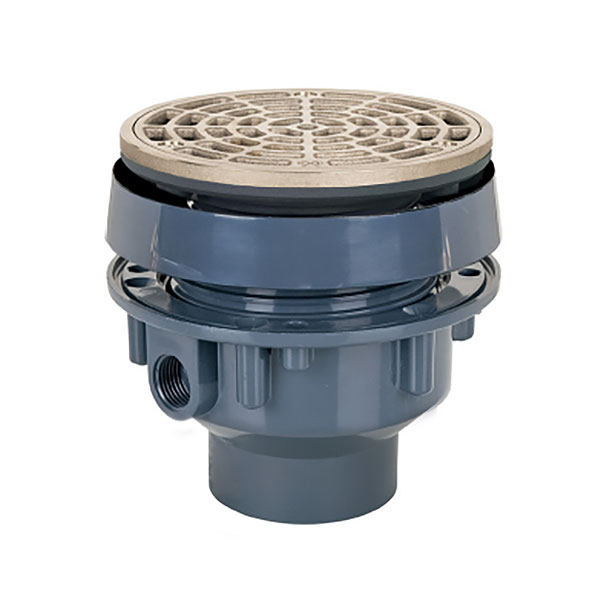

ABS/PVC Adjustable Floor Drain Assemblies
5-1/2" Round Strainer or 5-7/8" Square Strainer
Features:
- Choice of ABS or PVC hub connection
- Fully assembled rough-in drain
- Separately boxed finish drain fixture
- Choice of ABS or PVC base adapter (hub connection outlet)
- Coring sleeve (head adapter) is made of ABS
- Coring Plug is made of a high impact resistant plastic polymer
- Nickel bronze 1500 lbs. strainer load rating (light duty, pedestrian traffic)
- Square or round rings & strainers

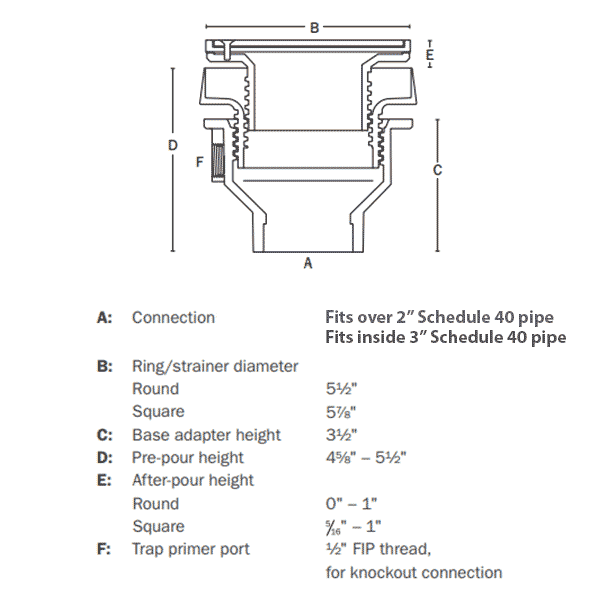

- View 2" connection floor drain dimensions
- View 3" connection floor drain dimensions
Complete Assemblies
Finish Fixtures ONLY - For ABS/PVC Adjustable Floor Drains
Round Finish Fixture
Square Finish Fixture
Rough-In Drains ONLY - For ABS/PVC Adjustable Floor Drains
Use with 5-1/2" Round or 5-7/8" Square Strainer Finish Fixtures

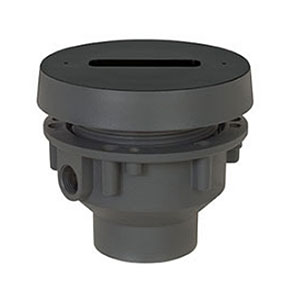

2" Rough-In Drain with Coring Plug

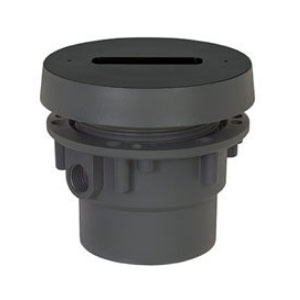

3" Rough-In Drain with Coring Plug
ABS/PVC Adjustable Floor Drain Assemblies
6-1/2" Round Strainer or 7" Square Strainer
Features:
- Choice of ABS or PVC hub connection
- Fully assembled rough-in drain
- Separately boxed finish drain fixture
- Choice of ABS or PVC base adapter (hub connection outlet)
- Coring sleeve (head adapter) is made of ABS
- Coring Plug is made of a high impact resistant plastic polymer
- Optional vandal resistant screws available
- 1000 lbs. strainer load rating (light duty, pedestrian traffic)
- Square or round rings & strainers

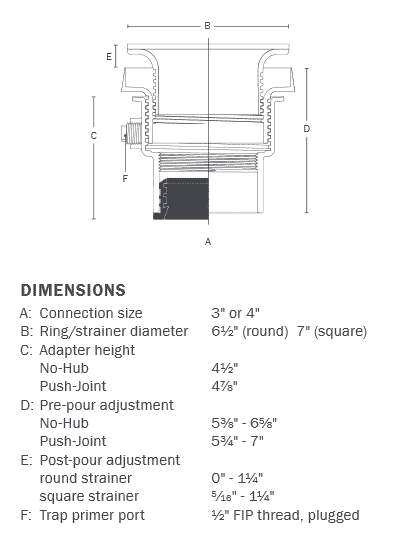

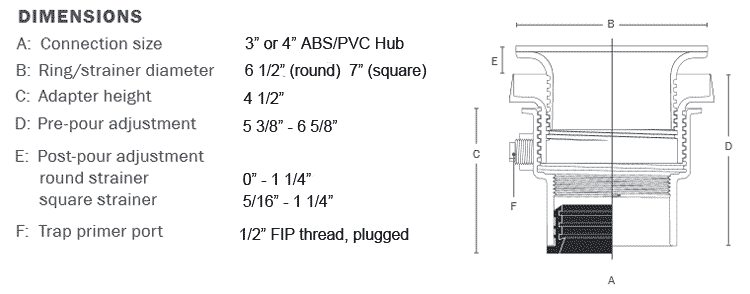

- View 3" & 4" connection floor drain dimensions

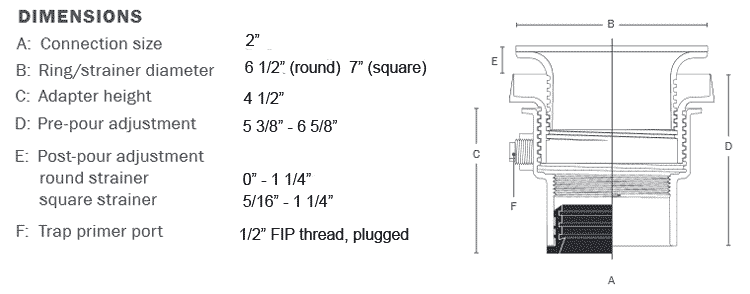

- View 2" connection floor drain dimensions
Finish Fixtures For ABS/PVC Adjustable Floor Drains
Round Finish Fixture
Square Finish Fixture

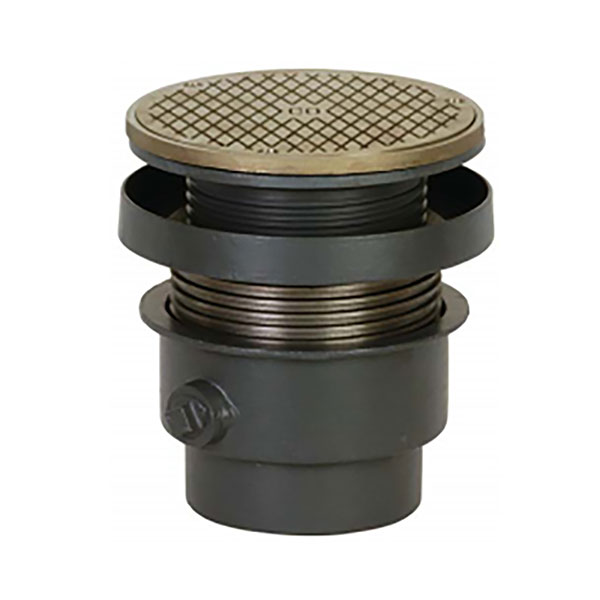

Complete Adjustable Ductile Iron Cleanout Assemblies
Features:
- Fully assembled rough-in cleanout assembly
- Cleanout for drain access
- Ductile iron base adapter, coring sleeve, & head adapter
- Poly coring plug protects the coring sleeve during concrete pour
- Includes polypropylene cleanout plug
- Choice of nickel bronze or ductile iron round finish fixtures (top cover)
- Optional vandal resistant screws available
- Nickel Bronze covers are for use in pedestrian areas - 4000 lbs. load rating
- Ductile Iron covers for use in heavy duty applications - 6000 lbs. load rating

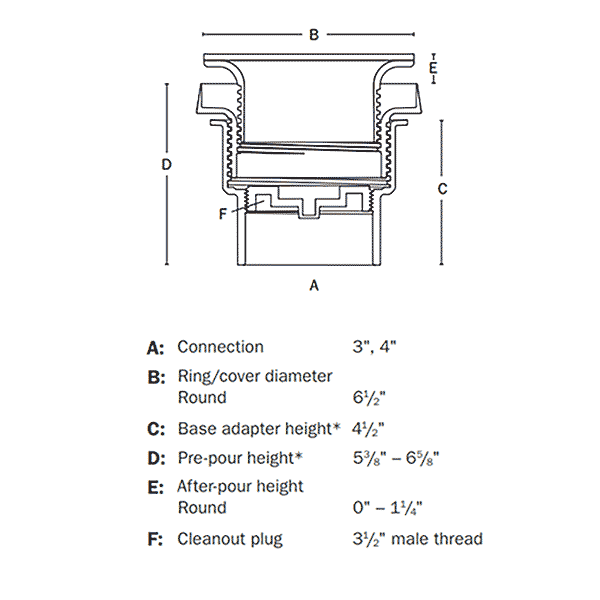

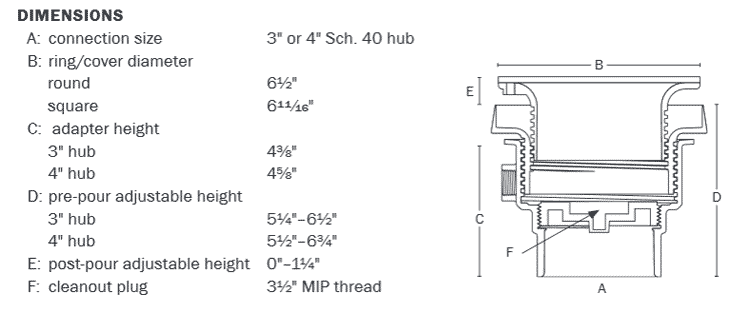

- View dimensions for: cleanout assemblies with 6-1/2" round covers

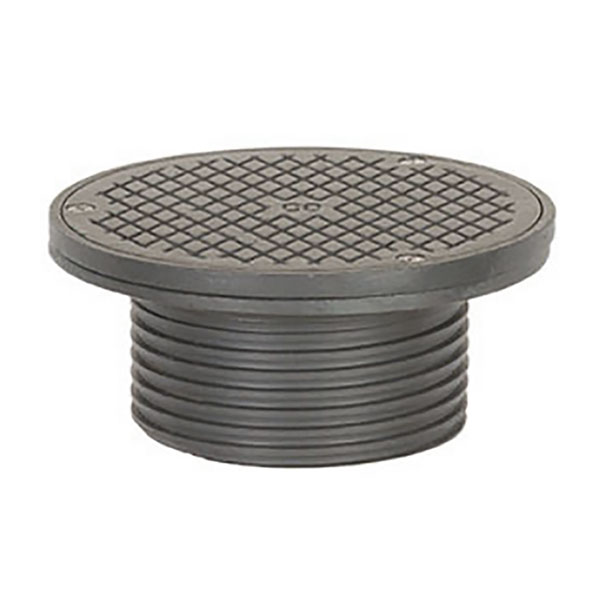

Finish Fixtures For Ductile Iron Cleanout Assemblies
ABS/PVC Adjustable Cleanout Assemblies
Features:
- Choice of ABS or PVC hub connection
- Fully assembled rough-in drain
- Cleanout plug included
- Finish cleanout fixture
- Coring plug, coring sleeve, & base adapter with cleanout plug
- Available in nickel-bronze top cover
- Optional vandal resistant screws available
- 4000 lbs. load rating (nickel-bronze)
- Square or round rings & strainers
- View dimensions
Finish Fixtures For ABS/PVC Cleanout Assemblies
Round Finish Fixture
Square Finish Fixture

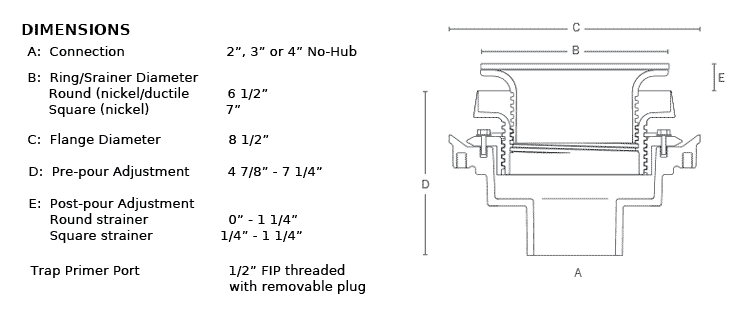

Ductile / Cast Iron Adjustable Flashing Drain Assemblies
Features:
- No-hub pipe connections
- Fully assembled rough-in drain
- Separately boxed finish drain fixture
- Cast iron base adapter
- Ductile iron clamping collar, coring sleeve, & head adapter
- Poly coring plug
- Optional vandal resistant screws available
- 1000 lbs. strainer load rating (nickel-bronze)
- 5000 lbs. strainer load rating (ductile iron)
- Square or round rings & strainers
- View dimensions

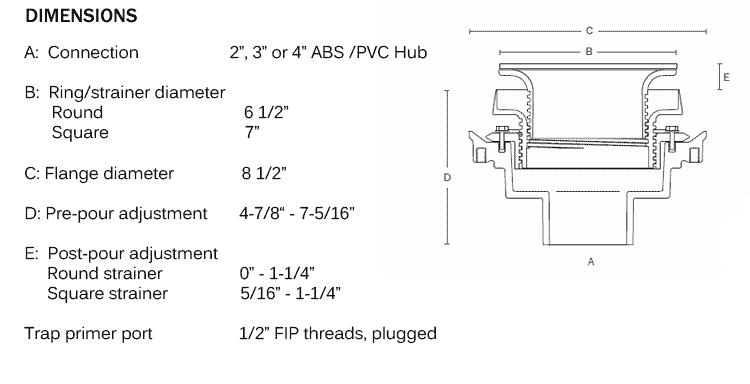

ABS/PVC Adjustable Flashing Drain Assemblies
Features:
- Choice of ABS or PVC Sch.40 hub connection
- Fully assembled rough-in drain
- Separately boxed finish drain fixture
- Coring plug, coring sleeve, & base adapter
- Optional vandal resistant screws available
- 1000 lbs. strainer light duty load rating
- For pedestrian traffic areas
- Square or round rings & strainers
- View dimensions

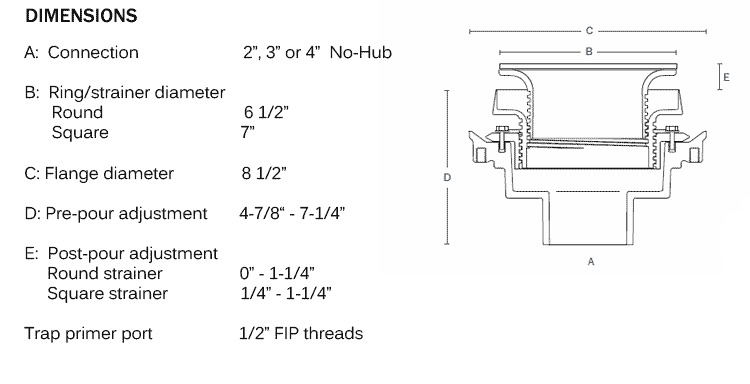

No-Hub Cast Iron Adjustable Flashing Drain Assemblies
Features:
- No-hub connection
- Fully assembled rough-in drain
- Separately boxed finish drain fixture
- Coring plug, coring sleeve, & base adapter
- Optional vandal resistant screws available
- Plastic & cast iron assemblies available
- 1000 lbs. strainer load rating
- Square or round rings & strainers
- View dimensions

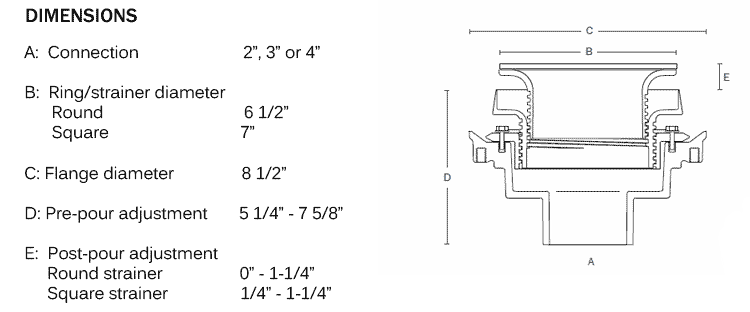

Push-Joint Cast Iron Adjustable Flashing Drain Assemblies
Features:
- Push-joint connection - easily connects to ABS or PVC
- Simply push pipe into "push-joint" connection
- Fully assembled rough-in drain
- Separately boxed finish drain fixture
- Coring plug, coring sleeve, & base adapter
- Optional vandal resistant screws available
- 1000 lbs. strainer load rating
- Square or round rings & strainers
- View dimensions
Finish Fixtures For Push-Joint Cast Iron Adjustable Flashing Drain Assemblies
Round Finish Fixture
Square Finish Fixture

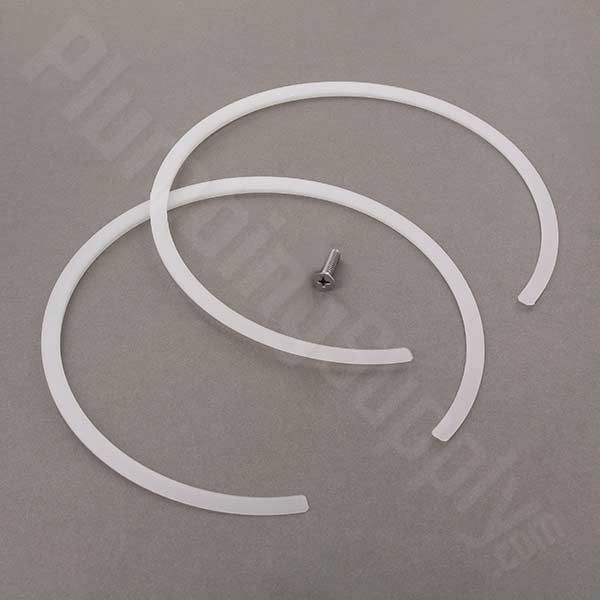

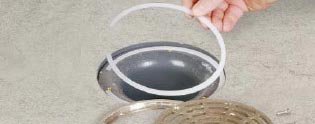

Adjustment Shims
ProblemMovement during the pour can result in a tilted drain or cleanout
SolutionWedge-shaped shims correct tilted-strainers or covers. Multiple shims can be used!
Fits all Finish-Line
™ drains

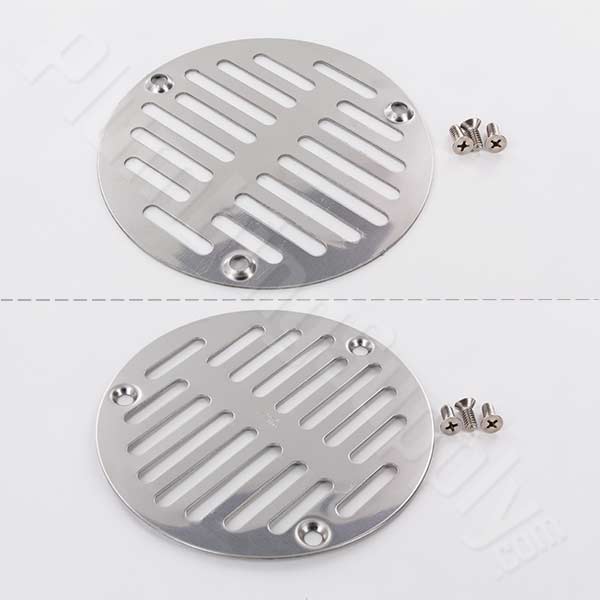

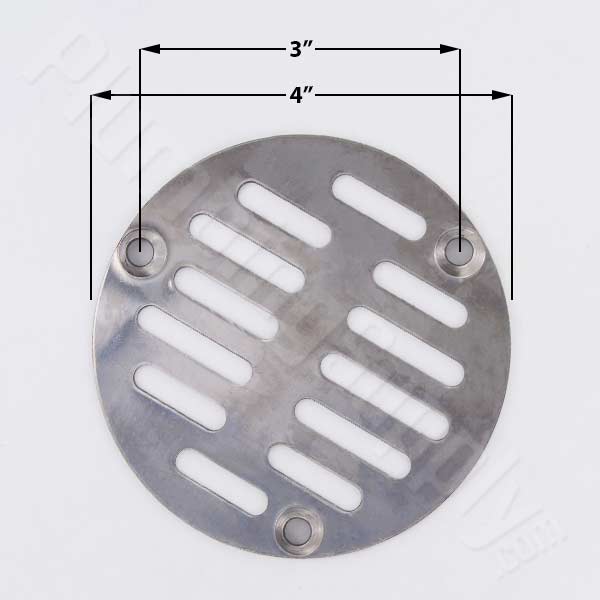

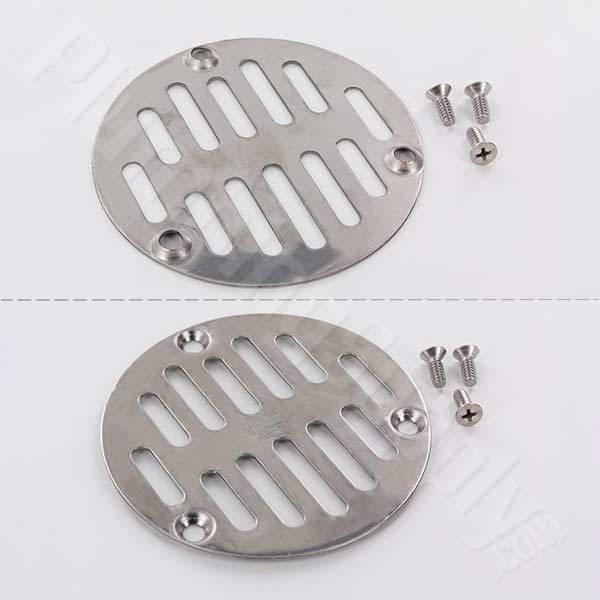

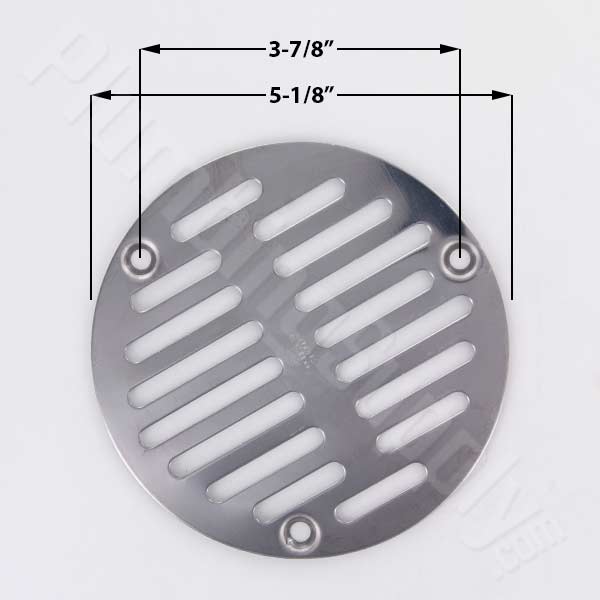

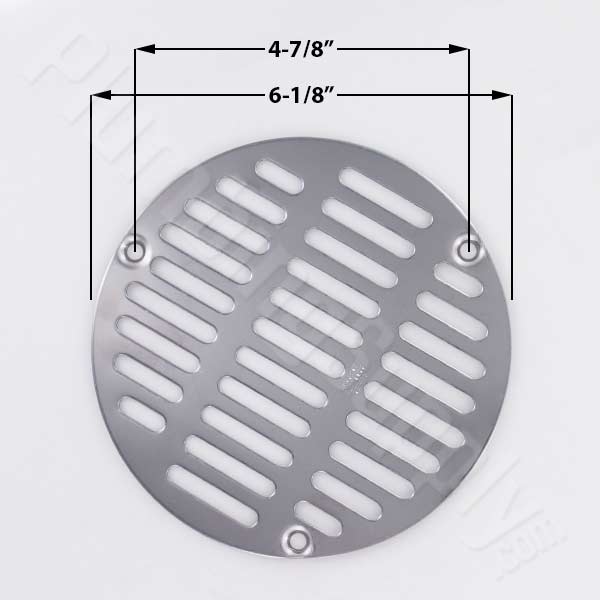

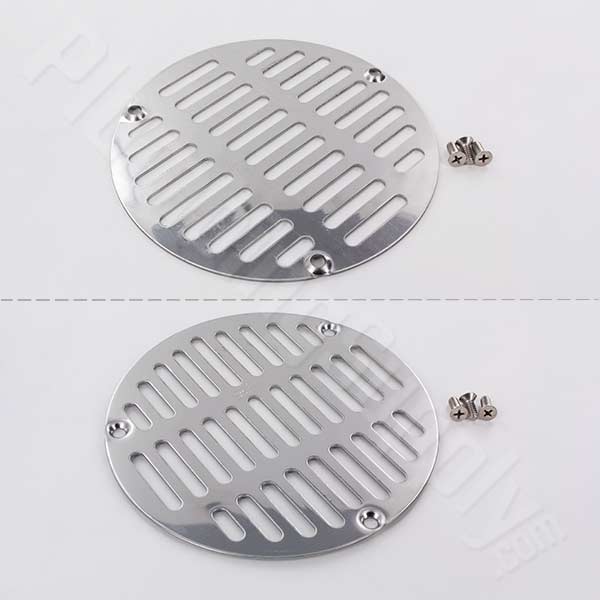

Replacement Strainers for Drains
These strainers feature:
- Fits Sioux Chief 832 series, 833 series, 842 series, 843 series, 844 series, 863 series, Atlas Drain, 3"x 4" Quad Drain
- Available in Stainless Steel and Nickel-Bronze materials
- Includes 3 screws
- 3/16" thickness
Related Items & Accessories
Frequently Asked Questions
Q. "What is a no-hub connection?"
A. A no-hub connection allows for a no-hub coupling to be used to connect the drain assembly to cast iron or steel pipe (non threaded). A no-hub coupling consists of a rubber sleeve and a stainless steel
band secured by hose clamps. A variation, known as a flexible pipe connector, consisting of a neoprene sleeve with two adjustable steel bands is used for connecting dissimilar materials as when
connecting new plastic pipe to an existing cast-iron drainpipe.
Q. "What is a Push Joint?"
A. A push-joint is a neoprene gasket, ribbed on the inside, that allows the drain or cleanout assembly to be attached to cast iron pipe. You simply push and force the drain or cleanout fitting onto the cast
iron pipe. The neoprene snugly grips the outside of the cast iron pipe, and the ribs inside the gasket keep the pipe from slipping out of the gasket.
Q. "How do you install these great adjustable drainage systems?"
A. It's simple View a full installation write-up.
