Bar/Prep & Laundry Faucet Repair Parts

for Valley Faucets
- many of these parts are genuine Valley brand -

PlumbingSupply.com® is your source for Valley repair parts. Why replace when you may be able to repair your quality Valley faucet?

Classic Single Handle Bar/Prep Faucet Parts

some parts listed below may fit the following faucet models
A600, A604, A606, CL600, L600, L604, L606, NA600, NA604, NA606, NC600, NC604, NC606, NL600, NL604, NL606

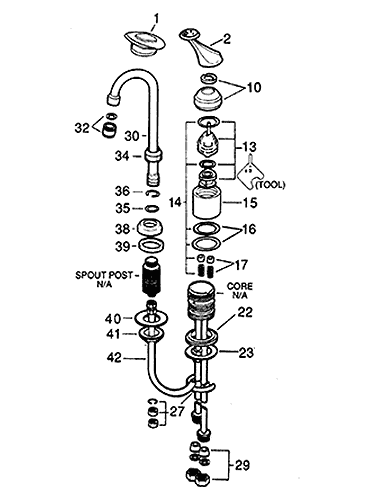

Old StyleValley single handle bar faucet parts diagram - old style

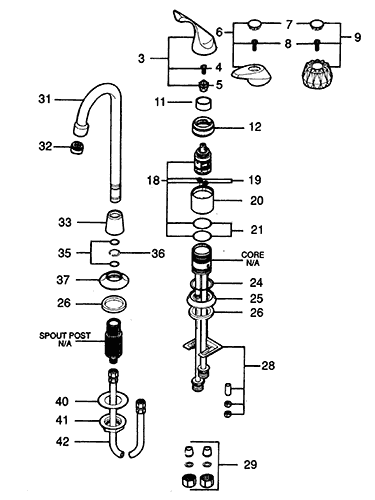

New StyleValley single handle bar faucet parts diagram - new style
Item # Image Description Price & Quantity
1 valley handle v6679bg V6679 - Acrylic Teardrop Handle - Clear $20.30 Enter a quantity and
2 valley handle v1165 V1165 - Lever Handle - Chrome - stamped hot/cold at end of handle $20.01 Enter a quantity and
3 valley single lever handle vp1989 VP1989 - Short Lever Handle - Chrome $22.03 Enter a quantity and
VP19894 - Short Lever Handle - Polished Brass - Replaced by VP19898 $30.81 Enter a quantity and
valley long lever handle vp1988 VP1988 - Long Lever Handle - Chrome $11.52 Enter a quantity and
4 valley part handle adapter screw vp1780 VP1780 - Handle Adapter Screw $1.74 Enter a quantity and
5 valley vp1963 stem adapter VP1963 - Handle Adapter $2.52 Enter a quantity and
6 valley handle v5002bg V5002 - Acrylic Teardrop Handle - Clear $12.41 Enter a quantity and
7 valley button v6970 V6970 - Plug Button - Replaces V6904 $3.85 Enter a quantity and
8 valley v7810 handle screw V7810 - Handle Adapter Screw $1.07 Enter a quantity and
9 valley handle v5001bg V5001 - Acrylic Knob Handle - Clear $16.79 Enter a quantity and
valley v50016 acrylic handle V50016 - Acrylic Knob Handle - Smoked Discontinued
Item # Image Description Price & Quantity
10 bonnet nut assembly v8228 chrome V8228 - Bonnet Assembly - Replaces V6633 $14.96 Enter a quantity and
11 valley bonnet lock ring vp 1713 VP1713 - Bonnet Lock Ring - for VP1712 bonnet nut $2.91 Enter a quantity and
12 valley vp1712 bonnet nut chrome VP1712 - Bonnet Nut - Chrome $15.26 Enter a quantity and
13 valley part cartridge 6680 V6680 - Genuine Single Handle Cartridge $20.21 Enter a quantity and
14 vashosin repair kit v1001 V1001 - Repair Kit (includes tool) $11.49 Enter a quantity and
15 image unavailable V5521 - Hub Discontinued
16 valley v1112 o-ring kit V1112 - O-Ring Repair Kit $4.20 Enter a quantity and
17 valley faucet springs and seals V7059 - Seals & Springs Repair Kit $4.59
valley part will-fit seats and springs kit V7059 - "Will-fit" Seals & Springs Repair Kit $3.75 Enter a quantity and
18 valley part cartridge 1964 main VP1964 - Single Handle Cartridge $17.47 Enter a quantity and
19 valley part port seal ring vp1952 VP1952 - Port Seal Ring - fits V1964 cartridge for new style faucets $2.17 Enter a quantity and

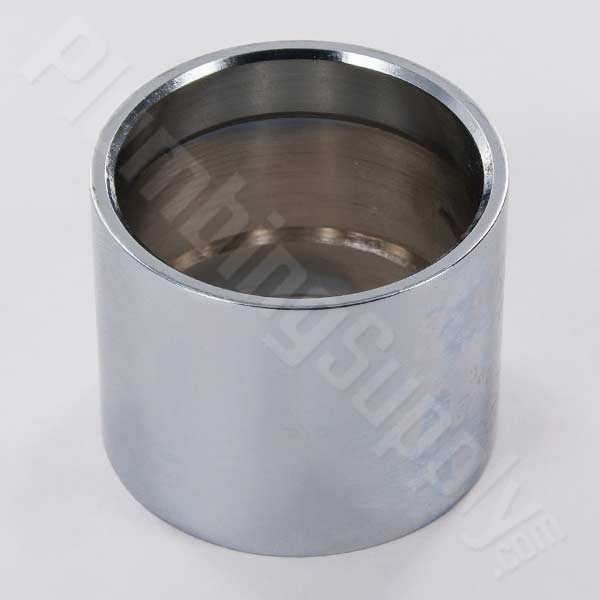

20 valley spout hub vp1926-ch VP1926 - Spout Hub - Chrome $3.12 Enter a quantity and
Item # Image Description Price & Quantity
21 valley part o-ring vp1987 VP1987 - Spout O-Ring $1.42 Enter a quantity and
22 image unavailable V5502 - Core Seat Discontinued
23 image unavailable V5504 - Gasket Discontinued
24 image unavailable V1910 - Bearing Hub Discontinued
25 valley core seat v2023-ch V2023 - Core Seat $4.94 Enter a quantity and

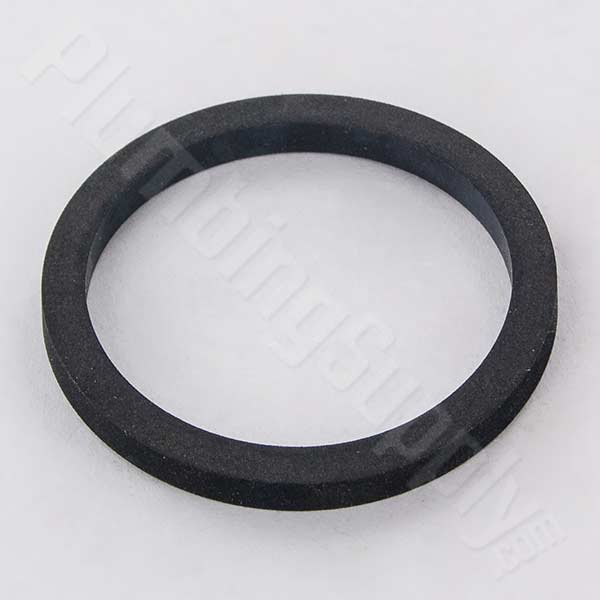

26 valley v3836 gasket V3836 - Gasket $2.40 Enter a quantity and
27 image unavailable V6230 - Mounting Hardware Parts Bag Discontinued
28 valley mounting hardware v6237 V6237 - Mounting Hardware Parts Bag $0.98 Enter a quantity and
29 image unavailable V6643 - IPS Mounting Hardware Parts Bag Discontinued
30 image unavailable V1860 - Old Style Bar Spout Assembly Discontinued
31 image unavailable V2052 - New Style Bar Spout Assembly Discontinued
32 valley will-fit aerator lv3101 LV3101 - "Will Fit" Aerator - Chrome $5.86 Enter a quantity and
neoperl aerator 11-1230 polished brass LV31014 - "Will Fit" Aerator - Polished Brass $4.19 Enter a quantity and
Item # Image Description Price & Quantity
33 image unavailable V2055 - Spout Bonnet Discontinued
34 image unavailable V1864 - Spout Bonnet Discontinued
35 image unavailable V1854 - O-Ring Discontinued
36 image unavailable V1855 - Retaining Ring Discontinued

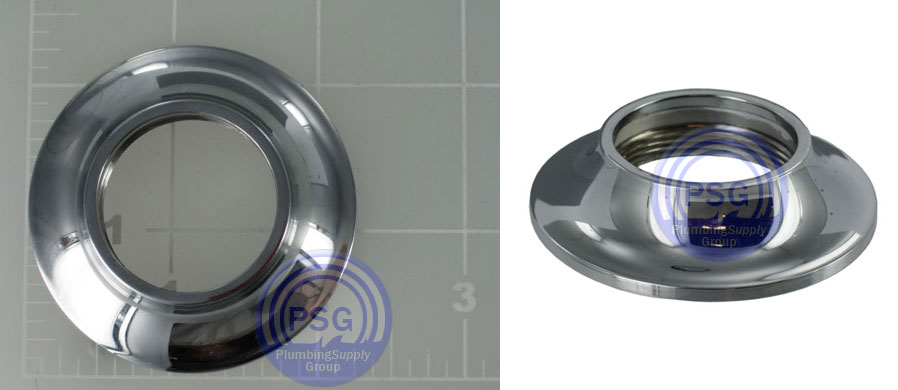

37 valley escutcheon v3957 V3957 - Escutcheon - Chrome Discontinued

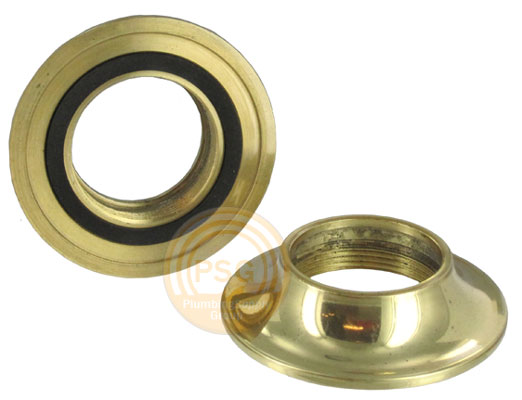

valley escutcheon v39574 polished brass V39574 - Escutcheon - Polished Brass Discontinued
38 image unavailable V1345 - Escutcheon - Chrome Discontinued
39 valley v3836 gasket V3836 - Gasket $2.40 Enter a quantity and
40 valley v3410 mounting washer V3410 - Mounting Washer $1.70 Enter a quantity and
41 image unavailable V7828 - Mounting Nut Discontinued

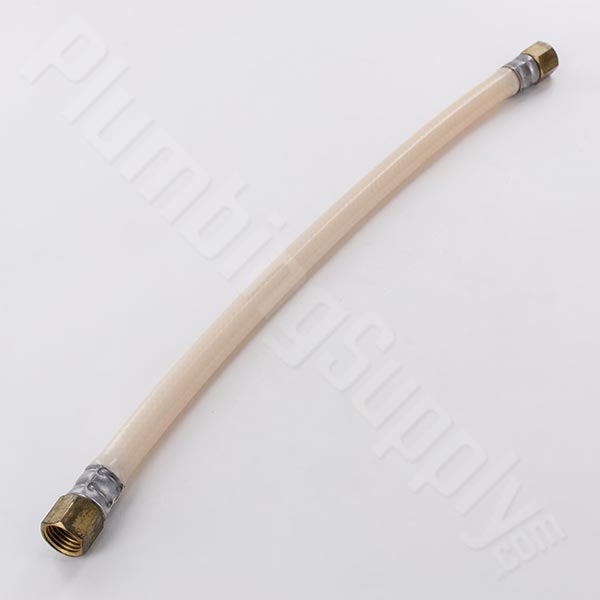

42 valley v3835 hose V3835 - Crossover Hose $5.84 Enter a quantity and
Not Shown silicone lubricant Stem & O-Ring Lubricant (1/4 oz.) $4.10 Enter a quantity and
Please note: Due to state mandated low-flow regulations, these aerators cannot be shipped to California.
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Two Handle Bar/Prep Faucet Parts
for Duet, Valleycrest, Valley II, and porcelain cross faucets

some parts listed below may fit the following faucet models
TC600, TC604, TC606, TDB607, TDX600, TDX604, TDX606, TH600, TH604

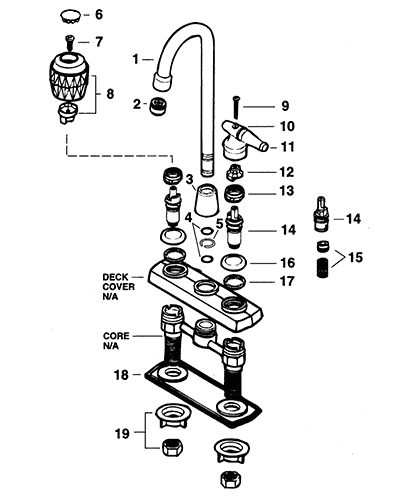

Valley double handle bar/prep faucet parts diagram

Item # Image Description Price & Quantity
1 image unavailable V2052 - Spout Discontinued
2 valley will-fit aerator lv3101 LV3101 - "Will Fit" Aerator - Chrome $5.86 Enter a quantity and
neoperl aerator 11-1230 polished brass LV31014 - "Will Fit" Aerator - Polished Brass $4.19 Enter a quantity and
3 image unavailable V2055 - Spout Bonnet Discontinued
4 image unavailable V1854 - O-Ring Discontinued
5 image unavailable V1855 - Retaining Ring Discontinued

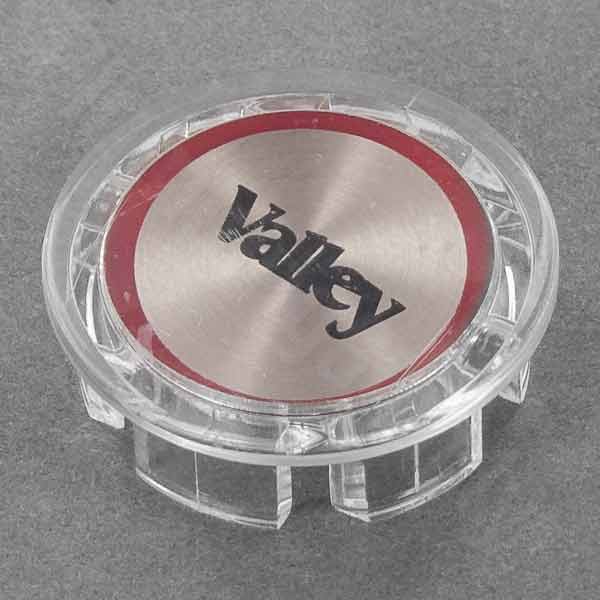

6 valley v6943 hot button V6943 - Hot Button For Round Handle $3.82 Enter a quantity and
valley v6944 cold button V6944 - Cold Button For Round Handle $3.86 Enter a quantity and
7 valley v7833 handle screw V7833 - Handle Screw $1.81 Enter a quantity and
8 See acrylic handle options below
9 valley v3966 screw V3966 - Handle Screw - Chrome $0.88 Enter a quantity and

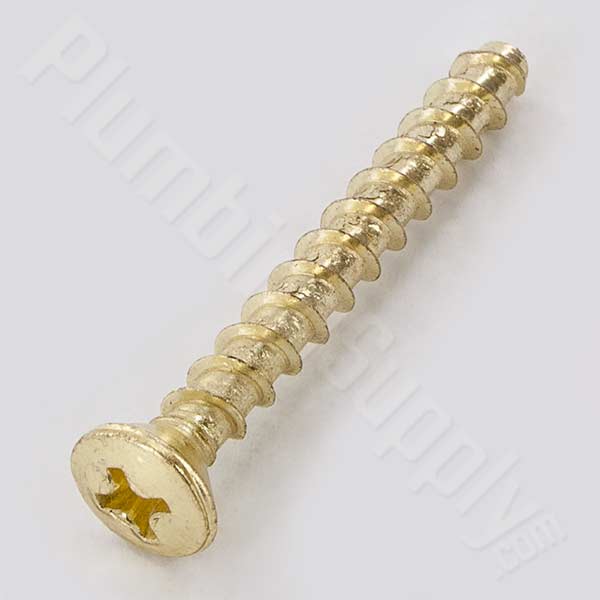

valley v39668 screw V39668 - Handle Screw - Polished Brass - Replaces V39664 $1.96 Enter a quantity and
10 See lever handle adapters below
11 See lever handle options below
Item # Image Description Price & Quantity
12 valley part stem adapter v3971 V3971 - Green (Cold) Stem Adapter $3.59 Enter a quantity and
valley part stem adapter v3955 V3955 - Yellow (Hot) Stem Adapter - $3.59 Enter a quantity and

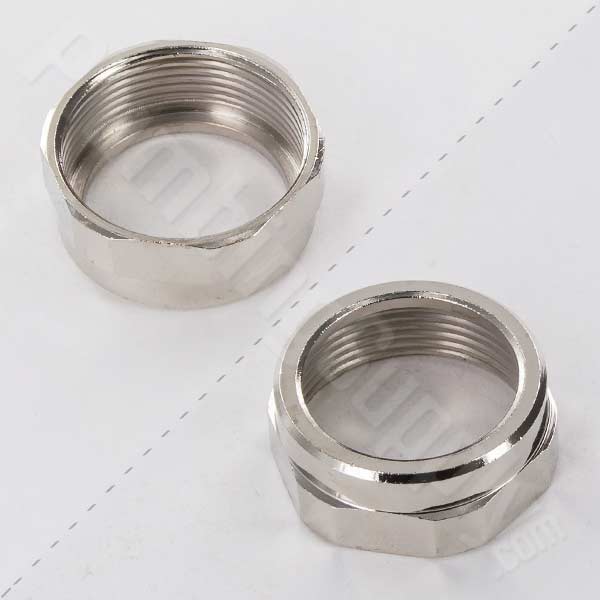

13 valley bonnet nut v1814 chrome V1814 - Bonnet Nut - Chrome $7.69 Enter a quantity and

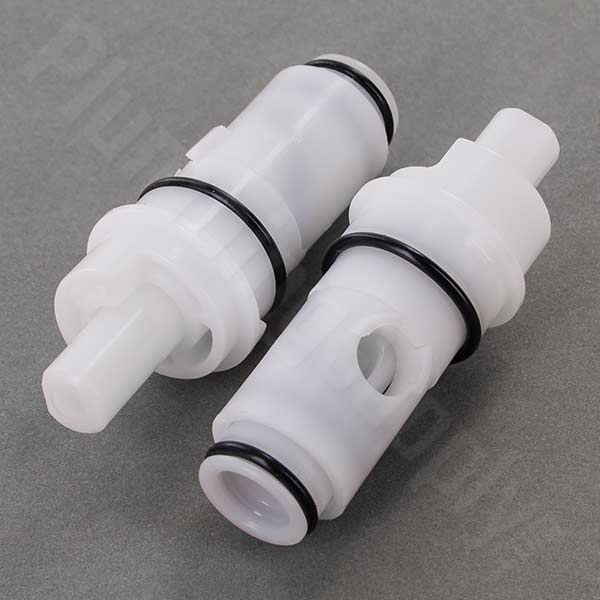

14 valley v6860 cartridge pair V6860 - Cartridge (new style) - PAIR $12.89 Enter a quantity and

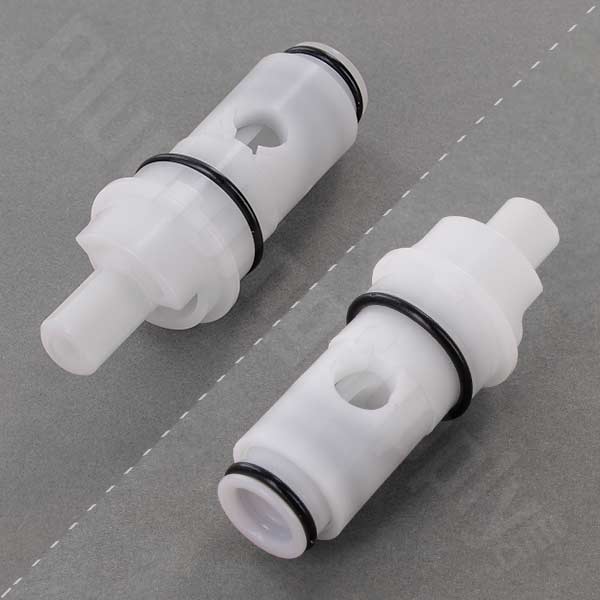

valley v6860 cartridge single V6860 - Cartridge (new style) - EACH $8.58 Enter a quantity and

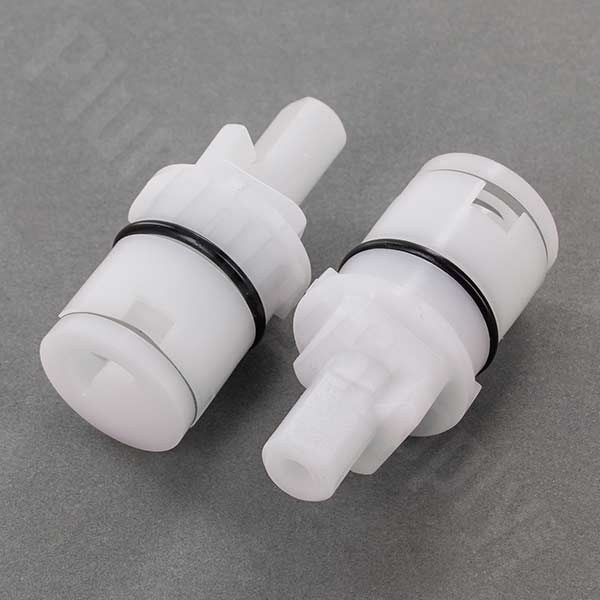

valley v6804 cartridge pair V6804 - Cartridge (old style) - PAIR $15.40 Enter a quantity and

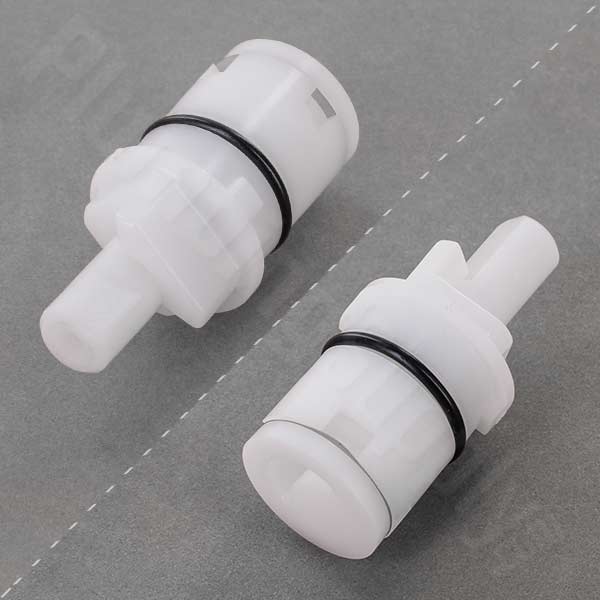

valley v6804 cartridge single V6804 - Cartridge (old style) - EACH $10.78 Enter a quantity and
15 valley faucet springs and seals V7059 - Seals & Springs Repair Kit $4.59 Enter a quantity and
valley part will-fit seats and springs kit V7059 - "Will Fit" Seals & Springs Repair Kit $3.75 Enter a quantity and
16 image unavailable V3972 - Spacer Escutcheon - Chrome Discontinued

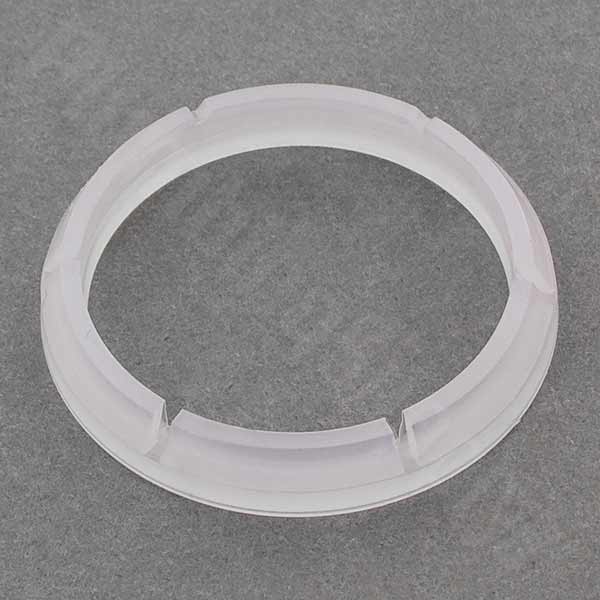

17 valley spacer v7835 V7835 - Spacer $1.22 Enter a quantity and
18 image unavailable V1852 - Undercover Plate Discontinued
19 image unavailable V6809 - Mounting Parts Bag Discontinued
Not Shown silicone lubricant Stem & O-Ring Lubricant (1/4 oz.) $4.10 Enter a quantity and
Please note: Due to state mandated low-flow regulations, these aerators cannot be shipped to California.
Please note: For faucets with porcelain cross handles, use V3955 (yellow) stem adapter for both hot and cold controls.
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Handle Adapters and Options for Two-Handle Bar Faucets

Item # Image Description Price & Quantity
8 valley v6859 round handle for shower valve V6859 - Starfire Round Acrylic Handles (PAIR) - Clear $27.78 Enter a quantity and
valley handle v6859h V6859H - Starfire Round Acrylic Handle (HOT) - Clear $12.71 Enter a quantity and
valley handle v6859c V6859C - Starfire Round Acrylic Handle (COLD) - Clear $12.63 Enter a quantity and
valley will-fit acrylic round handles pair 6859l 6859 - "Will Fit" Round Acrylic Handles (PAIR) - Clear $17.58 Enter a quantity and
valley will-fit acrylic round handle hot 6859h 6859H - "Will Fit" Round Acrylic Handle (HOT) - Clear $6.24 Enter a quantity and
valley will-fit acrylic round handle cold 6859c 6859C - "Will Fit" Round Acrylic Handle (COLD) - Clear $6.15 Enter a quantity and
10 valley handle assembly v3965 V3965 - Handle Adapter Without Screw (V3966) and Stem Insert (V3955) - Chrome $23.07 Enter a quantity and
valley handle adapter v3965 - v3971 V3965-GS - Handle Adapter - Includes V3971 Green Hot Stem Adapter & V3966 Screw - Chrome $30.84 Enter a quantity and
valley handle adapter v3965 - v3955 V3965-YS - Handle Adapter - Includes V3955 Yellow Cold Stem Adapter & V3966 Screw - Chrome - $30.85 Enter a quantity and
Item # Image Description Price & Quantity
11 valley handle chrome v3964 V3964 - Solid Brass Lever Handle Insert - Chrome $15.26 Enter a quantity and
valley handle porcelain polished brass v39868 V39868 - Porcelain Lever Handle Insert with End Button Accent - Polished Brass - Replaces V39864 $5.03 Enter a quantity and
valley handle v3964 wood and chrome V3962 - Wood Lever Handle Insert with End Button Accent - Chrome Discontinued
valley handle wood polished brass v39628 V39628 - Wood Lever Handle Insert with End Button Accent - Polished Brass - Replaces V39624 $5.30 Enter a quantity and
valley handle wood antique brass v39626 V39626 - Wood Lever Handle Insert with End Button Accent - Antique Brass $5.33 Enter a quantity and
valley handle crystal chrome v3989 V3989 - Lead Crystal Lever Handle Insert with End Button Accent - Chrome $21.22 Enter a quantity and
valley handle crystal polished brass v39898 V39898 - Lead Crystal Lever Handle Insert with End Button Accent - Polished Brass - Replaces V39894 $20.03 Enter a quantity and
valley handle crystal antique brass v39896 V39896 - Lead Crystal Lever Handle Insert with End Button Accent - Antique Brass Discontinued
valley handle marble polished brass v39508 V39508 - Ash Marble Lever Handle Insert with End Button Accent - Polished Brass - Replaces V39504 $7.48 Enter a quantity and
valley handle marble antique brass v39506 V39506 Ash Marble Lever Handle with End Button Accent - Antique Brass Discontinued
valley handle marble black polished brass v39498 V39498 - Black Marble Lever Handle Insert with End Button Accent - Polished Brass - Replaces V39494 $7.83 Enter a quantity and
valley handle clear v3960 V3960 - Acrylic Lever Handle Insert - Clear $8.75 Enter a quantity and

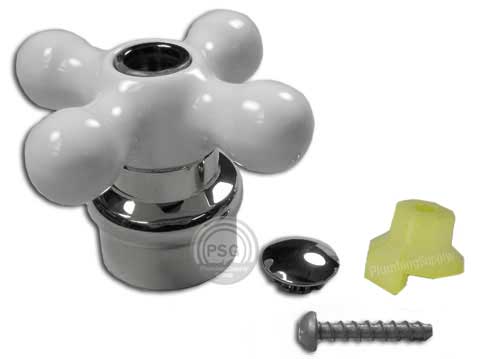

Not Shown valley v3988 handle chrome V3988 - Porcelain Cross Handle - Chrome Discontinued

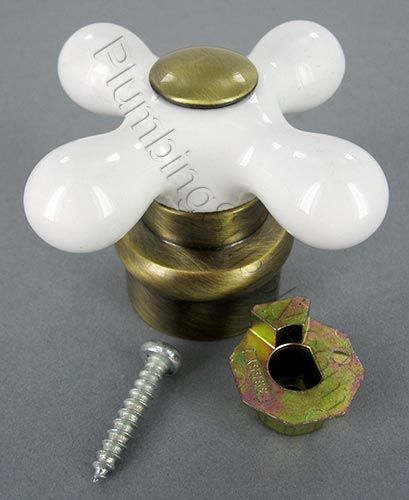

valley porcelain cross handle v39886 antique brass V39886 - Porcelain Cross Handle - Antique Brass Discontinued

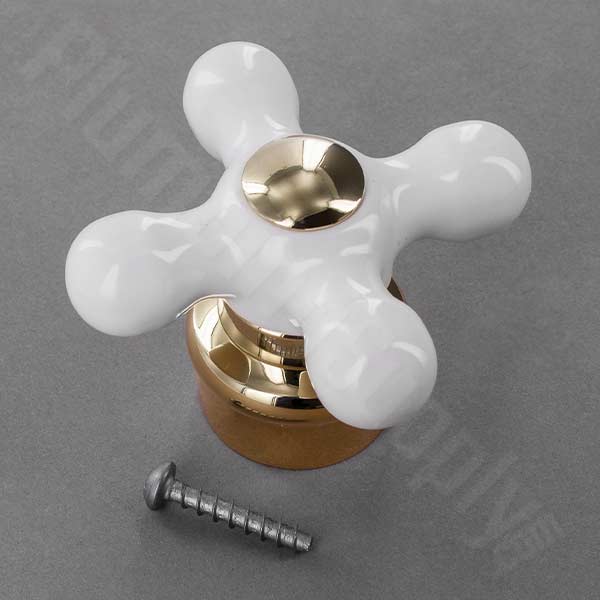

valley faucet handle polished brass v39888 V39888 - Porcelain Cross Handle - Polished Brass - Replaces V39884 $33.85 Enter a quantity and
Please note: For faucets with porcelain cross handles, use V3955 (yellow) stem adapter for both hot and cold controls.
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Valley II Laundry Faucet Parts

some parts listed below may fit the following faucet models
TM620
Valley double handle laundry faucet parts diagram
Item # Image Description Price & Quantity
1 valley hot button v6943 V6943 - Hot Button $3.82 Enter a quantity and
valley cold button v6944 V6944 - Cold Button $3.86 Enter a quantity and
2 valley v7833 handlescrew V7833 - Handle Screw $1.81 Enter a quantity and

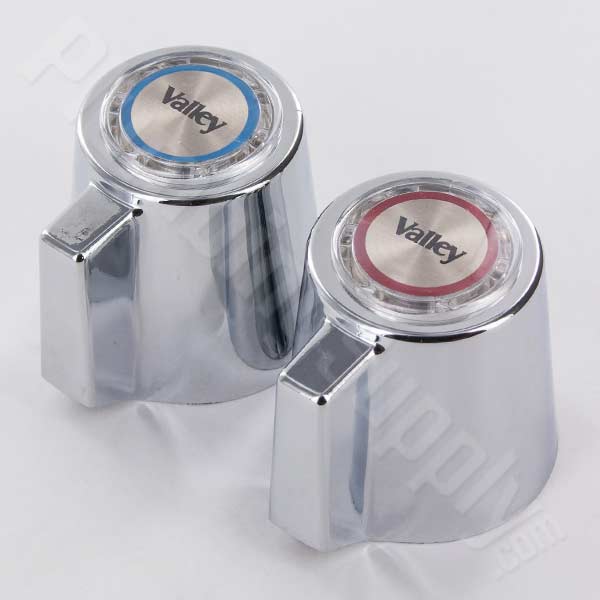

3 valley blade handle set hot cold V7804CD - Blade Handles (PAIR) - Chrome - includes hot/cold handles, buttons, & screws $22.51 Enter a quantity and

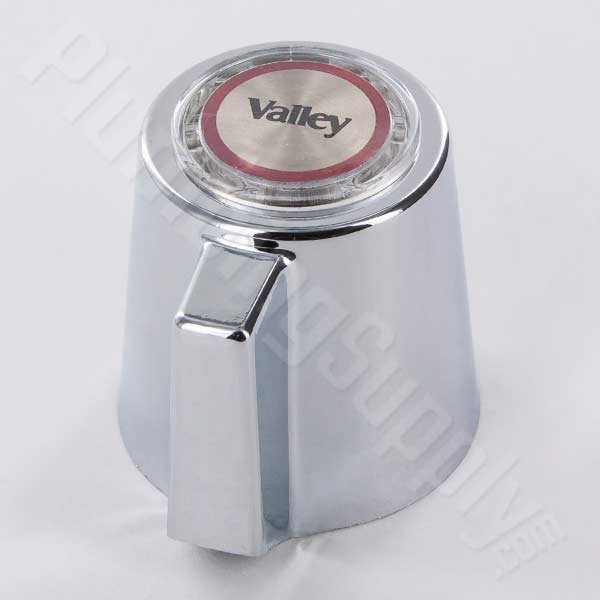

valley hot blade handle kit v7804 V7804 - Blade Handle (HOT) - Chrome - includes hot handle, button, & screw $11.59 Enter a quantity and

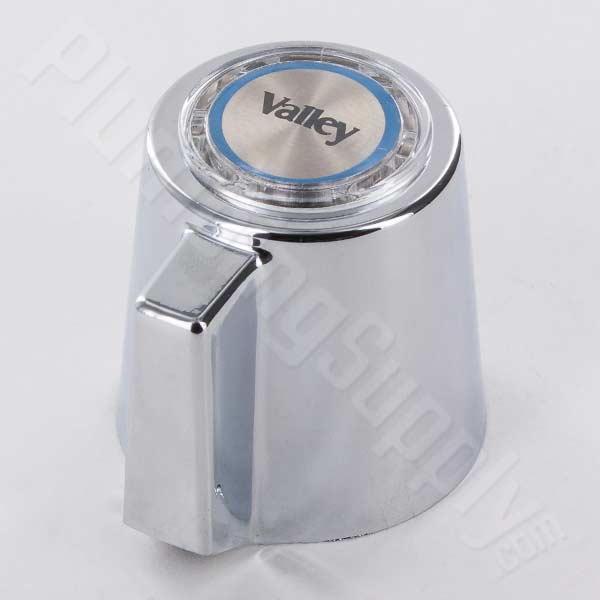

valley cold blade handle kit v5861 V5861 - Blade Handle (COLD) - Chrome - includes cold handle, button, & screw $11.64 Enter a quantity and
4 valley bonnet nut v1814 chrome V1814 - Bonnet Nut - Chrome $7.69 Enter a quantity and

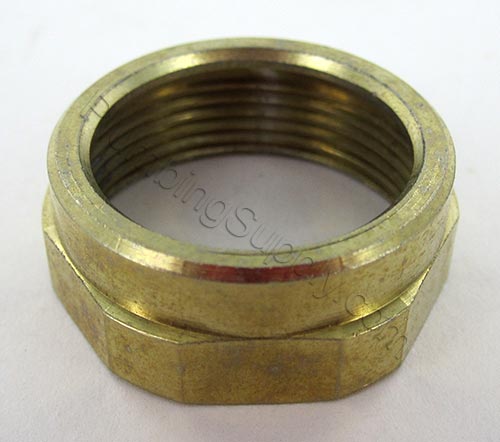

valley bonnet nut v18148 polished brass V18148 - Bonnet Nut - Polished Brass - Replaces V18144 Discontinued
Item # Image Description Price & Quantity
5 valley cartridge pair v6860 V6860 - Cartridge (new style) - PAIR $12.89 Enter a quantity and
valley v6860 cartridge single V6860 - Cartridge (new style) - EACH $8.58 Enter a quantity and
6 valley v6804 cartridge pair V6804 - Cartridge (old style) - PAIR $15.40 Enter a quantity and
valley cartridge single v6804 V6804 - Cartridge (old style) - EACH $10.78 Enter a quantity and
7 valley faucet springs and seals repair kit V7059 - Seals & Springs Repair Kit $4.59 Enter a quantity and
valley part will-fit seats and springs repair kit V7059 - "Will Fit" Seals & Springs Repair Kit $3.75 Enter a quantity and
8 valley spacer v7835 V7835 - Spacer $1.22 Enter a quantity and
9 image unavailable V1852 - Undercover Plate Discontinued
10 image unavailable V6809 - Mounting Parts Bag Discontinued
Not Shown silicone lubricant Stem & O-Ring Lubricant (1/4 oz.) $4.10 Enter a quantity and
Please carefully compare available pictures and diagrams with your faucet to be sure you are ordering the correct Valley part. The parts that we show are what we ship. We do charge a restocking fee if you order the wrong Valley parts.

Looking for more Valley Faucet parts?

Valley Faucet Parts IndexValley Parts Index
Valley faucet handleMost Popular Valley Parts

Valley shower escutcheonAdditional Valley Parts
Valley faucet repair cartridgeValley Stems & Cartridges

Please note: Although many parts we have available are made from the same molds used by the original manufacturer, Valley is no longer in business, so warranty coverage on existing products is no longer available. Parts that we offer fall under our standard policy.

Frequently Asked Questions

Q. "I don't know what year my single handle bar faucet was installed or manufactured. How can I be certain what type of cartridge is in my faucet, the old style or the new style?"
A. There are two ways. One is to turn your water off, remove the cartridge and compare your cartridge with the pictures we show on our site. The old style and new style cartridges are very different in appearance and the stems (handle shafts) are very different. The other way does not involve turning your water off. You just need to measure the outside diameter of the bonnet nut. The outside diameter of the bonnet nut for the old style cartridge measures 1-15/16" while the outside diameter of the bonnet nut for the new style cartridge measures 1-11/16".

Q. "How do I remove the V6679 acrylic tear drop handle to replace it or change the cartridge?"
A. There is a set screw on the bottom (downward side) of the V6679 handle that needs to be loosened in order to remove the handle off of the V6680 cartridge stem. Use an 1/8" hex key (Allen wrench).

Q. "I just purchased the V1001 control assembly repair kit for my Old Style Valley single handle bathroom faucet. How do I install this kit?"
A. The V1001 kit also includes o-rings used for the repair of old style Kitchen faucets. When using this kit for bathroom sink faucets you will end up with three extra o-rings left over. These large extra o-rings would normally be used for the swivel spout, but Valley bathroom sink faucets do not have swivel spouts. Installation instructions are as follows;

1) Turn the hot and cold water supply to your faucet off.

2) Remove the handle (#1 or #2 in the old style parts diagram shown above) Use the allen wrench tool provided in the kit.

3) Unscrew the bonnet nut (#10 in parts diagram), leave the white adjustment screw at the top of the bonnet nut untouched.

4) Remove the cartridge (#13 in parts diagram) carefully. The cartridge will separate into 3 pieces. Try to notice very carefully how this cartridge appears when removed and try to keep this cartridge together because it can be somewhat of a puzzle trying to reassemble it.

5) After the complete cartridge is removed, remove the seals and springs (#17 in parts diagram) located underneath the cartridge in two separate smaller cylinders in the brass body. You may need to use a small flat head screwdriver to remove them. Be very careful not to scratch the brass internal cylinder portion of the faucet body.

6) Using your index finger and your thumb, install the new seals and springs (#17 in parts diagram) into the bottom of the brass body. The nylon insert side of the springs should be put down into the bottom against the brass body. The seals are placed on top of the springs as shown in this image. Gently push the seals down into the cylinder holes with your index finger. They will not sit all the way flush into the holes. They will sit slightly above the holes due to the tension of the springs.

7) The small o-ring provided will replace the small o-ring inside the cartridge on the triangular lower section of the cartridge. We recommend a food grade silicone grease be used to lube the o-rings. This will help keep the o-rings pliable for years to come. Do NOT use Vaseline, chap stick, or other petroleum based lubricants as these products will cause the 0-rings to swell and then dry up prematurely.

8) Remove the o-ring attached to the upper portion of the cartridge and match it's size to one of the other larger o-rings provided. Put the o-ring that matches closest to the size of the old o-ring and place it on the cartridge.

9) RE-insert the cartridge back in the body of the faucet. There is a tab at the top of the cartridge that will align up with a slot at the top of the body. This can be somewhat tricky as the tension from the seals and springs will keep pushing the cartridge up.

10) RE-thread (hand tighten) the Bonnet Nut (#10 in parts diagram) over the top of the cartridge and onto the faucet body. You may need to push down on the stem of the cartridge to push the cartridge down against the seals and springs as you HAND tighten the Bonnet Nut. The Bonnet Nut should thread easily on. Be careful not to cross thread.
IMPORTANT: Only hand tighten the Bonnet Nut. Do NOT use a wrench. Hand tighten until the bonnet nut is snug.

The tool provided has a couple of prongs that can be used to tighten the adjusting screw at the top of the bonnet nut. Since you are putting new seals and springs into the faucet you should not need to tighten the adjusting ring since the new springs should put enough tension against the bonnet nut to squeeze the cartridge tight against the springs.

11) Turn the hot and cold water supply to your faucet back on. Unscrew the aerator (#32 in parts diagram) and temporarily hold it in your hand as you turn the faucet on. Let the water run for 30 seconds and then turn off the faucet. This will allow any dirt or debris in the water lines to pass through the cartridge and not clog up the aerator. Replace the aerator and enjoy your faucet.

return to top ↑

Copyright© 1995-2024 PlumbingSupply.com.
All Rights Reserved.
